1SSA705706R0100

Description
Strip Terminal Block, 24A, 2.5mm2, 3 Row(s), 3 Deck(s)
CategoryThe connector    terminals
File Size175KB,1 Pages
ManufacturerABB
Websitehttp://www.abb.com/
Download Datasheet Parametric Compare View All

1SSA705706R0100 Overview

Strip Terminal Block, 24A, 2.5mm2, 3 Row(s), 3 Deck(s)

1SSA705706R0100 Parametric

Parameter NameAttribute value
Reach Compliance Codecompliant
ECCN codeEAR99
Is SamacsysN
Other features94V-0
Fastening methodSCREW
Installation typeBOARD
Number of layers3
Rows3
Number of channels6
Rated current24 A
Rated voltage250 V
safety certificateUL; CSA
Terminal and terminal strip typesSTRIP TERMINAL BLOCK
Conductor cross section2.5 mm2
Wire gauge14 AWG
Base Number Matches1

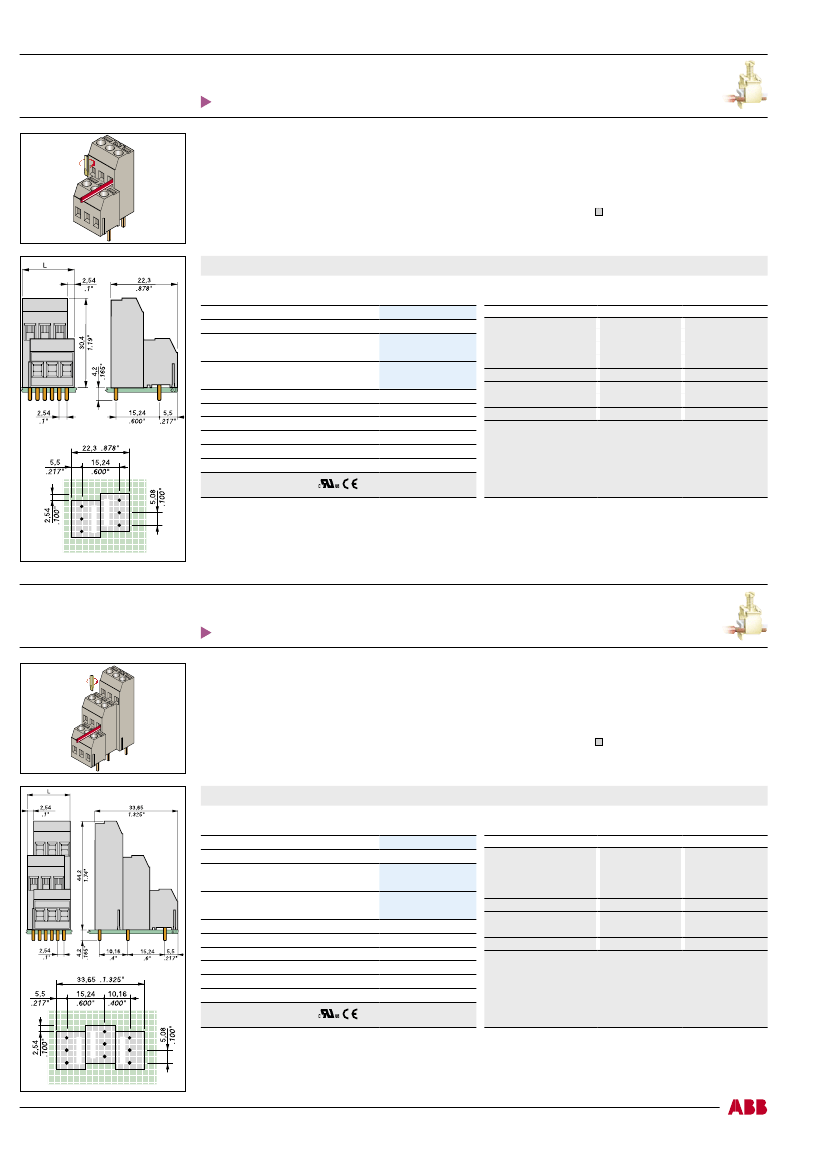

PM 2,5 /D...
P.C.B. terminal blocks
Pin
1 x 1 x 4.2 mm
.039" x .039" x .165"
Expert Range - Screw clamp connection
Terminal blocks for connection parallel to P.C.B.
Double deck single blocks with dovetail.
The 2nd deck is half the spacing off-set to left.
P.C.B. thickness ≤ 3.2 mm
.126"
P.C.B. holes Ø 1.3 mm
.052"
Body : UL94 V0 - PA
Grey
2.5 mm² - Spacing 5.08 mm
.200"
Ordering details
N. Poles
Weight kg
Packaging
L. mm
Type / Order code
PM 2,5 /D-41
4
0.0050
50
12.70
1SSA
705 604
R0100
PM 2,5 /D-61
6
0.0100
50
17.78
1SSA
705 606
R0100
Other numbers of poles, consult us
Technical data
IEC
Wire size
Screw
Solid wire
Stranded wire
With ferrule
0.2 - 4 mm²
0.22 - 2.5 mm²
250 V
24 A
2.5 mm²
UL / CSA
24 - 14 AWG
24 - 14 AWG
300 V
15 A
Rated voltage
Rated current
Short-circuit current
Rated wire size / Gauge
Storage temperature range
Insulation resistance
Wire stripping length
Recommended screwdriver
Recommended torque
Protection
14 AWG
-20 ~ +80 °C
≥ 10
9
7.5 mm /
.295"
3.5 mm /
.138"
0.4 - 0.6 Nm /
3.5 - 5.3 lb.in
IP 20 /
NEMA 1
2
nd
deck
1
st
deck
PM 2,5 /T...
P.C.B. terminal blocks
Pin
1 x 1 x 4.2 mm
.039" x .039" x .165"
Expert Range - Screw clamp connection
Terminal blocks for connection parallel to P.C.B.
Tripe deck single block with dovetail.
The 2nd deck is half the spacing off-set to left.
The 3rd deck is aligned on the 1st one.
P.C.B. thickness ≤ 3.2 mm
.126"
P.C.B. holes Ø 1.3 mm
.052"
Body : UL94 V0 - PA
Grey
2.5 mm² - Spacing 5.08 mm
.200"
Ordering details
N. Poles
Weight kg
Packaging
L. mm
Type / Order code
PM 2,5 /T-61
6
0.0140
20
12.70
1SSA
705 706
R0100
PM 2,5 /T-91
9
0.0200
20
17.78
1SSA
705 709
R0100
Other numbers of poles, consult us
Technical data
IEC
Wire size
Screw
Solid wire
Stranded wire
With ferrule
0.2 - 4 mm²
0.22 - 2.5 mm²
250 V
24 A
2.5 mm²
UL / CSA
24 - 14 AWG
24 - 14 AWG
300 V
15 A
Rated voltage
Rated current
Short-circuit current
Rated wire size / Gauge
Storage temperature range
Insulation resistance
Wire stripping length
Recommended screwdriver
Recommended torque
Protection
14 AWG
-20 ~ +80 °C
≥ 10
9
7.5 mm /
.295"
3.5 mm /
.138"
0.4 - 0.6 Nm /
3.5 - 5.3 lb.in
IP 20 /
NEMA 1
2
nd
deck
24
P200011
3
rd
deck
1
st
deck

1SSA705706R0100 Related Products

1SSA705706R0100 1SSA705604R0100 1SSA705606R0100 1SSA705709R0100
Description Strip Terminal Block, 24A, 2.5mm2, 3 Row(s), 3 Deck(s) Strip Terminal Block, 24A, 2.5mm2, 2 Row(s), 2 Deck(s) Strip Terminal Block, 24A, 2.5mm2, 2 Row(s), 2 Deck(s) Strip Terminal Block, 24A, 2.5mm2, 3 Row(s), 3 Deck(s)
Reach Compliance Code compliant compliant compliant compliant
ECCN code EAR99 EAR99 EAR99 EAR99
Is Samacsys N N N N
Other features 94V-0 94V-0 94V-0 94V-0
Fastening method SCREW SCREW SCREW SCREW
Installation type BOARD BOARD BOARD BOARD
Number of layers 3 2 2 3
Rows 3 2 2 3
Number of channels 6 4 6 9
Rated current 24 A 24 A 24 A 24 A
Rated voltage 250 V 250 V 250 V 250 V
safety certificate UL; CSA UL; CSA UL; CSA UL; CSA
Terminal and terminal strip types STRIP TERMINAL BLOCK STRIP TERMINAL BLOCK STRIP TERMINAL BLOCK STRIP TERMINAL BLOCK
Conductor cross section 2.5 mm2 2.5 mm2 2.5 mm2 2.5 mm2
Wire gauge 14 AWG 14 AWG 14 AWG 14 AWG
Base Number Matches 1 1 1 1
