10521M/B2AJC datasheet, PDF - EEWORLD Datasheet

10521M/B2AJC: DescriptionIC,LOGIC GATE,3/3/3/3 OR-N/AND,ECL10,LLCC,20PIN,CERAMIC; Categorylogic logic; File Size658KB，10 Pages; ManufacturerNXP; Websitehttps://www.nxp.com

Download Datasheet Parametric Compare View All

10521M/B2AJC Overview

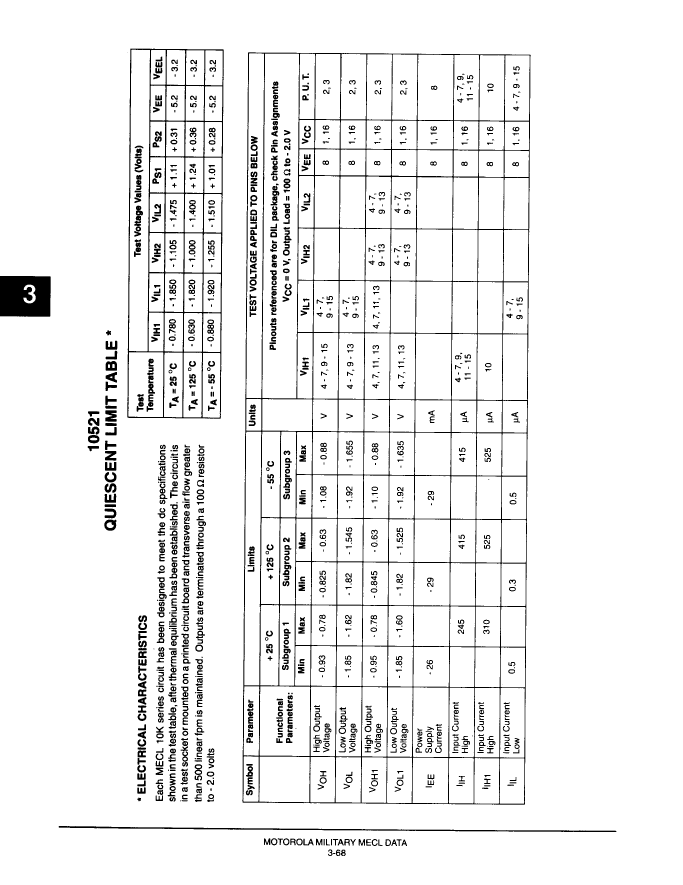

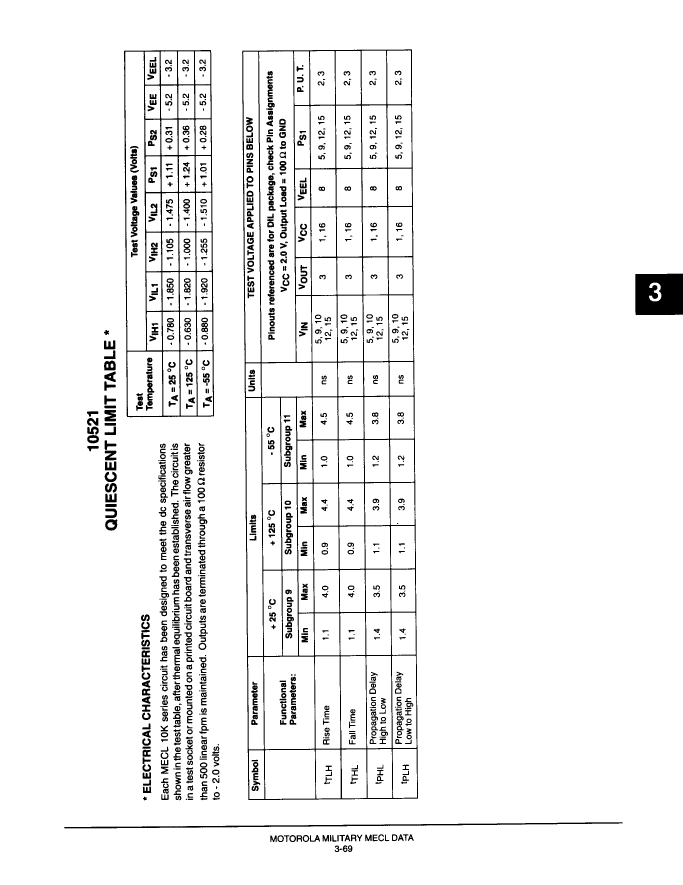

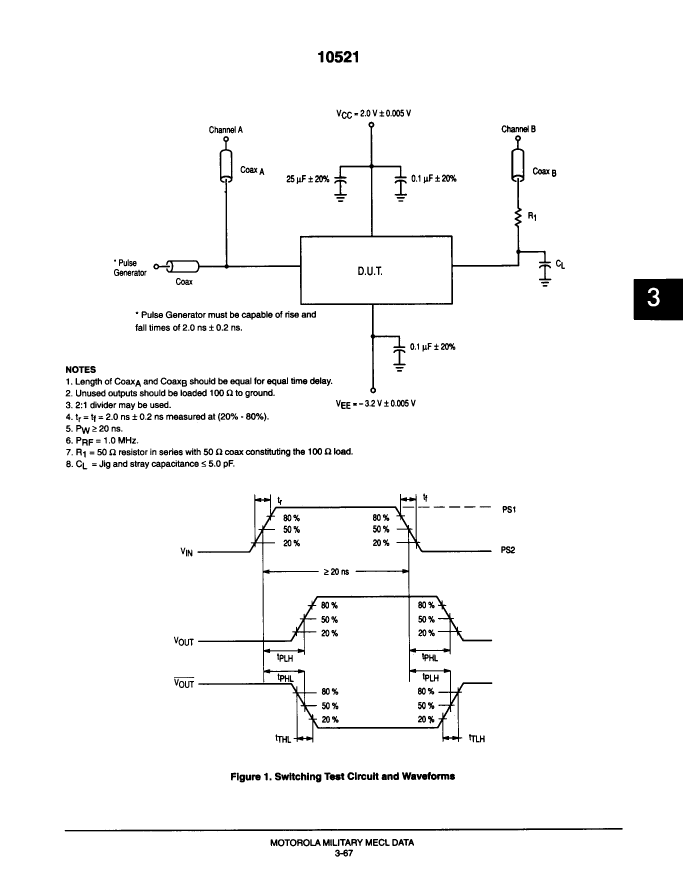

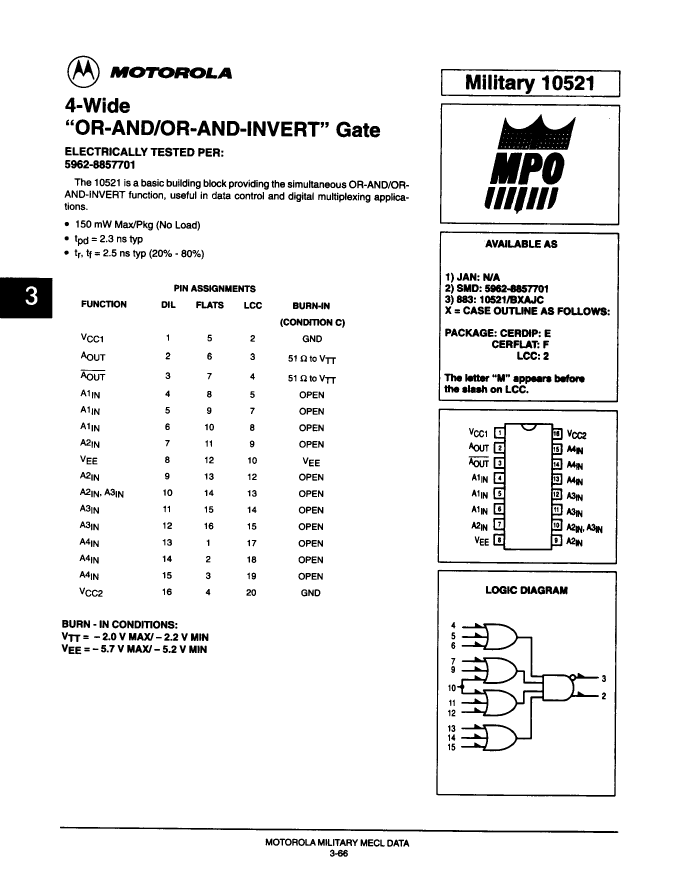

IC,LOGIC GATE,3/3/3/3 OR-N/AND,ECL10,LLCC,20PIN,CERAMIC

Parameter Name	Attribute value
Is it Rohs certified?	incompatible

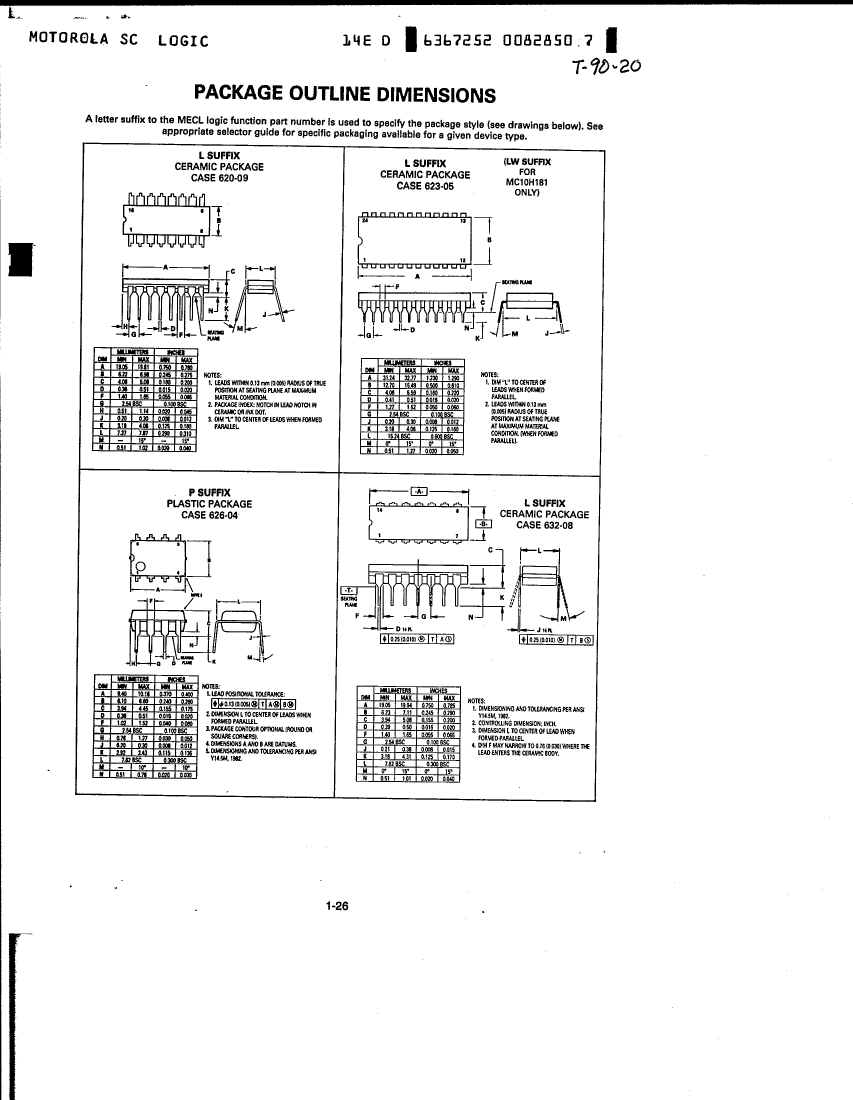

package instruction	QCCN, LCC20,.35SQ
Reach Compliance Code	unknown
Is Samacsys	N
JESD-30 code	S-XQCC-N20
JESD-609 code	e0
Logic integrated circuit type	OR-AND/OR-AND-INVERT GATE
Number of terminals	20
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Package body material	CERAMIC
encapsulated code	QCCN
Encapsulate equivalent code	LCC20,.35SQ
Package shape	SQUARE
Package form	CHIP CARRIER
power supply	-5.2 V
Maximum supply current (ICC)	29 mA
Prop。Delay @ Nom-Sup	4.5 ns
Certification status	Not Qualified
Schmitt trigger	NO
Filter level	38535Q/M;38534H;883B
surface mount	YES
technology	ECL10K
Temperature level	MILITARY
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	NO LEAD
Terminal pitch	1.27 mm
Terminal location	QUAD
Base Number Matches	1

	10521M/B2AJC	10521/BEAJC	10521/BFAJC
Description	IC,LOGIC GATE,3/3/3/3 OR-N/AND,ECL10,LLCC,20PIN,CERAMIC	IC,LOGIC GATE,3/3/3/3 OR-N/AND,ECL10,DIP,16PIN,CERAMIC	IC,LOGIC GATE,3/3/3/3 OR-N/AND,ECL10,FP,16PIN,CERAMIC
Is it Rohs certified?	incompatible	incompatible	incompatible
package instruction	QCCN, LCC20,.35SQ	DIP, DIP16,.3	DFP, FL16,.3
Reach Compliance Code	unknown	unknown	unknown
Is Samacsys	N	N	N
JESD-30 code	S-XQCC-N20	R-XDIP-T16	R-XDFP-F16
JESD-609 code	e0	e0	e0
Logic integrated circuit type	OR-AND/OR-AND-INVERT GATE	OR-AND/OR-AND-INVERT GATE	OR-AND/OR-AND-INVERT GATE
Number of terminals	20	16	16
Maximum operating temperature	125 °C	125 °C	125 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C
Package body material	CERAMIC	CERAMIC	CERAMIC
encapsulated code	QCCN	DIP	DFP
Encapsulate equivalent code	LCC20,.35SQ	DIP16,.3	FL16,.3
Package shape	SQUARE	RECTANGULAR	RECTANGULAR
Package form	CHIP CARRIER	IN-LINE	FLATPACK
power supply	-5.2 V	-5.2 V	-5.2 V
Maximum supply current (ICC)	29 mA	29 mA	29 mA
Prop。Delay @ Nom-Sup	4.5 ns	4.5 ns	4.5 ns
Certification status	Not Qualified	Not Qualified	Not Qualified
Schmitt trigger	NO	NO	NO
Filter level	38535Q/M;38534H;883B	38535Q/M;38534H;883B	38535Q/M;38534H;883B
surface mount	YES	NO	YES
technology	ECL10K	ECL10K	ECL10K
Temperature level	MILITARY	MILITARY	MILITARY
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Terminal form	NO LEAD	THROUGH-HOLE	FLAT
Terminal pitch	1.27 mm	2.54 mm	1.27 mm
Terminal location	QUAD	DUAL	DUAL
Base Number Matches	1	1	1
