10H416/BEAJC datasheet, PDF - EEWORLD Datasheet

10H416/BEAJC: DescriptionIC,COUNTER,UP,4-BIT BINARY,ECL,DIP,16PIN,CERAMIC; Categorylogic logic; File Size250KB，6 Pages; ManufacturerNXP; Websitehttps://www.nxp.com

Download Datasheet Parametric Compare View All

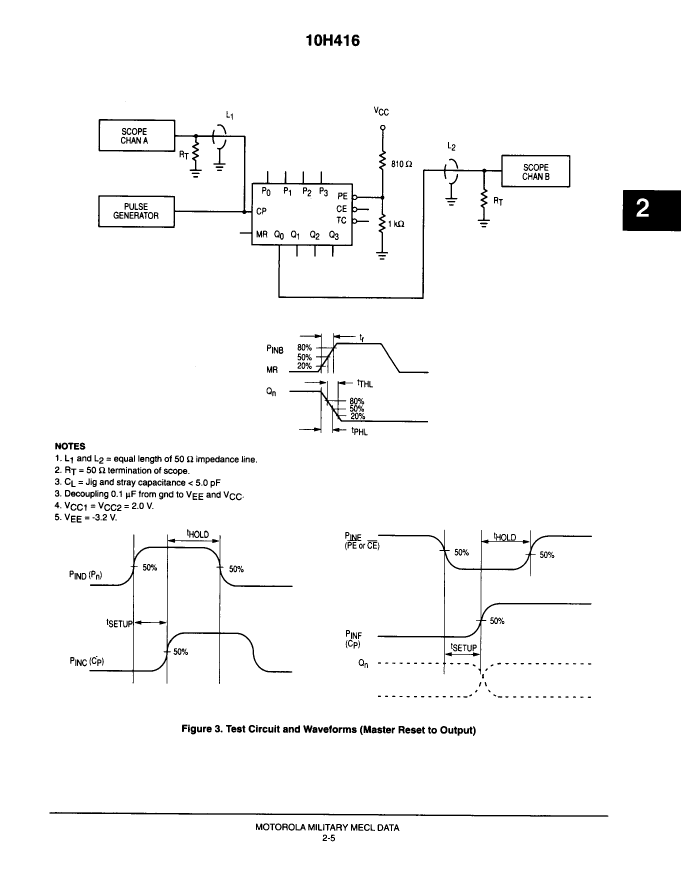

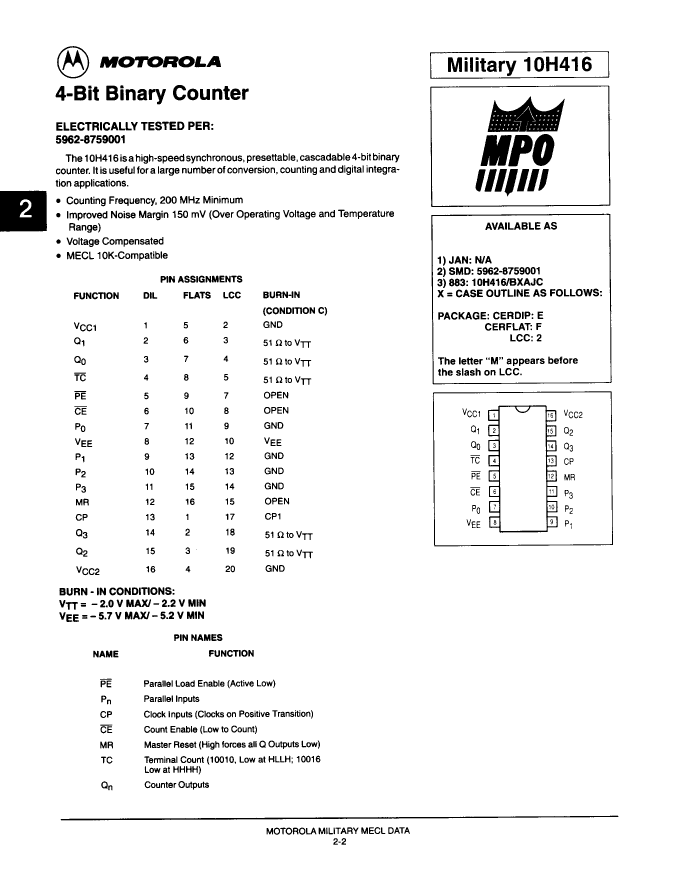

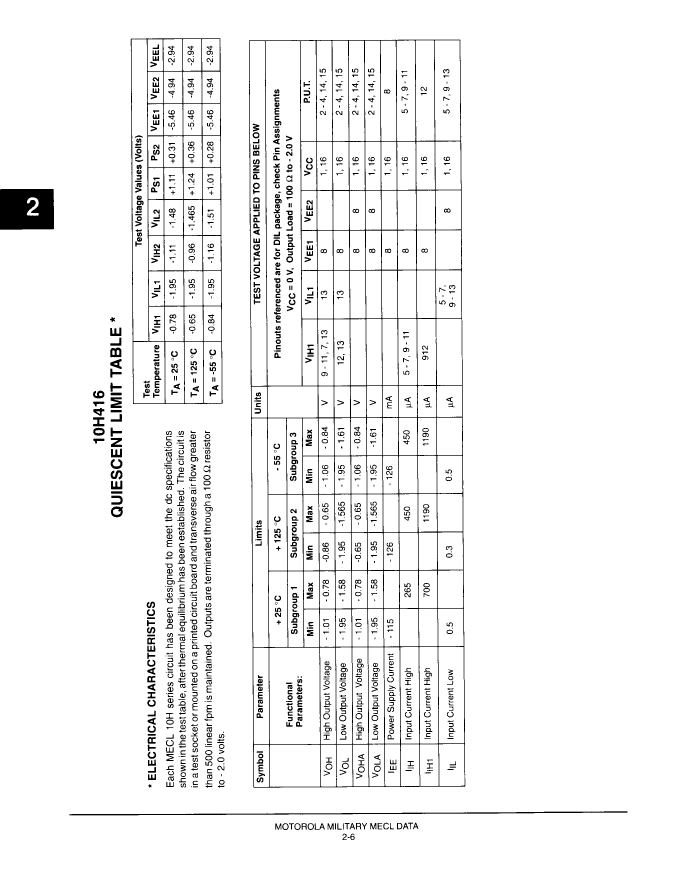

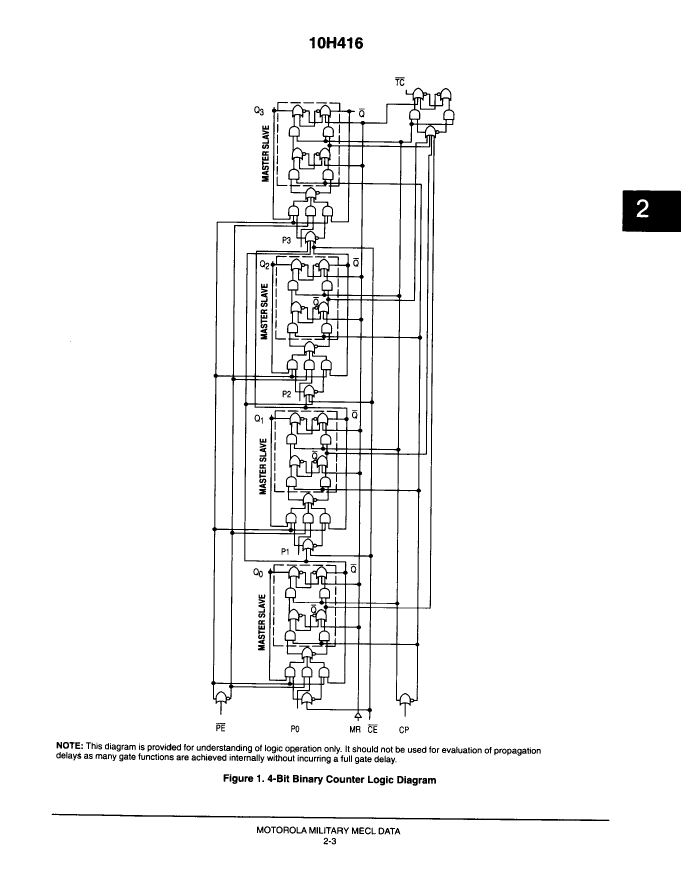

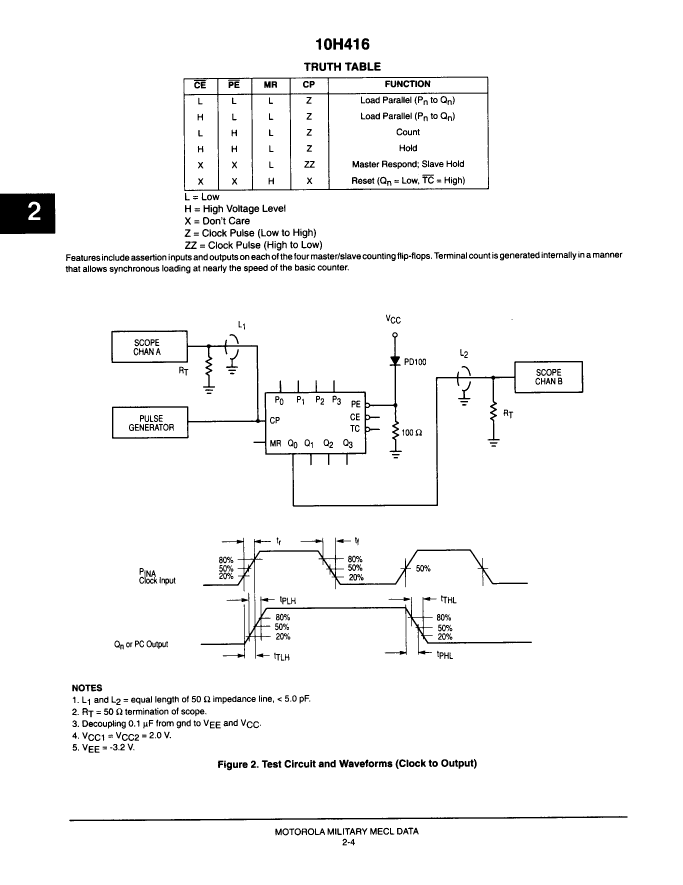

10H416/BEAJC Overview

IC,COUNTER,UP,4-BIT BINARY,ECL,DIP,16PIN,CERAMIC

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
package instruction	DIP, DIP16,.3
Reach Compliance Code	unknown
Is Samacsys	N
Counting direction	UP
JESD-30 code	R-XDIP-T16
JESD-609 code	e0
Load/preset input	YES
Logic integrated circuit type	BINARY COUNTER
Maximum Frequency@Nom-Sup	200000000 Hz
Operating mode	SYNCHRONOUS
Number of functions	1
Number of terminals	16
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Package body material	CERAMIC
encapsulated code	DIP
Encapsulate equivalent code	DIP16,.3
Package shape	RECTANGULAR
Package form	IN-LINE
Maximum supply current (ICC)	126 mA
Certification status	Not Qualified
Filter level	38535Q/M;38534H;883B
surface mount	NO
technology	ECL
Temperature level	MILITARY
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL
Base Number Matches	1

	10H416/BEAJC	10H416M/B2AJC	10H416/BFAJC
Description	IC,COUNTER,UP,4-BIT BINARY,ECL,DIP,16PIN,CERAMIC	IC,COUNTER,UP,4-BIT BINARY,ECL,LLCC,20PIN,CERAMIC	IC,COUNTER,UP,4-BIT BINARY,ECL,FP,16PIN,CERAMIC
Is it Rohs certified?	incompatible	incompatible	incompatible
package instruction	DIP, DIP16,.3	QCCN, LCC20,.35SQ	DFP, FL16,.3
Reach Compliance Code	unknown	unknown	unknown
Is Samacsys	N	N	N
Counting direction	UP	UP	UP
JESD-30 code	R-XDIP-T16	S-XQCC-N20	R-XDFP-F16
JESD-609 code	e0	e0	e0
Load/preset input	YES	YES	YES
Logic integrated circuit type	BINARY COUNTER	BINARY COUNTER	BINARY COUNTER
Maximum Frequency@Nom-Sup	200000000 Hz	200000000 Hz	200000000 Hz
Operating mode	SYNCHRONOUS	SYNCHRONOUS	SYNCHRONOUS
Number of functions	1	1	1
Number of terminals	16	20	16
Maximum operating temperature	125 °C	125 °C	125 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C
Package body material	CERAMIC	CERAMIC	CERAMIC
encapsulated code	DIP	QCCN	DFP
Encapsulate equivalent code	DIP16,.3	LCC20,.35SQ	FL16,.3
Package shape	RECTANGULAR	SQUARE	RECTANGULAR
Package form	IN-LINE	CHIP CARRIER	FLATPACK
Maximum supply current (ICC)	126 mA	126 mA	126 mA
Certification status	Not Qualified	Not Qualified	Not Qualified
Filter level	38535Q/M;38534H;883B	38535Q/M;38534H;883B	38535Q/M;38534H;883B
surface mount	NO	YES	YES
technology	ECL	ECL	ECL
Temperature level	MILITARY	MILITARY	MILITARY
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE	NO LEAD	FLAT
Terminal pitch	2.54 mm	1.27 mm	1.27 mm
Terminal location	DUAL	QUAD	DUAL
Base Number Matches	1	1	1
