10564FM datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > logic> logic> 10564FM

10564FM: DescriptionMultiplexer, 10K Series, 1-Func, 8 Line Input, 1 Line Output, True Output, ECL, CDFP16, CERPACK-16; Categorylogic logic; File Size43KB，3 Pages; ManufacturerFairchild; Websitehttp://www.fairchildsemi.com/

Download Datasheet Parametric Compare View All

10564FM Overview

Multiplexer, 10K Series, 1-Func, 8 Line Input, 1 Line Output, True Output, ECL, CDFP16, CERPACK-16

10564FM Parametric

Parameter Name	Attribute value
Parts packaging code	DFP
package instruction	DFP,
Contacts	16
Reach Compliance Code	unknown
Is Samacsys	N
series	10K
JESD-30 code	R-CDFP-F16
length	9.906 mm
Logic integrated circuit type	MULTIPLEXER
Number of functions	1
Number of entries	8
Output times	1
Number of terminals	16
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Output characteristics	OPEN-EMITTER
Output polarity	TRUE
Package body material	CERAMIC, METAL-SEALED COFIRED
encapsulated code	DFP
Package shape	RECTANGULAR
Package form	FLATPACK
Maximum supply current (ICC)	75 mA
propagation delay (tpd)	6 ns
Certification status	Not Qualified
Maximum seat height	1.905 mm
surface mount	YES
technology	ECL
Temperature level	MILITARY
Terminal form	FLAT
Terminal pitch	1.27 mm
Terminal location	DUAL
width	6.731 mm
Base Number Matches	1

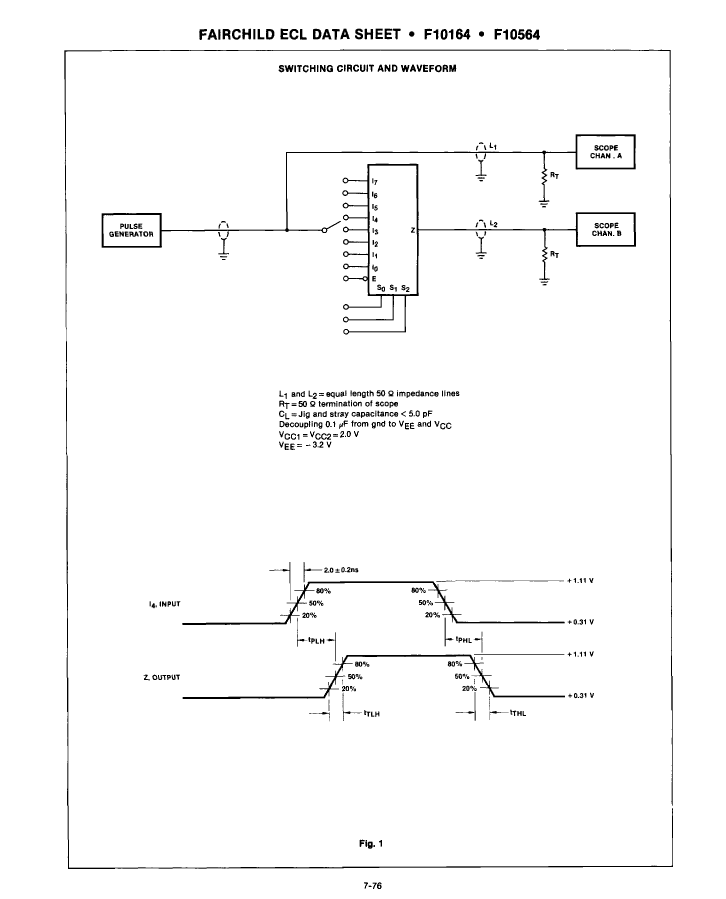

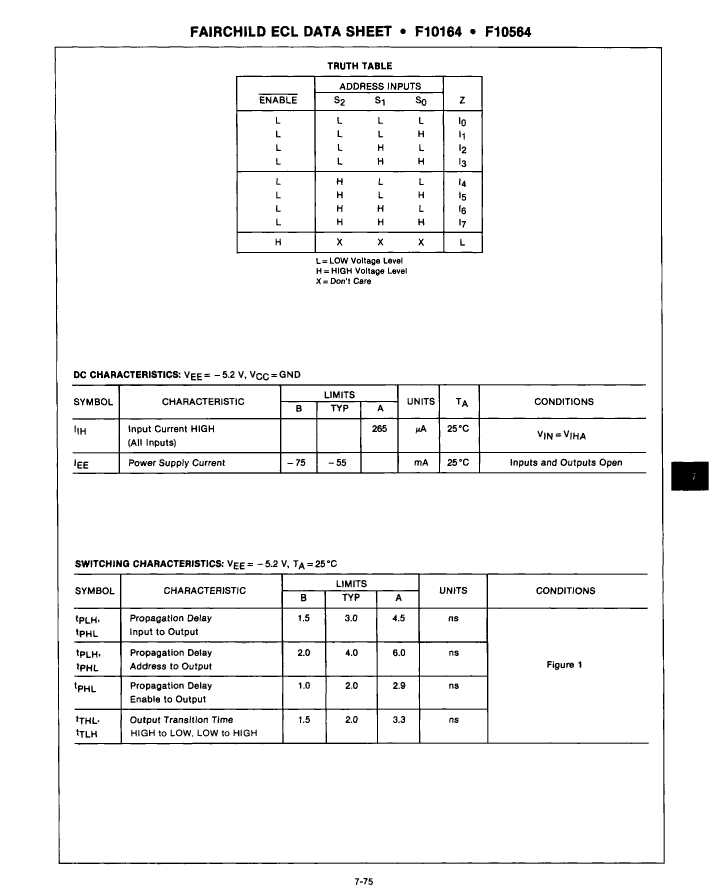

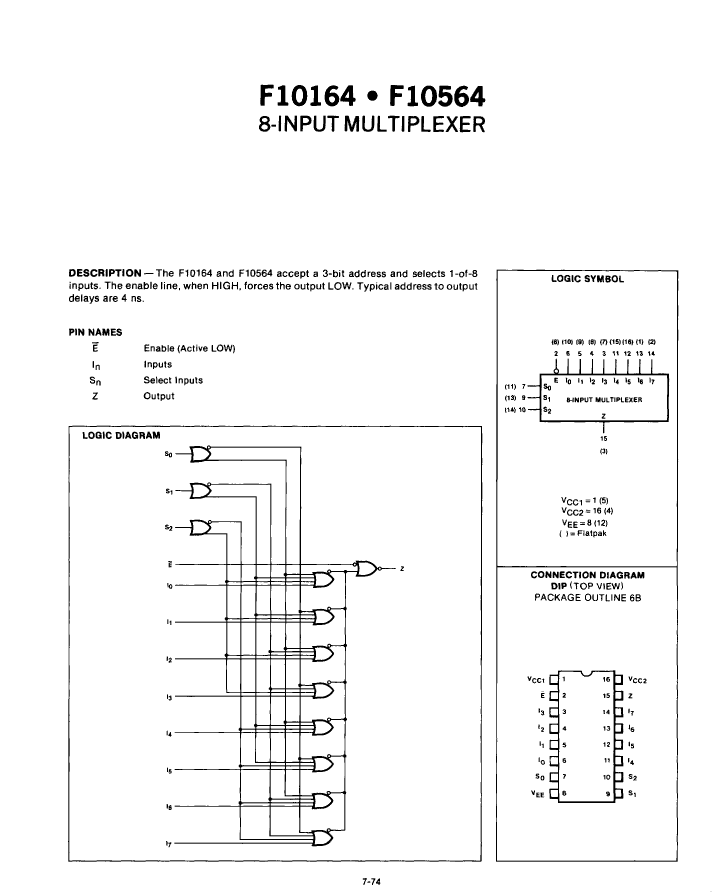

Preview

Download Datasheet

View All

10564FM Related Products

	10564FM	10164FC	10164DC	10164PC	10564DM
Description	Multiplexer, 10K Series, 1-Func, 8 Line Input, 1 Line Output, True Output, ECL, CDFP16, CERPACK-16	Multiplexer, 10K Series, 1-Func, 8 Line Input, 1 Line Output, True Output, ECL, CDFP16, CERPACK-16	Multiplexer, 10K Series, 1-Func, 8 Line Input, 1 Line Output, True Output, ECL, CDIP16, HERMETIC SEALED, CERAMIC, DIP-16	Multiplexer, 10K Series, 1-Func, 8 Line Input, 1 Line Output, True Output, ECL, PDIP16, PLASTIC, DIP-16	Multiplexer, 10K Series, 1-Func, 8 Line Input, 1 Line Output, True Output, ECL, CDIP16, HERMETIC SEALED, CERAMIC, DIP-16
Parts packaging code	DFP	DFP	DIP	DIP	DIP
package instruction	DFP,	DFP,	DIP,	DIP,	DIP,
Contacts	16	16	16	16	16
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown
Is Samacsys	N	N	N	N	N
series	10K	10K	10K	10K	10K
JESD-30 code	R-CDFP-F16	R-CDFP-F16	R-GDIP-T16	R-PDIP-T16	R-GDIP-T16
length	9.906 mm	9.906 mm	19.558 mm	19.05 mm	19.558 mm
Logic integrated circuit type	MULTIPLEXER	MULTIPLEXER	MULTIPLEXER	MULTIPLEXER	MULTIPLEXER
Number of functions	1	1	1	1	1
Number of entries	8	8	8	8	8
Output times	1	1	1	1	1
Number of terminals	16	16	16	16	16
Maximum operating temperature	125 °C	75 °C	75 °C	75 °C	125 °C
Output characteristics	OPEN-EMITTER	OPEN-EMITTER	OPEN-EMITTER	OPEN-EMITTER	OPEN-EMITTER
Output polarity	TRUE	TRUE	TRUE	TRUE	TRUE
Package body material	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, GLASS-SEALED	PLASTIC/EPOXY	CERAMIC, GLASS-SEALED
encapsulated code	DFP	DFP	DIP	DIP	DIP
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	FLATPACK	FLATPACK	IN-LINE	IN-LINE	IN-LINE
Maximum supply current (ICC)	75 mA	75 mA	75 mA	75 mA	75 mA
propagation delay (tpd)	6 ns	6 ns	6 ns	6 ns	6 ns
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum seat height	1.905 mm	1.905 mm	5.08 mm	5.08 mm	5.08 mm
surface mount	YES	YES	NO	NO	NO
technology	ECL	ECL	ECL	ECL	ECL
Temperature level	MILITARY	COMMERCIAL EXTENDED	COMMERCIAL EXTENDED	COMMERCIAL EXTENDED	MILITARY
Terminal form	FLAT	FLAT	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE
Terminal pitch	1.27 mm	1.27 mm	2.54 mm	2.54 mm	2.54 mm
Terminal location	DUAL	DUAL	DUAL	DUAL	DUAL
width	6.731 mm	6.731 mm	7.62 mm	7.62 mm	7.62 mm
Base Number Matches	1	1	1	1	1
