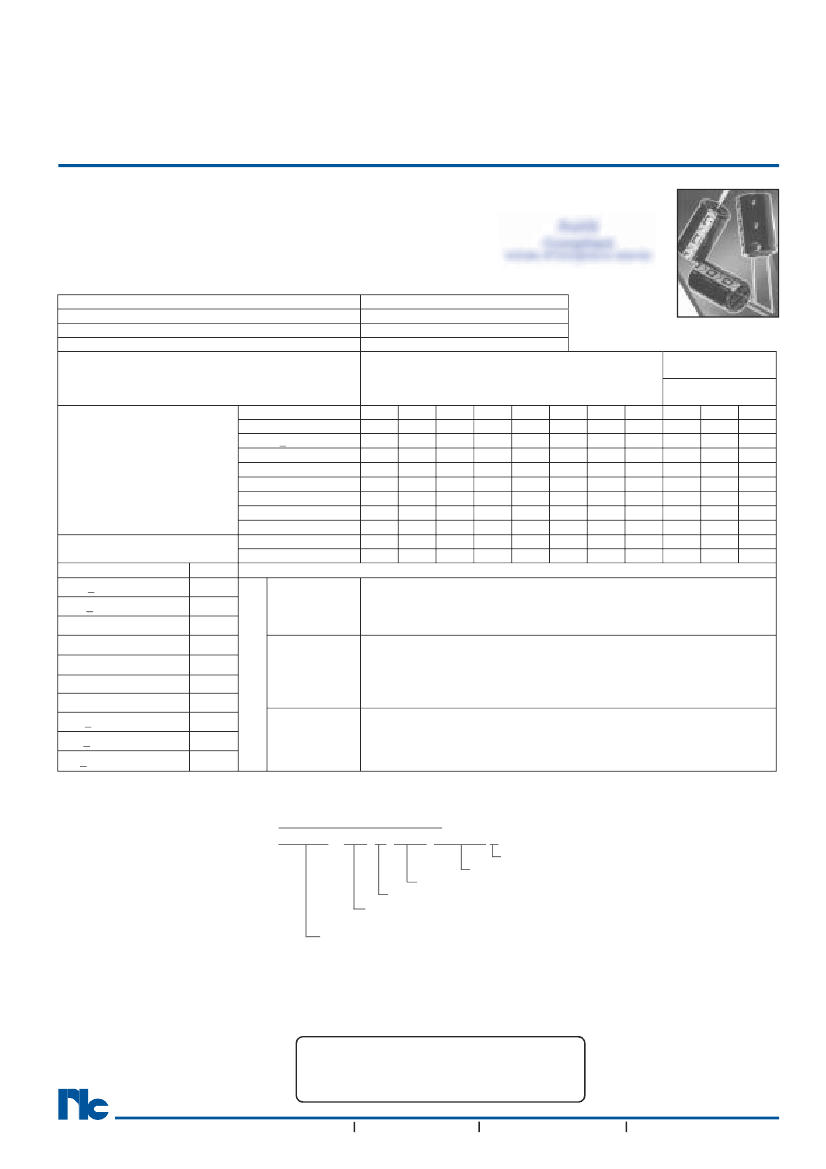

Miniature Aluminum Electrolytic Capacitors

HIGH TEMPERATURE, EXTENDED LOAD LIFE, RADIAL LEADS, POLARIZED

FEATURES

RoHS

• HIGH VOLTAGE (6.3 ~ 250V)

Compliant

• LOW IMPEDANCE AT 100KHz

includes all homogeneous materials

• LONG LIFE AT HIGH TEMPERATURE (UP TO 10,000 HOURS)

NRE-FL Series

*See Part Number System for Details

CHARACTERISTICS

Rated Voltage Range

Capacitance Range

Operating Temperature Range

Capacitance Tolerance

Maximum Leakage Current

W.V. (Vdc)

S.V. (Vdc)

C < 1,000µF

C = 2,200µF

C = 3,300µF

C = 4,700µF

C = 6,800µF

C = 10,000µF

C = 15,000µF

Z-20°C/Z+20°C

Z-40°C/Z+20°C

6.3 ~ 250VDC

0.47 ~ 15,000µF

-40°C ~ +105°C

±20% (M)

0.01CV or 3µA whichever is greater after 2 minutes

6.3

0.22

0.24

0.26

0.28

0.32

0.40

0.50

0.19 0.16 0.14 0.12 0.10 0.09

0.21 0.18 0.16 0.14 0.12

0.23 0.20 0.18 0.16

0.25 0.22 0.20

0.29 0.26

0.37

Load Life Test @ 105°C and Rated Voltage

100

125

0.08

0.04CV+100µA

(After 1 minute)

0.02CV+25µA

(After 5 minutes)

160

200

250

200

250

300

0.12 0.12 0.12

Max. Tan

at 120Hz/20°C

Low Temperature Stability

Impedance Ratio @ 120Hz

Case Size & Voltage

Hours

Dφ <6.3mm, 6.3~10V

Dφ <6.3mm, 16~100V

Dφ 8mm, 6.3~10V

Dφ 8mm, 16~100V

Dφ 10mm, 6.3~10V

Dφ 10mm, 16~100V

Dφ 10mm, 160~250V

Dφ >12.5mm, 6.3~10V

Dφ >12.5mm, 16~100V

Dφ >12.5mm, 160~250V

4000

5000

6000

7000

6000

7000

2000

8000

10000

2000

Change in Characteristics

∆

Capacitance

Within ±25% of initial measured value (±20% for 160 ~ 250Vdc parts)

∆

Tan

Less than 200% of speciﬁed value

∆

Less than speciﬁed value

PART NUMBER SYSTEM

NRE-FL 101 M 100V 12.5X20 F

RoHS Compliant

Case Size (Dφ x L)

Working Voltage (Vdc)

Tolerance Code (M=20%)

Capacitance Code: First 2 characters

signiﬁcant, third character is multiplier

Series

Please review the notes on correct use, safety and precautions found on

pages T10

T11

of NIC’s

Electrolytic Capacitor catalog.

Also found at

www.niccomp.com/precautions

If in doubt or uncertainty, please review your speciﬁc application - process details with

NIC’s technical support personnel:

tpmg@niccomp.com

PRECAUTIONS

NIC COMPONENTS CORP.

www.niccomp.com

www.lowESR.com

www.RFpassives.com

www.SMTmagnetics.com
