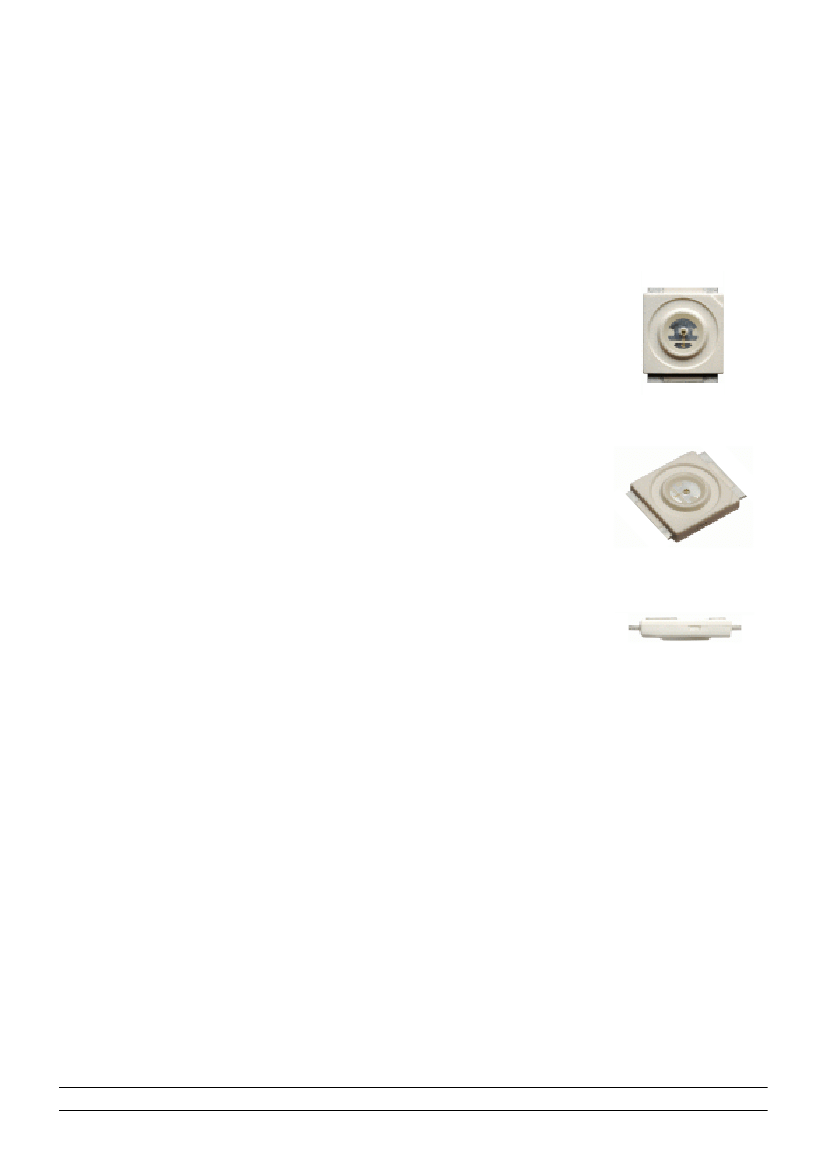

SPNovaLED
TM
AlInGaP : SPNovaLED-175
SPNovaLED
TM
Featuring a staggering brilliance and significant flux output, the
SPNovaLED™ showcases the latest technological advent in this
range. With its extremely high level of brightness and the ultra
low high profile, which is only 1.5 mm are highly suitable for both
conventional lighting and specialized application such as auto-
motive signal lights, traffic lights, channel lights, tube lights and
garden lights among others.
Features:
>
>
>
>
>
>
>
>
>
>
Super high brightness surface mount LED.
High flux output.
120° viewing angle.

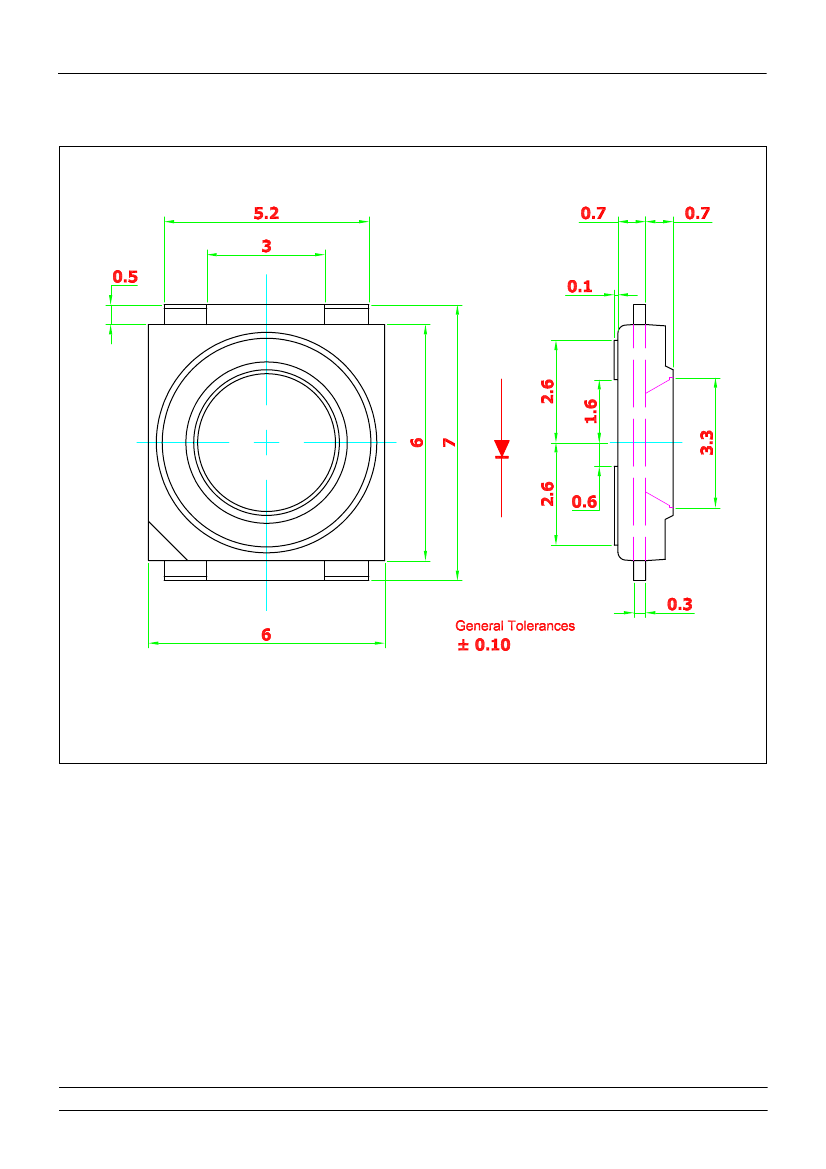

Compact package outline (LxWxH) of 6.0 x 6.0 x 1.5mm.
Ultra low height profile - 1.5 mm.
Designed for high current drive; typically 175 mA.
Low thermal resistance; Rth
(js) = 20 K/W.
Qualified according to JEDEC moisture sensitivity Level 2.
Compatible to both IR reflow soldering and TTW soldering.
Environmental friendly; RoHS compliance.
Applications:
> Automotive: exterior applications, eg: Center High Mounted
Stop Light (CHMSL), Rear Combination Lights (RCLs), Signal light-
ting, Fog-lamp, etc.
> Communication: indicator and backlight in mobilephone.
> Industry: white goods (eg: Oven, microwave, etc.).
> Lighting: garden light, architecture lighting, general lighting. etc
© 2005 SPNovaLED is a trademark of DOMINANT Semiconductors.
All rights reserved. Product specifications are subject to change without notice.
1
28/11/2006 V7.0
DOMINANT
TM
Semiconductors
Innovating Illumination
AlInGaP : SPNovaLED-175
Part Ordering
Number
NPR-SSS-WX2-1
• NPR-SSS-W1
• NPR-SSS-W2
• NPR-SSS-X1
• NPR-SSS-X2
NPY-SSS-XY2-1
• NPY-SSS-X1
• NPY-SSS-X2
• NPY-SSS-Y1
• NPY-SSS-Y2
Chip Technology
/ Color
AlInGaP
Red, 625
Viewing
Angle˚
120
Luminous Intensity @
IF = 175mA (mcd)
1124.0 - 2850.0
1124.0 - 1400.0
1400.0 - 1800.0
1800.0 - 2240.0
2240.0 - 2850.0
AlInGaP
Yellow, 587
120
1800.0 - 4500.0
1800.0 - 2240.0
2240.0 - 2850.0
2850.0 - 3550.0
3550.0 - 4500.0
NOTE
1. Luminous intensity is measured with an accuracy of ± 11%.
2. Wavelength binning is carried for all units as per the wavelength-binning table. Only one wavelength group is allowed for each reel.
Wavelength Grouping
Color
NPR; Red
NPY; Yellow
Group
Full
Full
W
X
Y
Z
Wavelength distribution (nm)
620 - 630
582 - 594
582 - 585
585 - 588
588 - 591
591 - 594
Dominant wavelength is measured with an accuracy of ±1 nm.
Electrical Characteristics at Ta=25˚C
Part Number
NPR
NPY
Vf @ If = 175mA
Typ. (V)
Max. (V)
2.2
2.2
2.8
2.8
V
r
@ I
r
= 100uA
Min. (V)
15
15
Forward voltages are measure using a current pulse of 1 ms and with an accuracy of ± 0.1V.
2
28/11/2006 V7.0
DOMINANT
TM
Semiconductors
Innovating Illumination
AlInGaP : SPNovaLED-175
Optical Characteristics at Ta=25˚C, if=175mA, Rja=100K/W
Part Number
NPR-SSS-WX2
NPY-SSS-XY2
Total Flux @ If=175mA
Min (mlm)
Typ. (mlm)
3500
3500
5000
5500
Intensity @ If=175mA
Typ. (mcd)
1800
2000
Vf Binning (Optional)
Vf Bin @ 175 mA
Standard
01
02
03
Forward voltage, Vf is measured with an accuracy of
±0.1 V.
Please consult sales and marketing for special part number to incorporate Vf binning.
Forward Voltage (V)
1.9 ... 2.8
1.9 ... 2.2
2.2 ... 2.5
2.5 ... 2.8
Absolute Maximum Ratings
Maximum Value
DC forward current
Reverse Voltage
ESD Threshold (HBM)
LED junction temperature
Operating temperature
Storage temperature
Power dissipation (at room temperature)
175
15
2000
125
-40 … +100
-40 … +100
525
Unit
mA
V
V
˚C
˚C
˚C
mW
3
28/11/2006 V7.0
DOMINANT
TM
Semiconductors
Innovating Illumination
AlInGaP : SPNovaLED-175

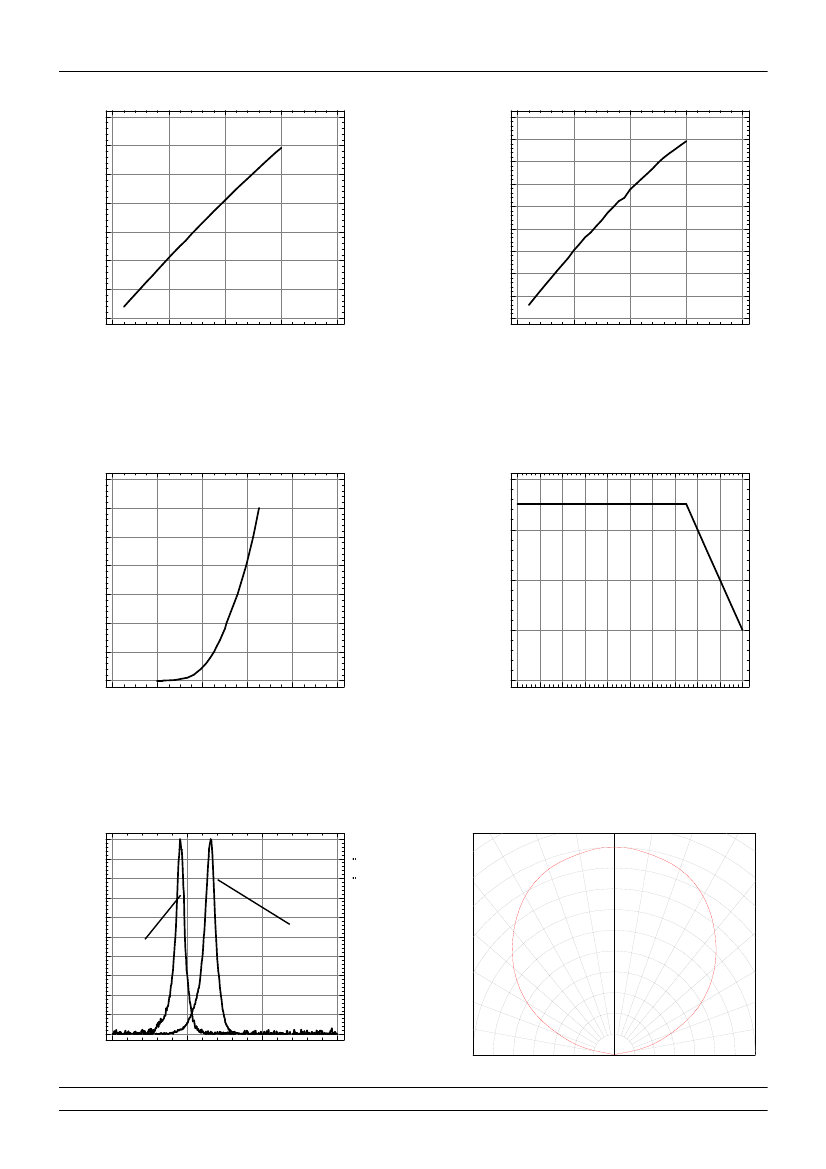

Total Flux Vs Forward Current
9
8
7
Relative Intensity Vs Forward Current
Intensity Vs Forward Current
Relative Intensity; Normalised at 175mA
Intensity, mcd
3500
3000
2500
Total Flux, lm
0
100
200
300
400
6
5
4
3
2
2000
1500
1000
500
0
1
0
0
100
200
300
400
Forward Current, mA
Forward Current, mA
Forward Current Vs Forward Voltage
350
300
Maximum Forward Current Vs. Ambient Temperature
200
Maximum Forward Current, mA
1.4
1.6
1.8
2
2.2
2.4
Forward Current, mA
250
200
150
100
50
0
150
100
50
0
0
10
20
30
40
50
60
70
80
90 100
Forward Voltage, V
Ambient Temperature
Relative Intensity Vs Wavelength
30°
1
0.9
0.8
Radiation Pattern
20°
10°
0°
1.0
40°
0.8
Relative Intensity
0.7
0.6
0.5
0.4
0.3
0.2
0.1
0
500
600
700
800
Yellow
Red
50°
0.6
60°
70°
80°
90°
0.4
0.2
0
Wavelength, nm
4
28/11/2006 V7.0
