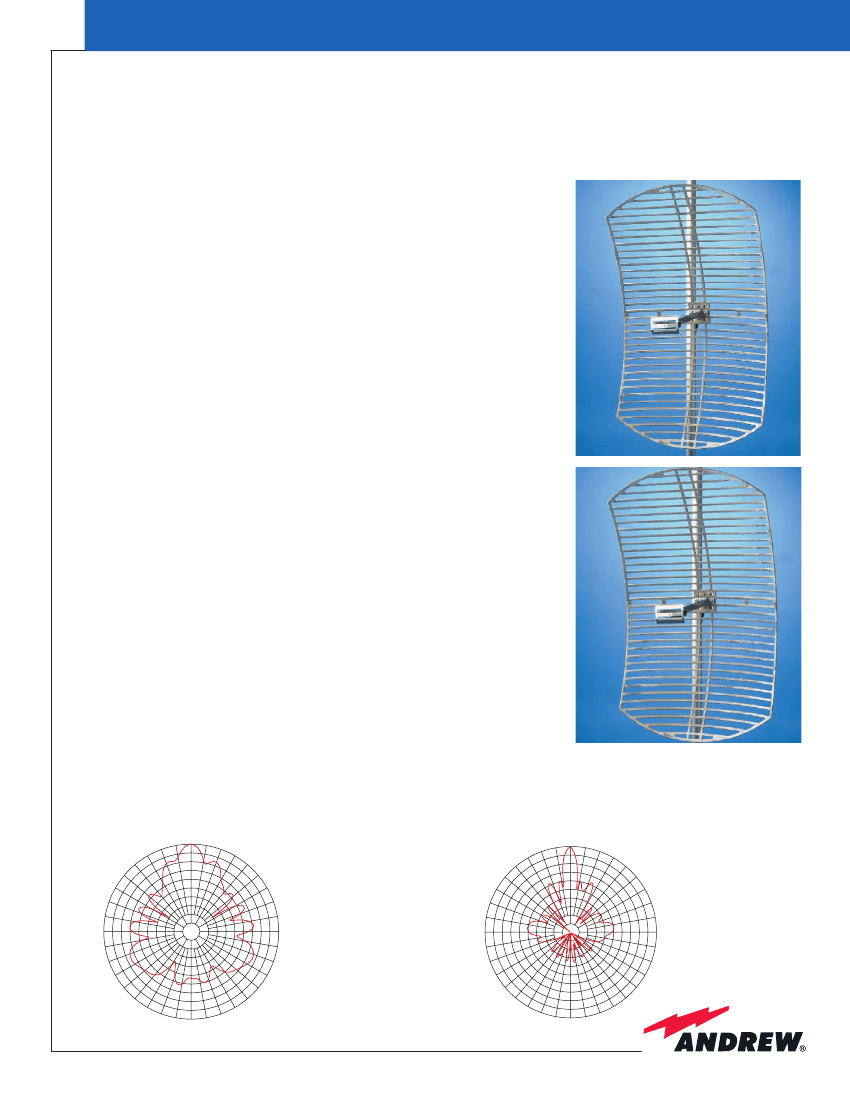

Mag Grid Antennas
Grid Sectional Parabolic Antennas for 1.7–2.1 GHz, 2.1–2.7
GHz, 2.4–2.5 GHz
T
he Mag Grid Antenna series offers a commercial grade product
at an exceptionally competitive price. The die cast reflector is
fabricated using an automated injection molding process which
ensures consistency in performance. The high-grade magnesium
alloy material is lightweight, does not rust, and memorizes the
antenna’s parabolic curve to maintain its shape over time. The result
is the only low cost terrestrial microwave antenna sufficiently
durable to survive changing climate conditions.
The patented grid reflector design provides field reliability and ease
of handling and installation. No secondary coating is required to
prevent rust and corrosion. Breakdown packaging saves freight
costs, and optional factory assembly is available.
Mag Grid series antenna products are also available with an
industrial grade mounting option. This option features a heavier
gauge L-bracket, mast clamp, and u-bolt with mounting centers
compatible for pipes of up to 2.5 inches in diameter. The L-bracket
attaches using 4 previously unoccupied holes in a thicker section of
the reflector. These holes are located farther from the center of the
assembled unit, spreading forces over a wider range of reflector
space. There are no changes to hardware style or assembly and
installation procedures. The result is an antenna very suitable for
higher elevation installations and tower mounts without the cost
and complexity of traditional broadcast tower antenna mounts.
Features
•
Commercial grade durability
•
Lower production, shipping,
and handling costs
•
Lightweight, durable materials
•
RG8 pigtail – 24" extension
•
Up to 60° tilt adjust
The low cost antenna
durable enough to withstand
changing climates
0
330
30
0
330
30
300
60
18T-2400-x
Gain = 17.73 dBi
Frequency = 2.5 GHz
10 dB BW = 33.7º
3 dB BW = 12º
300
60
26T-2400-x
Gain = 23.91 dBi
Frequency = 2.5 GHz
10 dB BW = 11.6º
3 dB BW = 5.9º
270
-40
-30
-20
-10
0
90
270
-40
-30
-20
-10
0
90
240
120
240
120
210
180
150
210
180
150
P
r
o
d
u
c
t
S
p
e
c
i
f
i
c
a
t
i
o
n
s
Specifications for Mag Grid Sectional Parabolic Antennas
Electrical Specifications
Antenna Model Number
Gain,
dBi
Polarization isolation,
dB
Side lobe suppression,
dB
-3 dB beamwidth,
degree
-10 dB beamwidth,
degree
Front/back ratio,
dB
Impedance,
ohm
VSWR typical
Pigtail extension,
in (m)
Mechanical Specifications
Antenna Model Number
Output connector*
Standard mounting,
in (mm)
Industrial mounting,
in (mm)
Vertical tilt,
degree
Operational wind load
Survivable wind load
Reflector type
Reflector material
Dimensions,
in (mm)
Weight – Antenna,
lb (kg)
Weight – Standard mount,
lb (kg)
Weight – Industrial mount,
lb (kg)
18T-1900/2127/2400
“N” type male/female
1–2" (25–51) O.D. pipe
—
0–60
75 mph, 25 lb (11.34 kg)
140 mph, 77.9 lb (35.33 kg)
Parabolic grid
Cast magnesium alloy
16 x 20 x 15 (406 x 510 x 380)
1.8 (.81)
.06 (.027)
—
26T-1900/2127/2400
“N” type male/female
1–2" (25–51) O.D. pipe
1.25–2.5" (0.028 x 0.063) O.D. Pipe
0–60
75 mph, 63.8 lb (28.94 kg)
140 mph, 199.5 lb (90.49 kg)
Parabolic grid
Cast magnesium alloy
23.5 x 39.25 x 15 (600 x 997 x 380)
4.6 (2.07)
.09 (.041)
1.5 (.675)
18T-1900/2127/2400
14/16/17 ±1
>20
>8
14
35
>20
50
1.6:1
24" RG8 (0.61)
26T-1900/2127/2400
21/24/24 ±1
>24
>16
14/7.5/7.5
24/11/11
>30
50
1.6:1
24" RG8 (0.61)
* N male connector standard.
N female available by adding “F” ( i.e. 26T-2400F-1).
** Robust 1.5”–2.5” O.D. version available. Contact factory.
Ordering Information
Frequency Band,
MHz
1700–2100
1700–2100
2100–2700
2100–2700
2400–2500
2400–2500
Gain,
dBi
14
21
16
24
17
24
Single Pack Type Number
18T-1900-1
26T-1900-1
18T-2127-1
26T-2127-1
18T-2400-1
26T-2400-1
Bulk Pack Type Number
18T-1900-10 (10 per)
26T-1900-6 (6 per)
18T-2127-10 (10 per)
26T-2127-6 (6 per)
18T-2400-10 (10 per)
26T-2400-6 (6 per)
Andrew Corporation
10500 W. 153rd Street
Orland Park, IL 60462 USA
From North America:
Telephone: 1-800-255-1479
Fax: 1-800-349-5444
International:
Telephone: +1-708-873-2307
Fax: +1-708-349-5444
Customer Support
Center
From North America:
Telephone: 1-800-255-1479
Fax: 1-800-349-5444
International:
Telephone: +1-708-873-2307
Fax: +1-708-349-5444
Fax-On-Demand
From North America:
1-800-861-1700
International:
+1-708-873-3614
Internet
www.andrew.com
All designs, specifications and availabilities of products and services presented in this bulletin are subject to change without notice.
Bulletin 10437E (7/02) Copyright © 2002 Andrew Corporation, Orland Park, IL 60462 USA
Printed in USA
