1-1461373-3

Description
POWER/SIGNAL RELAY, SPDT, MOMENTARY, 0.06A (COIL), 9VDC (COIL), 540mW (COIL), 16A (CONTACT), 30VDC (CONTACT), THROUGH HOLE-STRAIGHT MOUNT, ROHS COMPLIANT
CategoryMechanical and electronic products    relay
File Size143KB，2 Pages
ManufacturerTE Connectivity
Websitehttp://www.te.com
Environmental Compliance
Download Datasheet Parametric Compare View All

1-1461373-3 Overview

POWER/SIGNAL RELAY, SPDT, MOMENTARY, 0.06A (COIL), 9VDC (COIL), 540mW (COIL), 16A (CONTACT), 30VDC (CONTACT), THROUGH HOLE-STRAIGHT MOUNT, ROHS COMPLIANT

1-1461373-3 Parametric

Parameter NameAttribute value
Is it Rohs certified?conform to
package instructionROHS COMPLIANT
Reach Compliance Codecompliant
ECCN codeEAR99
Is SamacsysN
body width12.8 mm
body height20.6 mm
Body length or diameter29.2 mm
Maximum coil current (DC)0.06 A
Coil operating voltage (DC)6.75 V
Coil power540 mW
Coil release voltage (DC)0.9 V
Coil resistance155 Ω
Maximum coil voltage (DC)9 V
Coil/Input Power TypeDC
Contact (AC) maximum rated R load16A@240VAC
Maximum contact current (AC)16 A
Maximum contact current (DC)16 A
Contact (DC) maximum rated R load16A@30VDC
Maximum contact voltage (AC)240 V
Maximum contact voltage (DC)30 V
Contact/Output Power TypeAC/DC
Electrical life100000 Cycle(s)
Installation featuresTHROUGH HOLE-STRAIGHT MOUNT
operating hours20 ms
Maximum operating temperature70 °C
Minimum operating temperature-30 °C
physical size29.2mm x 12.8mm x 20.6mm
GuidelineCSA; SEMKO; UL; VDE
Relay actionMOMENTARY
Relay functionSPDT
Relay typePOWER/SIGNAL RELAY
release time8 ms
sealPLASTIC SEALED
surface mountNO
Termination typeSOLDER
Base Number Matches1

Preview

Download Datasheet
TE Connectivity
 My Cart |
 My Part Lists | Sign In/Register
English
(Change)
What can we help you find?
Products
Industries
Resources
About TE
My Account
Innovation
Support Center

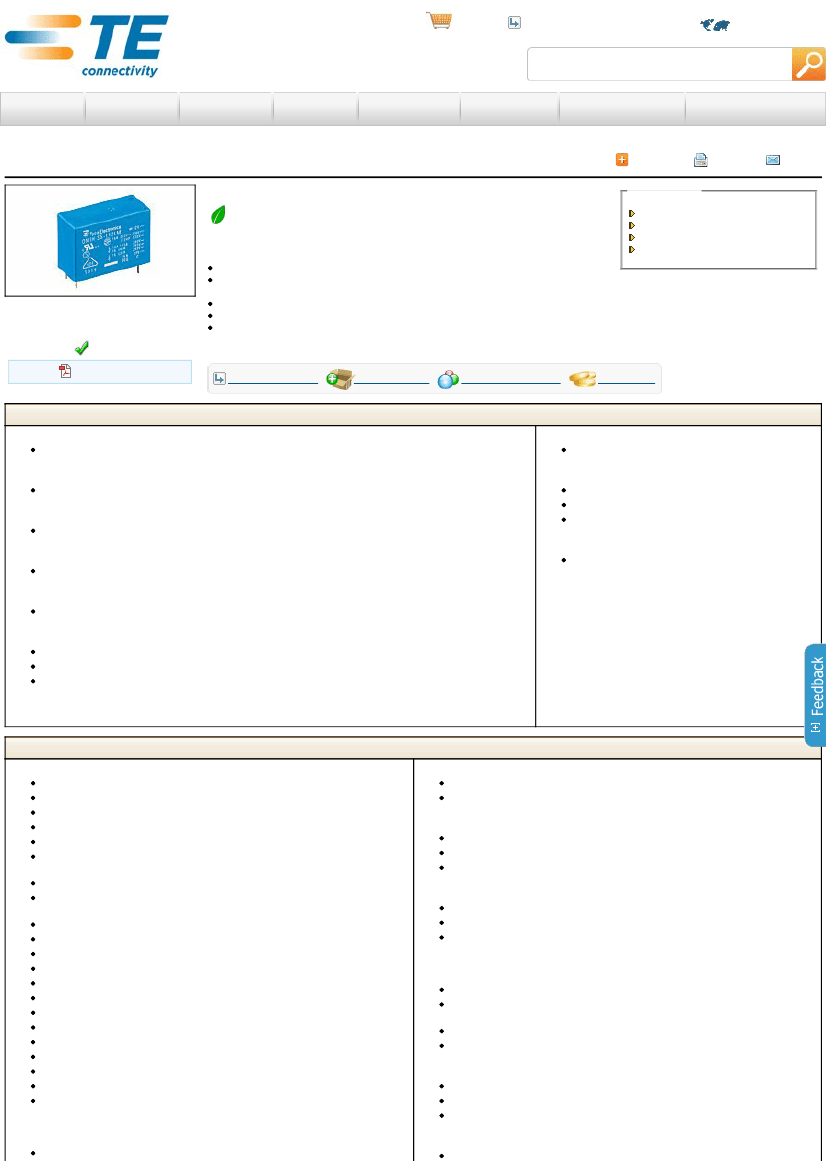

Home > Products > Relays > Product Feature Selector > Product Details
OMIH­SH­109L,394 Product Details
Industrial Relays (General Purpose)

Always EU RoHS compliant but not ELV Compliant
 (
Statement of
Compliance
)
 Share
 Print
 Email
Quick Links
Pricing & Availability
Search for Tooling
Product Feature Selector
Contact Us About This Product
OMIH­SH­109L,394
(1­1461373­3)
TE Internal Number: 1­1461373­3
Product Highlights:
OMI/OMIH Series
Contact ­ Current Class = 10A to 20A Class, Greater
Than 16A
Contact ­ Rated Current = 16 A
Terminal Type = PCB­THT
Contact ­ Arrangement = 1 Form C (CO)
View all Features
 Active
View 3D PDF
Add to My Part List
Request Sample
Find Similar Products
Buy Product
Documentation & Additional Information
Product Drawings:
OMIH CUSTOMER DRAWING (PDF, English)
Catalog Pages/Data Sheets:
None Available
Product Specifications:
None Available
Application Specifications:
None Available
Instruction Sheets:
None Available
CAD Files: (CAD Format & Compression Information)
2D Drawing (DXF, Version C2)
3D Model (IGES, Version C2)
3D Model (STEP, Version C2)
Additional Information:
Product Line Information
Additional Product Images:
Schematic
Wiring Diagram
PCB Layout (Bottom Surface)
Related Products:
Tooling
List all Documents
Product Features
(Please use the Product Drawing for all design activity)
Electrical Characteristics:
Contact ­ Current Class = 10A to 20A Class, Greater Than 16A
Contact ­ Rated Current (A) = 16
Contact ­ Limiting Continuous Current (A) = 16
Contact ­ Limiting Making Current (A) = 16
Contact ­ Limiting Breaking Current (A) = 16
Insulation ­ Initial Dielectric Between Coil/Contact Class = >4000V
Class
Insulation ­ Initial Dielectric Between Open Contacts (V rms) = 1000
Insulation ­ Initial Dielectric Between Contacts and Coil (V rms) =
5000
Contact ­ Rated Voltage (VAC) = 250
Contact ­ Switching Voltage Max. (VAC) = 250
Contact ­ Switching Voltage Max. (VDC) = 30
Contact ­ Limiting Short­Time Current (A) = 16
Contact ­ Switching Recommended Load, Min. = 100mA at 5V
Coil ­ Rated Voltage (VDC) = 9
Coil ­ Resistance (Ω) = 155
Coil ­ Rated Power, DC (mW) = 540
Coil ­ Rated Power Class = 500mW to 600mW Class
Insulation ­ Initial Insulation Resistance (MΩ) = 1000000
Insulation ­ Creepage Class = 5.5mm to 8mm Class
Insulation ­ Clearance Class = 5mm to 8mm Class
Insulation ­ Special Features = 10000V Initial Surge Withstand
Voltage between Contacts and Coil
Dimensions:
Mechanical ­ Length Class = 25mm to 30mm Class
Body Features:
Mount Type = PCB
Weight (g [oz]) = 13.00 [0.459]
Contact Features:
Terminal Type = PCB­THT
Contact Material = AgSnO
Contact ­ Number of Poles = 1
Configuration Features:
Contact ­ Arrangement = 1 Form C (CO)
Coil ­ Magnetic System = Monostable, DC
Coil ­ Special Features = Sensitive Version, UL Coil Insulation Class
A
Industry Standards:
RoHS/ELV Compliance = RoHS/Not ELV Compliant
Lead Free Solder Processes = Wave solder capable to 260°C, Wave
solder capable to 240°C, Wave solder capable to 265°C
RoHS/ELV Compliance History = Always was RoHS not ELV compliant
Approved/Registered Standards = CQC, UL, CSA, VDE
Environmental:
Environmental ­ Category of Protection = RTIII
Environmental ­ Ambient Temperature, Max. (°C [°F]) = 70 [158]
Environmental ­ Ambient Temperature Class = 50°C to 70°C Class
Packaging Features:
Packaging Method = Box/Carton

1-1461373-3 Related Products

1-1461373-3 OMIH-SH-109L.394
Description POWER/SIGNAL RELAY, SPDT, MOMENTARY, 0.06A (COIL), 9VDC (COIL), 540mW (COIL), 16A (CONTACT), 30VDC (CONTACT), THROUGH HOLE-STRAIGHT MOUNT, ROHS COMPLIANT POWER/SIGNAL RELAY, SPDT, MOMENTARY, 0.058A (COIL), 9VDC (COIL), 540mW (COIL), 16A (CONTACT), 30VDC (CONTACT), THROUGH HOLE-STRAIGHT MOUNT
Reach Compliance Code compliant unknown
ECCN code EAR99 EAR99
body width 12.8 mm 12.8 mm
body height 20.6 mm 20.6 mm
Body length or diameter 29.2 mm 29.2 mm
Maximum coil current (DC) 0.06 A 0.058 A
Coil operating voltage (DC) 6.75 V 6.75 V
Coil power 540 mW 540 mW
Coil release voltage (DC) 0.9 V 0.9 V
Coil resistance 155 Ω 155 Ω
Maximum coil voltage (DC) 9 V 9 V
Coil/Input Power Type DC DC
Contact (AC) maximum rated R load 16A@240VAC 16A@250VAC
Maximum contact current (AC) 16 A 16 A
Maximum contact current (DC) 16 A 16 A
Contact (DC) maximum rated R load 16A@30VDC 16A@30VDC
Maximum contact voltage (AC) 240 V 250 V
Maximum contact voltage (DC) 30 V 30 V
Contact/Output Power Type AC/DC AC/DC
Electrical life 100000 Cycle(s) 100000 Cycle(s)
Installation features THROUGH HOLE-STRAIGHT MOUNT THROUGH HOLE-STRAIGHT MOUNT
operating hours 20 ms 20 ms
Maximum operating temperature 70 °C 70 °C
Minimum operating temperature -30 °C -30 °C
physical size 29.2mm x 12.8mm x 20.6mm 29.2mm x 12.8mm x 20.6mm
Guideline CSA; SEMKO; UL; VDE CSA; SEMKO; UL; VDE
Relay action MOMENTARY MOMENTARY
Relay function SPDT SPDT
Relay type POWER/SIGNAL RELAY POWER/SIGNAL RELAY
release time 8 ms 8 ms
surface mount NO NO
Termination type SOLDER SOLDER
