3-1423157-2 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Mechanical and electronic products> relay> 3-1423157-2

3-1423157-2: DescriptionON-DELAY RELAY, DPDT, MOMENTARY, 20-200s, PANEL MOUNT; CategoryMechanical and electronic products relay; File Size101KB，1 Pages; ManufacturerTE Connectivity; Websitehttp://www.te.com

Download Datasheet Parametric View All

3-1423157-2 Overview

ON-DELAY RELAY, DPDT, MOMENTARY, 20-200s, PANEL MOUNT

3-1423157-2 Parametric

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Reach Compliance Code	compliant
ECCN code	EAR99
Is Samacsys	N
Maximum adjustable time delay	200 s
Minimum adjustable time delay	20 s
body width	65.3 mm
body height	71.9 mm
Body length or diameter	114.8 mm
Maximum coil voltage (AC)	240 V
Contact (AC) maximum rated R load	10A@240VAC
Maximum contact current (AC)	10 A
Maximum contact voltage (AC)	240 V
Contact/Output Power Type	AC
Manufacturer's serial number	1423157
Installation features	PANEL MOUNT
Maximum operating temperature	75 °C
Minimum operating temperature	-30 °C
physical size	114.8mm x 65.3mm x 71.9mm
Guideline	CE; CSA; FM; UL
Relay action	MOMENTARY
Relay function	DPDT
Relay type	ON-DELAY RELAY
surface mount	NO
Termination type	SCREW
Base Number Matches	1

Preview

Download Datasheet

View All

My Account

Tyco Electronics

(C hange)

Se a rch by Ke yword or Pa rt #

Products

Documentation

Resources

My Account

Customer Support

Home

Products

By Type

Relays

Product Feature Selector

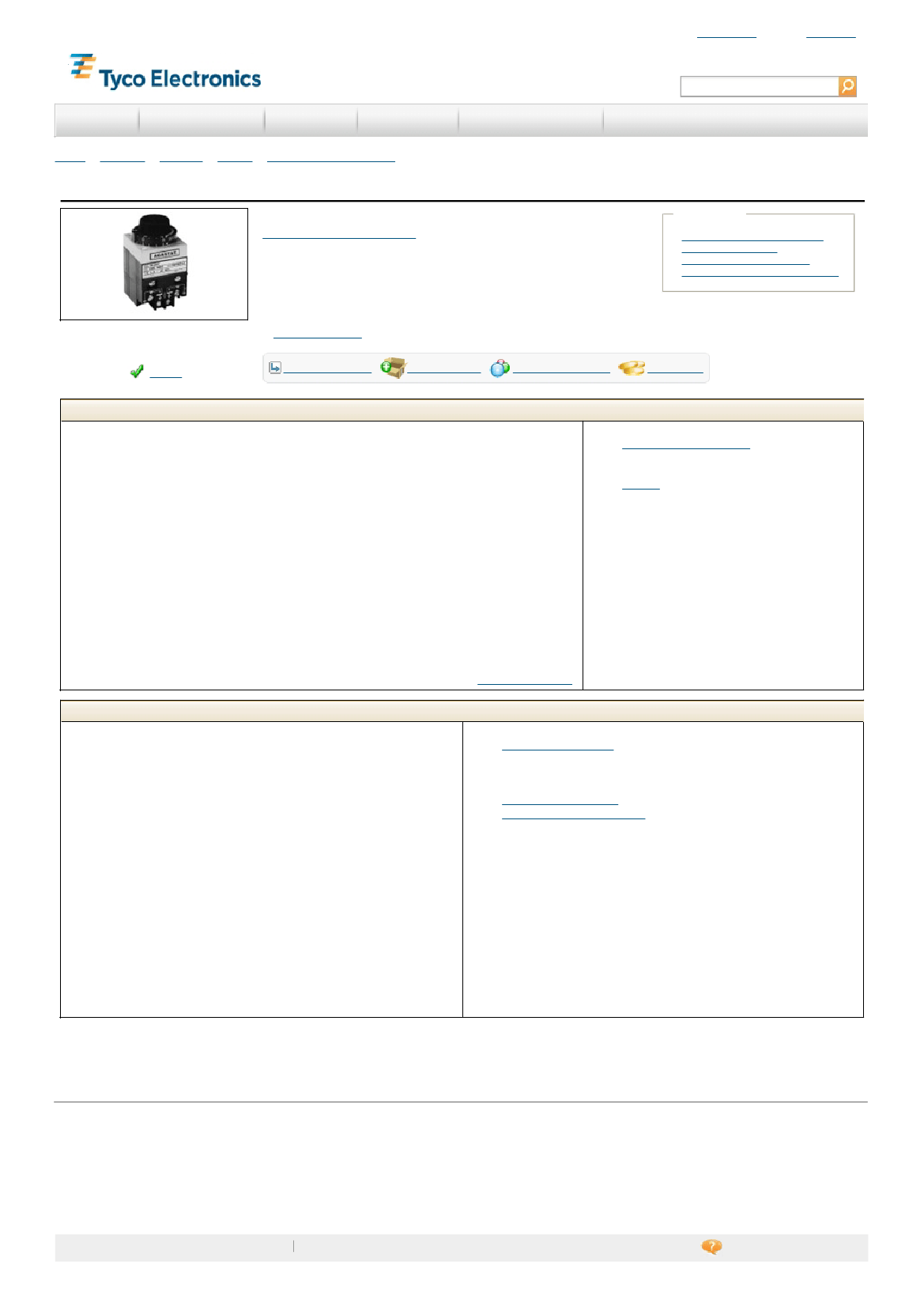

> Product Details

7012BE Product Details

Time Delay Relays

Not EU R oHS or ELV C om plia nt

Quick Links

C heck Pricing & Availability

Search for Tooling

Product Feature Selector

C ontact Us About This Product

7012BE

(3-1423157-2)

T E I nternal N umber: 3 - 1 4 2 3 1 5 7 - 2

Product Highlights:

7000 Electropneumatic Timing - Industrial Series

Input Voltage = 220 VAC , 240 VAC

C ontact Arrangement = 2 Form C , DPDT, 2 C /O

C ontact Rating = 10A @ 240 VAC

Mounting Options = Panel Mount

View all Features

A dd to M y P art L is t

Reques t Sample

Find Similar P roduc ts

Active

Buy P roduc t

Documentation & Additional Information

Product Drawings:

None Available

Catalog Pages/Data Sheets:

None Available

Product Specifications:

None Available

Application Specifications:

None Available

Instruction Sheets:

None Available

CAD Files:

None Available

List all Documents

Product Features

(Please use the Product Drawing for all design activity)

Product Type Features:

Termination Type = Screw Terminal

Electrical Characteristics:

Input Voltage (VAC ) = 220, 240

C ontact Rating = 10A @ 240 VAC

Body Related Features:

Series = 7000 Electropneumatic Timing - Industrial

Contact Related Features:

Mounting Options = Panel Mount

Mode of Operation = On-Delay

Delay Time = 20 seconds to 200 seconds

Type of C ontrol = Knob

Repeatability, Max. = ± 5%

Approved Standards = C E Approved, C SA C ertified, FM Approved,

UL Listed

Approx. Dimensions (L x W x H) (mm [in]) = 114.80 x 65.30 x 71.90

[4.523 x 2.572 x 2.832]

Configuration Related Features:

C ontact Arrangement

= 2 Form C , DPDT, 2 C /O

Multiple Timing Ranges = Without

Industry Standards:

RoHS/ELV C ompliance

= Not ELV/RoHS compliant

Lead Free Solder Processes

= Not relevant for lead free process

Conditions for Usage:

Temperature Range (?C ) = -30 – +75

Other:

Brand = Agastat

Additional Information:

Product Line Information

Recommended Resources
