3-1617108-3

Description
POWER/SIGNAL RELAY, DPDT, MOMENTARY, 0.017A (COIL), 26.5VDC (COIL), 450mW (COIL), 1A (CONTACT), THROUGH HOLE-STRAIGHT MOUNT
CategoryMechanical and electronic products    relay
File Size123KB,2 Pages
ManufacturerTE Connectivity
Websitehttp://www.te.com
Download Datasheet Parametric View All

3-1617108-3 Online Shopping

Suppliers Part Number Price MOQ In stock
3-1617108-3 - - View Buy Now

3-1617108-3 Overview

POWER/SIGNAL RELAY, DPDT, MOMENTARY, 0.017A (COIL), 26.5VDC (COIL), 450mW (COIL), 1A (CONTACT), THROUGH HOLE-STRAIGHT MOUNT

3-1617108-3 Parametric

Parameter NameAttribute value
Is it lead-free?Contains lead
Is it Rohs certified?incompatible
Objectid1666979264
Reach Compliance Codecompliant
ECCN codeEAR99
Samacsys DescriptionPRMAC-26XS = PRMA COTS TO-5 RE
Samacsys ManufacturerTE Connectivity
Samacsys Modified On2020-10-04 19:49:56
Maximum coil current (DC)0.017 A
Coil power450 mW
Coil resistance1560 Ω
Maximum coil voltage (DC)26.5 V
Coil/Input Power TypeDC
Maximum contact current (AC)1 A
Maximum contact current (DC)1 A
Maximum contact voltage (AC)28 V
Maximum contact voltage (DC)28 V
Contact/Output Power TypeAC/DC
Installation featuresPANEL MOUNT
Maximum operating temperature125 °C
Minimum operating temperature-65 °C
Relay actionMOMENTARY
Relay style2 FORM C
Relay functionDPDT-CO
Relay typePOWER/SIGNAL RELAY
sealHERMETICALLY SEALED
surface mountNO
Termination typeSOLDER/QUICK CONNECT
TE Connectivity
 My Cart |
 My Part Lists | Sign In/Register
English
(Change)
What can we help you find?
Products
Industries
Resources
About TE
My Account
Innovation
Support Center
Home > Products > Relays > Product Feature Selector > Product Details

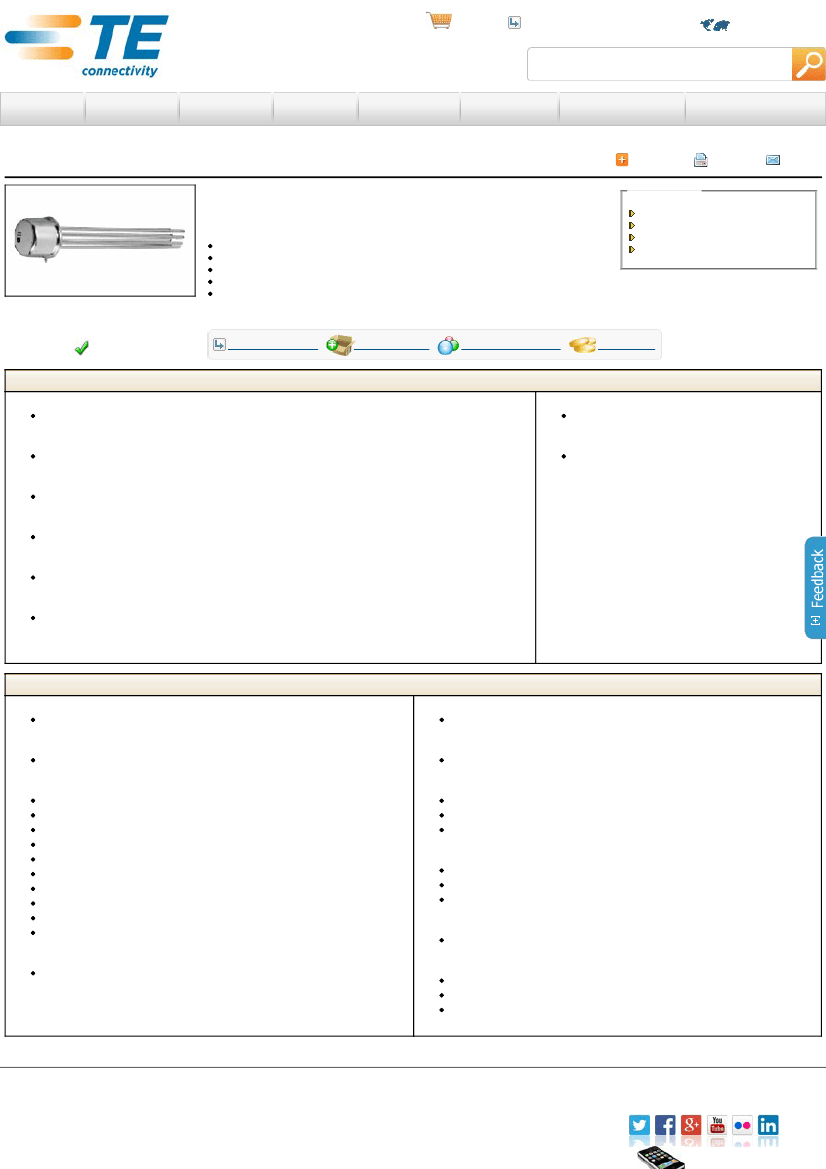

PRMAC­26XS Product Details
Military/Aerospace High Performance Relays
Not EU RoHS or ELV Compliant
 Share
 Print
 Email
Quick Links
Pricing & Availability
Search for Tooling
Product Feature Selector
Contact Us About This Product
Product Highlights:
PRMA TO­5 Relay Series
Input Voltage = 26.5 VDC
Contact ­ Arrangement = 2 Form C, DPDT, 2 C/O
Contact ­ Rated Current = 1 A
Non Polarized, Monostable Coil ­ Magnetic System
PRMAC­26XS
(3­1617108­3)
TE Internal Number: 3­1617108­3
View all Features
 Active
Add to My Part List
Request Sample
Find Similar Products
Buy Product
Documentation & Additional Information
Product Drawings:
None Available
Catalog Pages/Data Sheets:
RELAY (PDF, English)
Product Specifications:
None Available
Application Specifications:
None Available
Instruction Sheets:
None Available
CAD Files:
None Available
Additional Information:
Product Line Information
Related Products:
Tooling
List all Documents
Product Features
(Please use the Product Drawing for all design activity)
Product Type Features:
MOSFET Driver = Without
Mechanical Attachment:
Mounting Options = PC Board
Electrical Characteristics:
Input Voltage (VDC) = 26.5
Contact ­ Rated Current (A) = 1
Coil Suppression Diode = Without
Coil Polarity Protection Diode = Without
Coil ­ Resistance (Ω) = 1560
Coil Power Measurement = Milliwatts
Coil ­ Rated Power, DC (mW) = 450
Actuating System = DC
Shock = 75 G's, 6ms
Vibration = 30G's, 10 to 3000Hz
Termination Features:
Termination Type = Long Leads
Body Features:
Enclosure Type = Hermetically Sealed
Contact Features:
Pin Configuration = .200" x .300" Spreader Pad
Configuration Features:
Contact ­ Arrangement = 2 Form C, DPDT, 2 C/O
Coil ­ Magnetic System = Non Polarized, Monostable
Transistor Driver = Without
Industry Standards:
Government/Industry Qualification = No
RoHS/ELV Compliance = Not ELV/RoHS compliant
Lead Free Solder Processes = Not suitable for lead free processing
Conditions for Usage:
Temperature Range (°C) = ­65 – +125
Other:
Series = PRMA TO­5 Relay
Brand = CII
Comment = X Level Testing
