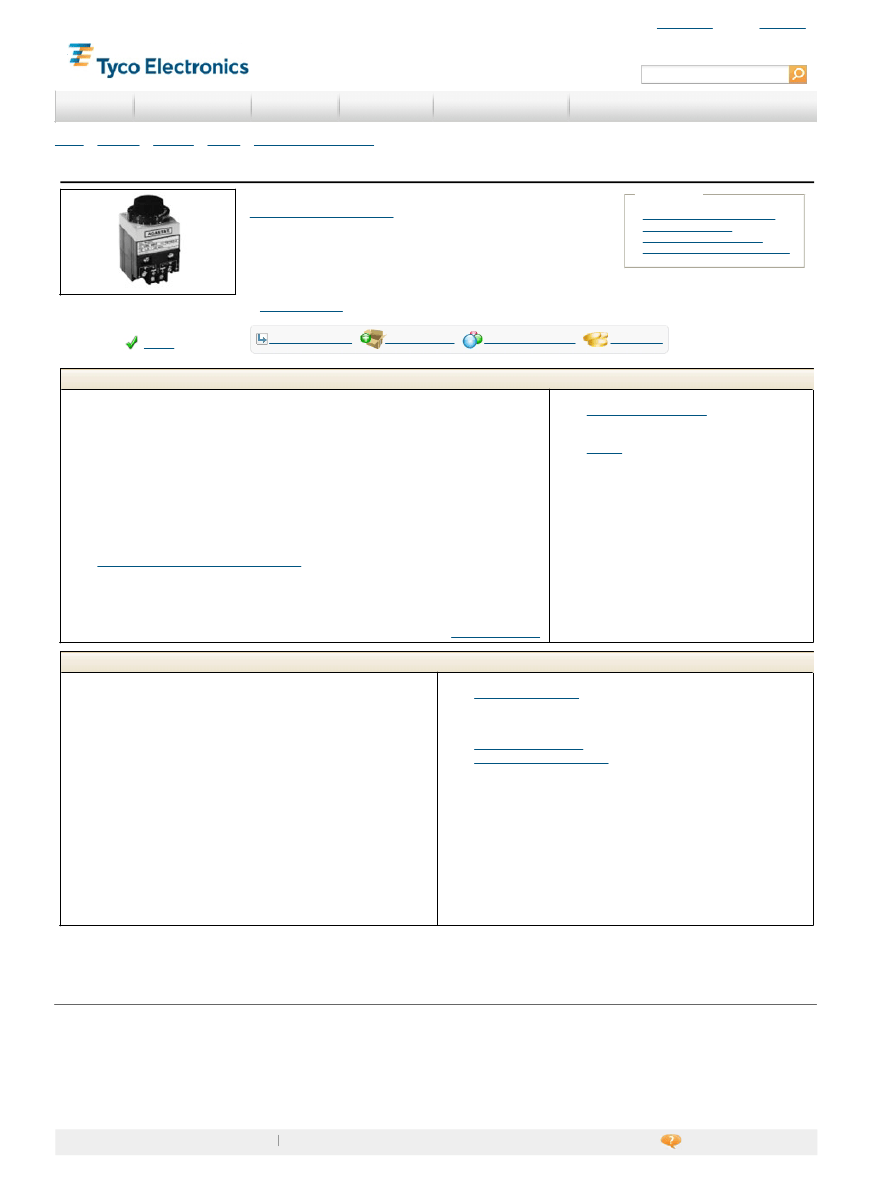

E7012PI004 Product Details
Time Delay Relays
Not EU R oHS or ELV C om plia nt
Quick Links
C heck Pricing & Availability
Search for Tooling
Product Feature Selector
C ontact Us About This Product
E7012PI004
(1-1423169-7)
T E I nternal N umber: 1 - 1 4 2 3 1 6 9 - 7
Product Highlights:
l
7000 Electropneumatic Timing - Nuclear Qualified Series
l
Input Voltage = 125 VDC
l
C ontact Arrangement = 2 Form C , DPDT, 2 C /O
l
C ontact Rating = 1A @ 125 VDC
l
Mounting Options = Mounting Holes, Panel Mount
View all Features
A dd to M y P art L is t
Reques t Sample
Find Similar P roduc ts
Active
Buy P roduc t
Documentation & Additional Information
Product Drawings:
l
None Available
Catalog Pages/Data Sheets:
l
None Available
Product Specifications:
l
None Available
Application Specifications:
l
None Available
Instruction Sheets:
l
Nuclear E7000 Series 2-Pole Timing Relay
(PDF, English)
CAD Files:
l
None Available
List all Documents
Product Features
(Please use the Product Drawing for all design activity)
Product Type Features:
l
Termination Type = Screw Terminal
Electrical Characteristics:
l
Input Voltage (VDC ) = 125
l
C ontact Rating = 1A @ 125 VDC
Body Related Features:
l
Series = 7000 Electropneumatic Timing - Nuclear Qualified
Contact Related Features:
l
Mounting Options = Mounting Holes, Panel Mount
l
Mode of Operation = On-Delay
l
Delay Time = 6 minutes to 60 minutes
l
Type of C ontrol = Knob
l
Repeatability, Max. = ± 10%
l
Approx. Dimensions (L x W x H) (mm [in]) = 82.55 x 78.49 x 107.95
[3.252 x 3.092 x 4.253]
Configuration Related Features:
l
C ontact Arrangement
= 2 Form C , DPDT, 2 C /O
l
Multiple Timing Ranges = Without
Industry Standards:
l
RoHS/ELV C ompliance
= Not ELV/RoHS compliant
l
Lead Free Solder Processes
= Not relevant for lead free process
Conditions for Usage:
l
Temperature Range (?C ) = 21 – 40
Other:
l
Brand = Agastat
Additional Information:
l
Product Line Information
