3-1462034-1

Description
RF RELAY, DPDT, LATCHED, 0.017A (COIL), 6VDC (COIL), 100mW (COIL), 2A (CONTACT), 220VDC (CONTACT), 900MHz, 60W (RF INPUT), THROUGH HOLE-STRAIGHT MOUNT, ROHS COMPLIANT
CategoryMechanical and electronic products    relay
File Size365KB,9 Pages
ManufacturerTE Connectivity
Websitehttp://www.te.com
Environmental Compliance
Download Datasheet Parametric Compare View All

3-1462034-1 Online Shopping

Suppliers Part Number Price MOQ In stock
3-1462034-1 - - View Buy Now

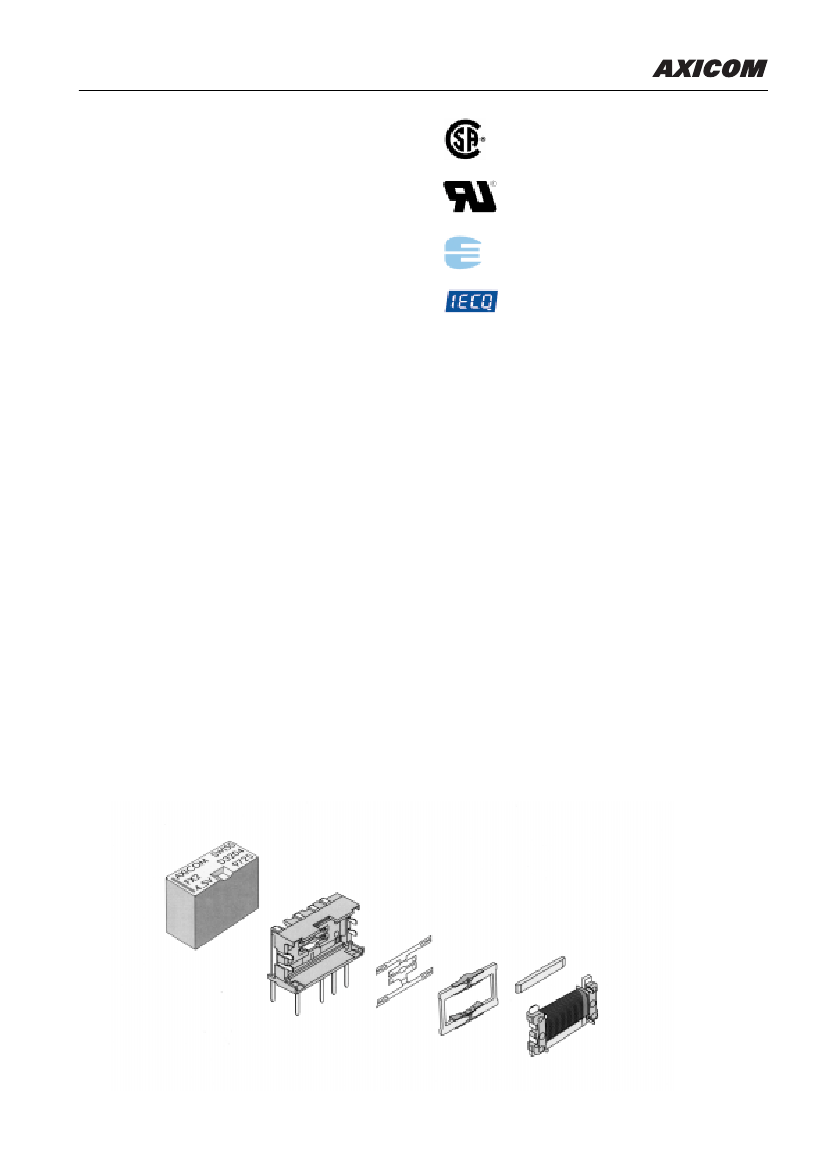

3-1462034-1 Overview

RF RELAY, DPDT, LATCHED, 0.017A (COIL), 6VDC (COIL), 100mW (COIL), 2A (CONTACT), 220VDC (CONTACT), 900MHz, 60W (RF INPUT), THROUGH HOLE-STRAIGHT MOUNT, ROHS COMPLIANT

3-1462034-1 Parametric

Parameter NameAttribute value
Is it lead-free?Lead free
Is it Rohs certified?conform to
Objectid2142359876
package instructionROHS COMPLIANT
Reach Compliance Codeunknown
ECCN codeEAR99
Samacsys ManufacturerTE Connectivity
Samacsys Modified On2018-11-27 09:59:34
Other featuresRELEASE TIME WITH DIODE
body width7.27 mm
body height10.7 mm
Body length or diameter14.93 mm
Characteristic impedance50 Ω
Maximum coil current (DC)0.017 A
Coil operating voltage (DC)4.5 V
Coil power100 mW
Coil release voltage (DC)4.5 V
Coil resistance360 Ω
Maximum coil voltage (DC)6 V
Coil/Input Power TypeDC
Contact (AC) maximum rated R load2A@250VAC
Maximum contact current (AC)2 A
Maximum contact current (DC)2 A
Contact (DC) maximum rated R load2A@220VDC
Maximum contact voltage (AC)250 V
Maximum contact voltage (DC)220 V
Contact/Output Power TypeAC/DC
Electrical life500000 Cycle(s)
Maximum input power60 W
Maximum insertion loss-0.03 dB
Maximum isolation-34 dB
Installation featuresTHROUGH HOLE-STRAIGHT MOUNT
operating hours9 ms
Maximum operating frequency900 MHz
Minimum operating frequency100 MHz
Maximum operating temperature85 °C
Minimum operating temperature-55 °C
method of packingBOX; TUBE
physical size14.93mm x 7.27mm x 10.7mm
GuidelineCECC; CSA; EN; ICEQ; IEC; UL
Relay actionLATCHED
Relay functionDPDT
Relay typeRF RELAY
release time9 ms
sealIP67
surface mountNO
switching time18 ms
Termination typeSOLDER
voltage standing wave ratio1.45
The Best Relaytion

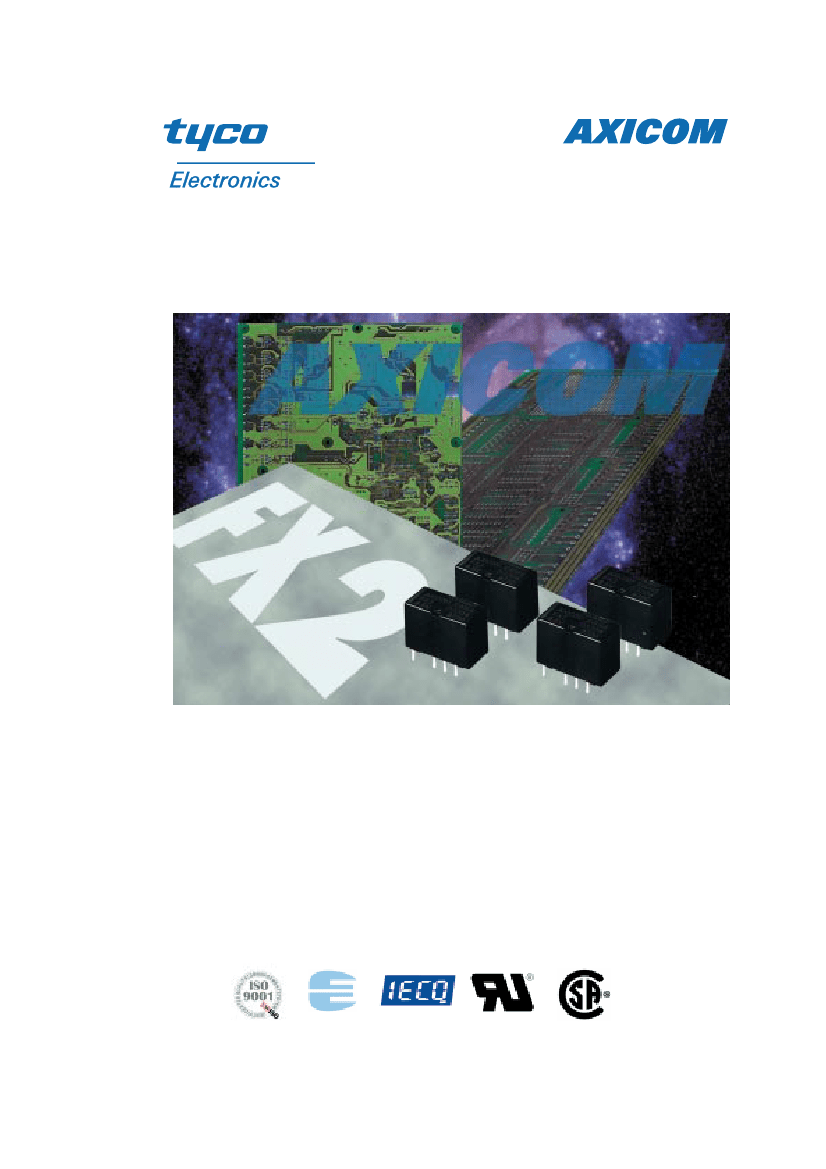

FX2 Relay

3-1462034-1 Related Products

3-1462034-1 2-1462034-2 3-1462034-2
Description RF RELAY, DPDT, LATCHED, 0.017A (COIL), 6VDC (COIL), 100mW (COIL), 2A (CONTACT), 220VDC (CONTACT), 900MHz, 60W (RF INPUT), THROUGH HOLE-STRAIGHT MOUNT, ROHS COMPLIANT RF RELAY, DPDT, MOMENTARY, 0.013A (COIL), 6VDC (COIL), 80mW (COIL), 2A (CONTACT), 220VDC (CONTACT), 900MHz, 60W (RF INPUT), THROUGH HOLE-STRAIGHT MOUNT, ROHS COMPLIANT RF RELAY, DPDT, LATCHED, 0.011A (COIL), 9VDC (COIL), 100mW (COIL), 2A (CONTACT), 220VDC (CONTACT), 900MHz, 60W (RF INPUT), THROUGH HOLE-STRAIGHT MOUNT, ROHS COMPLIANT
Is it lead-free? Lead free Lead free Lead free
Is it Rohs certified? conform to conform to conform to
package instruction ROHS COMPLIANT ROHS COMPLIANT ROHS COMPLIANT
Reach Compliance Code unknown compliant compliant
ECCN code EAR99 EAR99 EAR99
Other features RELEASE TIME WITH DIODE RELEASE TIME WITH DIODE RELEASE TIME WITH DIODE
body width 7.27 mm 7.27 mm 7.27 mm
body height 10.7 mm 10.7 mm 10.7 mm
Body length or diameter 14.93 mm 14.93 mm 14.93 mm
Characteristic impedance 50 Ω 50 Ω 50 Ω
Maximum coil current (DC) 0.017 A 0.013 A 0.011 A
Coil operating voltage (DC) 4.5 V 4.5 V 6.75 V
Coil power 100 mW 80 mW 100 mW
Coil release voltage (DC) 4.5 V 0.6 V 6.75 V
Coil resistance 360 Ω 450 Ω 810 Ω
Maximum coil voltage (DC) 6 V 6 V 9 V
Coil/Input Power Type DC DC DC
Contact (AC) maximum rated R load 2A@250VAC 2A@250VAC 2A@250VAC
Maximum contact current (AC) 2 A 2 A 2 A
Maximum contact current (DC) 2 A 2 A 2 A
Contact (DC) maximum rated R load 2A@220VDC 2A@220VDC 2A@220VDC
Maximum contact voltage (AC) 250 V 250 V 250 V
Maximum contact voltage (DC) 220 V 220 V 220 V
Contact/Output Power Type AC/DC AC/DC AC/DC
Electrical life 500000 Cycle(s) 500000 Cycle(s) 500000 Cycle(s)
Maximum input power 60 W 60 W 60 W
Maximum insertion loss -0.03 dB -0.03 dB -0.03 dB
Maximum isolation -34 dB -34 dB -34 dB
Installation features THROUGH HOLE-STRAIGHT MOUNT THROUGH HOLE-STRAIGHT MOUNT THROUGH HOLE-STRAIGHT MOUNT
operating hours 9 ms 9 ms 9 ms
Maximum operating frequency 900 MHz 900 MHz 900 MHz
Minimum operating frequency 100 MHz 100 MHz 100 MHz
Maximum operating temperature 85 °C 85 °C 85 °C
Minimum operating temperature -55 °C -55 °C -55 °C
method of packing BOX; TUBE BOX; TUBE BOX; TUBE
physical size 14.93mm x 7.27mm x 10.7mm 14.93mm x 7.27mm x 10.7mm 14.93mm x 7.27mm x 10.7mm
Guideline CECC; CSA; EN; ICEQ; IEC; UL CECC; CSA; EN; ICEQ; IEC; UL CECC; CSA; EN; ICEQ; IEC; UL
Relay action LATCHED MOMENTARY LATCHED
Relay function DPDT DPDT DPDT
Relay type RF RELAY RF RELAY RF RELAY
release time 9 ms 9 ms 9 ms
seal IP67 IP67 IP67
surface mount NO NO NO
switching time 18 ms 18 ms 18 ms
Termination type SOLDER SOLDER SOLDER
voltage standing wave ratio 1.45 1.45 1.45
Objectid 2142359876 2142359825 -
