3-1393236-8: DescriptionPOWER/SIGNAL RELAY, SPST, MOMENTARY, 0.005A (COIL), 48VDC (COIL), 217mW (COIL), THROUGH HOLE-STRAIGHT MOUNT, ROHS COMPLIANT; CategoryMechanical and electronic products relay; File Size333KB，3 Pages; ManufacturerTE Connectivity; Websitehttp://www.te.com; Environmental Compliance

Download Datasheet Parametric Compare View All

3-1393236-8 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	3-1393236-8	-	-	View	Buy Now

3-1393236-8 Overview

POWER/SIGNAL RELAY, SPST, MOMENTARY, 0.005A (COIL), 48VDC (COIL), 217mW (COIL), THROUGH HOLE-STRAIGHT MOUNT, ROHS COMPLIANT

3-1393236-8 Parametric

Parameter Name	Attribute value
Brand Name	CII
Is it Rohs certified?	conform to
Objectid	1593480820
package instruction	ROHS COMPLIANT
Reach Compliance Code	compliant
ECCN code	EAR99
Factory Lead Time	8 weeks
Samacsys Description	V23092-A1048-A302
Samacsys Manufacturer	TE Connectivity
Samacsys Modified On	2020-10-04 19:49:56
YTEOL	7.45
body width	5 mm
body height	15 mm
Body length or diameter	28 mm
Maximum coil current (DC)	0.005 A
Coil operating voltage (DC)	33.6 V
Coil power	217 mW
Coil release voltage (DC)	2.4 V
Coil resistance	10600 Ω
Maximum coil voltage (DC)	48 V
Coil/Input Power Type	DC
Contact (AC) maximum rated R load	6A@400VAC
Maximum contact current (AC)	6 A
Maximum contact current (DC)	6 A
Maximum contact voltage (AC)	400 V
Contact/Output Power Type	AC
Dielectric strength between coil and contacts	1000 Vrms
Electrical life	10000 Cycle(s)
End contact material	SILVER TIN OXIDE
Installation features	PANEL MOUNT
operating hours	10 ms
Maximum operating temperature	85 °C
Minimum operating temperature	70 °C
method of packing	BOX; TUBE
physical size	28mm x 5mm x 15mm
Guideline	UL; VDE
Relay action	MOMENTARY
Relay style	1 FORM A
Relay function	SPST
Relay type	POWER/SIGNAL RELAY
release time	7.5 ms
seal	RT3
surface mount	NO
Termination type	SOLDER/QUICK CONNECT
weight	6 g

Preview

Download Datasheet

View All

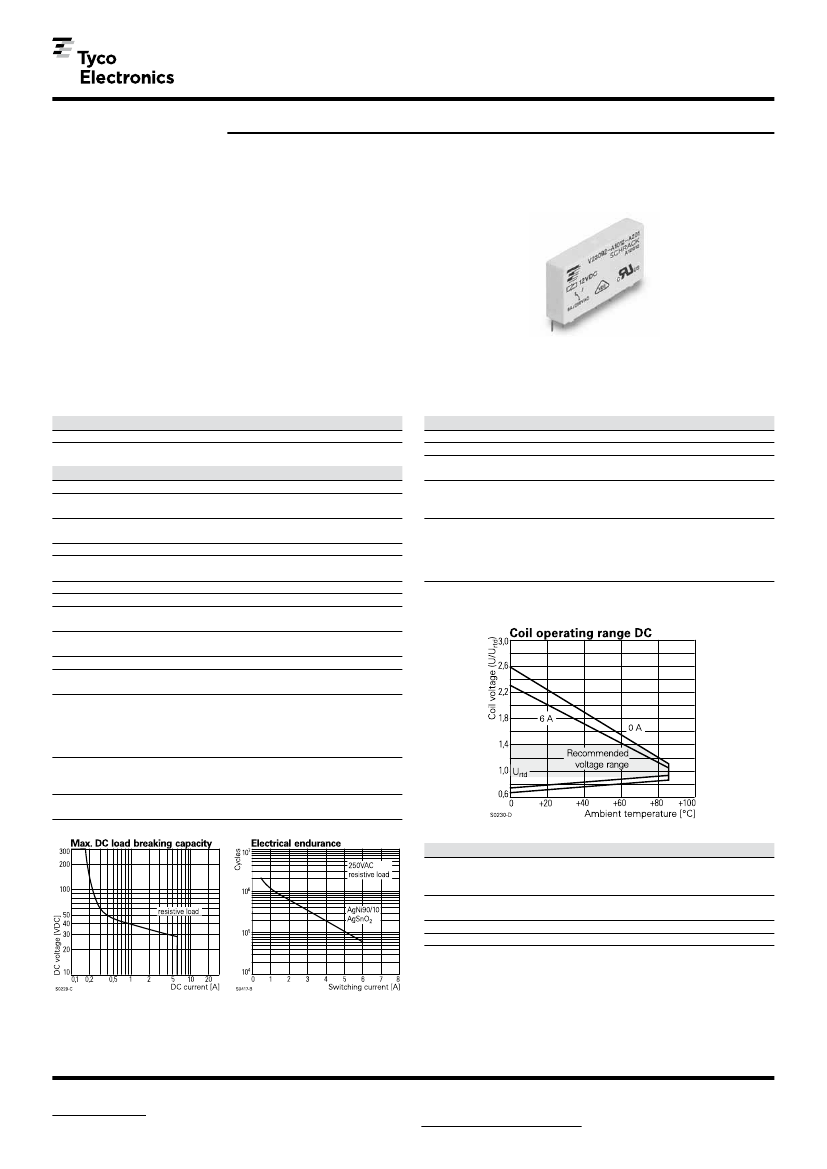

General Purpose Relays

PCB Relays

Slimline PCB Relay SNR

n

Schrack

1 pole 6A, 1 form C (CO), 1 form A (NO)

Only 5mm wide

Flat pack version available

Sensitive coil 170mW

Reinforced insulation (protection classII)

Strong coil pins for DIN-rail socket

Allows high function- / packaging density

Cadmium-free contacts, AgNi 90/10 for AC-loads

Typical applications

Interface technology, PLC’s, timers, centralized and decentralized heating

control

Approvals

Coil Data

F0140-D

VZ

Coil voltage range

Operative range, IEC 61810

Coil versions, DC coil

Coil

Rated

Operate

code

voltage

VDC

005

5

3.5

012

12

8.4

024

24

16.8

048

48

33.6

060

60

42.0

Release

voltage

VDC

0.25

0.6

1.2

2.4

3.0

5 to 60VDC

2

Coil

resistance

Ω±10%

1)

147

848

3390

10600

1)

20500

1)

Rated coil

power

mW

170

217

176

VDE REG.-Nr. 6666, cULus E214024

Technical data of approved types on request

Contact arrangement

1 form C (CO) or 1 form A (NO)

Rated voltage

250VAC

Max. switching voltage

400VAC

Rated current

6A

Limiting making current, max 4s, df 10%

10A

Breaking capacity max.

1500VA

Contact material

AgSnO

2

,

AgSnO

2

AgNi 90/10

gold plated

Min. recommended contact load

100mA, 12V

50mW

Frequency of operation, with/without load

6/1200min

-1

Operate/release time max.

12/5ms

Bounce time max., form A/form B

3/8ms

Contact ratings

Type

Contact Load

Cycles

EC 61810

V23092-*****-A301, -A801 C (CO) 6A, 250VAC, cosφ=1, 85°C 5x10

3

UL 508

V23092-*****-A301, -A801 A/B

6A, 250VAC,

general purpose, 85°C

6x10

3

V23092-*****-A301, -A801 A/B

B300, 85°C

6x10

3

V23092-*****-A301, -A801 A/B

R300, 85°C

6x10

3

EN60730-1

V23092-*****-A302

A (NO) 3A (1.5A), 250VAC, 85°C 100x10

3

V23092-*****-A302, -A802 A (NO) 5A (1.5A), 250VAC, 85°C

10x10

3

Mechanical endurance, DC coil

10x10

6

operations

Contact Data

1) Coil resistance ±15%.

All figures are given for coil without pre-energization, at ambient temperature +23°C.

Other coil voltages on request.

Insulation Data

Initial dielectric strength

between open contacts

between contact and coil

Clearance/creepage

between contact and coil

Material group of insulation parts

Tracking index of relay base

1000V

rms

4000V

rms

≥6/8mm

IIIa

PTI250

09-2010, Rev. 0910

www.tycoelectronics.com

Datasheets and product specification ac-

cording to IEC 61810-1 and to be used only

together with the ‘Definitions’ section.

Datasheets and product data is subject to the

terms of the disclaimer and all chapters of

the ‘Definitions’ section, available at

http://relays.tycoelectronics.com/definitions

Datasheets, product data, ‘Definitions’ sec-

tion, application notes and all specifications

are subject to change.

1
