Wirewound Chip Inductors
FEATURES
•
•
•
•
•
SIZES K(0402), J (0603), D (0805) AND C (1008)
HIGH Q, HIGH CURRENT AND HIGH SRF CHARACTERISTICS
includes all homogeneous materials
BOTH FLOW AND REFLOW SOLDERING APPLICABLE*
*See Part Number System for Details
HIGH INDUCTANCE AVAILABLE IN SMALL SIZE
EMBOSSED PLASTIC TAPE PACKAGE FOR AUTOMATIC PICK-PLACE
Case Size Code
0603 (J)
0805 (D)
1008 (C)
1.8nH ~ 270nH 2.2nH ~ 910nH 10nH ~ 4.7µH
±2% (G), ±5% (J), ±10% (K), ±20% (M)
-40°C ~ +125°C
NIN-H Series
RoHS
Compliant
*FLOW & REFLOW SOLDERING 0805 & 1008 SIZES, 0402 & 0603 REFLOW SOLDERING ONLY
Specifications
Inductance Range
Inductance Tolerance
Operating Temperature Range
0402 (K)
1.0nH ~ 68nH
±0.3nH (S), ±5% (J)
ENVIRONMENTAL CHARACTERISTICS
Specifications
75% Min. Coverage
(1) No evidence of damage
(2) Inductance change ±5% of initial value
Resistance to Soldering Heat
(3) Q factor within ±10% of initial value
(±20% for 0402 & 0603 case sizes)
Humidity
Low Frequency Vibration
Thermal Shock
Low Temperature Storage
(1) No evidence of damage
(2) Inductance change ±5% of initial value
(±10% for 0402 case size)
(3) Q factor within ±10% of initial value
(±20% for 0402 & 0603 case sizes)
(1) No evidence of damage
(2) Inductance change ±10% of initial value
(±20% for 0402 case size)
(3) Q factor within ±10% of initial value
(±20% for 0402 & 0603 case sizes)
No evidence of short or open circuit
Test
Solderability
Test Method & Condition
After 3 sec. dip in +230°C soldering pot (post flux)
After 5 seconds at +260°C (with pre-conditioning)
After 500 hours at 60°C and 90 ~ 95% RH
(0402 case size - after 96 hours 50°C and 90 ~ 95% RH)
After 2 hrs per axis, 10 ~ 55Hz, 1.5mm amplitude
After 100 cycles (10 cycles 0402) at -40°C and +125°C
(30 minutes at each temperature)
After 500 hrs at -40°C
After 500 hrs at +125°C with rated DC current
(0402 case size - after 1,000 hrs at +85°C)
After 500 hrs at 60°C with 90 ~ 95% RH with rated DC current
(0402 case size- 1,000 hrs at +40°C)
High Temperature Load Life
Humidity Load Life

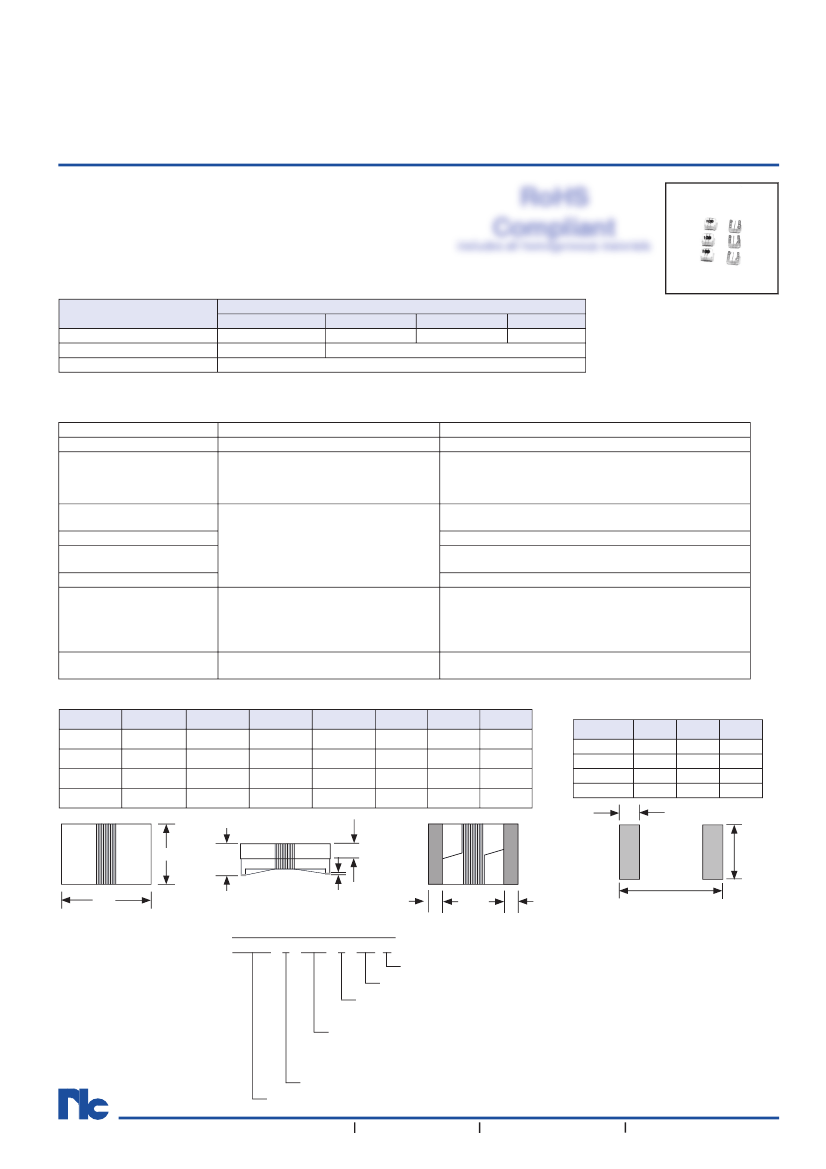

COMPONENT DIMENSIONS (mm):
Type
NIN-HK
NIN-HJ
NIN-HD
NIN-HC
Case Size
0402
0603
0805
1008
A
1.19 max.
1.80 max.
2.40 max.
2.90 max.
B
0.64 max.
1.20 max.
1.60 max.
2.50 max.
C
0.66 max.
1.02 max.
1.40 max.
2.03 max.
D (ref.)
0.25
0.38
0.51
1.20
E ±0.1
0.23
0.35
0.44
0.55
F ±0.05
0.15
0.25
0.15
0.15
RECOMMEND LAND PATTERN
DIMENSIONS (mm)
Type
NIN-HK
NIN-HJ
NIN-HD
NIN-HC
G
L
1.18
1.92
2.80
3.31
G
0.36
0.64
0.76
1.27
H
0.66
1.02
1.78
2.54
B
C
D
H
A
F
E
E
L
PART NUMBER SYSTEM
NIN-H J 6N8 J TR F
Pb-
free/RoHS compliant
Taped & Reeled
Tolerance Code
(S ±0.3nH, G ±2%, J ±5%, K ±10%, M ±20%)
Inductance Value in Nanohenries
(see standard values table for correct
value code)
Case Code (K=0402, J = 0603, D = 0805, C = 1008)
Series
www.niccomp.com
www.lowESR.com
www.RFpassives.com
www.SMTmagnetics.com
®
