1550 nm OPTICAL FIBER
COMMUNICATIONS InGaAsP
STRAINED MQW-DFB DC-PBH
LASER DIODE MODULE
FEATURES
•
PEAK EMISSION WAVELENGTH:
λ
P
= 1550 nm
•
LOW THRESHOLD CURRENT:
I
TH
= 15 mA @ T
C
= 25°C
•
InGaAs MONITOR PIN-PD
•
WIDE OPERATING TEMPERATURE RANGE:
T
C
= -20 to +85°C
• BASED ON BELLCORE TA-NWT-000983
NDL7701P
SERIES
DESCRIPTION
The NDL7701P Series is a 1550 nm
λ/4-phase-shifted
DFB
(Distributed Feed-Back) laser diode with single mode fiber.
The newly developed strained Multiple Quantum Well (st-
MQW) structure is adopted to achieve stable dynamic single
longitudinal mode operation over a wide temperature range of
-20 to +85°C. It is designed for all STM-1 and STM-4 applica-
tions.
ELECTRO-OPTICAL CHARACTERISTICS
(T
C
= -20 to +85°C, unless otherwise specified)
PART NUMBER
PACKAGE OUTLINE
SYMBOLS
V
F
I
TH
η
d
∆η
d
PARAMETERS AND CONDITIONS
Forward Voltage, P
f
= 2 mW, T
C
= 25°C
Threshold Current, T
C
= 25°C
Differential Efficiency from Fiber, P
f
= 2 mW, T
C
= 25°C
Temperature Dependence of Differential Efficiency
from Fiber,
∆η
d
= 10 log
η
d
(T
C
= 85°C)
η
d
(T
C
= 25°C)
Peak Emission Wavelength, P
f
= 1 mW, PN 1/2,
I
b
= I
TH
, 622 Mb/s-NRZ
Side Mode Suppression Ratio, P
f
= 1 mW, PN 1/2,
I
b
= I
TH
, 622 Mb/s-NRZ
Rise Time, 10-90%, T
C
= 25°C
Fall Time, 90-10%, T
C
= 25°C
Monitor Current, V
R
= 5 V, P
f
= 2 mW
Monitor Dark Current, V
R
= 5 V, T
C
= 25°C
Tracking Error, I
m
= const.
UNITS
V
mA
W/A
dB
-3.0
15
0.1
-2.5
MIN
NDL7701P Series
TYP
MAX
1.3
25
λ
p
SMSR
t
r
t
f
I
m
I
D
γ
1
nm
dB
ns
ns
µA
nA
dB
1530
30
1550
1570
0.5
0.5
100
0.1
5
1.0
Note:
(mW)
P
f
T
C
= 25°C
1.
γ
= 10 log
P
f
2mW
2
P
f
T
C
= -20 to +85°C
0
I
m
I
m
(at P
f
(25°C) = 2 mW)
California Eastern Laboratories
NDL7701P SERIES
ABSOLUTE MAXIMUM RATINGS
1
(T
C
= -20 to +85°C, unless otherwise specified)
SYMBOLS
I
F
P
f
V
R
I
F
V
R
T
C
T
STG
T
SLD
PARAMETERS
Forward Current of LD
Optical Output Power
from Fiber
Reverse Voltage of LD
Forward Current of PD
Reverse Voltage of PD
Operating Case Temperature
Storage Temperature
Lead Soldering
Temperature (10 s)
UNITS
mA
mW
V
mA
V
°C
°C
°C
RATINGS
150
5.0
2.0
10
20
-20 to +85
-40 to +85
260
ORDERING INFORMATION
PART NUMBER
NDL7701P
NDL7701PC
NDL7701PD
NDL7701P1
NDL7701P1C
NDL7701P1D
NDL7701P2
NDL7701P2C
NDL7701P2D
AVAILABLE CONNECTOR
Without Connector
With FC-PC Connector
With SC-PC Connector
Without Connector
With FC-PC Connector
With SC-PC Connector
Without Connector
With FC-PC Connector
With SC-PC Connector
DESCRIPTION
No Flange
Flat
Mount
Flange
Vertical
Flange
Note:
1. Operation in excess of any one of these parameters may result
in permanent damage.

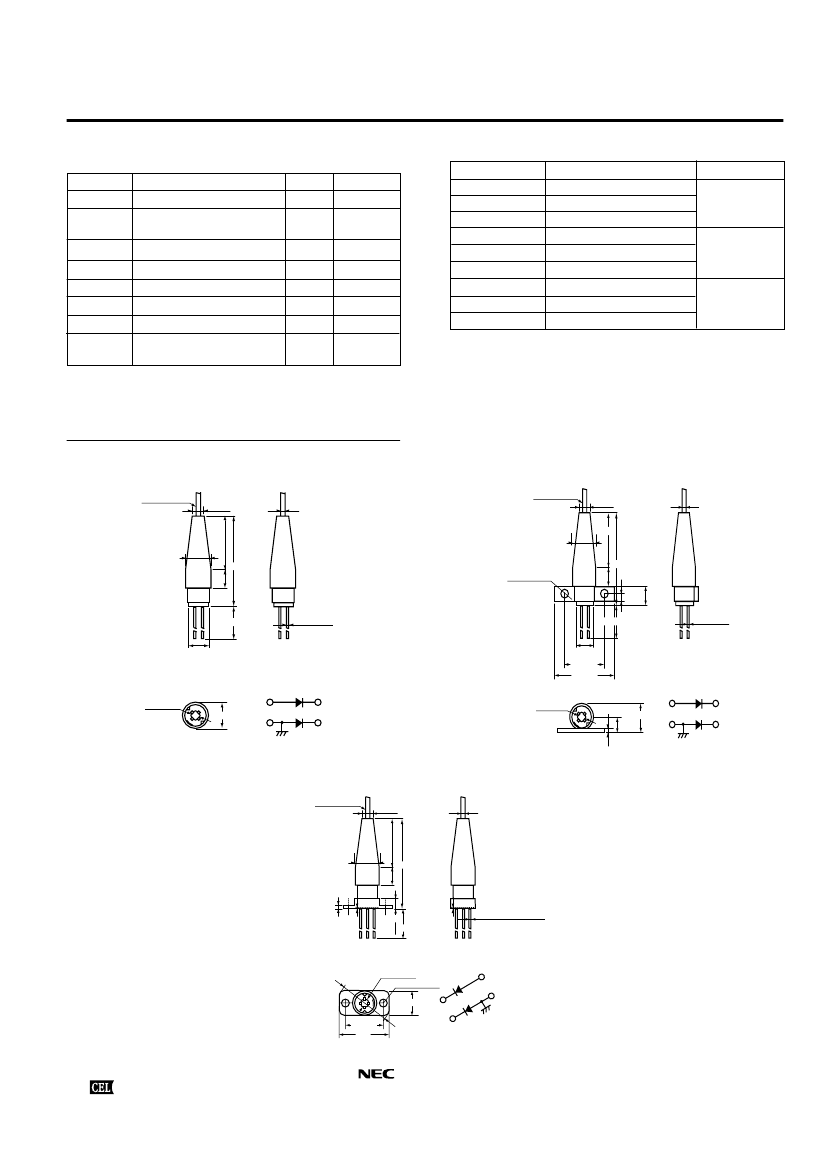

OUTLINE DIMENSIONS
(Units in mm)
NDL7701P
Optical Fiber
SM-9/125
Length: 1 m
φ3.2±0.25
φ0.9
NDL7701P1
Optical Fiber
SM-9/125
Length: 1 m
φ3.2±0.25
φ0.9
15
15
φ7±0.2
27.4±1.0
φ7±0.2
27.4±1.0
φ2.2
(2 places)
5
2.0±0.2
4.0±0.2
5
20±1.0
φ0.45±0.05
20±1.0
φ0.45±0.05
φ6±0.1
φ6±0.1
12.7±0.2
17.0±0.2
PD
PD
3
2
P.C.D. =
φ2
43
12
4
φ7±0.2
1
LD
CASE
P.C.D. =
φ2
4 3
12
4
7.2±0.3
3.7±0.3
1
LD
CASE
3
2
1.0±0.1
NDL7701P2
Optical Fiber
SM-9/125
Length: 1 m
φ3.2±0.25
φ0.9
15
φ7±0.2
5
27.7±1.0
0.5±0.2
0.3
2.5±1.0
19.5±1.0
0.3
φ0.45±0.05
(4 places)
φ16
2
3
1
4
P.C.D. =
φ2
φ2.5
(2 places)
7±0.2
3
2
PD
1
CASE
4
LD
12±0.15
16.0
EXCLUSIVE NORTH AMERICAN AGENT FOR
RF, MICROWAVE & OPTOELECTRONIC SEMICONDUCTORS
CALIFORNIA EASTERN LABORATORIES
•
Headquarters
•
4590 Patrick Henry Drive
•
Santa Clara, CA 95054-1817
•
(408) 988-3500
•
Telex 34-6393
•
FAX (408) 988-0279
24-Hour Fax-On-Demand: 800-390-3232 (U.S. and Canada only)
•
Internet: http://WWW.CEL.COM
01/31/2000
DATA SUBJECT TO CHANGE WITHOUT NOTICE
