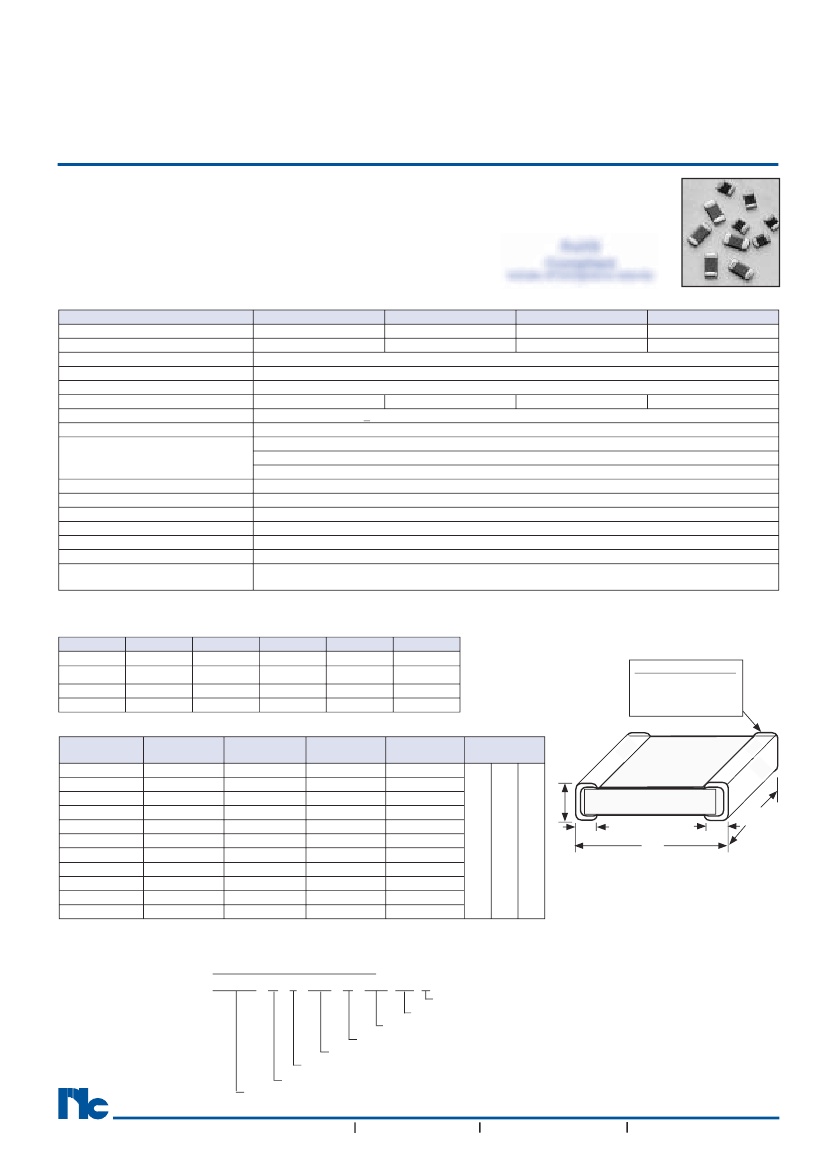

Surface Mount NTC Thermistors

FEATURES

• NEGATIVE TEMPERATURE COEFFICIENT

• FAST RESPONSE TO TEMPERATURE VARIATIONS MAKE THEM

IDEALLY FOR TEMPERATURE SENSORS AND COMPENSATORS

RoHS

• STANDARD EIA 0402, 0603 AND 0805 SIZES

Compliant

includes all homogeneous materials

• NICKEL BARRIER SOLDER PLATE TERMINATIONS

• TAPE AND REEL FOR AUTOMATIC MOUNTING

*See Part Number System for Details

CHARACTERISTICS AND PERFORMANCE

Series

EIA Size

Resistance Range (+25°C)

Resistance Tolerance (+25°C)

Operating Temperature Range

Storage Temperature Range

Maximum Power Rating (JIS-C2570)*

Dissipation Factor

Thermal Time Constant

Functional Beta Temperature Range

Beta Value Range

Beta Value Tolerance

Resistance to Soldering Heat

High Temperature Stability

Low Temperature Stability

Humidity

Temperature Cycliing

NCT02

0201

470 ohm ~ 1Megohm

NCT Series

NCT04

NCT06

NCT08

0402

0603

0805

470 ohm ~ 2Megohm

100 ohm ~ 2Megohm

1% (F), ±2% (G), ±3% (H), 5% (J), 10% (K)

-40°C ~ +125°C

110mW

120mW

130mW

<1.5mW/°C (power to heat thermistor 1°C, measured at 25°C)

Within 5 seconds (time to change 63.2% from initial to stable)

D = +25°C ~ +50°C

A = +25°C ~ +85°C

E = +25°C ~ +100°C

2610K ~ 4800K

±1% (F), ±2% (G), ±3% (H), ±5% (J)

+260°C ± 5°C for 10 ±1 seconds

+125°C ± 3°C for 1,000 hours,

∆R

±3%,

∆Beta

±2%

-40°C ± 3°C for 1,000 hours,

∆R

±3%,

∆Beta

±2%

+85°C ± 2°C, 85% ±5% RH for 1,000 hours,

∆R

±3%,

∆Beta

±2%

100 cycles of -40°C ±3°C 30 min., +20°C 3 min., +125°C ±3°C 30 min., +20°C 30 min.

∆R

±3%,

∆Beta

±2%

*JIS-C2570: Maximum power for continuous load at 25°C.

DIMENSIONS (mm)

Series

NCT02

NCT04

NCT06

NCT08

EIA Size

0201

0402

0603

0805

0.60 ± 0.03

1.0 ± 0.05

1.6 ± 0.15

2.0 ± 0.20

T max.

0.30 ± 0.03 0.23 ± 0.03 0.15 ± 0.05

0.50 ± 0.05

0.40

0.25

+0.05/-0.10

0.80 ± 0.15

0.60

0.30 ± 0.20

1.25 ± 0.20

0.65

0.40 ± 0.20

Termination Material

Ag Base Termination

Ni Barrier

100% Sn Finish

E-24 Standard

Values

STANDARD RESISTANCE VALUES (@25°C) AND BETA RANGE*

Beta Value

4610 ~ 4800K

4410 ~ 4600K

4210 ~ 4400K

4010 ~ 4200K

3810 ~ 4000K

3610 ~ 3800K

3410 ~ 3600K

3210 ~ 3400K

3010 ~ 3200K

2810 ~ 3000K

2610 ~ 2800K

NCT02 (0201) NCT04 (0402) NCT06 (0603) NCT08 (0805)

100K ~ 1M

30K ~ 150K

20K ~ 120K

10K ~ 100K

10K ~ 50K

6.8K ~ 30K

2K ~ 20K

1K ~ 5K

1K ~ 3K

470 ~ 1.5K

100K ~ 2M

10K ~ 2M

10K ~ 220K

2K ~ 150K

680 ~ 68K

500 ~ 47K

100 ~ 10K

68K ~ 2M

10K ~ 2M

1K ~ 220K

1K ~ 150K

470 ~ 150K

150 ~ 100K

100 ~ 1K

47K ~ 2M

10K ~ 2M

6.8K ~ 2M

1K ~ 220K

1K ~ 150K

680 ~ 150K

220 ~ 150K

100 ~ 100K

100 ~ 1K

1.0

1.3

1.8

2.4

3.3

4.3

5.6

7.5

1.1

1.5

2.0

2.7

3.6

4.7

6.2

8.2

1.2

1.6

2.2

3.0

3.9

5.1

6.8

9.1

*Beta can be ordered in increments of 10 (ex. 2610, 2620, 2630, etc.)

PART NUMBER SYSTEM

NCT06 D J 154 H 410 TR F

RoHS compliant

Packaging, TR: Tape and Reel

Beta Code (1st Three Characters of Beta Value)

Beta Value Tolerance: J=±5%, H=±3%, G=±2%, F=±1%

Resistance Value Code (E-24 Standard Values)

Resistance Value Tolerance: K+±10%, J=±5%, H=±3%, G=±2%, F=±1%

Temperature Characteristic (D=+25°C ~ +50°C, A=+25°C ~ +85°C, E+25°C ~ +100°C)

Series

NIC COMPONENTS CORP.

www.niccomp.com

www.lowESR.com

www.RFpassives.com

www.SMTmagnetics.com
