3418-2D1-10 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 3418-2D1-10

3418-2D1-10: DescriptionCard Edge Connector, 36 Contact(s), 2 Row(s), Straight, 0.156 inch Pitch, Press Fit Terminal, #4-40, Receptacle; CategoryThe connector The connector; File Size172KB，2 Pages; ManufacturerECS; Websitehttp://www.ecsxtal.com/

Download Datasheet Parametric Compare View All

3418-2D1-10 Overview

Card Edge Connector, 36 Contact(s), 2 Row(s), Straight, 0.156 inch Pitch, Press Fit Terminal, #4-40, Receptacle

3418-2D1-10 Parametric

Parameter Name	Attribute value
Reach Compliance Code	unknown
body width	0.37 inch
subject depth	0.72 inch
body length	3.68 inch
Body/casing type	RECEPTACLE
Connector type	CARD EDGE CONNECTOR
Contact to complete cooperation	AU ON NI
Contact material	PHOSPHOR BRONZE
contact mode	RECTANGULAR
Contact resistance	10 mΩ
Contact style	BELLOWED TYPE
Dielectric withstand voltage	1800VAC V
maximum insertion force	4.448 N
Insulation resistance	5000000000 Ω
Manufacturer's serial number	3400
Plug contact pitch	0.156 inch
Installation option 1	#4-40
Installation option 2	THREADED INSERT
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
PCB contact pattern	RECTANGULAR
PCB contact row spacing	4.7752 mm
Plating thickness	10u inch
Rated current (signal)	5 A
Guideline	UL
reliability	COMMERCIAL
Terminal length	0.25 inch
Terminal pitch	3.9624 mm
Termination type	PRESS FIT
Total number of contacts	36
Evacuation force-minimum value	.278 N
Base Number Matches	1

Preview

Download Datasheet

View All

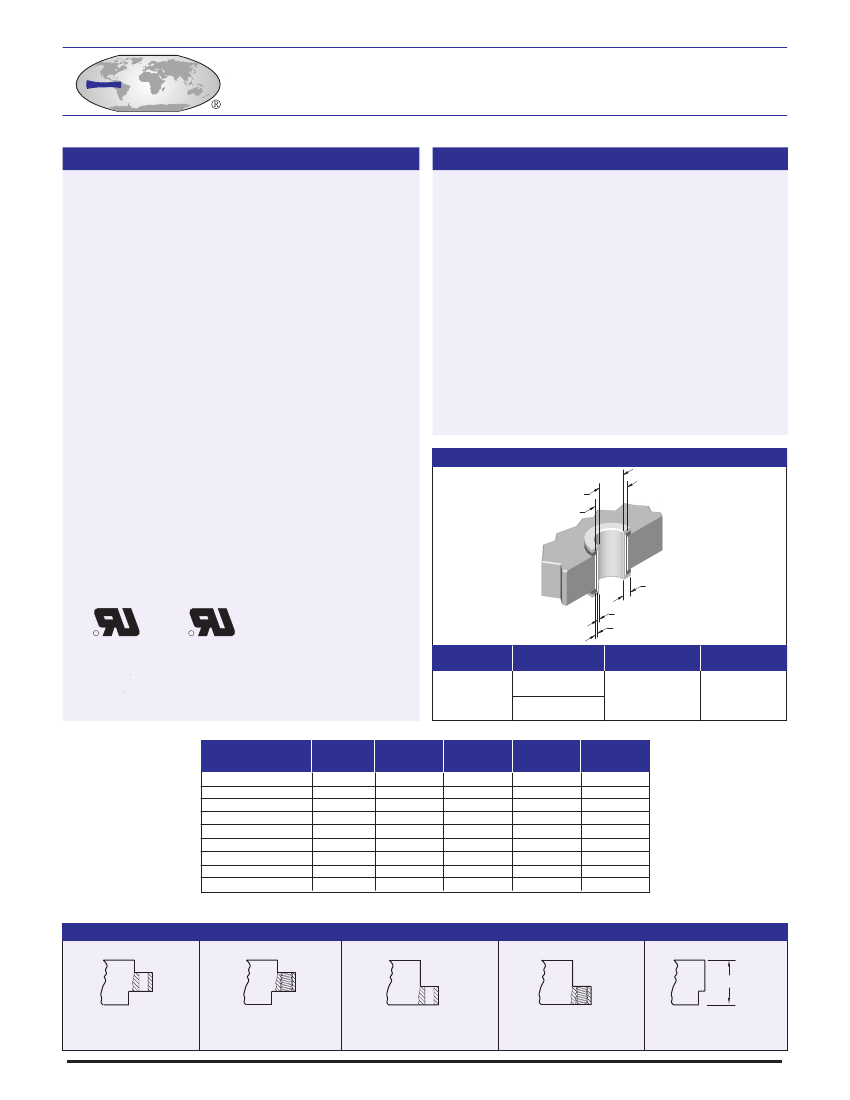

.156” X .188” Contact Spacing, .045 sq. Pin, Press Fit

Features

•

Extra large chamfered entry

Conforms to Bell-core spec TR-TSY-00078

Extended card scoops available

Replaceable contacts

Molded in polarization available between

contact, or on contact position.

• De-population of contacts per

customer specification.

• Available in selective gold plate at contact point

• Accommodates .062 (.008) PC Board

• Bifurcated contacts

• Many custom options available, consult factory

3400 Series Card Edge Connector

Specifications

Insulator Material: Glass filled polyester, type PBT,

94 V-O, UL Rated.

Contact Material: Phosphor Bronze Alloy

Contact Plating: Gold and/or Tin over .000050” Nickel,

(See Contact Plating Options).

Current Rating:

5 amp at 30°C

Contact Resistance:

Contact to Daughter Card:

10 m

max.

Compliant section to P.T.H.:

2 m

max.

Insulation Resistance:

5000 M

min.

Dielectric Withstand Voltage:

1800 V AC

Daughter Board Insertion Force:

16 oz max. per contact pair

when tested with a .071” thick

gage.

Daughter Board Withdrawal Force:

1 oz min. per contact pair

when tested with a .054” thick

gage.

Compliant Section Insertion Force:

40 lbs max. per contact

Compliant Section Withdrawal Force:

10 lbs min. per contact

Recommended Board Thickness:

.093”+

Recommended PCB Layout Page A-33

Operating Temperature:

-54

C to +125

For drawings, technical data or samples,

contact E.C.S. at (714) 895-6351

Recommended Hole Size

.072 ±.003 [1.83]

.0773 ±.001 [1.96]

.0040 [.10] min.

.0003 [.008] min.

Dimensions are in inch [mm]

Drilled Hole

Diameter

Plating

Thickness

.001-.003 [.03-.08]

.0003 [.008]min.

.001-.003 [.03-.08]

Hole

Diameter

Pad

Diameter

Recognized under the recognized component

Program of Underwriters Laboratories, Inc.

File Numbers: E146967 and E176234

.0773±.001

[1.96]

Copper

Tin / Lead

After Plating

.072±.003

[1.83]

.097 [2.46]

NO. OF POS./CONTACTS

06/12

10/20

15/30

18/36

22/44

28/56

30/60

40/80

43/86

1.808 [45.92]

2.432 [61.77]

3.212 [81.59]

3.680 [93.47]

4.304 [109.32]

5.240 [133.10]

5.552 [141.02]

7.112 [180.65]

7.580 [192.53]

1.532 [38.91]

2.156 [54.76]

2.936 [74.57]

3.404 [86.46]

4.028 [102.31]

4.964 [126.09]

5.276 [134.01]

6.836 [173.63]

7.310 [185.67]

1.226 [31.14]

1.850 [46.99]

2.630 [66.80]

3.098 [78.69]

3.722 [94.54]

4.658 [118.31]

4.970 [126.24]

6.530 [165.86]

6.998 [177.75]

1.106 [28.09]

1.730 [43.94]

2.510 [63.75]

2.978 [75.64]

3.602 [91.49]

4.538 [115.27]

4.850 [123.19]

6.410 [162.81]

6.878 [174.70]

0.780 [19.81]

1.404 [35.66]

2.184 [55.47]

2.652 [67.36]

3.276 [83.21]

4.212 [106.99]

4.524 [114.91]

6.084 [154.53]

6.552 [166.43]

For reference only, can go 1 through 43 positions.

Dimensions are in inch [mm]

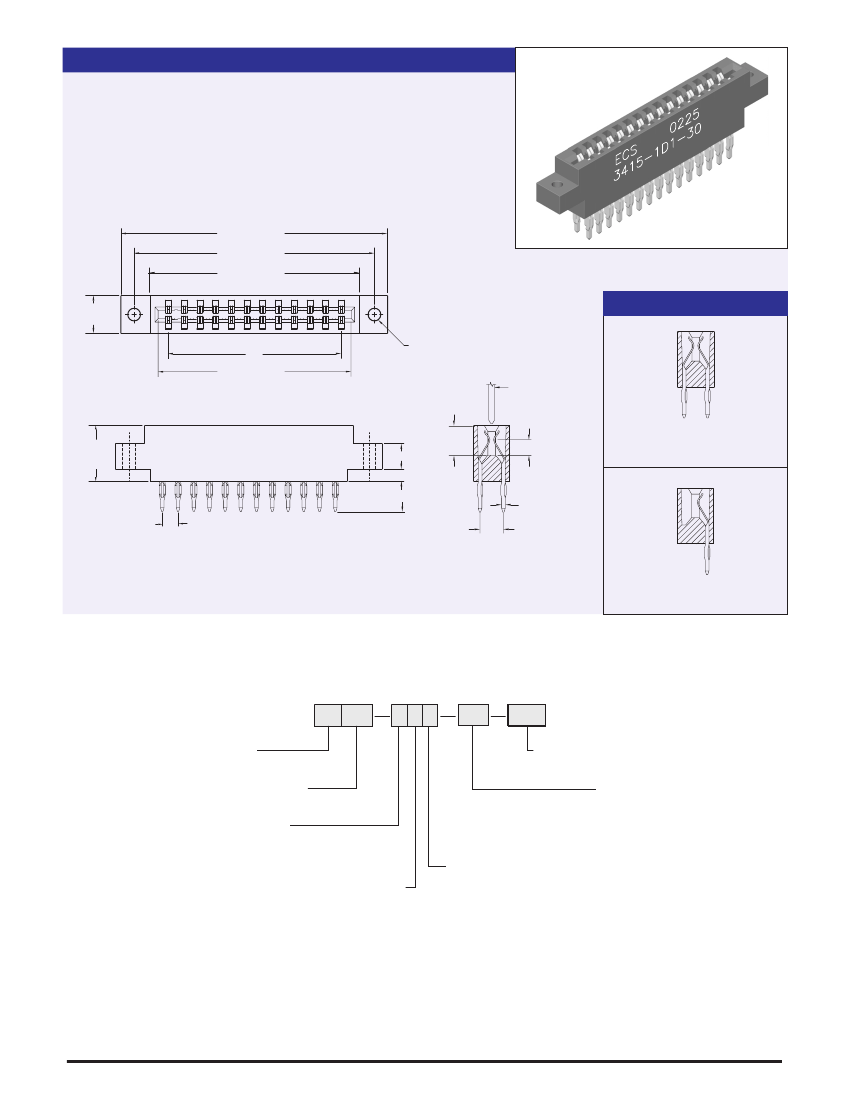

MOUNTING STYLE

.720

[18.29]

Clearance Hole

= #4-40 Threaded Insert

= Flush Mount

= #4-40 Threaded Insert

= No Mounting Ear

ELECTRONIC CONNECTOR SERVICE INC.

11880 WESTERN AVE. STANTON, CA 90680 TOLL FREE (877) ECS-CONN TEL (714) 895-6351 FAX (714) 894-1858

WWW.ECSCONN.COM

3418-2D1-10 Related Products

	3418-2D1-10	3428-2D2-30	3428-2D3-10
Description	Card Edge Connector, 36 Contact(s), 2 Row(s), Straight, 0.156 inch Pitch, Press Fit Terminal, #4-40, Receptacle	Card Edge Connector, 56 Contact(s), 2 Row(s), Straight, 0.156 inch Pitch, Wire Wrap Terminal, #4-40, Receptacle	Card Edge Connector, 56 Contact(s), 2 Row(s), Straight, 0.156 inch Pitch, Wire Wrap Terminal, #4-40, Receptacle
Reach Compliance Code	unknown	unknown	unknown
body width	0.37 inch	0.37 inch	0.37 inch
subject depth	0.72 inch	0.72 inch	0.72 inch
body length	3.68 inch	5.24 inch	5.24 inch
Body/casing type	RECEPTACLE	RECEPTACLE	RECEPTACLE
Connector type	CARD EDGE CONNECTOR	CARD EDGE CONNECTOR	CARD EDGE CONNECTOR
Contact to complete cooperation	AU ON NI	AU ON NI	AU ON NI
Contact material	PHOSPHOR BRONZE	PHOSPHOR BRONZE	PHOSPHOR BRONZE
contact mode	RECTANGULAR	RECTANGULAR	RECTANGULAR
Contact resistance	10 mΩ	10 mΩ	10 mΩ
Contact style	BELLOWED TYPE	BELLOWED TYPE	BELLOWED TYPE
Dielectric withstand voltage	1800VAC V	1800VAC V	1800VAC V
maximum insertion force	4.448 N	4.448 N	4.448 N
Insulation resistance	5000000000 Ω	5000000000 Ω	5000000000 Ω
Manufacturer's serial number	3400	3400	3400
Plug contact pitch	0.156 inch	0.156 inch	0.156 inch
Installation option 1	#4-40	#4-40	#4-40
Installation option 2	THREADED INSERT	THREADED INSERT	THREADED INSERT
Installation method	STRAIGHT	STRAIGHT	STRAIGHT
Installation type	BOARD	BOARD	BOARD
Number of connectors	ONE	ONE	ONE
PCB row number	2	2	2
Number of rows loaded	2	2	2
Maximum operating temperature	125 °C	125 °C	125 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C
PCB contact pattern	RECTANGULAR	RECTANGULAR	RECTANGULAR
PCB contact row spacing	4.7752 mm	4.7752 mm	4.7752 mm
Plating thickness	10u inch	30u inch	10u inch
Rated current (signal)	5 A	5 A	5 A
Guideline	UL	UL	UL
reliability	COMMERCIAL	COMMERCIAL	COMMERCIAL
Terminal length	0.25 inch	0.57 inch	0.75 inch
Terminal pitch	3.9624 mm	3.9624 mm	3.9624 mm
Termination type	PRESS FIT	WIRE WRAP	WIRE WRAP
Total number of contacts	36	56	56
Evacuation force-minimum value	.278 N	.278 N	.278 N
ECCN code	-	EAR99	EAR99
Other features	-	COMPLIANT FIT TERMINALS	COMPLIANT FIT TERMINALS
