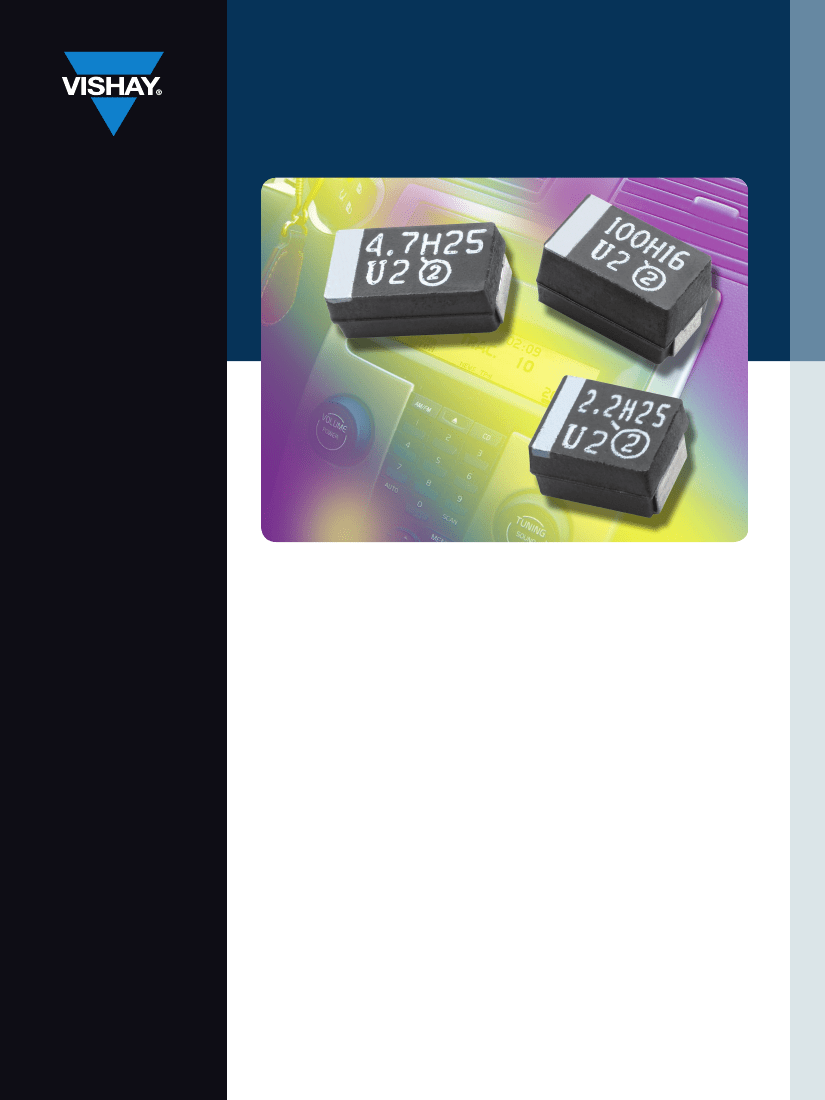

TanTalum Chip CapaCiTor
th3 S e r ie s
cAPAcItorS
Product Sheet
high-Temperature molded Solid Tantalum
Chip Capacitor
Key BenefiTS
•
•
•
•
operating temperature up to 150 ºc
high reliability
rohS-compliant terminations: matte tin or gold
Industry-standard case sizes A-e (eIA 535BAAc dimensions)
appliCaTionS
•
•
•
Automotive
Industrial controls
oil exploration
w w w. v i s h a y. c o m
Datasheet is available on our web site at www.vishay.com
for TH3 Series - http://www.vishay.com/doc?40084

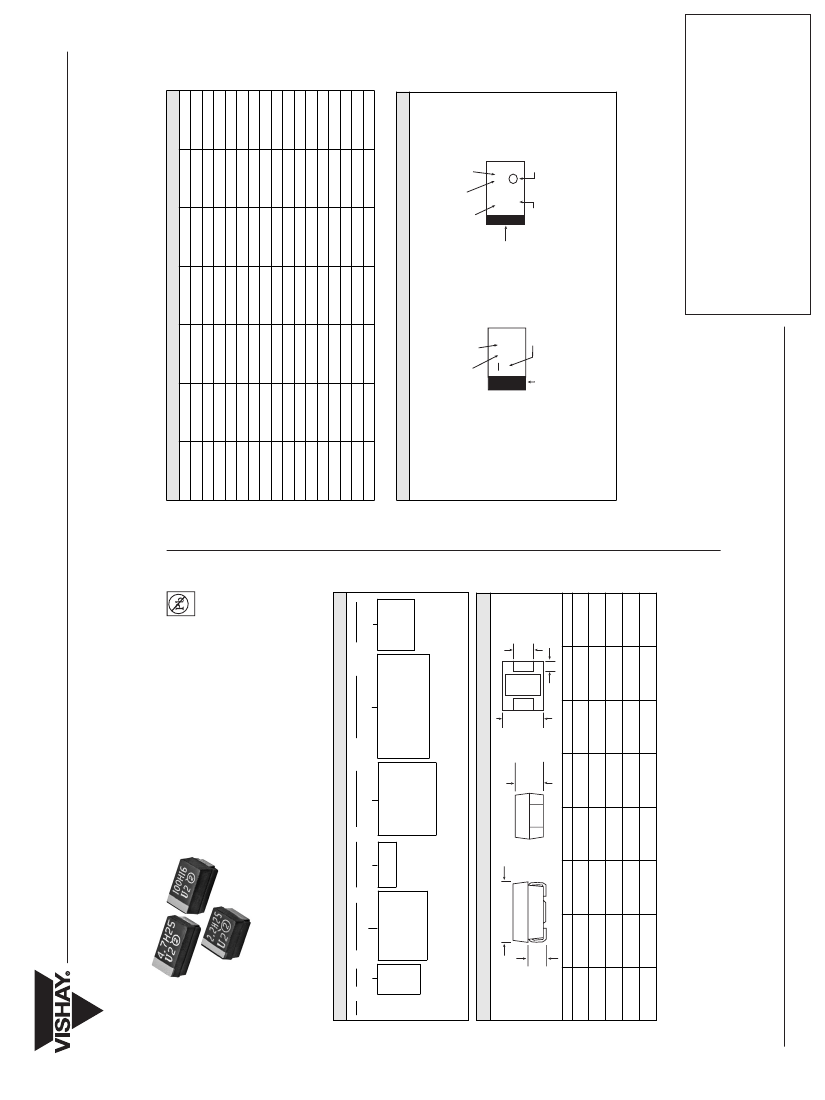

TH3 Series
Solid Tantalum Chip Capacitors
T
anTamounT
®
High Temperature, Molded Case
FEATURES
RATINGS AND CASE CODES
µF
Pb-free
Available
Vishay Sprague
T
Operating Temperature up to 150 °C with
50 % voltage derating
10 V
16 V
20 V
25 V
0.33
0.47
0.68
1.0
1.5
2.2
3.3
4.7
6.8
10
15
22
33
47
68
100
D
D
E
D
D
D
D
D
*C
*C
*C
D
D
D
*C
*C/D
D
D
D
*B
*B
*C
A/B
A
A
A/*B
B
C
*C
A
A
A/*B
*B
*C
C
*C
*C/D
*D
D
D
E
35 V
*A
High Temperature, Molded Case
50 V
High Reliability
COMPLIANT
RoHS*
RoHS compliant terminations available:
Matte Tin or Gold
Standard EIA 535BAAC case sizes (A through E)
100 % Surge Current Tested (B, C, D, E case sizes)
Compliant Terminations
*C
PERFORMANCE/ELECTRICAL CHARACTERISTICS
Operating Temperature:
- 55 °C to + 150 °C
Note:
Refer to doc. 40088
Capacitance Range:
0.33 µF to 100 µF
Capacitance Tolerance:
± 20 %, ± 10 % standard
Voltage Rating:
10 WVDC to 50 WVDC
D
ORDERING INFORMATION
C
TERMINATION AND
PACKAGING
* Preliminary values. Contact factory for availability.
TH3
TYPE
D
CASE
CODE
106
CAPACITANCE
K
CAPACITANCE
TOLERANCE
035
DC VOLTAGE
RATING AT + 85 °C
T150
SPECIAL
REQUIREMENTS
K = ± 10 %
M = ± 20 %
A: Gold/7" (178 mm) reels
B: Gold/13" (330 mm) reels
C: Matte Tin/7" (178 mm) reels
D: Matte Tin/13" (330 mm) reels
E: Sn/Pb Solder/7" (178 mm) reels
F: Sn/Pb Solder/13" (330 mm) reels
Additional
characters are
added for special
requirements
MARKING
See
Ratings
and Case
Codes
Table.
This is expressed in
picofarads. The first two
digits are the significant
figures. The third is the
number of zeros to
follow.
This is expressed in volts.
To complete the three-
digit block, zeros precede
the voltage rating. A
decimal point is indicated
by an "R"
(6R3 = 6.3 volts).
CONSTRUCTION AND MARKING
Note:
We reserve the right to supply higher voltage ratings and tighter capacitance tolerance capacitors in the same case size. Voltage
substitutions will be marked with the higher voltage rating.
DIMENSIONS
in inches [millimeters]
Capacitance pF
Code
Indicates
Hi-Temp.
Indicates Hi-Temp.
Capacitance µF
Voltage
L
W
TW
V 104H
H
P
Polarity
Band
22
XX
Polarity Band
Voltage
Code
A Case Size
Date Code
H10
2
TH MIN.
Vishay
Sprague
Logo
B, C, D, E Case Sizes
CASE CODE
EIA SIZE
A
3216-18
B
3528-21
C
6032-28
D
7343-31
E
7343-43
L
0.126 ± 0.008
[3.2 ± 0.20]
0.138 ± 0.008
[3.5 ± 0.20]
0.236 ± 0.012
[6.0 ± 0.30]
0.287 ± 0.012
[7.3 ± 0.30]
0.287 ± 0.012
[7.3 ± 0.30]
W
0.063 ± 0.008
[1.6 ± 0.20]
0.110 ± 0.008
[2.8 ± 0.20]
0.126 ± 0.012
[3.2 ± 0.30]
0.170 ± 0.012
[4.3 ± 0.30]
0.170 ± 0.012
[4.3 ± 0.30
H
0.063 ± 0.008
[1.6 ± 0.20]
0.075 ± 0.008
[1.9 ± 0.20]
0.098 ± 0.012
[2.5 ± 0.30]
0.110 ± 0.012
[2.8 ± 0.30]
0.158 ± 0.012
[4.0 ± 0.30]
P
0.031 ± 0.012
[0.80 ± 0.30]
0.031 ± 0.012
[0.80 ± 0.30]
0.051 ± 0.012
[1.3 ± 0.30]
0.051 ± 0.012
[1.3 ± 0.30]
0.051 ± 0.012
[1.3 ± 0.30]
T
W
0.047 ± 0.004
[1.2 ± 0.10]
0.087 ± 0.004
[2.2 ± 0.10]
0.087 ± 0.004
[2.2 ± 0.10]
0.095 ± 0.004
[2.4 ± 0.10]
0.095 ± 0.004
[2.4 ± 0.10]
T
H
(MIN.)
0.028
[0.70]
0.028
[0.70]
0.039
[1.0]
0.039
[1.0]
0.039
[1.0]
