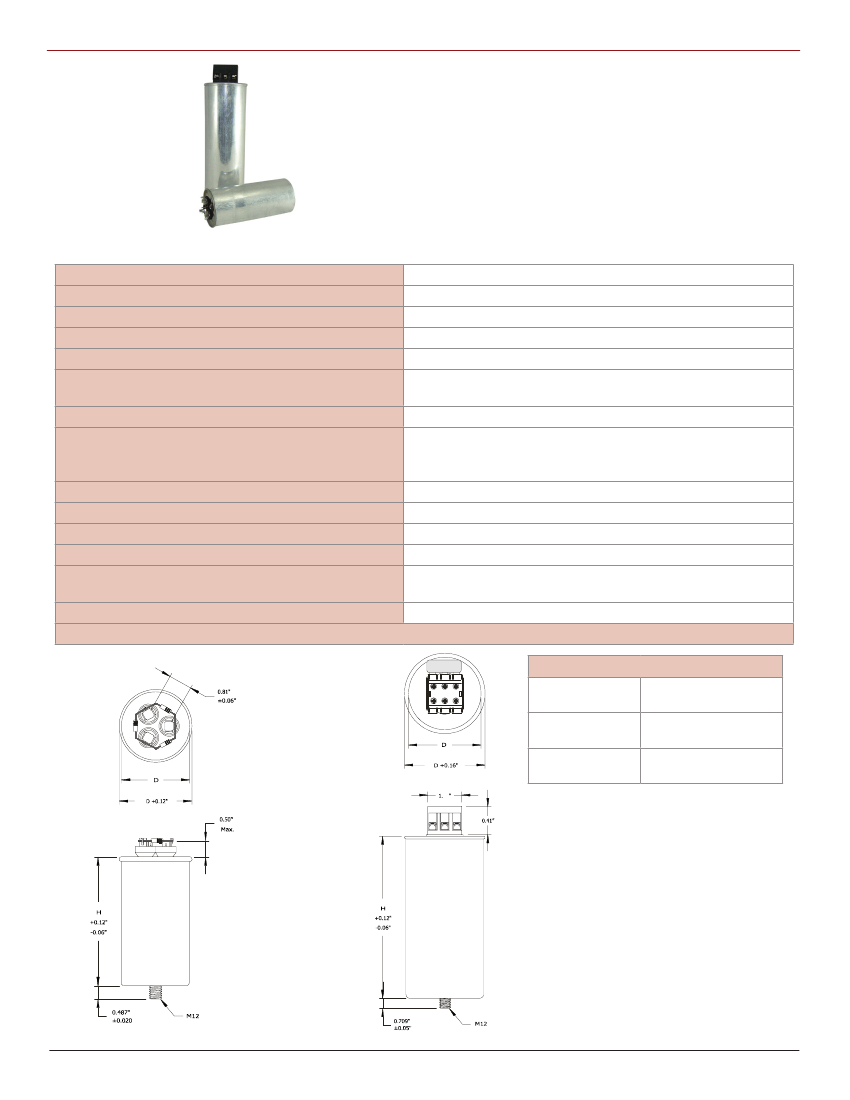

Type PFCS, 3-Phase AC Power Factor Correction Capacitors
Type PFCS 3-phase series capacitors are designed for power factor
correction in automatic PFC controllers. Each PFCS capacitor is
made with three self-healing metallized polypropylene windings,
connected in delta, enclosed in a cylindrical aluminum case and
filled with an environmentally friendly fluid.
Highlights
- For 3-phase AC Power Factor Correction
- Delta connected
- Discharge resistors included
- UL810 approved internal pressure interrupter
Specifications
Capacitance Tolerance
Rated Frequency (f
R
)
Rated AC Voltages (V
R
)
Operating Temperature Range
kvar Range
Maximum Permissible Voltage (Vmax)
Internal Connection
Maximum Permissible Current (Imax)
0 to +10%
50 Hz and 60 Hz
240 Vac, 480 Vac, 600 Vac
–40 ºC to +55 ºC
0.5 kvar to 30.2 kvar
110% of rated rms voltage
120% of rated peak voltage (1.2 x √2x Vrms)
Delta (∆)
135% of nominal rms current based on rated kvar and rated voltage - (up
to 150% of l
R
including combined effects of harmonics, over voltages and
capacitances, tolerance)
60,000 h w/94% survival rate
Meets IEEE18, Standard (ANSI/IEEE Standard 18)
≤300 X 10
9
component h
10 kA (according to UL 810)
Pressure Interrupter (PI) disengages all 3 phases in the event of capacitor
end of life or overload
≤ 60 seconds ≤ 50 V for 600 V or less; over 600 V ≤ 5 minutes
RoHS Compliant
Life
International Standards
FIT (Failure In Time)
Maximum Short Circuit Current
Mechanical and Electrical Safety
Discharge Resistor Time
Dimensions
Construction Details
Case Material
Encapsulation
Terminal Material
Extruded aluminum with
steel or aluminum cover
Environmentally safe
dielectric fluid
Tin plated copper, brass
or steel
Figure 1
Max torque 88.5 in-lbs.
Figure 2
Max torque 88.5 in-lbs.
