PI74FCT162E244TV datasheet, PDF

Datasheet> All Categories > logic> logic> PI74FCT162E244TV

PI74FCT162E244TV: DescriptionBus Driver, FCT Series, 4-Func, 4-Bit, True Output, CMOS, PDSO48, 0.300 INCH, PLASTIC, SSOP-48; Categorylogic logic; File Size113KB，5 Pages; ManufacturerPericom Semiconductor Corporation (Diodes Incorporated); Websitehttps://www.diodes.com/

Download Datasheet Parametric Compare View All

PI74FCT162E244TV Overview

Bus Driver, FCT Series, 4-Func, 4-Bit, True Output, CMOS, PDSO48, 0.300 INCH, PLASTIC, SSOP-48

PI74FCT162E244TV Parametric

Parameter Name	Attribute value
Parts packaging code	SSOP
package instruction	SSOP,
Contacts	48
Reach Compliance Code	unknown
ECCN code	EAR99
series	FCT
JESD-30 code	R-PDSO-G48
JESD-609 code	e3
length	15.875 mm
Load capacitance (CL)	150 pF
Logic integrated circuit type	BUS DRIVER
Number of digits	4
Number of functions	4
Number of ports	2
Number of terminals	48
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Output characteristics	3-STATE WITH SERIES RESISTOR
Output polarity	TRUE
Package body material	PLASTIC/EPOXY
encapsulated code	SSOP
Package shape	RECTANGULAR
Package form	SMALL OUTLINE, SHRINK PITCH
propagation delay (tpd)	5 ns
Certification status	Not Qualified
Maximum seat height	2.794 mm
Maximum supply voltage (Vsup)	5.5 V
Minimum supply voltage (Vsup)	4.5 V
Nominal supply voltage (Vsup)	5 V
surface mount	YES
technology	CMOS
Temperature level	INDUSTRIAL
Terminal surface	MATTE TIN
Terminal form	GULL WING
Terminal pitch	0.635 mm
Terminal location	DUAL
width	7.5 mm
Base Number Matches	1

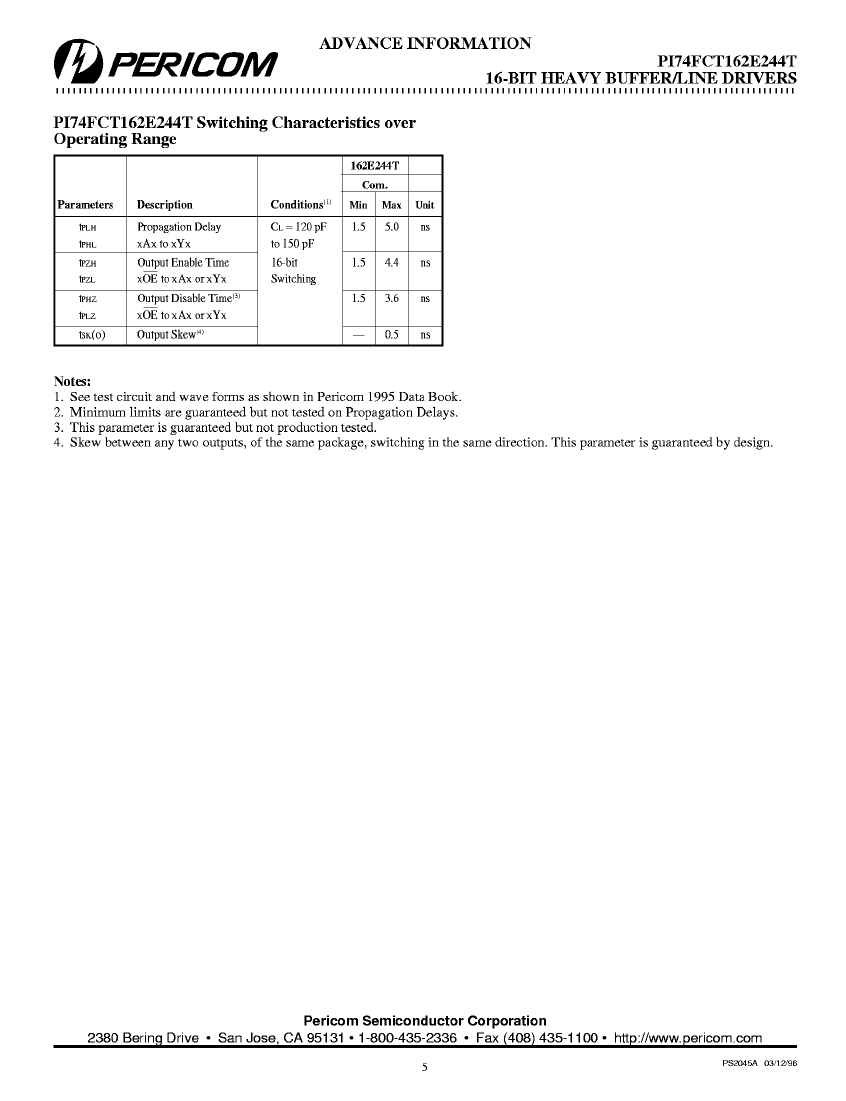

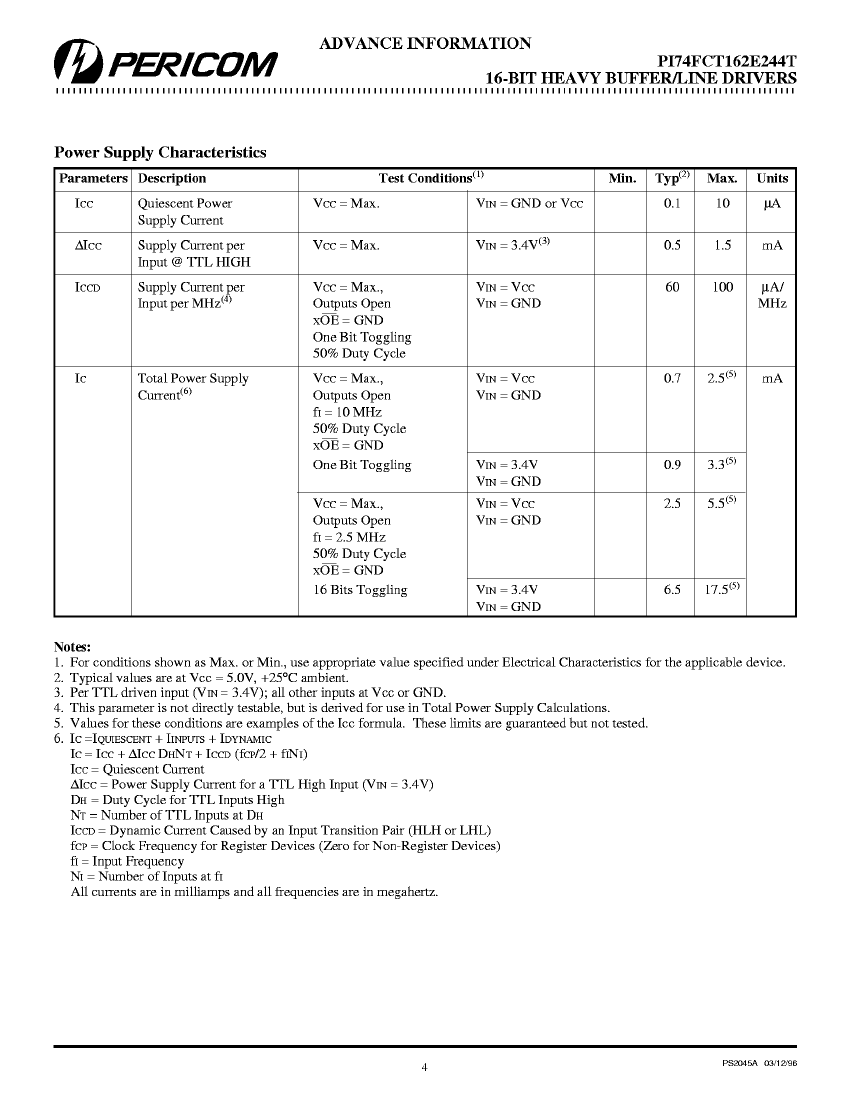

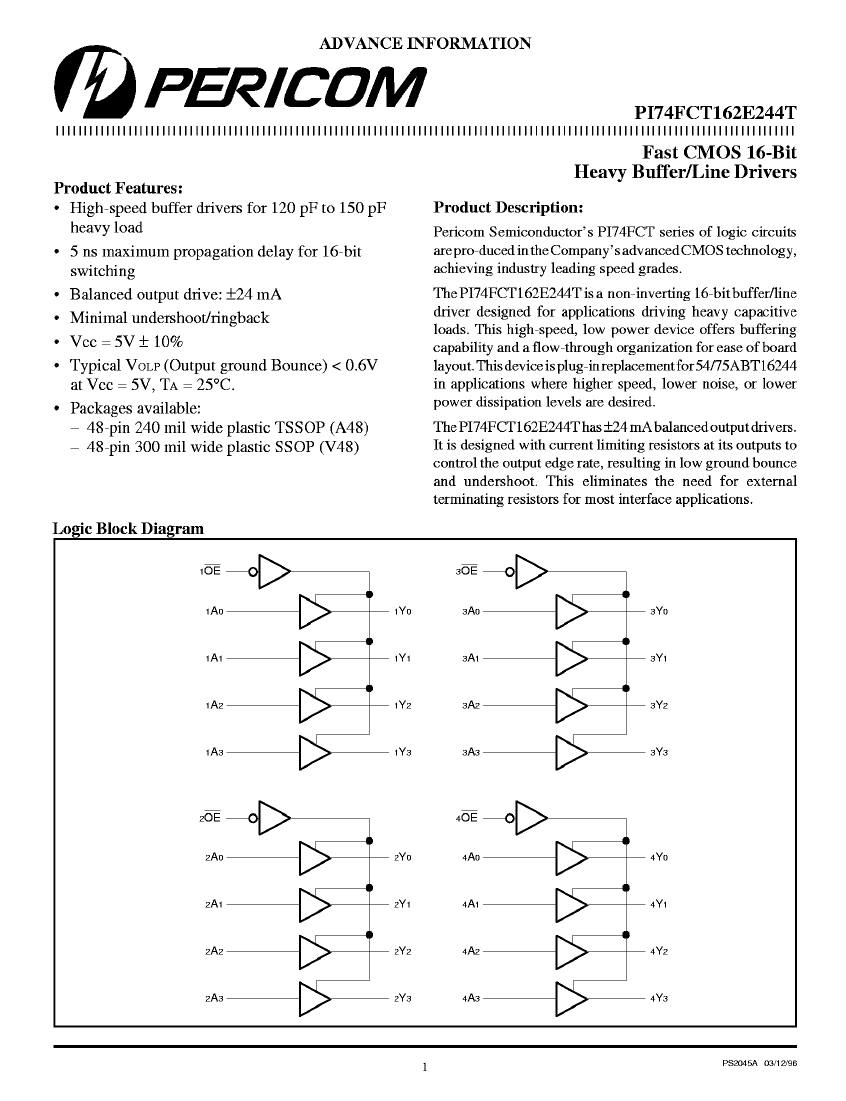

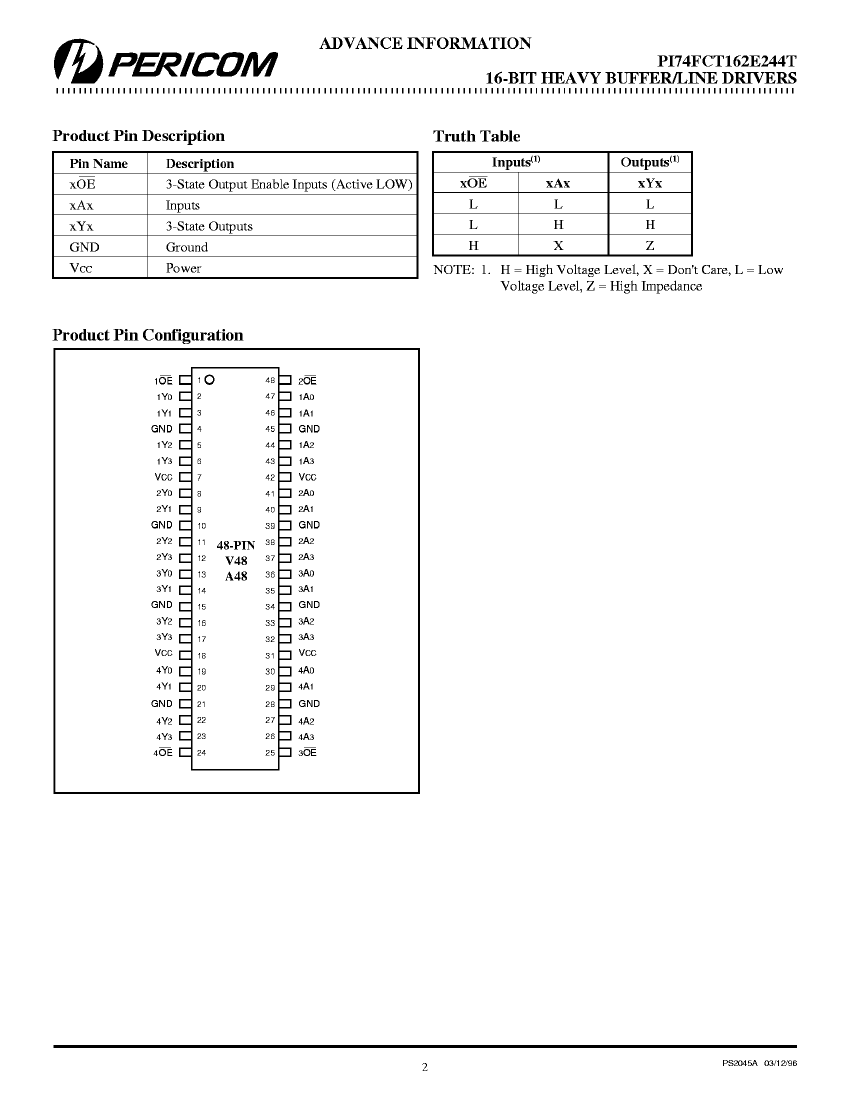

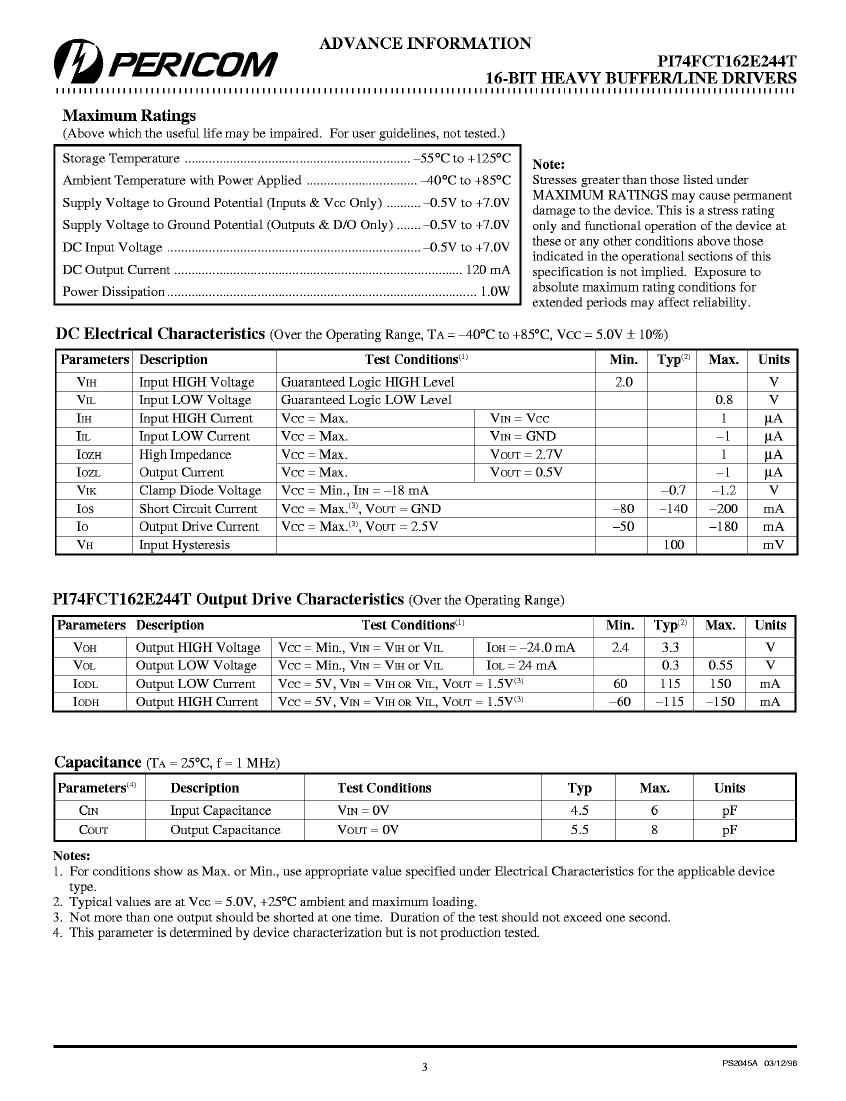

Preview

Download Datasheet

View All

PI74FCT162E244TV Related Products

	PI74FCT162E244TV	PI74FCT162E244TA	PI74FCT162E244TAX	PI74FCT162E244TVX
Description	Bus Driver, FCT Series, 4-Func, 4-Bit, True Output, CMOS, PDSO48, 0.300 INCH, PLASTIC, SSOP-48	Bus Driver, FCT Series, 4-Func, 4-Bit, True Output, CMOS, PDSO48, 0.240 INCH, PLASTIC, TSSOP-48	Bus Driver, FCT Series, 4-Func, 4-Bit, True Output, CMOS, PDSO48, 0.240 INCH, PLASTIC, TSSOP-48	Bus Driver, FCT Series, 4-Func, 4-Bit, True Output, CMOS, PDSO48, 0.300 INCH, PLASTIC, SSOP-48
Parts packaging code	SSOP	TSSOP	TSSOP	SSOP
package instruction	SSOP,	TSSOP,	TSSOP,	SSOP,
Contacts	48	48	48	48
Reach Compliance Code	unknown	unknown	unknown	unknown
ECCN code	EAR99	EAR99	EAR99	EAR99
series	FCT	FCT	FCT	FCT
JESD-30 code	R-PDSO-G48	R-PDSO-G48	R-PDSO-G48	R-PDSO-G48
JESD-609 code	e3	e3	e3	e3
length	15.875 mm	12.5 mm	12.5 mm	15.875 mm
Load capacitance (CL)	150 pF	150 pF	150 pF	150 pF
Logic integrated circuit type	BUS DRIVER	BUS DRIVER	BUS DRIVER	BUS DRIVER
Number of digits	4	4	4	4
Number of functions	4	4	4	4
Number of ports	2	2	2	2
Number of terminals	48	48	48	48
Maximum operating temperature	85 °C	85 °C	85 °C	85 °C
Minimum operating temperature	-40 °C	-40 °C	-40 °C	-40 °C
Output characteristics	3-STATE WITH SERIES RESISTOR	3-STATE WITH SERIES RESISTOR	3-STATE WITH SERIES RESISTOR	3-STATE WITH SERIES RESISTOR
Output polarity	TRUE	TRUE	TRUE	TRUE
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	SSOP	TSSOP	TSSOP	SSOP
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	SMALL OUTLINE, SHRINK PITCH	SMALL OUTLINE, THIN PROFILE, SHRINK PITCH	SMALL OUTLINE, THIN PROFILE, SHRINK PITCH	SMALL OUTLINE, SHRINK PITCH
propagation delay (tpd)	5 ns	5 ns	5 ns	5 ns
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum seat height	2.794 mm	1.2 mm	1.2 mm	2.794 mm
Maximum supply voltage (Vsup)	5.5 V	5.5 V	5.5 V	5.5 V
Minimum supply voltage (Vsup)	4.5 V	4.5 V	4.5 V	4.5 V
Nominal supply voltage (Vsup)	5 V	5 V	5 V	5 V
surface mount	YES	YES	YES	YES
technology	CMOS	CMOS	CMOS	CMOS
Temperature level	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL
Terminal surface	MATTE TIN	MATTE TIN	MATTE TIN	MATTE TIN
Terminal form	GULL WING	GULL WING	GULL WING	GULL WING
Terminal pitch	0.635 mm	0.5 mm	0.5 mm	0.635 mm
Terminal location	DUAL	DUAL	DUAL	DUAL
width	7.5 mm	6.1 mm	6.1 mm	7.5 mm
Base Number Matches	1	1	1	1
