1335-T003: DescriptionCurrent Sense Transformer, 35A, 1:200, ROHS COMPLIANT; CategoryPower management transformer; File Size141KB，2 Pages; ManufacturerSUMIDA; Websitehttp://www.sumida.com/; Environmental Compliance

Download Datasheet Parametric View All

1335-T003 Overview

Current Sense Transformer, 35A, 1:200, ROHS COMPLIANT

1335-T003 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
package instruction	ROHS COMPLIANT
Reach Compliance Code	unknown
ECCN code	EAR99
high	10.5 mm
length	19.9 mm
Load Resistance	3.2 Ω
Manufacturer's serial number	CEEH
Installation features	SURFACE MOUNT
Maximum operating frequency	500 kHz
Minimum operating frequency	50 kHz
Peak primary current	35 A
physical size	19.9mm X 14.5mm X 10.5mm
primary type	BAR PRIMARY
surface mount	YES
Transformer type	CURRENT SENSE TRANSFORMER
Turns ratio (Np:Ns)	1:200
width	14.5 mm
Base Number Matches	1

Preview

Download Datasheet

View All

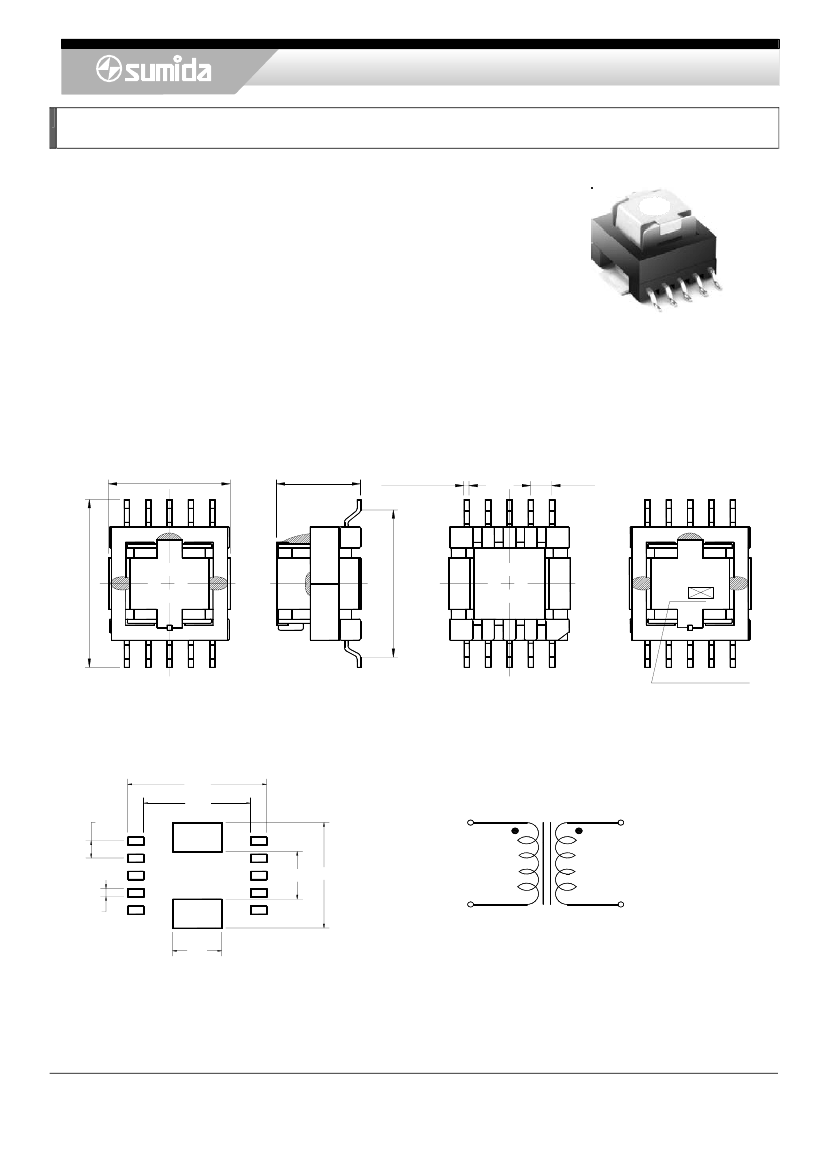

Current Sense Transformer<SMD Type: CEEH Series>

Type: CEEH1310

◆

Product Description

・19.9×14.5mm

Max.(L×W), 10.5mm Max. Height .

・Custom

design is available.

◆

Feature

・Low

profile SMD type.

・Low

primary DCR version.

・Current

rating: up to 35A.

・Operating

Frequency range: 50kHz~500kHz.

・RoHS

Compliance

◆

Dimensions (mm)

14.5 Max.

10

10.5MAX.

0.6×0.41

2.5

6

10

19.9 Max.

16.5 Max.

12

11

sumida

1

5

1

STAMP

DATE CODE

◆Land

Pattern

20.4

15.8

2.5

◆

Schematics (Bottom)

11

7.0 15.5

2

1.2

7.2

12

4

Please refer to the sales offices on our website for a representative near you

www.sumida.com

1/1
