FSL9110D, FSL9110R
Data Sheet
December 2001
2.5A, -100V, 1.30 Ohm, Rad Hard, SEGR
Resistant, P-Channel Power MOSFETs
The Discrete Products Operation of Fairchild has developed
a series of Radiation Hardened MOSFETs specifically
designed for commercial and military space applications.
Enhanced Power MOSFET immunity to Single Event Effects
(SEE), Single Event Gate Rupture (SEGR) in particular, is
combined with 100K RADS of total dose hardness to provide
devices which are ideally suited to harsh space
environments. The dose rate and neutron tolerance
necessary for military applications have not been sacrificed.
The Fairchild portfolio of SEGR resistant radiation hardened
MOSFETs includes N-Channel and P-Channel devices in a
variety of voltage, current and on-resistance ratings.
Numerous packaging options are also available.
This MOSFET is an enhancement-mode silicon-gate power
field-effect transistor of the vertical DMOS (VDMOS)
structure. It is specially designed and processed to be
radiation tolerant. The MOSFET is well suited for
applications exposed to radiation environments such as
switching regulation, switching converters, motor drives,
relay drivers and drivers for high-power bipolar switching
transistors requiring high speed and low gate drive power.
This type can be operated directly from integrated circuits.
Reliability screening is available as either commercial, TXV
equivalent of MIL-S-19500, or Space equivalent of
MIL-S-19500. Contact Fairchild for any desired deviations
from the data sheet.
Features
• 2.5A, -100V, r
DS(ON)
= 1.30
Ω
• Total Dose
- Meets Pre-RAD Specifications to 100K RAD (Si)
• Single Event
- Safe Operating Area Curve for Single Event Effects
- SEE Immunity for LET of 36MeV/mg/cm
2
with
V
DS
up to 80% of Rated Breakdown and
V
GS
of 10V Off-Bias
• Dose Rate
- Typically Survives 3E9 RAD (Si)/s at 80% BV
DSS
- Typically Survives 2E12 if Current Limited to I
DM
• Photo Current
- 0.3nA Per-RAD(Si)/s Typically
• Neutron
- Maintain Pre-RAD Specifications
for 3E13 Neutrons/cm
2
- Usable to 3E14 Neutrons/cm
2
Symbol
D
G
S
Ordering Information
RAD LEVEL
10K
10K
100K
100K
100K
SCREENING LEVEL
Commercial
TXV
Commercial
TXV
Space
PART NUMBER/BRAND
FSL9110D1
FSL9110D3
FSL9110R1
FSL9110R3
FSL9110R4
G
D
S
Package
TO-205AF
©2001 Fairchild Semiconductor Corporation
FSL9110D, FSL9110R Rev. B
FSL9110D, FSL9110R
Absolute Maximum Ratings
T
C
= 25
o
C, Unless Otherwise Specified
FSL9110D, FSL9110R
-100
-100
2.5
1.5
7.5
±
20
15
6
0.12
7.5
2.5
7.5
-55 to +150
300
UNITS
V
V
A
A
A
V
W
W
W/
o
C
A
A
A
o
C
o
C
Drain to Source Voltage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . V
DS
Drain to Gate Voltage (R
GS
= 20k
Ω
) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . V
DGR
Continuous Drain Current
T
C
= 25
o
C . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .I
D
T
C
= 100
o
C . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .I
D
Pulsed Drain Current . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . I
DM
Gate to Source Voltage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . V
GS
Maximum Power Dissipation
T
C
= 25
o
C . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P
T
T
C
= 100
o
C . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P
T
Linear Derating Factor . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Single Pulsed Avalanche Current, L = 100
µ
H, (See Test Figure) . . . . . . . . . . . . . . . . . . . . .I
AS
Continuous Source Current (Body Diode) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .I
S
Pulsed Source Current (Body Diode) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . I
SM
Operating and Storage Temperature . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . T
J
, T
STG
Lead Temperature (During Soldering) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . T
L
(Distance >0.063in (1.6mm) from Case, 10s Max)
CAUTION: Stresses above those listed in “Absolute Maximum Ratings” may cause permanent damage to the device. This is a stress only rating and operation of the
device at these or any other conditions above those indicated in the operational sections of this specification is not implied.
Electrical Specifications
PARAMETER
T
C
= 25
o
C, Unless Otherwise Specified
SYMBOL
BV
DSS
V
GS(TH)
TEST CONDITIONS
I
D
= 1mA, V
GS
= 0V
V
GS
= V
DS
,
I
D
= 1mA
T
C
= -55
o
C
T
C
= 25
o
C
T
C
= 125
o
C
T
C
= 25
o
C
T
C
= 125
o
C
T
C
= 25
o
C
T
C
= 125
o
C
T
C
= 25
o
C
T
C
= 125
o
C
MIN
-100
-
-2.0
-1.0
-
-
-
-
-
-
-
-
-
-
-
V
GS
= 0V to -20V
V
GS
= 0V to -12V
V
GS
= 0V to -2V
V
DD
= -50V,
I
D
= 2.5A
-
-
-
-
-
I
D
= 2.5A, V
DS
= -15V
V
DS
= -25V, V
GS
= 0V,
f = 1MHz
-
-
-
-
-
-
TYP
-
-
-
-
-
-
-
-
-
1.00
-
-
-
-
-
-
7.0
-
1.9
3.4
-7
175
70
20
8.3
175
MAX
-
-7.0
-6.0
-
25
250
100
200
-3.58
1.30
2.16
20
45
40
45
14
7.9
0.64
2.1
3.8
-
-
-
-
-
-
UNITS
V
V
V
V
µ
A
µ
A
nA
nA
V
Ω
Ω
ns
ns
ns
ns
nC
nC
nC
nC
nC
V
pF
pF
pF
o
C/W
o
C/W
Drain to Source Breakdown Voltage
Gate Threshold Voltage
Zero Gate Voltage Drain Current
I
DSS
I
GSS
V
DS(ON)
r
DS(ON)12
t
d(ON)
t
r
t
d(OFF)
t
f
Q
g(TOT)
Q
g(12)
Q
g(TH)
Q
gs
Q
gd
V
(PLATEAU)
C
ISS
C
OSS
C
RSS
R
θ
JC
R
θ
JA
V
DS
= -80V,
V
GS
= 0V
V
GS
=
±
20V
Gate to Source Leakage Current
Drain to Source On-State Voltage
Drain to Source On Resistance
V
GS
= -12V, I
D
= 2.5A
I
D
= 1.5A,
V
GS
= -12V
Turn-On Delay Time
Rise Time
Turn-Off Delay Time
Fall Time
Total Gate Charge
Gate Charge at 12V
Threshold Gate Charge
Gate Charge Source
Gate Charge Drain
Plateau Voltage
Input Capacitance
Output Capacitance
Reverse Transfer Capacitance
Thermal Resistance Junction to Case
Thermal Resistance Junction to Ambient
V
DD
= -50V, I
D
= 2.5A,
R
L
= 20
Ω
, V
GS
-12V,
R
GS
= 7.5
Ω
©2001 Fairchild Semiconductor Corporation
FSL9110D, FSL9110R Rev. B
FSL9110D, FSL9110R
Source to Drain Diode Specifications
PARAMETER
Forward Voltage
Reverse Recovery Time
SYMBOL
V
SD
t
rr
TEST CONDITIONS
I
SD
= 2.5A
I
SD
= 2.5A, dI
SD
/dt = 100A/
µ
s
T
C
= 25
o
C, Unless Otherwise Specified
SYMBOL
(Note 3)
(Note 3)
(Notes 2, 3)
(Note 3)
(Notes 1, 3)
(Notes 1, 3)
BV
DSS
V
GS(TH)
I
GSS
I
DSS
V
DS(ON)
r
DS(ON)12
TEST CONDITIONS
V
GS
= 0, I
D
= 1mA
V
GS
= V
DS
, I
D
= 1mA
V
GS
=
±20V,
V
DS
= 0V
V
GS
= 0, V
DS
= -80V
V
GS
= -12V, I
D
= 2.5A
V
GS
= -12V, I
D
= 1.5A
MIN
-100
-2.0
-
-
-
-
MAX
-
-6.0
100
25
-3.58
1.30
UNITS
V
V
nA
µA
V
Ω
MIN
-0.6
-
TYP
-
-
MAX
-1.8
110
UNITS
V
ns
Electrical Specifications up to 100K RAD
PARAMETER
Drain to Source Breakdown Volts
Gate to Source Threshold Volts
Gate to Body Leakage
Zero Gate Leakage
Drain to Source On-State Volts
Drain to Source On Resistance
NOTES:
1. Pulse test, 300µs Max.
2. Absolute value.
3. Insitu Gamma bias must be sampled for both V
GS
= -12V, V
DS
= 0V and V
GS
= 0V, V
DS
= 80% BV
DSS
.
Single Event Effects (SEB, SEGR)
Note 4
ENVIRONMENT
(NOTE 5)
TEST
Single Event Effects Safe Operating Area
SYMBOL
SEESOA
ION
SPECIES
Ni
Br
Br
Br
NOTES:
4. Testing conducted at Brookhaven National Labs; sponsored by Naval Surface Warfare Center (NSWC), Crane, IN.
5. Fluence = 1E5 ions/cm
2
(typical), T = 25
o
C.
6. Does not exhibit Single Event Burnout (SEB) or Single Event Gate Rupture (SEGR).
TYPICAL LET
(MeV/mg/cm)
26
37
37
37
TYPICAL
RANGE (µ)
43
36
36
36
APPLIED
V
GS
BIAS
(V)
20
10
15
20
(NOTE 6)
MAXIMUM
V
DS
BIAS (V)
-100
-100
-80
-50
Typical Performance Curves
Unless Otherwise Specified
LET = 26MeV/mg/cm
2
, RANGE = 43µ
LET = 37MeV/mg/cm
2
, RANGE = 36µ
-120
-100
-80
V
DS
(V)
-60
-40
-20
TEMP = 25
o
C
0
0
5
10
V
GS
(V)
15
20
25
LIMITING INDUCTANCE (HENRY)
FLUENCE = 1E5 IONS/cm
2
(TYPICAL)
1E-3
1E-4
ILM = 10A
30A
1E-5
100A
300A
1E-6
1E-7
-10
-30
-100
DRAIN SUPPLY (V)
-300
-1000

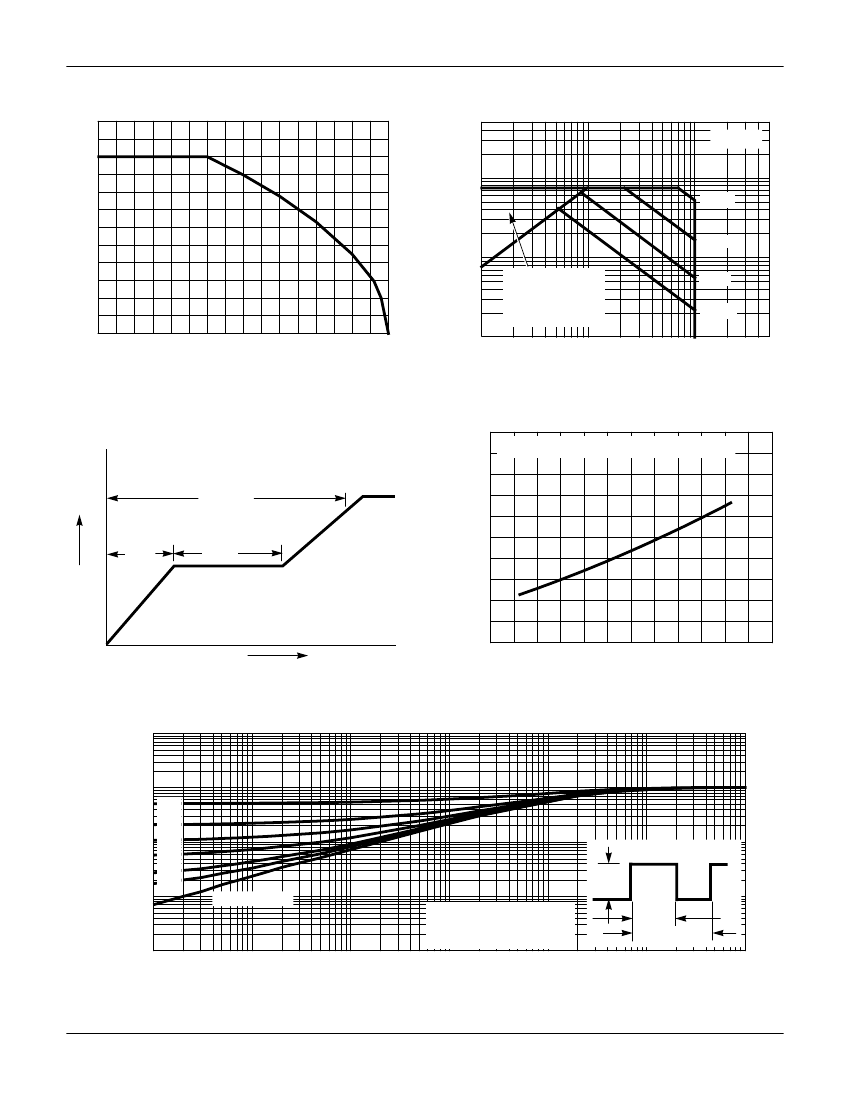

FIGURE 1. SINGLE EVENT EFFECTS SAFE OPERATING AREA
FIGURE 2. DRAIN INDUCTANCE REQUIRED TO LIMIT
GAMMA DOT CURRENT TO I
AS
FSL9110D, FSL9110R
Typical Performance Curves
3
Unless Otherwise Specified
(Continued)
50
T
C
= 25
o
C
2
I
D
, DRAIN (A)
I
D
, DRAIN CURRENT (A)
10
100µs
1ms
1
OPERATION IN THIS
AREA MAY BE
LIMITED BY r
DS(ON)
100ms
10ms
1
0
-50
0
50
100
150
0.1
-1
T
C
, CASE TEMPERATURE (
o
C)
-10
-100
V
DS
, DRAIN TO SOURCE VOLTAGE (V)
-500
FIGURE 3. MAXIMUM CONTINUOUS DRAIN CURRENT vs
CASE TEMPERATURE
FIGURE 4. FORWARD BIAS SAFE OPERATING AREA
2.5
PULSE DURATION = 250ms, V
GS
= -12V, I
D
= 1.5A
2.0
12V
QG
ON
NORMALIZED r
DS(ON)
1.5
Q
GS
Q
GD
1.0
V
G
0.5
CHARGE
0.0
-80
-40
0
40
80
120
160
T
J
, JUNCTION TEMPERATURE (
o
C)
FIGURE 5. BASIC GATE CHARGE WAVEFORM
FIGURE 6. NORMALIZED r
DS(ON)
vs JUNCTION TEMPERATURE
THERMAL RESPONSE (Z
θJC
)
1
0.5
0.2
0.1
0.05
0.02
0.01
0.01
SINGLE PULSE
NOTES:
DUTY FACTOR: D = t
1
/t
2
PEAK T
J
= P
DM
x Z
θJC
+ T
C
10
-5
10
-4
10
-3
10
-2
10
-1
t
1
t
2
10
0
10
1
P
DM
NORMALIZED
0.1
0.001
t, RECTANGULAR PULSE DURATION (s)
FIGURE 7. NORMALIZED MAXIMUM TRANSIENT THERMAL RESPONSE
©2001 Fairchild Semiconductor Corporation
FSL9110D, FSL9110R Rev. B
FSL9110D, FSL9110R

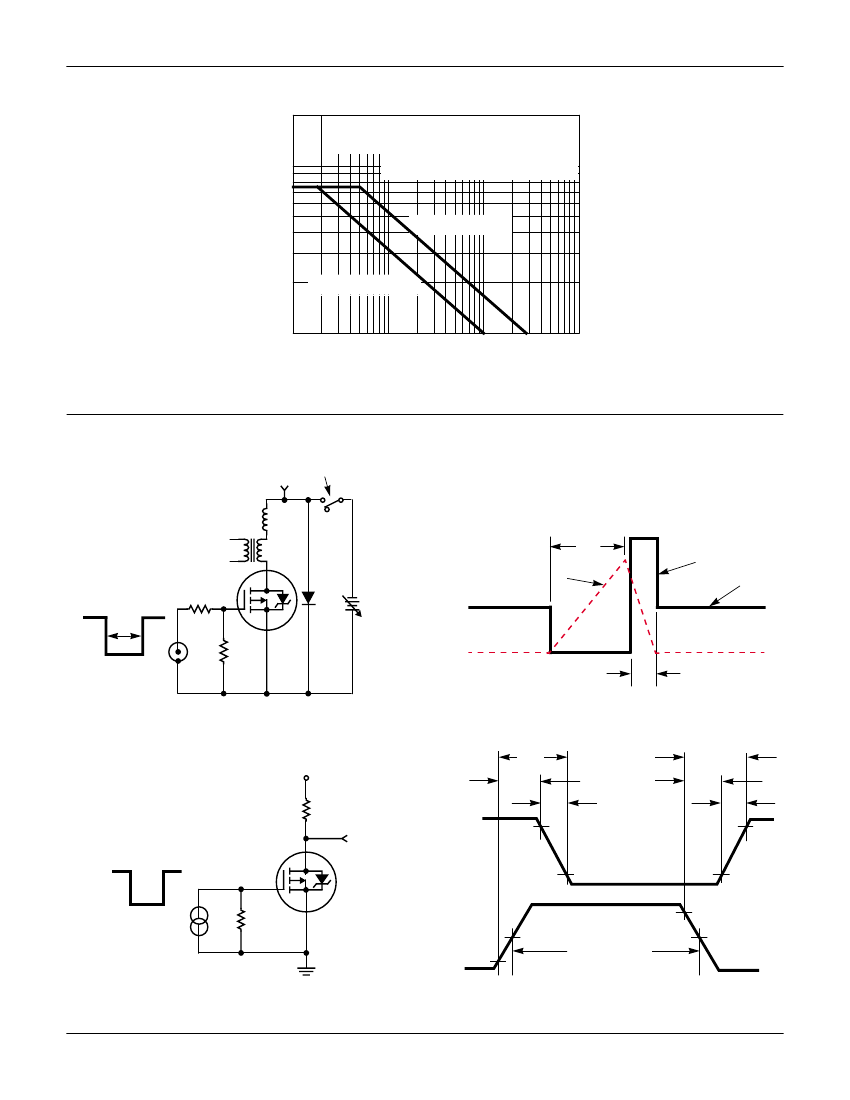

Typical Performance Curves
Unless Otherwise Specified
(Continued)
IF R
≠
0
t
AV
= (L/R) ln [(I
AS
*R) / (1.3 RATED BV
DSS
- V
DD
) + 1]
I
AS
, AVALANCHE CURRENT (A)
10
IF R = 0
t
AV
= (L) (I
AS
) / (1.3 RATED BV
DSS
- V
DD
)
STARTING T
J
= 25
o
C
STARTING T
J
= 150
o
C
1
0.01
0.1
1
t
AV
, TIME IN AVALANCHE (ms)
10
FIGURE 8. UNCLAMPED INDUCTIVE SWITCHING
Test Circuits and Waveforms
ELECTRONIC SWITCH OPENS
WHEN I
AS
IS REACHED
V
DS
L
+
CURRENT I
TRANSFORMER
AS
BV
DSS
t
P
I
AS
+
V
DS
V
DD
-
VARY t
P
TO OBTAIN
REQUIRED PEAK I
AS
0V
t
P
50Ω
-
DUT
50Ω
V
DD
50V-150V
V
GS
≤
20V
t
AV
FIGURE 9. UNCLAMPED ENERGY TEST CIRCUIT
FIGURE 10. UNCLAMPED ENERGY WAVEFORMS
V
DD
t
ON
t
d(ON)
t
OFF
t
d(OFF)
t
r
t
f
90%
R
L
V
DS
0V
DUT
V
DS
90%
10%
10%
V
GS
= -12V
90%
R
GS
V
GS
10%
50%
PULSE WIDTH
50%
FIGURE 11. RESISTIVE SWITCHING TEST CIRCUIT
FIGURE 12. RESISTIVE SWITCHING WAVEFORMS
京公网安备 11010802033920号
EEWORLD
