1241MF2 datasheet, PDF - EEWORLD Datasheet

1241MF2: DescriptionLine Driver/Receiver, BIPolar, PDSO16; CategoryAnalog mixed-signal IC Drivers and interfaces; File Size94KB，4 Pages; ManufacturerLSC/CSI; Websitehttps://lsicsi.com

Download Datasheet Parametric Compare View All

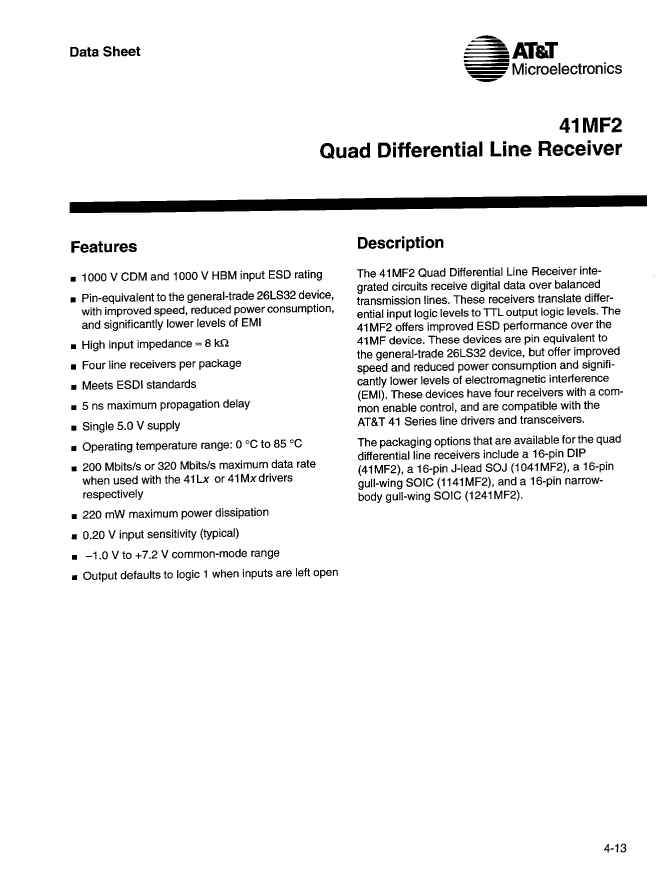

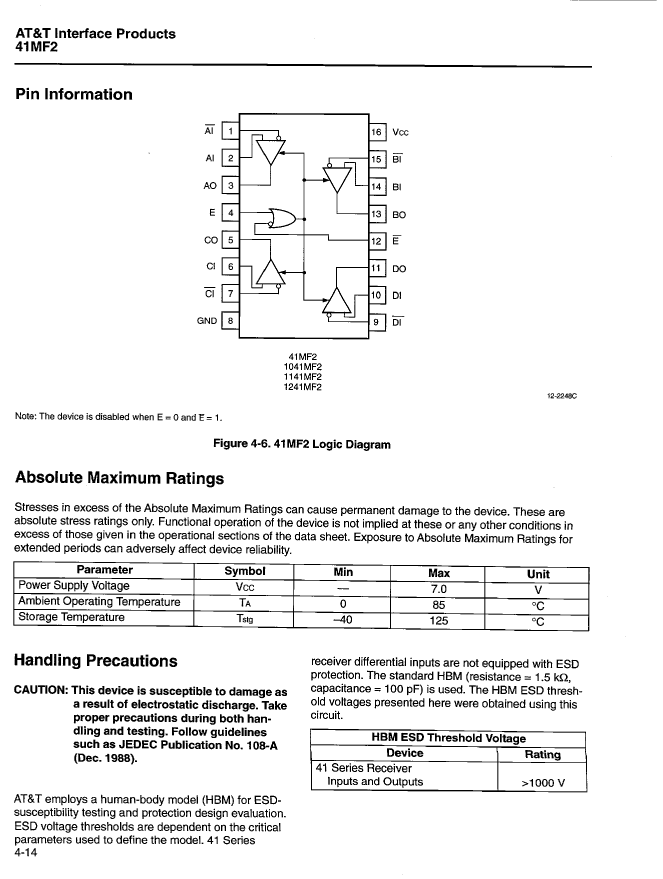

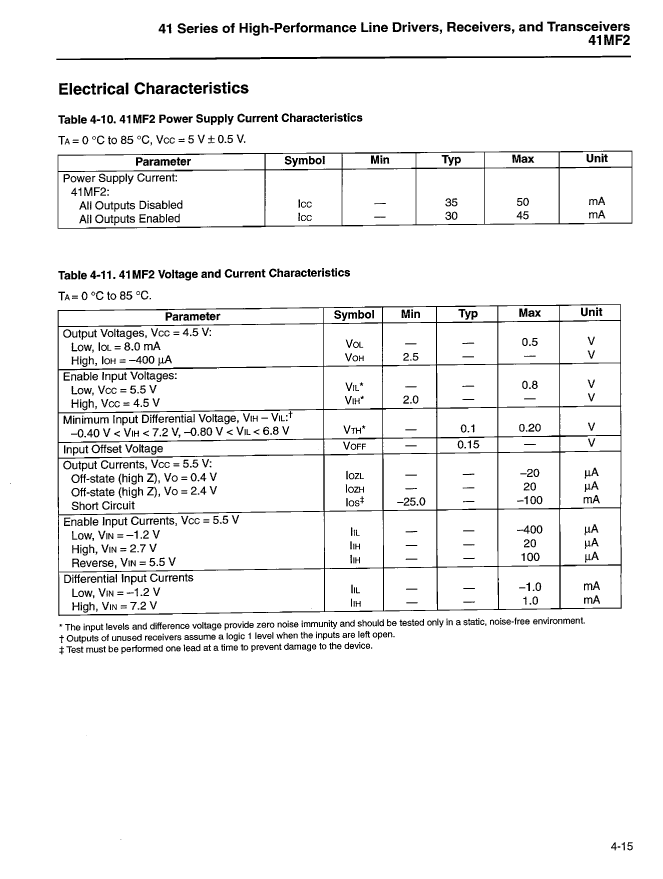

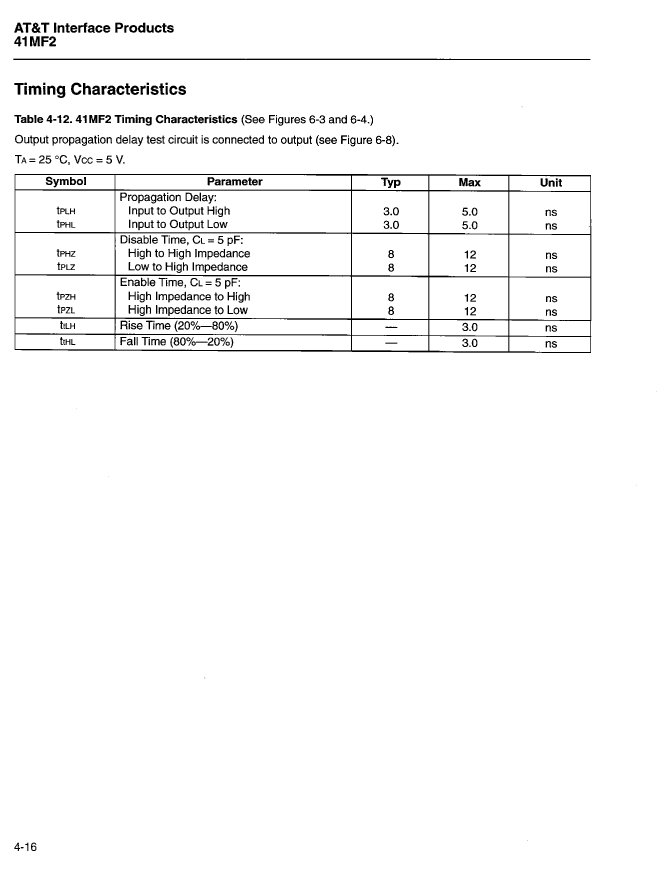

1241MF2 Overview

Line Driver/Receiver, BIPolar, PDSO16

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
package instruction	SOP, SOP16,.25
Reach Compliance Code	unknown
JESD-30 code	R-PDSO-G16
JESD-609 code	e0
Number of terminals	16
Maximum operating temperature	85 °C
Minimum operating temperature
Maximum output low current	0.008 A
Package body material	PLASTIC/EPOXY
encapsulated code	SOP
Encapsulate equivalent code	SOP16,.25
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
power supply	5 V
Certification status	Not Qualified
Maximum receive delay	5 ns
Maximum slew rate	50 mA
Nominal supply voltage	5 V
surface mount	YES
technology	BIPOLAR
Temperature level	OTHER
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	GULL WING
Terminal pitch	1.27 mm
Terminal location	DUAL
Base Number Matches	1

	1241MF2	41MF2	1141MF2	1041MF2
Description	Line Driver/Receiver, BIPolar, PDSO16	Line Driver/Receiver, BIPolar, PDIP16	Line Receiver, 1 Func, 4 Rcvr, BIPolar, PDSO16	Line Receiver, 1 Func, 4 Rcvr, BIPolar, PDSO16
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible
package instruction	SOP, SOP16,.25	DIP, DIP16,.3	SOP, SOP16,.4	SOJ, SOJ16,.34
Reach Compliance Code	unknown	unknown	unknown	unknown
JESD-30 code	R-PDSO-G16	R-PDIP-T16	R-PDSO-G16	R-PDSO-J16
JESD-609 code	e0	e0	e0	e0
Number of terminals	16	16	16	16
Maximum operating temperature	85 °C	85 °C	85 °C	85 °C
Maximum output low current	0.008 A	0.008 A	0.008 A	0.008 A
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	SOP	DIP	SOP	SOJ
Encapsulate equivalent code	SOP16,.25	DIP16,.3	SOP16,.4	SOJ16,.34
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	SMALL OUTLINE	IN-LINE	SMALL OUTLINE	SMALL OUTLINE
power supply	5 V	5 V	5 V	5 V
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum receive delay	5 ns	5 ns	5 ns	5 ns
Maximum slew rate	50 mA	50 mA	50 mA	45 mA
Nominal supply voltage	5 V	5 V	5 V	5 V
surface mount	YES	NO	YES	YES
technology	BIPOLAR	BIPOLAR	BIPOLAR	BIPOLAR
Temperature level	OTHER	OTHER	OTHER	OTHER
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Terminal form	GULL WING	THROUGH-HOLE	GULL WING	J BEND
Terminal pitch	1.27 mm	2.54 mm	1.27 mm	1.27 mm
Terminal location	DUAL	DUAL	DUAL	DUAL
Base Number Matches	1	1	1	1
