E8199-011-01

Description
Telecom and Datacom Connector, 9 Contact(s), Female, Right Angle, Solder Terminal, Receptacle,
CategoryThe connector    The connector
File Size100KB,1 Pages
ManufacturerPulse Electronics
Environmental Compliance
Download Datasheet Parametric View All

E8199-011-01 Online Shopping

Suppliers Part Number Price MOQ In stock
E8199-011-01 - - View Buy Now

E8199-011-01 Overview

Telecom and Datacom Connector, 9 Contact(s), Female, Right Angle, Solder Terminal, Receptacle,

E8199-011-01 Parametric

Parameter NameAttribute value
Is it Rohs certified?conform to
Reach Compliance Codecompliant
Factory Lead Time14 weeks
Body/casing typeRECEPTACLE
Connector typeUSB CONNECTOR
Contact to complete cooperationGOLD (3) OVER NICKEL (30)
Contact completed and terminatedMatte Tin (Sn) - with Nickel (Ni) barrier
Contact point genderFEMALE
Contact materialCOPPER ALLOY
DIN complianceNO
empty shellNO
Filter functionNO
IEC complianceNO
insulator materialLIQUID CRYSTAL POLYMER
JESD-609 codee3
MIL complianceNO
Mixed contactsNO
Installation methodRIGHT ANGLE
Installation typeBOARD
OptionsGENERAL PURPOSE
Shell surfaceNICKEL
Shell materialCOPPER ALLOY
Termination typeSOLDER
Total number of contacts9
UL Flammability Code94V-0
Base Number Matches1

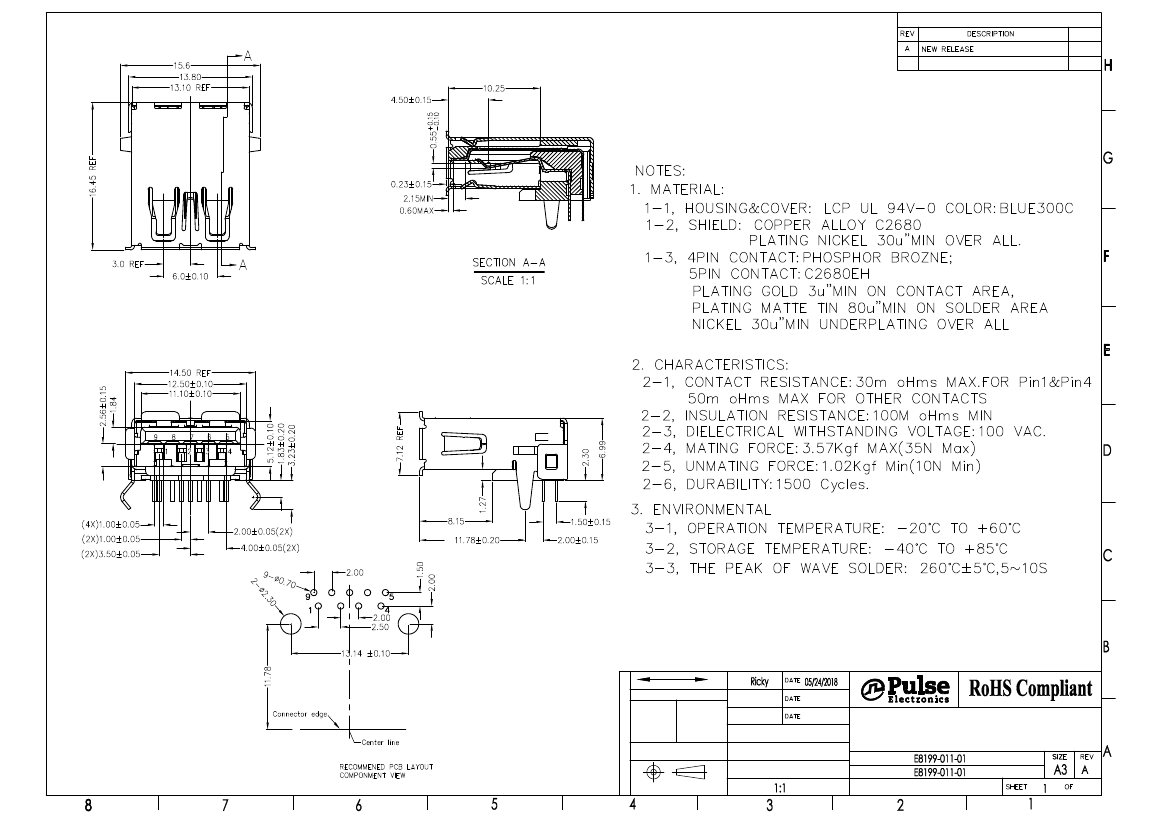

REVISION RECORD
DRFT
Ricky
MM
(INCH)
TOLERANCES EXCEPT AS NOTED
DFTO
CHKD
APPVL
DETACHED LISTS
MM
. ± 0.30
.0 ± 0.20
.00 ± 0.10
.000 ± 0.05
±
±
±
TITLE
MATERIAL :
QT'Y :
FINISH :
USB 3.0 A TYPE RECEPTACLE
ANGLES ± 2°
DRAWING NO.
/PART NO.
THIRD ANGLE PROJECTION
SCALE :
DO NOT SCALE DRAWING
1
