101E10039X: DescriptionCircular DIN Connector, 31 Contact(s), Male, Board Mount, Solder Terminal, Receptacle; CategoryThe connector The connector; File Size71KB，1 Pages; ManufacturerCONEC; Websitehttp://www.conec.com

Download Datasheet Parametric View All

101E10039X Overview

Circular DIN Connector, 31 Contact(s), Male, Board Mount, Solder Terminal, Receptacle

101E10039X Parametric

Parameter Name	Attribute value
Reach Compliance Code	compliant
ECCN code	EAR99
Board mount options	HOLE .086-.098
body width	0.335 inch
subject depth	0.315 inch
body length	3.528 inch
Body/casing type	RECEPTACLE
Connector type	CIRCULAR DIN CONNECTOR
Contact to complete cooperation	AG
Contact point gender	MALE
Contact material	COPPER ALLOY
contact mode	STAGGERED
Contact resistance	15 mΩ
Contact style	RND PIN-SKT
Durability	500 Cycles
Insulation resistance	10000000000 Ω
Insulator color	GRAY
insulator material	GLASS FILLED POLYCARBONATE
Manufacturer's serial number	101
Plug contact pitch	0.197 inch
Match contact row spacing	0.15 inch
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	125 °C
Minimum operating temperature	-65 °C
PCB contact pattern	STAGGERED
PCB contact row spacing	3.81 mm
Rated current (signal)	4 A
Guideline	UL
reliability	COMMERCIAL
Terminal length	0.283 inch
Terminal pitch	5.0038 mm
Termination type	SOLDER
Total number of contacts	31
Base Number Matches	1

Preview

Download Datasheet

View All

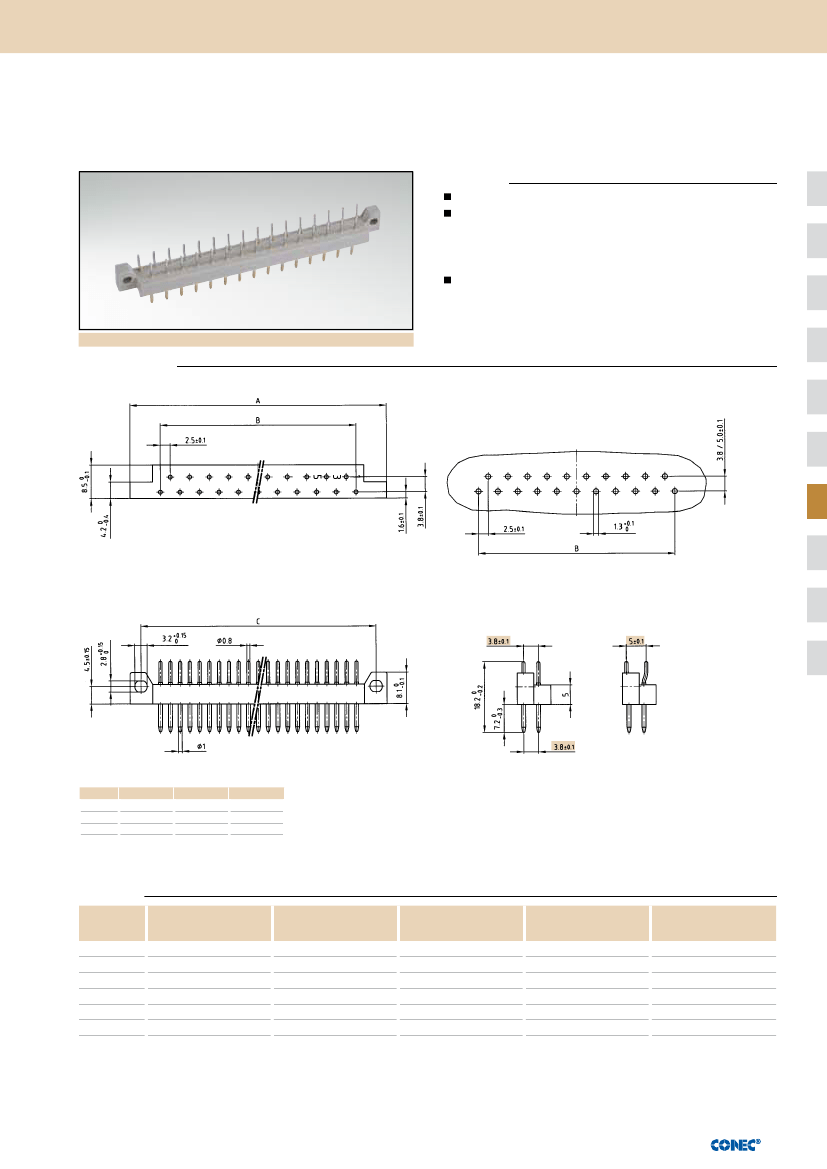

Co nne cto rs D IN

41617

Connector according to DIN

41617

Male connector – angled – 13, 21 and 31 positions

Description

Solder pin

Contact plating

- standard quality classes 3 and 2

- quality class 1 on request (*)

- hard silver plated

Standard insulator

RoHS compliant

Product drawing

PCB-hole pattern

Contact spacing

3,8 mm

5,0 mm

No. of Pos.

13

21

31

A

± 0.2

45.6

65.6

89.6

B

± 0.1

12 x 2.5 = 30

20 x 2.5 = 50

30 x 2.5 = 75

C

± 0.1

40

60

85

Order data

No. of Pos.

13

21

31

Contact spacing

3.8 mm

5.0 mm

3.8 mm

5.0 mm

3.8 mm

5.0 mm

hard silver plated

101 E 10049 X

101 E 10169 X

101 E 10059 X

101 E 10179 X

101 E 10069 X

101 E 10189 X

Quality class 3

101 A 10049 X

101 A 10169 X

101 A 10059 X

101 A 10179 X

101 A 10069 X

101 A 10189 X

Quality class 2

101 B 10049 X

101 B 10169 X

101 B 10059 X

101 B 10179 X

101 B 10069 X

101 B 10189 X

(Dim. = mm)

Quality class 1*

101 C 10049 X

101 C 10169 X

101 C 10059 X

101 C 10179 X

101 C 10069 X

101 C 10189 X

7| 5
