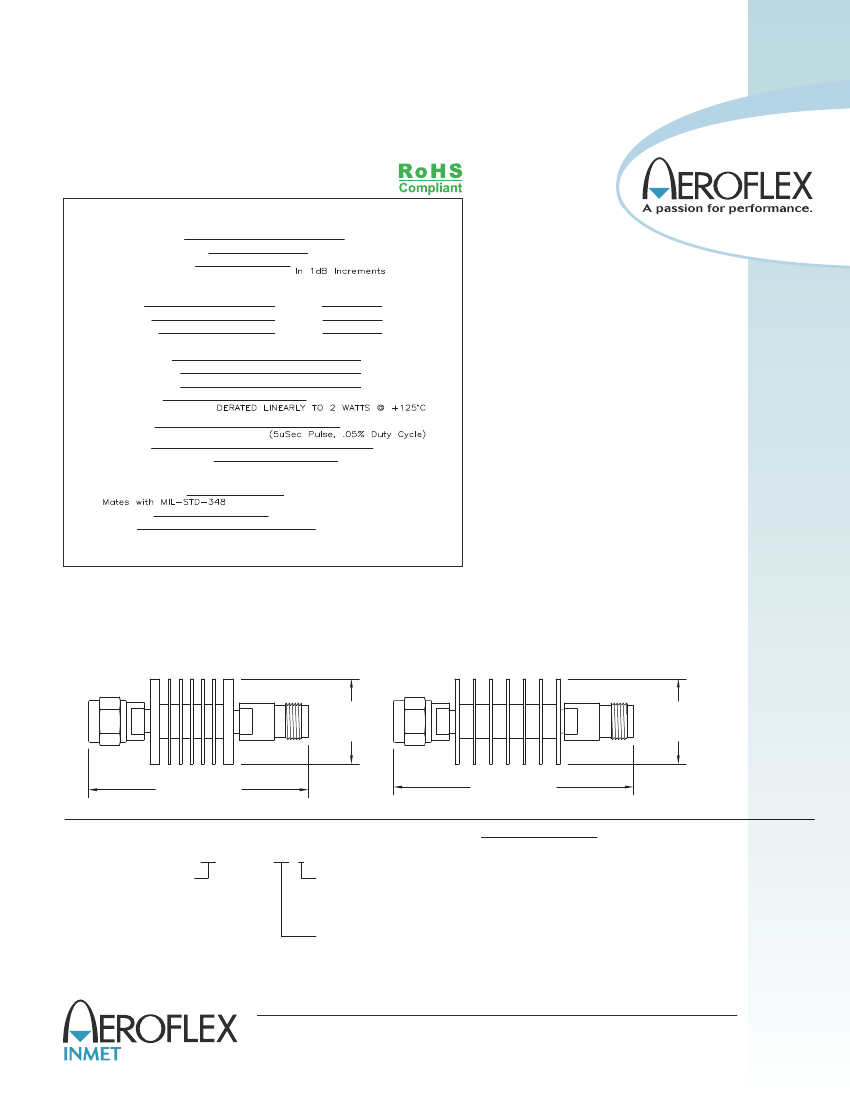

ATTENUATORS
TNC, up to 18 GHz, 10 Watts
SPECIFICATIONS:
Models: XXT10W-XX, XXT10W-XXF & XXT10W-XXM
Electrical:
Frequency Range
Standard Freq. Values
Standard dB Values
Attenuation Accuracy
0 - 6 dB
7 - 20 dB
21 - 40 dB
VSWR
DC - 6 GHz
6 - 12.4 GHz
12.4 - 18 GHz
Input Power
Peak Power
Impedance
Operating Temp Range
DC - 18 GHz
2.5, 6, 12.4 & 18 GHz
0 - 10, 12, 20, 30 & 40 dB
DC - 12.4 GHz
±0.3 dB
±0.5 dB
±0.7 dB
12.4 - 18 GHz
±0.5 dB
±0.7 dB
±1.0 dB
1.20:1 Max.
1.30:1 Max.
1.40:1 Max.
10 Watts Avg. @ 25°C
500 Watts Max.
50 Ohms
-65°C to +125°C
Passivated Stainless Steel
Gold Plated Beryllium Copper
Anodized Aluminum
Mechanical:
**TNC Connectors
Conductors
Housing
**TNC Connectors are Mode-Free up to 18 GHz
Model Number:
XXT10W-XX
Model Number:
XXT10W-XXF
Model Number:
XXT10W-XXM
Male/Female Connectors
Female/Female Connectors
Male/Male Connectors
0-20 Length: 2.58 ±.05 [65.5 ±1.3]
0-20 Length: 2.67 ±.05 [67.8 ±1.3]
0-20 Length: 2.48 ±.05 [63.0 ±1.3]
30&40 Length: 2.82 ±.05 [71.6 ±1.3] 30&40 Length: 2.92 ±.05 [74.2 ±1.3]
30&40 Length: 2.72 ±.05 [69.1 ±1.3]
Pictured
Ø1.00±.02
[25.40±0.51]
Ø1.00±.02
[25.40±0.51]
2.58±.05
[65.63±1.27]
2.82±.05
[71.63±1.27]
HOW TO ORDER:
Model Number:
XXT10W-XXY
Freq. Range
2 = DC - 2.5 GHz
6 = DC - 6 GHz
12 = DC - 12.4 GHz
18 = DC - 18 GHz
Connector Configuration
= Male/Female
F = Fem/Fem
M = Male/Male
dB Value
Ordering Examples:
Model Number:
18T10W-20
DC - 18 GHz; 20 dB; TNC - Male/Fem
Model Number:
6T10W-06F
DC - 6 GHz; 6 dB; TNC - Fem/Fem
Model Number:
12T10W-03M
DC - 12.4 GHz; 3 dB; TNC - Male/Male
Note: Dimensions in Brackets are Expressed in Millimeters and are for Reference Only.
Design specifications are subject to change without notice.
Contact factory for technical specifications before purchasing or use.
XXT10W-ATT: REV N
Aeroflex / Inmet, Inc.
• 300 Dino Drive, Ann Arbor, MI 48103 • U.S.A.
888-244-6638 or 734-426-5553 • FAX: 734-426-5557
www.aeroflex-inmet.com • inmetsales@aeroflex.com
