1-00168 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Power management> transformer> 1-00168

1-00168: DescriptionDatacom Transformer, GENERAL PURPOSE Application(s), 2:1; 1.4:1; CategoryPower management transformer; File Size2MB，4 Pages; ManufacturerAnaren; Websitehttp://www.anaren.com/

Download Datasheet Parametric Compare View All

1-00168 Overview

Datacom Transformer, GENERAL PURPOSE Application(s), 2:1; 1.4:1

1-00168 Parametric

Parameter Name	Attribute value
Reach Compliance Code	unknown
ECCN code	EAR99
application	GENERAL PURPOSE
high	7.6 mm
length	15.9 mm
Installation features	THROUGH HOLE MOUNTED
Number of functions	1
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
physical size	15.9mm X 15.9mm X 7.6mm
surface mount	NO
Transformer type	DATACOM TRANSFORMER
Turns ratio (Np:Ns)	2:1; 1.4:1
width	15.9 mm
Base Number Matches	1

Preview

Download Datasheet

View All

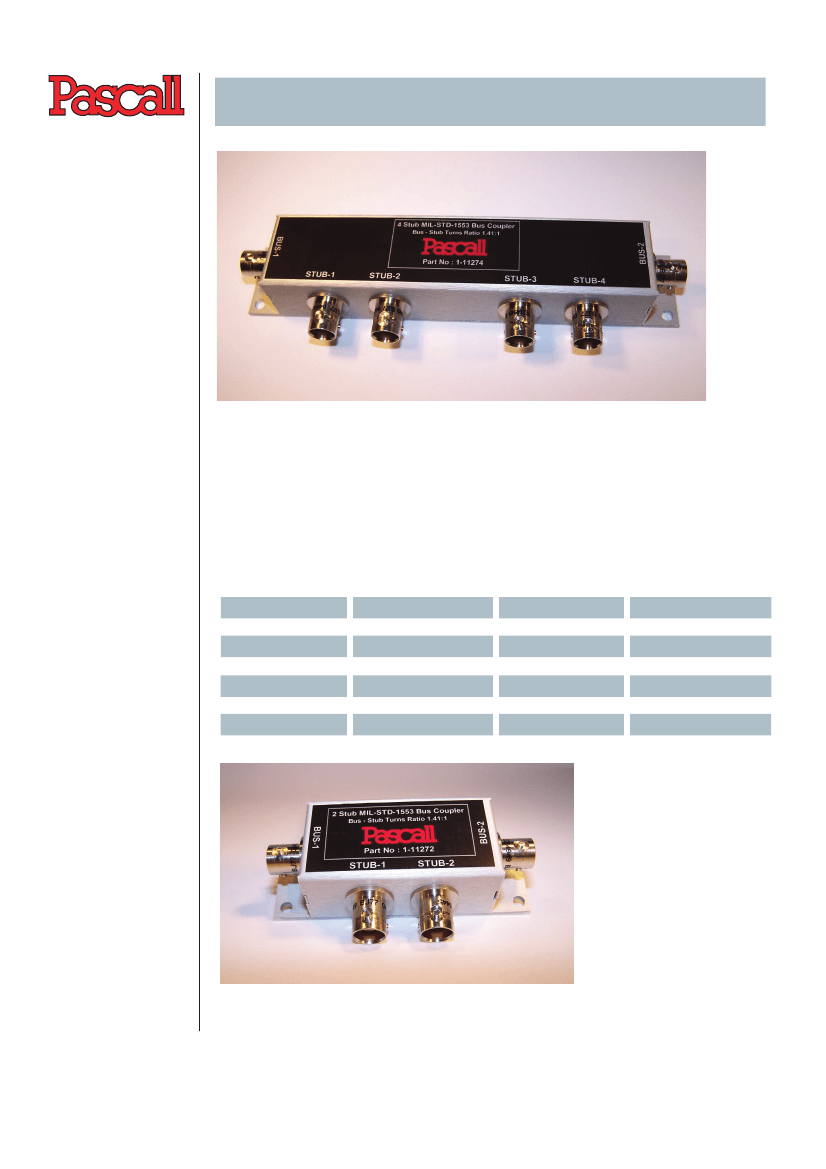

MIL-STD 1553 DATA BUS TRANSFORMERS

ELECTRONICS LIMITED

Pascall Electronics Limited

Westridge Business Park

Cothey Way

Ryde, Isle of Wight

PO33 1QT UK

Tel +44 (0) 1983 817300

Fax +44 (0) 1983 564708

Email enquiries@pascall.co.uk

www.pascall.co.uk

3Kohms minimum impedance at -55 ºC

BS9000 release available for both leaded and surface mount packages

Release to BS9720 Generic Specification (full or basic assessment available)

Extended range giving wide choice of turns ratios

Upper operating temperature limit to +125 ºC

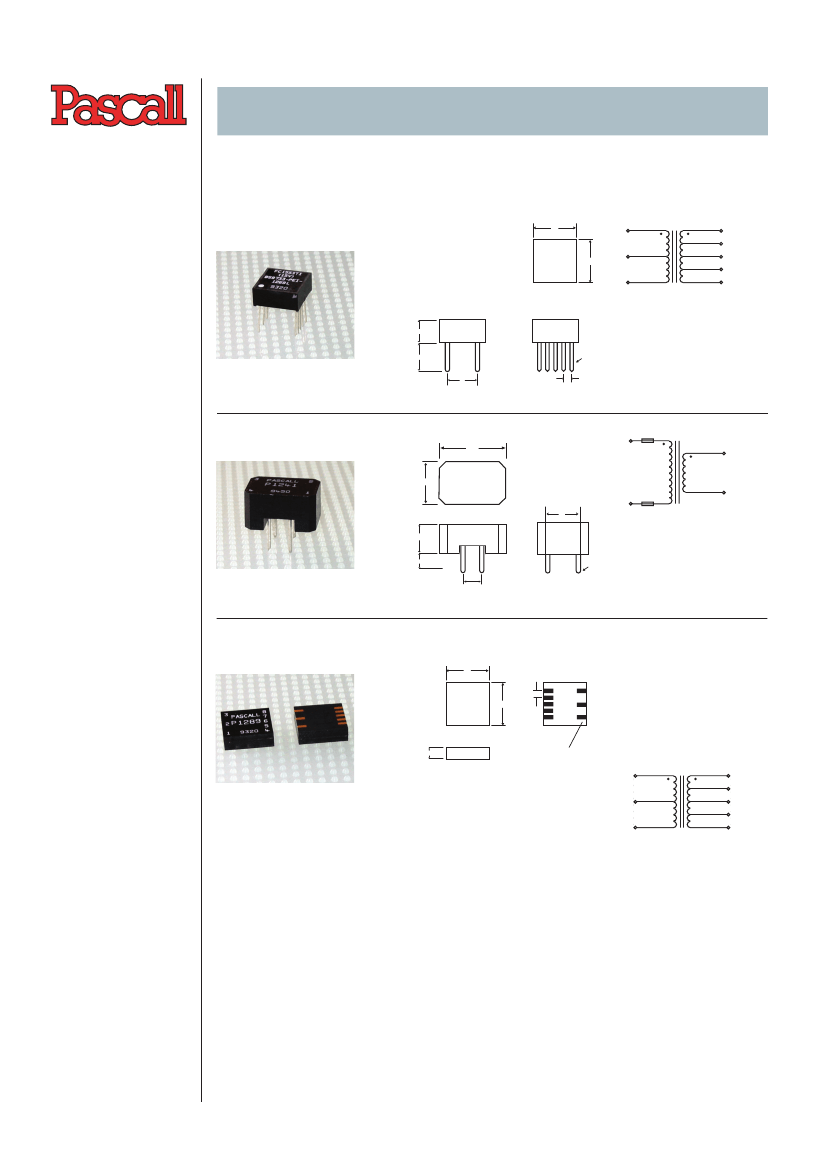

Surface Mount Option

The Pascall P1200 Series of Data Bus Transformers is designed to satisfy the

requirements of MIL-STD-1553A / B (Def. Stan. 00-18 (Part 2) / 1) and may be

used in either the bus coupling or isolation configurations.

The Transformers are compatible with currently available transceivers and

integrated terminals, meeting all the electrical requirements of Manchester II serial

bi-phase data transmission including MACAIR specifications. They are also

designed to meet the requirements of MIL-T-21038 Grades 5&7 / Class S / Life X.

05/05

1-00168 Related Products

	1-00168	1-06198	1-02822	1-01028	1-07860	1-04817	1-04405	1-03842	1-00769	1-00171
Description	Datacom Transformer, GENERAL PURPOSE Application(s), 2:1; 1.4:1	Datacom Transformer, GENERAL PURPOSE Application(s), 0.56:1	Datacom Transformer, GENERAL PURPOSE Application(s), 2:1	Datacom Transformer, GENERAL PURPOSE Application(s), 0.46:1; 0.66:1	Datacom Transformer, GENERAL PURPOSE Application(s), 0.56:1	Datacom Transformer, GENERAL PURPOSE Application(s), 2:1; 1.41:1	Datacom Transformer, GENERAL PURPOSE Application(s), 1.41:1; 1:1	Datacom Transformer, GENERAL PURPOSE Application(s), 0.4:1	Datacom Transformer, GENERAL PURPOSE Application(s), 1.66:1; 1.2:1	Datacom Transformer, GENERAL PURPOSE Application(s), 1.41:1
Reach Compliance Code	unknown	unknow	unknow	unknow	unknown	unknown	unknown	unknown	unknown	unknown
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
application	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE
high	7.6 mm	5 mm	7.6 mm	7.6 mm	5 mm	5 mm	5 mm	7.6 mm	7.6 mm	7.6 mm
length	15.9 mm	16.5 mm	15.9 mm	15.9 mm	16.5 mm	16.5 mm	16.5 mm	15.9 mm	15.9 mm	15.9 mm
Installation features	THROUGH HOLE MOUNTED	SURFACE MOUNT	THROUGH HOLE MOUNTED	THROUGH HOLE MOUNTED	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	THROUGH HOLE MOUNTED	THROUGH HOLE MOUNTED	THROUGH HOLE MOUNTED
Number of functions	1	1	1	1	1	1	1	1	1	1
Maximum operating temperature	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C
physical size	15.9mm X 15.9mm X 7.6mm	16.5mm X 16.5mm X 5mm	15.9mm X 15.9mm X 7.6mm	L15.9XB15.9XH7.6 (mm)	16.5mm X 16.5mm X 5mm	16.5mm X 16.5mm X 5mm	16.5mm X 16.5mm X 5mm	15.9mm X 15.9mm X 7.6mm	15.9mm X 15.9mm X 7.6mm	15.9mm X 15.9mm X 7.6mm
surface mount	NO	YES	NO	NO	YES	YES	YES	NO	NO	NO
Transformer type	DATACOM TRANSFORMER	DATACOM TRANSFORMER	DATACOM TRANSFORMER	DATACOM TRANSFORMER	DATACOM TRANSFORMER	DATACOM TRANSFORMER	DATACOM TRANSFORMER	DATACOM TRANSFORMER	DATACOM TRANSFORMER	DATACOM TRANSFORMER
Turns ratio (Np:Ns)	2:1; 1.4:1	0.56:1	2:1	0.46:1; 0.66:1	0.56:1	2:1; 1.41:1	1.41:1; 1:1	0.4:1	1.66:1; 1.2:1	1.41:1
width	15.9 mm	16.5 mm	15.9 mm	15.9 mm	16.5 mm	16.5 mm	16.5 mm	15.9 mm	15.9 mm	15.9 mm
Base Number Matches	1	1	1	1	1	1	1	1	1	1
