2N3789 datasheet, PDF - EEWORLD Datasheet

2N3789: Description10 A, 80 V, PNP, Si, POWER TRANSISTOR, TO-204AA; CategoryDiscrete semiconductor The transistor; File Size117KB，3 Pages; ManufacturerMOSPEC; Websitehttp://www.mospec.com.tw/eng/index.html

Download Datasheet Parametric Compare View All

2N3789 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	2N3789	-	-	View	Buy Now

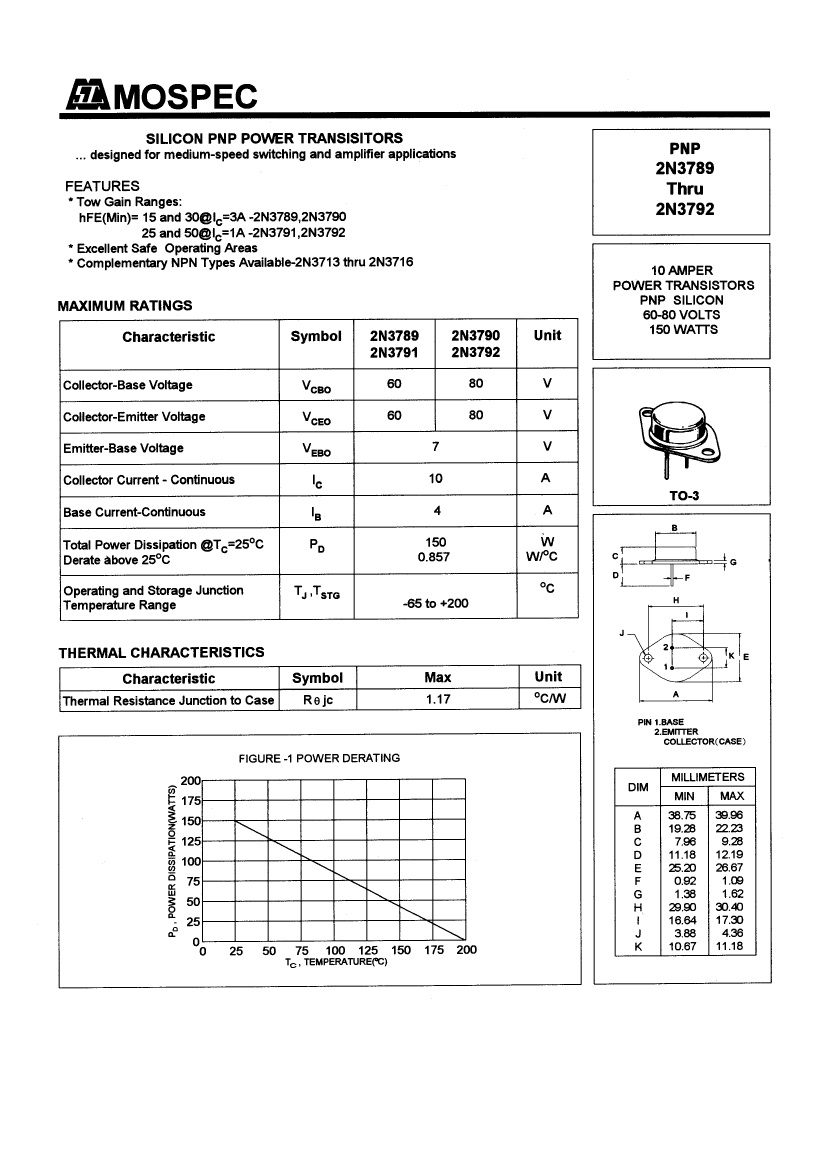

10 A, 80 V, PNP, Si, POWER TRANSISTOR, TO-204AA

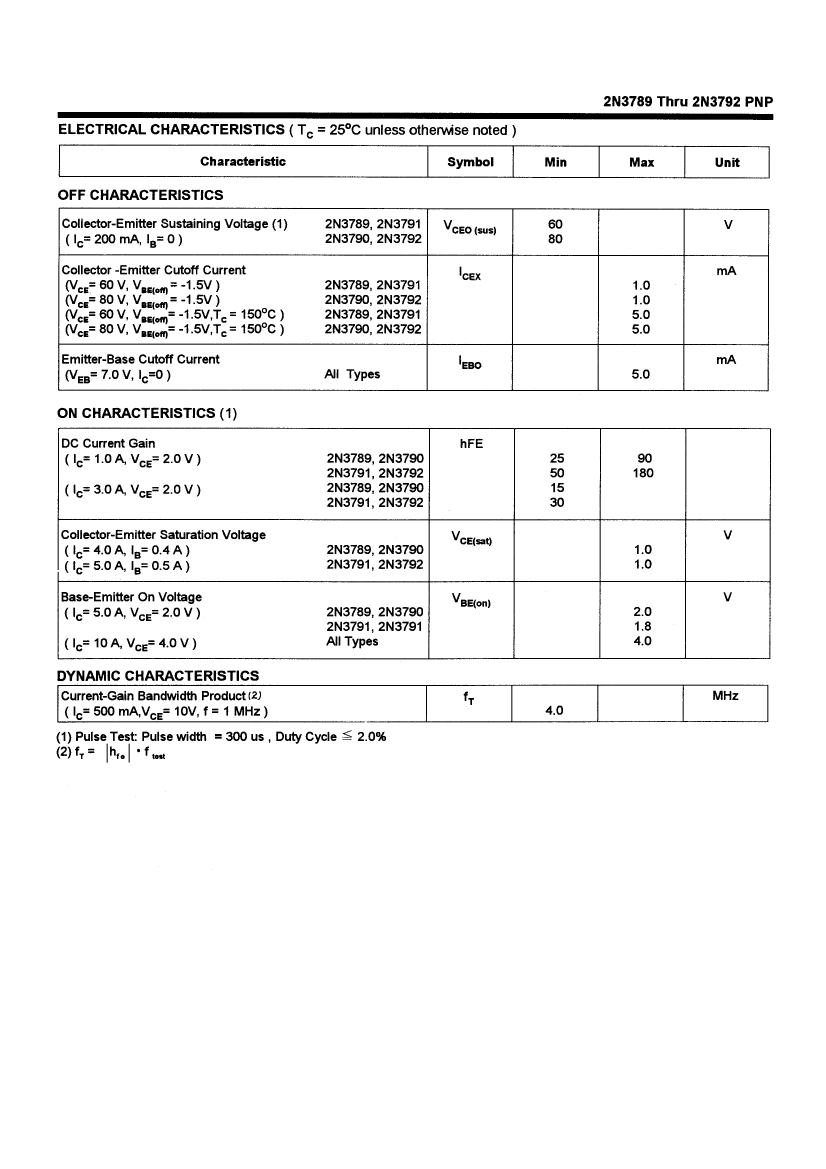

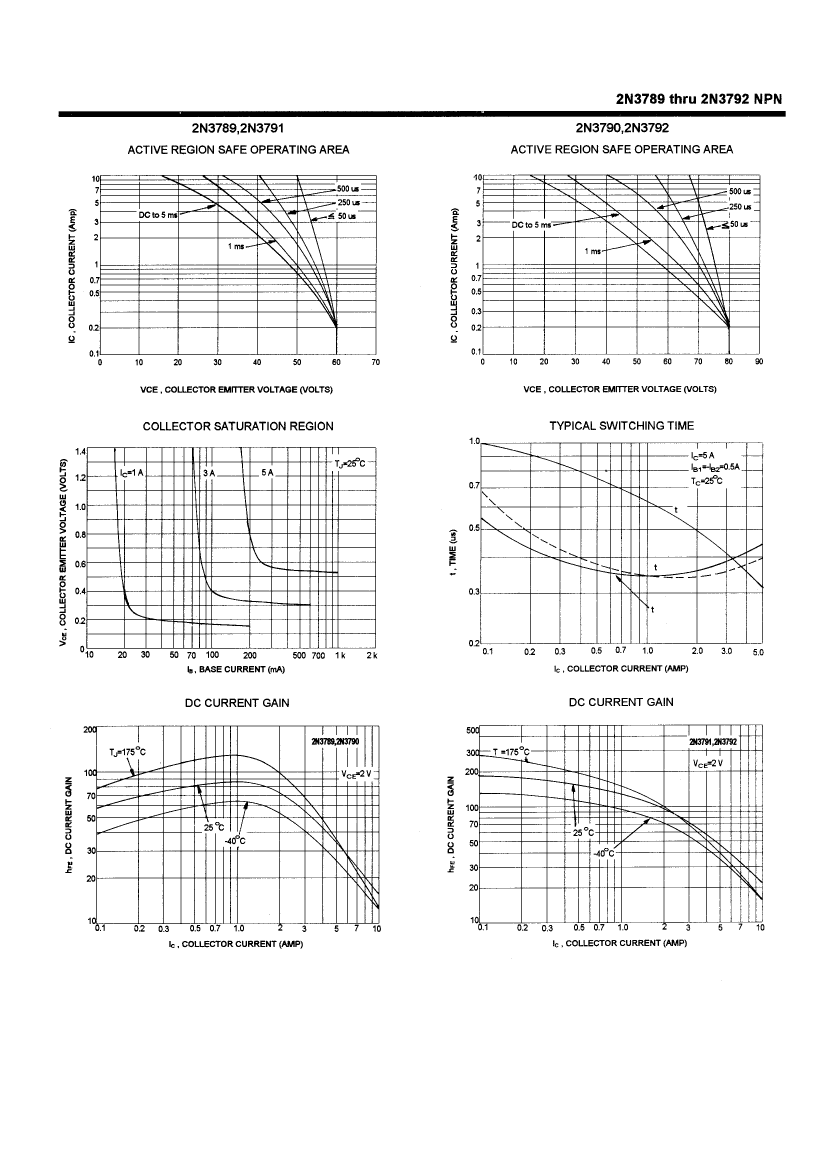

Parameter Name	Attribute value
Parts packaging code	TO-204AA
package instruction	FLANGE MOUNT, O-MBFM-P2
Contacts	2
Reach Compliance Code	unknow
ECCN code	EAR99
Shell connection	COLLECTOR
Maximum collector current (IC)	10 A
Collector-emitter maximum voltage	60 V
Configuration	SINGLE
Minimum DC current gain (hFE)	25
JEDEC-95 code	TO-3
JESD-30 code	O-MBFM-P2
Number of components	1
Number of terminals	2
Maximum operating temperature	175 °C
Package body material	METAL
Package shape	ROUND
Package form	FLANGE MOUNT
Polarity/channel type	PNP
Maximum power dissipation(Abs)	150 W
Certification status	Not Qualified
surface mount	NO
Terminal form	PIN/PEG
Terminal location	BOTTOM
transistor applications	SWITCHING
Transistor component materials	SILICON
Nominal transition frequency (fT)	4 MHz
Base Number Matches	1

	2N3789	2N3792
Description	10 A, 80 V, PNP, Si, POWER TRANSISTOR, TO-204AA	10 A, 80 V, PNP, Si, POWER TRANSISTOR, TO-204AA
Parts packaging code	TO-204AA	TO-204AA
package instruction	FLANGE MOUNT, O-MBFM-P2	FLANGE MOUNT, O-MBFM-P2
Contacts	2	2
Reach Compliance Code	unknow	unknow
ECCN code	EAR99	EAR99
Shell connection	COLLECTOR	COLLECTOR
Maximum collector current (IC)	10 A	10 A
Collector-emitter maximum voltage	60 V	80 V
Configuration	SINGLE	SINGLE
Minimum DC current gain (hFE)	25	30
JEDEC-95 code	TO-3	TO-3
JESD-30 code	O-MBFM-P2	O-MBFM-P2
Number of components	1	1
Number of terminals	2	2
Maximum operating temperature	175 °C	175 °C
Package body material	METAL	METAL
Package shape	ROUND	ROUND
Package form	FLANGE MOUNT	FLANGE MOUNT
Polarity/channel type	PNP	PNP
Maximum power dissipation(Abs)	150 W	150 W
Certification status	Not Qualified	Not Qualified
surface mount	NO	NO
Terminal form	PIN/PEG	PIN/PEG
Terminal location	BOTTOM	BOTTOM
transistor applications	SWITCHING	SWITCHING
Transistor component materials	SILICON	SILICON
Nominal transition frequency (fT)	4 MHz	4 MHz
Base Number Matches	1	1
