104TL1-7E

Description
Toggle Switch, 4PDT, Momentary, 18A, 30VDC, Wire Terminal, Locking Type Actuator, Panel Mount-threaded
CategoryMechanical and electronic products    switch

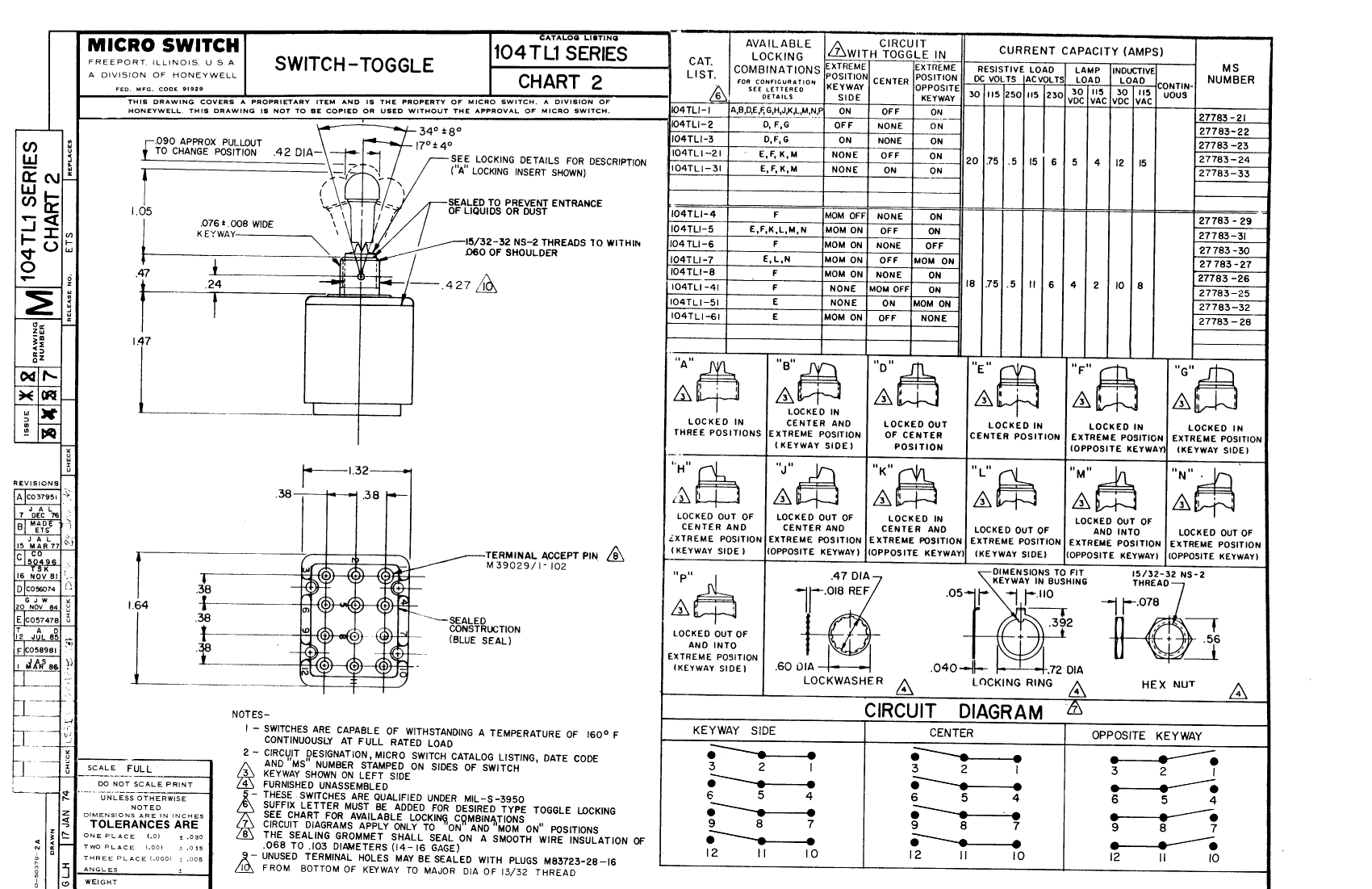

File Size237KB,2 Pages
ManufacturerHoneywell
Websitehttp://www.ssec.honeywell.com/
Download Datasheet Parametric View All

104TL1-7E Overview

Toggle Switch, 4PDT, Momentary, 18A, 30VDC, Wire Terminal, Locking Type Actuator, Panel Mount-threaded

104TL1-7E Parametric

Parameter NameAttribute value
Reach Compliance Codeunknown
ECCN codeEAR99
Actuator typeLOCKING TYPE
body width33.53 mm
body height37.34 mm
Body length or diameter41.66 mm
Contact (AC) maximum rated R load11A@115VAC
Maximum contact current (AC)11 A
Maximum contact current (DC)18 A
Contact (DC) maximum rated R load18A@30VDC
Maximum contact voltage (AC)115 V
Maximum contact voltage (DC)30 V
Manufacturer's serial number104TL1
Installation featuresPANEL MOUNT-THREADED
Maximum operating temperature71 °C
sealDUST PROOF; WATER PROOF
surface mountNO
Switch actionMOMENTARY
switch function4PDT
Switch typeTOGGLE SWITCH
Termination typeWIRE
Base Number Matches1
