12TW48-8: DescriptionToggle Switch, SPDT, Momentary, Wire Terminal, Lever Actuator, Panel Mount-threaded; CategoryMechanical and electronic products switch; File Size70KB，1 Pages; ManufacturerHoneywell; Websitehttp://www.ssec.honeywell.com/

Download Datasheet Parametric Compare View All

12TW48-8 Overview

Toggle Switch, SPDT, Momentary, Wire Terminal, Lever Actuator, Panel Mount-threaded

12TW48-8 Parametric

Parameter Name	Attribute value
Reach Compliance Code	unknown
ECCN code	EAR99
Actuator type	LEVER
body width	13.59 mm
body height	18.8 mm
Body length or diameter	14.61 mm
Contact (AC) maximum rated R load	5A@125VAC
Maximum contact current (AC)	5 A
Maximum contact voltage (AC)	125 V
Manufacturer's serial number	12TW48
Installation features	PANEL MOUNT-THREADED
seal	DUST PROOF; WATER PROOF
surface mount	NO
Switch action	MOMENTARY
switch function	SPDT
Switch type	TOGGLE SWITCH
Termination type	WIRE
Base Number Matches	1

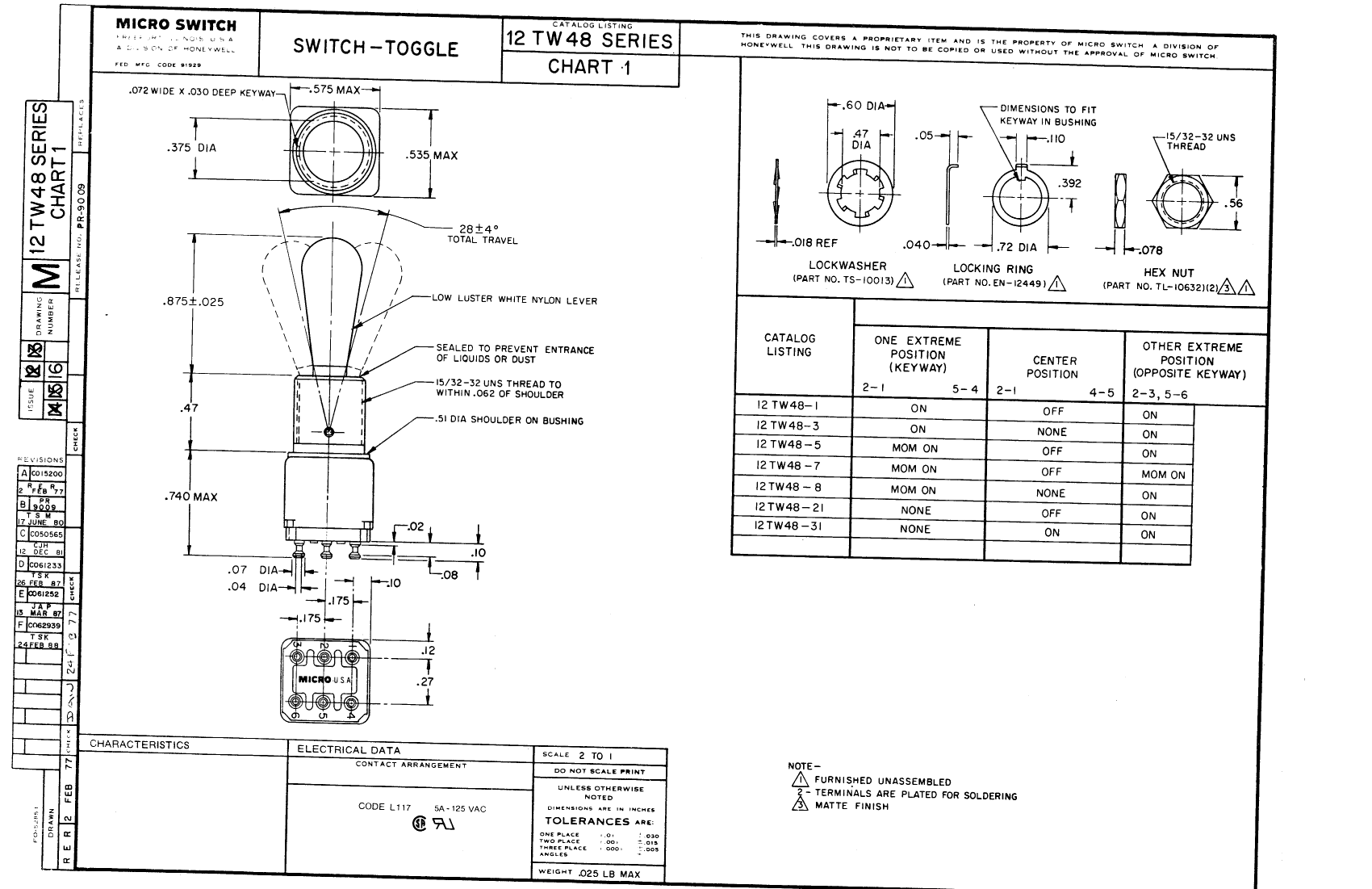

Preview

Download Datasheet

View All

12TW48-8 Related Products

	12TW48-8	12TW48-1	12TW48-5	01R5B0R5B6R3CT	12TW48-7	12TW48-21
Description	Toggle Switch, SPDT, Momentary, Wire Terminal, Lever Actuator, Panel Mount-threaded	Toggle Switch, SPDT, Latched, Wire Terminal, Lever Actuator, Panel Mount-threaded	Toggle Switch, SPDT, Latched And Momentary, Wire Terminal, Lever Actuator, Panel Mount-threaded	High precision dimensional tolerances	Toggle Switch, SPDT, Momentary, Wire Terminal, Lever Actuator, Panel Mount-threaded	Toggle Switch, SPST, Momentary, Wire Terminal, Lever Actuator, Panel Mount-threaded
Reach Compliance Code	unknown	unknow	unknow	-	unknown	unknown
ECCN code	EAR99	EAR99	EAR99	-	EAR99	EAR99
Actuator type	LEVER	LEVER	LEVER	-	LEVER	LEVER
body width	13.59 mm	13.59 mm	13.59 mm	-	13.59 mm	13.59 mm
body height	18.8 mm	18.8 mm	18.8 mm	-	18.8 mm	18.8 mm
Body length or diameter	14.61 mm	14.61 mm	14.61 mm	-	14.61 mm	14.61 mm
Contact (AC) maximum rated R load	5A@125VAC	5A@125VAC	5A@125VAC	-	5A@125VAC	5A@125VAC
Maximum contact current (AC)	5 A	5 A	5 A	-	5 A	5 A
Maximum contact voltage (AC)	125 V	125 V	125 V	-	125 V	125 V
Manufacturer's serial number	12TW48	12TW48	12TW48	-	12TW48	12TW48
Installation features	PANEL MOUNT-THREADED	PANEL MOUNT-THREADED	PANEL MOUNT-THREADED	-	PANEL MOUNT-THREADED	PANEL MOUNT-THREADED
seal	DUST PROOF; WATER PROOF	DUST PROOF; WATER PROOF	DUST PROOF; WATER PROOF	-	DUST PROOF; WATER PROOF	DUST PROOF; WATER PROOF
surface mount	NO	NO	NO	-	NO	NO
Switch action	MOMENTARY	LATCHED	LATCHED AND MOMENTARY	-	MOMENTARY	MOMENTARY
switch function	SPDT	SPDT	SPDT	-	SPDT	SPST
Switch type	TOGGLE SWITCH	TOGGLE SWITCH	TOGGLE SWITCH	-	TOGGLE SWITCH	TOGGLE SWITCH
Termination type	WIRE	WIRE	WIRE	-	WIRE	WIRE
Base Number Matches	1	1	1	-	1	1
