1825041-1 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Mechanical and electronic products> switch> 1825041-1

1825041-1: DescriptionPUSHBUTTON SWITCH, SPDT, LATCHED, 4A, 28VDC, PANEL MOUNT-THREADED, ROHS COMPLIANT; CategoryMechanical and electronic products switch; File Size47KB，1 Pages; ManufacturerTE Connectivity; Websitehttp://www.te.com; Environmental Compliance

Download Datasheet Parametric Compare View All

1825041-1 Overview

PUSHBUTTON SWITCH, SPDT, LATCHED, 4A, 28VDC, PANEL MOUNT-THREADED, ROHS COMPLIANT

1825041-1 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
package instruction	ROHS COMPLIANT
Reach Compliance Code	unknown
ECCN code	EAR99
Actuator type	PLUNGER
body width	8 mm
body height	13.21 mm
Body length or diameter	13.08 mm
Contact (AC) maximum rated R load	6A@125VAC
Maximum contact current (AC)	6 A
Maximum contact current (DC)	4 A
Contact (DC) maximum rated R load	4A@28VDC
Maximum contact voltage (AC)	125 V
Maximum contact voltage (DC)	28 V
Electrical life	30000 Cycle(s)
JESD-609 code	e4
Manufacturer's serial number	1825041
Installation features	PANEL MOUNT-THREADED
Maximum operating force	19.61 N
Maximum operating temperature	85 °C
Minimum operating temperature	-20 °C
seal	EPOXY TERMINAL SEALED
surface mount	NO
Switch action	LATCHED
switch function	SPDT
Switch type	PUSHBUTTON SWITCH
Terminal surface	Gold (Au)
Termination type	WIRE
Base Number Matches	1

Preview

Download Datasheet

View All

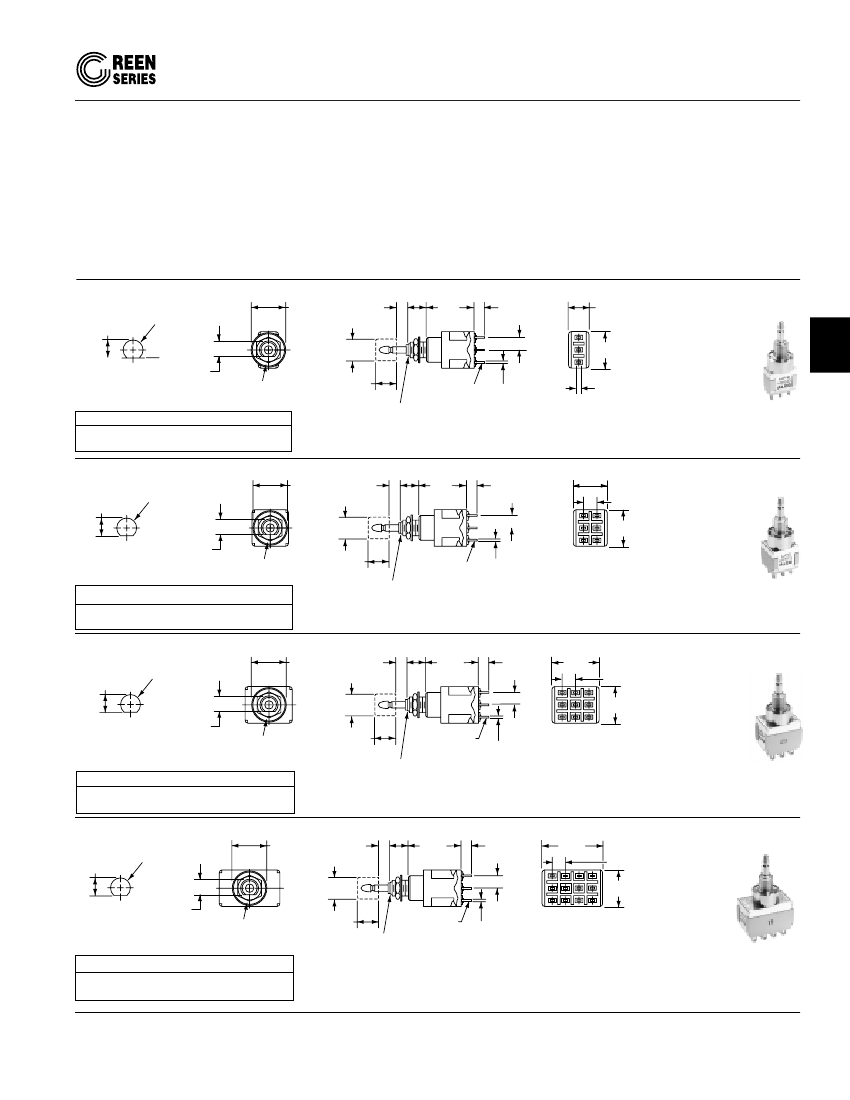

Panel Mount Pushbutton

6 Amp “Splashproof”

MATERIAL SPECIFICATIONS:

Contacts ..................................Silver clad copper with gold flash

Case Material ..........................Thermoset

Actuator Material ....................Nickel plated copper alloy

Terminals ................................Copper with gold flash

Terminal Seal ..........................Molded in

MPE Series

TYPICAL PERFORMANCE CHARACTERISTICS:

Contact Rating ........................6 A @ 125 VAC, 3 A @ 250 VAC

Initial Contact Resistance........10 Milliohms max.

Contact Timing ........................Break-before-make

Insulation Resistance ..............1,000 Megohms min.

Dielectric Strength ..................1,500 Volts RMS @ sea level

Actuation Force ......................1.3 to 2.7 lbs.

Actuator Travel .........................140" (3.56)

Life Expectancy ......................50,000 Actuations

Notice: O-ring on shoulder and inside moveable shaft

provides splashproof seal.

.280

(7.11)

.690

(17.53)

.160

(4.06)

.320

(8.12)

ENVIRONMENTAL SPECIFICATIONS:

Operating Temperature............-4°F to +176°F (-20°C to +80°C)

Storage Temperature................-40°F to +176°F (-40°C to +80°C)

.232

(5.89)

.236

(5.99)

.253

(6.42)

.250

(6.35)

DIA.

.470

(11.94)

DIA.

.160

(4.06)

SPDT

.390

(9.90) DIA.

.228

(5.79)

ACROSS

FLAT

.320

(8.12)

.170

(4.31)

TYP.

.031

(0.78)

.512

(13.0)

.090

(2.28)

TYP.

.020 Dp. x .040 W

(0.50 Dp. x 1.00 W)

KEYWAY

.040 x .080

(1.00 x .200)

OBLONG HOLE

1/4-40 UNS-2A

Model

Type

Act. Code P. M9

Action

Push on/Push off

Momentary

MPE106D

Cap not supplied, order separately (See Cap Model C22 and C23 on page D45.)

.280

(7.11)

.470

(11.94)

DIA.

.160

(4.06)

.690

(17.53)

.160

(4.06)

.512

(13.0)

.190

(4.82)

TYP.

.512

(13.0)

.170

(4.31)

.031 TYP.

(0.78)

MPE106D SPDT

MPE106F SPDT

.232

(5.89)

.236

(5.99)

.253

(6.42)

.250

(6.35)

DIA.

DPDT

.390

(9.90) DIA.

.228

(5.79)

ACROSS

FLAT

.320

(8.12)

.040 x .080

(1.00 x .200)

OBLONG HOLE

1/4-40 UNS-2A

.020 Dp. x .040 W

(0.50 Dp. x 1.00 W)

KEYWAY

Model

Type

Act. Code P. M9 Action

Push on/Push off

Momentary

MPE206N

Cap not supplied, order separately (See Cap Model C22 and C23 on page D45.)

.280

(7.11)

.701

(17.81)

MPE206N DPDT

MPE206R DPDT

.232

(5.89)

.236

(5.99)

.253

(6.42)

.250

(6.35)

DIA.

.470

(11.94)

DIA.

.160

(4.06)

.780

(19.81)

.160

(4.06)

3PDT

.190

(4.82)

TYP.

.512

(13.0)

.390

(9.90) DIA.

.230

(5.90)

ACROSS

FLAT

.320

(8.12)

.170

(4.30)

.040 x .080

TYP.

(1.00 x .200)

.031

OBLONG HOLE (0.78)

1/4-40 UNS-2A

.020 Dp. x .040 W

(0.50 Dp. x 1.00 W)

KEYWAY

Model

MPE306D

MPE306F

Type

3PDT

Act. Code P. M9

Action

Push on/Push off

Momentary

MPE306F

Cap not supplied, order separately (See Cap Model C22 and C23 on page D45.)

.280

(7.11)

.232

(5.89)

.236

(5.99)

.253

(6.42)

.250

(6.35)

DIA.

.470

(11.9)

DIA.

.160

(4.06)

.780

(19.81)

.160

(4.06)

.889

(22.58)

4PDT

.190

(4.82)

TYP.

.512

(13.0)

.390

(9.90) DIA.

.230

(5.90)

ACROSS

FLAT

.320

(8.12)

1/4-40 UNS-2A

.040 x .080

(1.00 x .200)

OBLONG HOLE

.170

(4.30)

TYP.

.031

(0.78)

.020 Dp. x .040 W

(0.50 Dp. x 1.00 W)

KEYWAY

Model

MPE406N

MPE406R

Type

4PDT

Act. Code P. M9

Action

Push on/Push off

Momentary

MPE406N

Cap not supplied, order separately (See Cap Model C22 and C23 on page D45.)

Need more technical information?

Consult your Thomas & Betts

sales office listed on the back cover

D37

Thomas & Betts

8155 T&B Blvd.

Memphis, TN 38125

(901) 252-5000 FAX (901) 252-1380

1825041-1 Related Products

	1825041-1	1825041-8	1825041-4	1825041-2	1825041-3	1825041-7
Description	PUSHBUTTON SWITCH, SPDT, LATCHED, 4A, 28VDC, PANEL MOUNT-THREADED, ROHS COMPLIANT	PUSHBUTTON SWITCH, 4PDT, LATCHED AND MOMENTARY, 4A, 28VDC, PANEL MOUNT-THREADED, ROHS COMPLIANT	PUSHBUTTON SWITCH, DPDT, LATCHED AND MOMENTARY, 4A, 28VDC, PANEL MOUNT-THREADED, ROHS COMPLIANT	PUSHBUTTON SWITCH, SPDT, LATCHED AND MOMENTARY, 4A, 28VDC, PANEL MOUNT-THREADED, ROHS COMPLIANT	PUSHBUTTON SWITCH, DPDT, LATCHED, 4A, 28VDC, PANEL MOUNT-THREADED, ROHS COMPLIANT	PUSHBUTTON SWITCH, 4PDT, LATCHED, 4A, 28VDC, PANEL MOUNT-THREADED, ROHS COMPLIANT
Is it Rohs certified?	conform to	conform to	conform to	conform to	conform to	conform to
package instruction	ROHS COMPLIANT	ROHS COMPLIANT	ROHS COMPLIANT	ROHS COMPLIANT	ROHS COMPLIANT	ROHS COMPLIANT
Reach Compliance Code	unknown	unknow	unknown	unknown	unknown	compliant
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
Actuator type	PLUNGER	PLUNGER	PLUNGER	PLUNGER	PLUNGER	PLUNGER
body width	8 mm	8 mm	8 mm	8 mm	8 mm	8 mm
body height	13.21 mm	13.21 mm	13.21 mm	13.21 mm	13.21 mm	13.21 mm
Body length or diameter	13.08 mm	13.08 mm	13.08 mm	13.08 mm	13.08 mm	13.08 mm
Contact (AC) maximum rated R load	6A@125VAC	6A@125VAC	6A@125VAC	6A@125VAC	6A@125VAC	6A@125VAC
Maximum contact current (AC)	6 A	6 A	6 A	6 A	6 A	6 A
Maximum contact current (DC)	4 A	4 A	4 A	4 A	4 A	4 A
Contact (DC) maximum rated R load	4A@28VDC	4A@28VDC	4A@28VDC	4A@28VDC	4A@28VDC	4A@28VDC
Maximum contact voltage (AC)	125 V	125 V	125 V	125 V	125 V	125 V
Maximum contact voltage (DC)	28 V	28 V	28 V	28 V	28 V	28 V
Electrical life	30000 Cycle(s)	30000 Cycle(s)	30000 Cycle(s)	30000 Cycle(s)	30000 Cycle(s)	30000 Cycle(s)
JESD-609 code	e4	e4	e4	e4	e4	e4
Manufacturer's serial number	1825041	1825041	1825041	1825041	1825041	1825041
Installation features	PANEL MOUNT-THREADED	PANEL MOUNT-THREADED	PANEL MOUNT-THREADED	PANEL MOUNT-THREADED	PANEL MOUNT-THREADED	PANEL MOUNT-THREADED
Maximum operating force	19.61 N	19.61 N	19.61 N	19.61 N	19.61 N	19.61 N
Maximum operating temperature	85 °C	85 °C	85 °C	85 °C	85 °C	85 °C
Minimum operating temperature	-20 °C	-20 °C	-20 °C	-20 °C	-20 °C	-20 °C
seal	EPOXY TERMINAL SEALED	EPOXY TERMINAL SEALED	EPOXY TERMINAL SEALED	EPOXY TERMINAL SEALED	EPOXY TERMINAL SEALED	EPOXY TERMINAL SEALED
surface mount	NO	NO	NO	NO	NO	NO
Switch action	LATCHED	LATCHED AND MOMENTARY	LATCHED AND MOMENTARY	LATCHED AND MOMENTARY	LATCHED	LATCHED
switch function	SPDT	4PDT	DPDT	SPDT	DPDT	4PDT
Switch type	PUSHBUTTON SWITCH	PUSHBUTTON SWITCH	PUSHBUTTON SWITCH	PUSHBUTTON SWITCH	PUSHBUTTON SWITCH	PUSHBUTTON SWITCH
Terminal surface	Gold (Au)	Gold (Au)	Gold (Au)	Gold (Au)	Gold (Au)	Gold (Au)
Termination type	WIRE	WIRE	WIRE	WIRE	WIRE	WIRE
Base Number Matches	1	1	1	1	1	1
