1825535-4 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Mechanical and electronic products> switch> 1825535-4

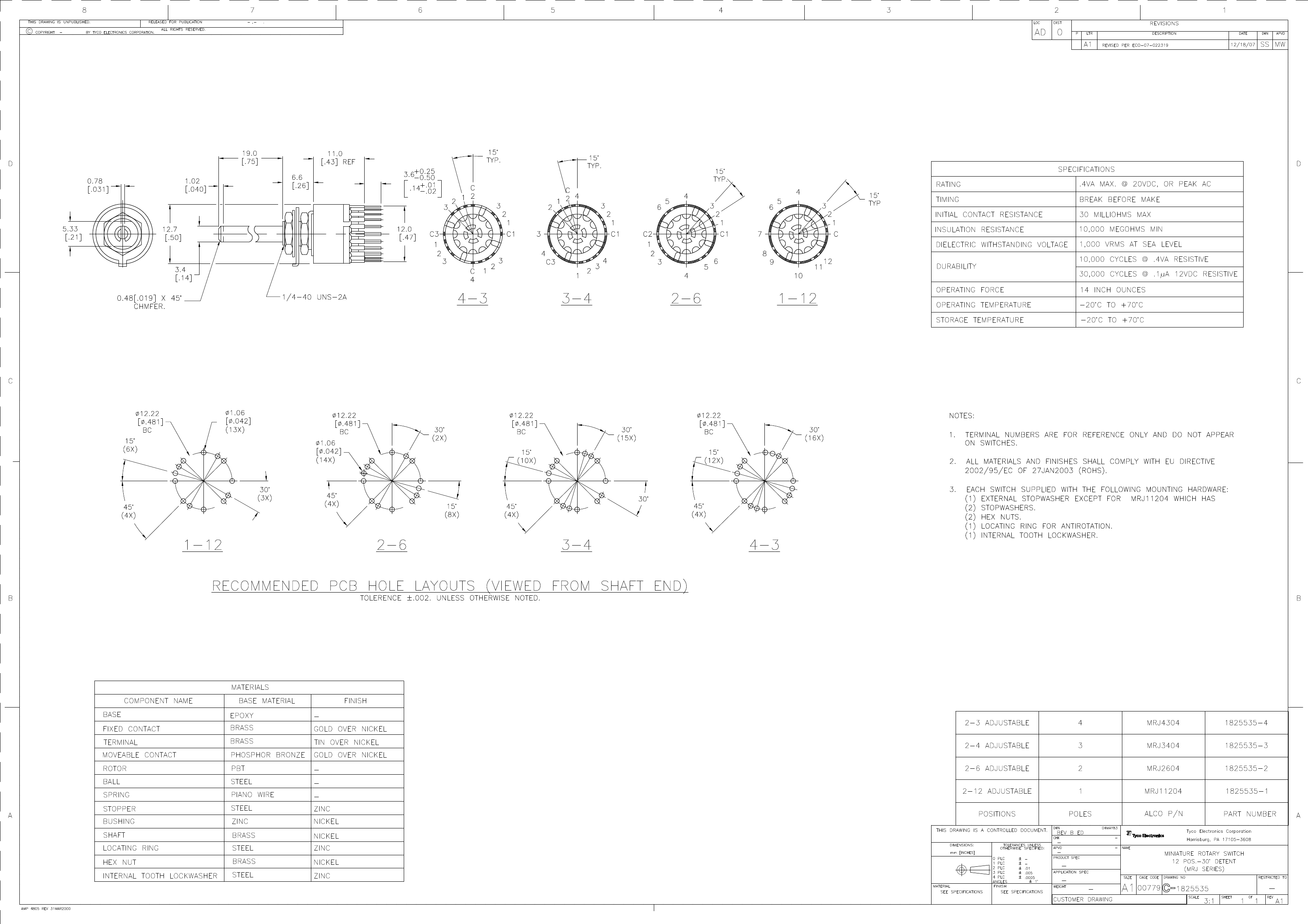

1825535-4: DescriptionROTARY SWITCH-3POSITIONS, 4P3T, LATCHED, 0.02A, 20VDC, THROUGH HOLE-STRAIGHT, ROHS COMPLIANT; CategoryMechanical and electronic products switch; File Size164KB，1 Pages; ManufacturerTE Connectivity; Websitehttp://www.te.com; Environmental Compliance

Download Datasheet Parametric Compare View All

1825535-4 Overview

ROTARY SWITCH-3POSITIONS, 4P3T, LATCHED, 0.02A, 20VDC, THROUGH HOLE-STRAIGHT, ROHS COMPLIANT

1825535-4 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Objectid	1887695304
package instruction	ROHS COMPLIANT
Reach Compliance Code	unknown
ECCN code	EAR99
body height	10.92 mm
Body length or diameter	12.7 mm
Contact (AC) maximum rated R load	.02A@20VAC
Maximum contact current (AC)	0.02 A
Maximum contact current (DC)	0.02 A
Contact (DC) maximum rated R load	.02A@20VDC
Maximum contact voltage (AC)	20 V
Maximum contact voltage (DC)	20 V
Electrical life	10000 Cycle(s)
Graduation angle	30 deg
JESD-609 code	e4
Manufacturer's serial number	1825535
Installation features	THROUGH HOLE-STRAIGHT
Number of positions	3
Number of switching segments	1
Maximum operating temperature	70 °C
Minimum operating temperature	-20 °C
surface mount	NO
Switch action	LATCHED
switch function	4P3T
Switch type	ROTARY SWITCH
Terminal surface	Gold (Au) - with Nickel (Ni) barrier
Termination type	SOLDER

Preview

Download Datasheet

View All

1825535-4 Related Products

	1825535-4	BD034-14-I-092-0-0630-N-E	1825535-1	1825535-2	MRJ2604
Description	ROTARY SWITCH-3POSITIONS, 4P3T, LATCHED, 0.02A, 20VDC, THROUGH HOLE-STRAIGHT, ROHS COMPLIANT	Board Connector, 14 Contact(s), 2 Row(s), Male, Straight, 0.05 inch Pitch, Surface Mount Terminal, Locking, Black Insulator, Receptacle,	ROTARY SWITCH-12POSITIONS, SP12T, LATCHED, 0.02A, 20VDC, THROUGH HOLE-STRAIGHT, ROHS COMPLIANT	ROTARY SWITCH-6POSITIONS, DP6T, LATCHED, 0.02A, 20VDC, THROUGH HOLE-STRAIGHT, ROHS COMPLIANT	ROTARY SWITCH-6POSITIONS, DP6T, LATCHED, 0.02A, 20VDC, THROUGH HOLE-STRAIGHT, ROHS COMPLIANT
Is it Rohs certified?	conform to	conform to	incompatible	conform to	conform to
Reach Compliance Code	unknown	compliant	compliant	compliant	compliant
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99
Maximum operating temperature	70 °C	105 °C	70 °C	70 °C	70 °C
Minimum operating temperature	-20 °C	-40 °C	-20 °C	-20 °C	-20 °C
Termination type	SOLDER	SURFACE MOUNT	SOLDER AND WIRE	SOLDER	SOLDER
Objectid	1887695304	1171686514	1679567645	1887695302	-
package instruction	ROHS COMPLIANT	-	ROHS COMPLIANT	ROHS COMPLIANT	ROHS COMPLIANT
body height	10.92 mm	-	10.92 mm	10.92 mm	11 mm
Body length or diameter	12.7 mm	-	12.7 mm	12.7 mm	12.7 mm
Contact (AC) maximum rated R load	.02A@20VAC	-	.02A@20VAC	.02A@20VAC	.02A@20VAC
Maximum contact current (AC)	0.02 A	-	0.4 A	0.02 A	0.02 A
Maximum contact current (DC)	0.02 A	-	0.4 A	0.02 A	0.02 A
Contact (DC) maximum rated R load	.02A@20VDC	-	.02A@20VDC	.02A@20VDC	.02A@20VDC
Maximum contact voltage (AC)	20 V	-	20 V	20 V	20 V
Maximum contact voltage (DC)	20 V	-	20 V	20 V	20 V
Electrical life	10000 Cycle(s)	-	10000 Cycle(s)	10000 Cycle(s)	10000 Cycle(s)
Graduation angle	30 deg	-	30 deg	30 deg	30 deg
JESD-609 code	e4	e3	-	e4	e3
Manufacturer's serial number	1825535	BD034	-	1825535	-
Installation features	THROUGH HOLE-STRAIGHT	-	PANEL MOUNT	THROUGH HOLE-STRAIGHT	THROUGH HOLE-STRAIGHT
Number of positions	3	-	12	6	6
Number of switching segments	1	-	12	1	1
surface mount	NO	-	NO	NO	NO
Switch action	LATCHED	-	LATCHED	LATCHED	LATCHED
switch function	4P3T	-	SP12T	DP6T	DP6T
Switch type	ROTARY SWITCH	-	ROTARY SWITCH	ROTARY SWITCH	ROTARY SWITCH
Terminal surface	Gold (Au) - with Nickel (Ni) barrier	-	-	Gold (Au) - with Nickel (Ni) barrier	Tin (Sn)
