5-1437588-5

Description
Rotary Switch, ROTARY CODED SWITCH-16POSITIONS, HEXADECIMAL, LATCHED, THROUGH HOLE-STRAIGHT
CategoryMechanical and electronic products    switch
File Size107KB,1 Pages
ManufacturerTE Connectivity
Websitehttp://www.te.com
Download Datasheet Parametric Compare View All

5-1437588-5 Overview

Rotary Switch, ROTARY CODED SWITCH-16POSITIONS, HEXADECIMAL, LATCHED, THROUGH HOLE-STRAIGHT

5-1437588-5 Parametric

Parameter NameAttribute value
Brand NameAlcoswitch
Is it Rohs certified?incompatible
Reach Compliance Codeunknown
ECCN codeEAR99
Actuator typeWHEEL
Manufacturer's serial number1437588
Installation featuresTHROUGH HOLE-STRAIGHT
Number of positions16
Number of switching segments1
surface mountNO
Switch actionLATCHED
switch functionHEXADECIMAL
Switch typeROTARY CODED SWITCH
Termination typeSOLDER
Base Number Matches1
My Account
Tyco Electronics
(C hange)
Se a rch by Ke yword or Pa rt #
Products
Documentation
Resources
My Account
Customer Support
Home
>
Products
>
By Type
>
Switches
>
Product Feature Selector
> Product Details

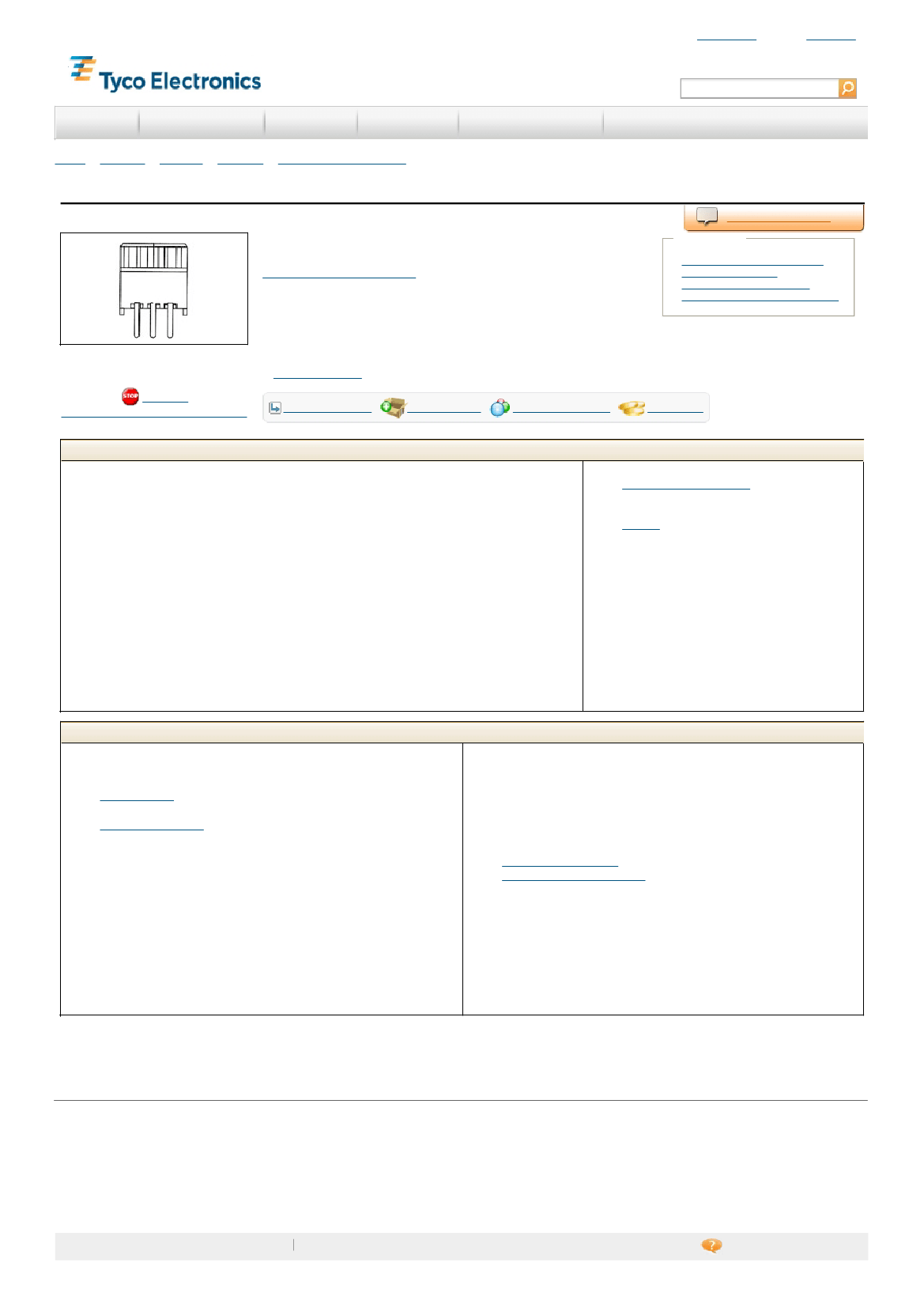

RRW16C10K Product Details
Live Product Chat
DIP, Rotary DIP, SIP Switches and DIP Shunts -
Standard
Not EU R oHS or ELV C om plia nt
Quick Links
C heck Pricing & Availability
Search for Tooling
Product Feature Selector
C ontact Us About This Product
RRW16C10K
(5-1437588-5)
T E I nternal N umber: 5 - 1 4 3 7 5 8 8 - 5
Product Highlights:
l
Rotary DIP
l
PC B Mount Style = Through Hole
l
Actuator Style = Wheel
l
Not Sealed
l
RR Series
View all Features
A dd to M y P art L is t
Reques t Sample
Find Similar P roduc ts
Obsolete
C ontact Product Information C enter
Buy P roduc t
Documentation & Additional Information
Product Drawings:
l
None Available
Catalog Pages/Data Sheets:
l
None Available
Product Specifications:
l
None Available
Application Specifications:
l
None Available
Instruction Sheets:
l
None Available
CAD Files:
l
None Available
Additional Information:
l
Product Line Information
Related Products:
l
Tooling
Product Features
(Please use the Product Drawing for all design activity)
Product Type Features:
l
Product Type = Rotary DIP
l
PC B Mount Style = Through Hole
l
Actuator Style
= Wheel
l
Sealed = No
l
Number of Switches
= 16
l
C ode Type = Hexadecimal w/C omplement
l
Mount Angle = Straight
Electrical Characteristics:
l
Resistor Specification (?) = 10,000
Termination Related Features:
l
Solder Tail C ontact Plating = Gold Flash
Body Related Features:
l
Series = RR
l
C enterline (mm [in]) = 2.54 [0.100]
Contact Related Features:
l
Auto-Insertable = No
l
C ontact Base Material = C opper Alloy
Housing Related Features:
l
Housing Material = Polyester
Industry Standards:
l
RoHS/ELV C ompliance
= Not ELV/RoHS compliant
l
Lead Free Solder Processes
= Wave solder capable to 240?C
Other:
l
Brand = Alcoswitch
Corporate Information
Who We Are
Investors
News Room
Supplier Portal
C areers
Quick Links
C heck Distributor Inventory
C ross Reference
Find Documents & Drawings
Product C ompliance Support C enter
Site Map
Priva cy Policy
Customer Support
Email or C hat with Us
Find a Phone Number
Search Knowledge Base
Manage Your Account
© 2009 Tyco Ele ctronics All R ights R e se rve d
Provide W e bsite Fe e dba ck

5-1437588-5 Related Products

5-1437588-5 RRW16C10K
Description Rotary Switch, ROTARY CODED SWITCH-16POSITIONS, HEXADECIMAL, LATCHED, THROUGH HOLE-STRAIGHT Rotary Switch, ROTARY CODED SWITCH-16POSITIONS, HEXADECIMAL, LATCHED, THROUGH HOLE-STRAIGHT
Brand Name Alcoswitch Alcoswitch
Is it Rohs certified? incompatible incompatible
Reach Compliance Code unknown unknown
ECCN code EAR99 EAR99
Actuator type WHEEL WHEEL
Manufacturer's serial number 1437588 RR
Installation features THROUGH HOLE-STRAIGHT THROUGH HOLE-STRAIGHT
Number of positions 16 16
Number of switching segments 1 1
surface mount NO NO
Switch action LATCHED LATCHED
switch function HEXADECIMAL HEXADECIMAL
Switch type ROTARY CODED SWITCH ROTARY CODED SWITCH
Termination type SOLDER SOLDER
