3-1437567-7 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Mechanical and electronic products> switch> 3-1437567-7

3-1437567-7: DescriptionPUSHBUTTON SWITCH, 4PDT, LATCHED, 4A, 28VDC, PANEL MOUNT-THREADED, ROHS COMPLIANT; CategoryMechanical and electronic products switch; File Size413KB，3 Pages; ManufacturerTE Connectivity; Websitehttp://www.te.com; Environmental Compliance

Download Datasheet Parametric Compare View All

3-1437567-7 Overview

PUSHBUTTON SWITCH, 4PDT, LATCHED, 4A, 28VDC, PANEL MOUNT-THREADED, ROHS COMPLIANT

3-1437567-7 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
package instruction	ROHS COMPLIANT
Reach Compliance Code	compliant
ECCN code	EAR99
Actuator type	PLUNGER
body width	13.03 mm
body height	14.2 mm
Body length or diameter	22.63 mm
Contact (AC) maximum rated R load	6A@125VAC
Maximum contact current (AC)	6 A
Maximum contact current (DC)	4 A
Contact (DC) maximum rated R load	4A@28VDC
Maximum contact voltage (AC)	125 V
Maximum contact voltage (DC)	28 V
Electrical life	50000 Cycle(s)
Installation features	PANEL MOUNT-THREADED
Maximum operating force	19.61 N
Maximum operating temperature	85 °C
Minimum operating temperature	-20 °C
surface mount	NO
Switch action	LATCHED
switch function	4PDT
Switch type	PUSHBUTTON SWITCH
Termination type	SOLDER
Base Number Matches	1

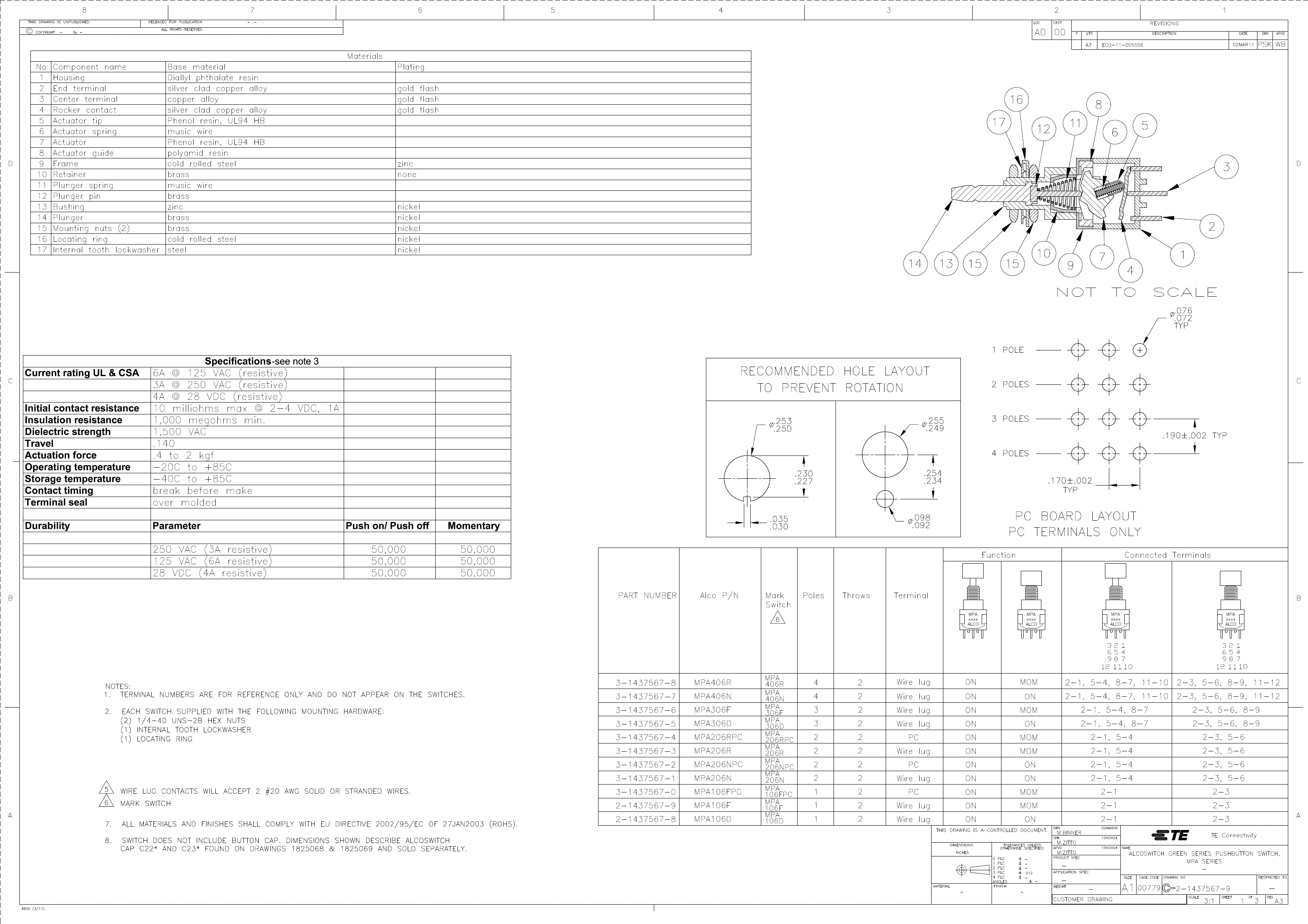

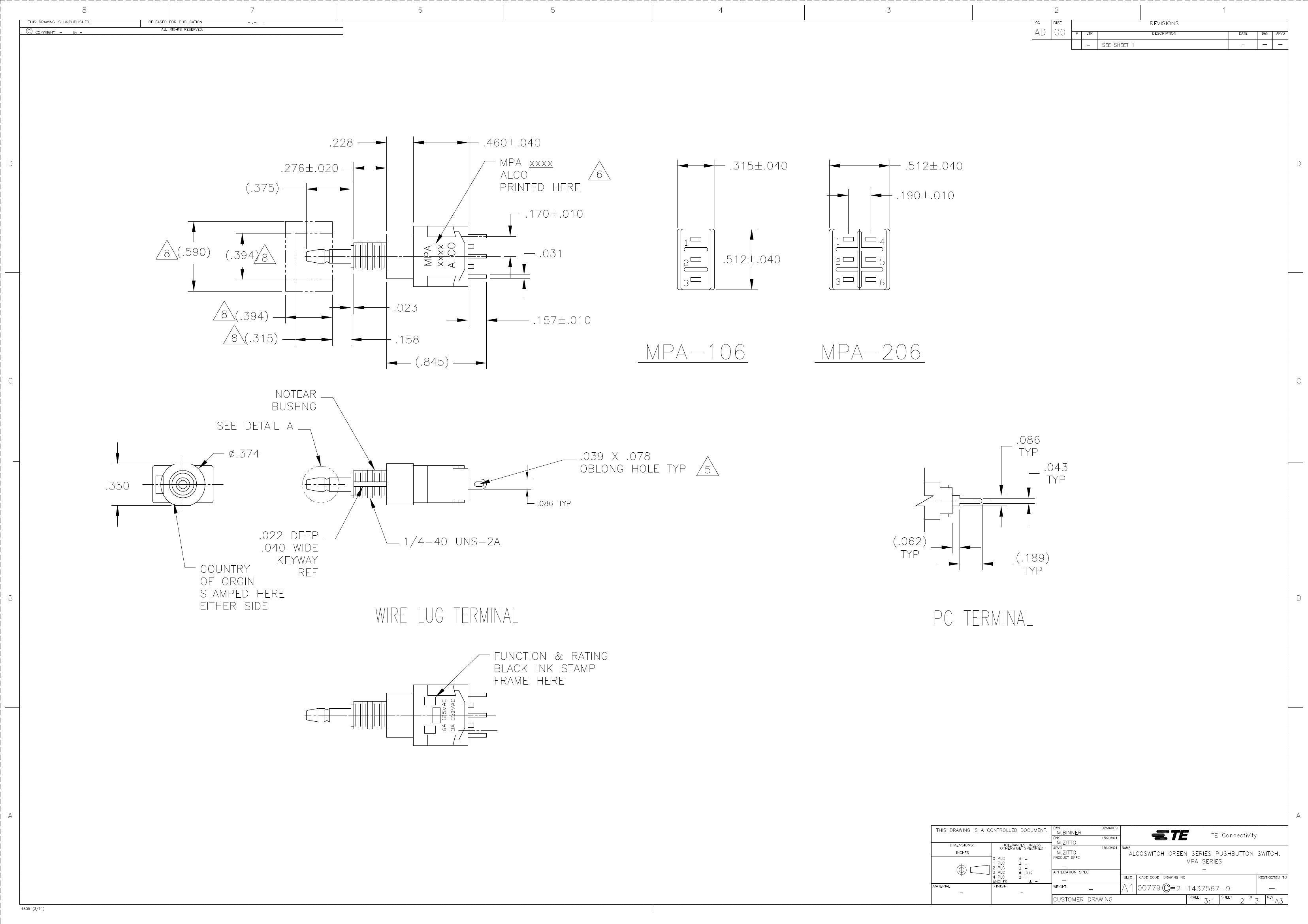

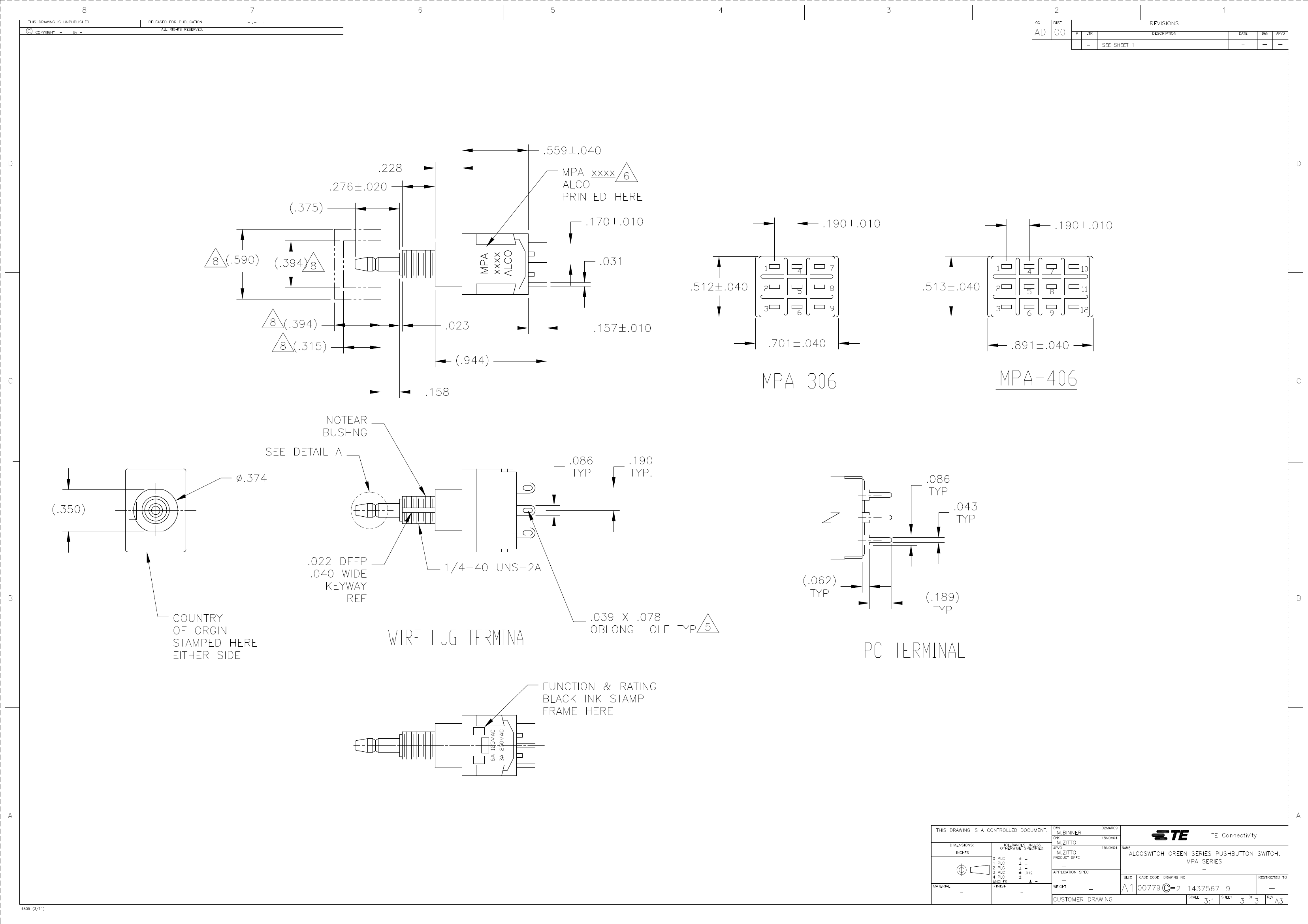

Preview

Download Datasheet

View All

3-1437567-7 Related Products

	3-1437567-7	3-1437567-5	3-1437567-2	MPA406N	MPA106FPC	MPA206NPC
Description	PUSHBUTTON SWITCH, 4PDT, LATCHED, 4A, 28VDC, PANEL MOUNT-THREADED, ROHS COMPLIANT	PUSHBUTTON SWITCH, 3PDT, LATCHED, 4A, 28VDC, PANEL MOUNT-THREADED, ROHS COMPLIANT	PUSHBUTTON SWITCH, DPDT, LATCHED, 4A, 28VDC, THROUGH HOLE-STRAIGHT, ROHS COMPLIANT	PUSHBUTTON SWITCH, 4PDT, LATCHED, 4A, 28VDC, PANEL MOUNT-THREADED, ROHS COMPLIANT	PUSHBUTTON SWITCH, SPDT, MOMENTARY, 4A, 28VDC, THROUGH HOLE-STRAIGHT, ROHS COMPLIANT	PUSHBUTTON SWITCH, DPDT, LATCHED, 4A, 28VDC, THROUGH HOLE-STRAIGHT, ROHS COMPLIANT
Is it Rohs certified?	conform to	conform to	conform to	conform to	conform to	conform to
package instruction	ROHS COMPLIANT	ROHS COMPLIANT	ROHS COMPLIANT	ROHS COMPLIANT	ROHS COMPLIANT	ROHS COMPLIANT
Reach Compliance Code	compliant	compli	compli	compliant	compliant	compliant
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
Actuator type	PLUNGER	PLUNGER	PLUNGER	PLUNGER	PLUNGER	PLUNGER
body width	13.03 mm	13 mm	13 mm	13.03 mm	8 mm	13 mm
body height	14.2 mm	14.2 mm	11.68 mm	14.2 mm	11.68 mm	11.68 mm
Body length or diameter	22.63 mm	17.81 mm	13 mm	22.63 mm	13 mm	13 mm
Contact (AC) maximum rated R load	6A@125VAC	6A@125VAC	6A@125VAC	6A@125VAC	6A@125VAC	6A@125VAC
Maximum contact current (AC)	6 A	6 A	6 A	6 A	6 A	6 A
Maximum contact current (DC)	4 A	4 A	4 A	4 A	4 A	4 A
Contact (DC) maximum rated R load	4A@28VDC	4A@28VDC	4A@28VDC	4A@28VDC	4A@28VDC	4A@28VDC
Maximum contact voltage (AC)	125 V	125 V	125 V	125 V	125 V	125 V
Maximum contact voltage (DC)	28 V	28 V	28 V	28 V	28 V	28 V
Electrical life	50000 Cycle(s)	50000 Cycle(s)	50000 Cycle(s)	50000 Cycle(s)	50000 Cycle(s)	50000 Cycle(s)
Installation features	PANEL MOUNT-THREADED	PANEL MOUNT-THREADED	THROUGH HOLE-STRAIGHT	PANEL MOUNT-THREADED	THROUGH HOLE-STRAIGHT	THROUGH HOLE-STRAIGHT
Maximum operating force	19.61 N	19.61 N	19.61 N	19.61 N	19.61 N	19.61 N
Maximum operating temperature	85 °C	85 °C	85 °C	85 °C	85 °C	85 °C
Minimum operating temperature	-20 °C	-20 °C	-20 °C	-20 °C	-20 °C	-20 °C
surface mount	NO	NO	NO	NO	NO	NO
Switch action	LATCHED	LATCHED	LATCHED	LATCHED	MOMENTARY	LATCHED
switch function	4PDT	3PDT	DPDT	4PDT	SPDT	DPDT
Switch type	PUSHBUTTON SWITCH	PUSHBUTTON SWITCH	PUSHBUTTON SWITCH	PUSHBUTTON SWITCH	PUSHBUTTON SWITCH	PUSHBUTTON SWITCH
Termination type	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER
Maker	-	-	TE Connectivity	TE Connectivity	TE Connectivity	TE Connectivity
