5-1571004-4 datasheet, PDF - EEWORLD Datasheet

5-1571004-4: DescriptionSLIDE SWITCH, SPST, LATCHED, 0.05A, 48VDC, SURFACE MOUNT-RIGHT ANGLE, ROHS COMPLIANT; CategoryMechanical and electronic products switch; File Size246KB，3 Pages; ManufacturerTE Connectivity; Websitehttp://www.te.com; Environmental Compliance

Download Datasheet Parametric Compare View All

5-1571004-4 Overview

SLIDE SWITCH, SPST, LATCHED, 0.05A, 48VDC, SURFACE MOUNT-RIGHT ANGLE, ROHS COMPLIANT

Parameter Name	Attribute value
Is it Rohs certified?	conform to
package instruction	ROHS COMPLIANT
Reach Compliance Code	unknown
ECCN code	EAR99
Actuator type	PLUNGER

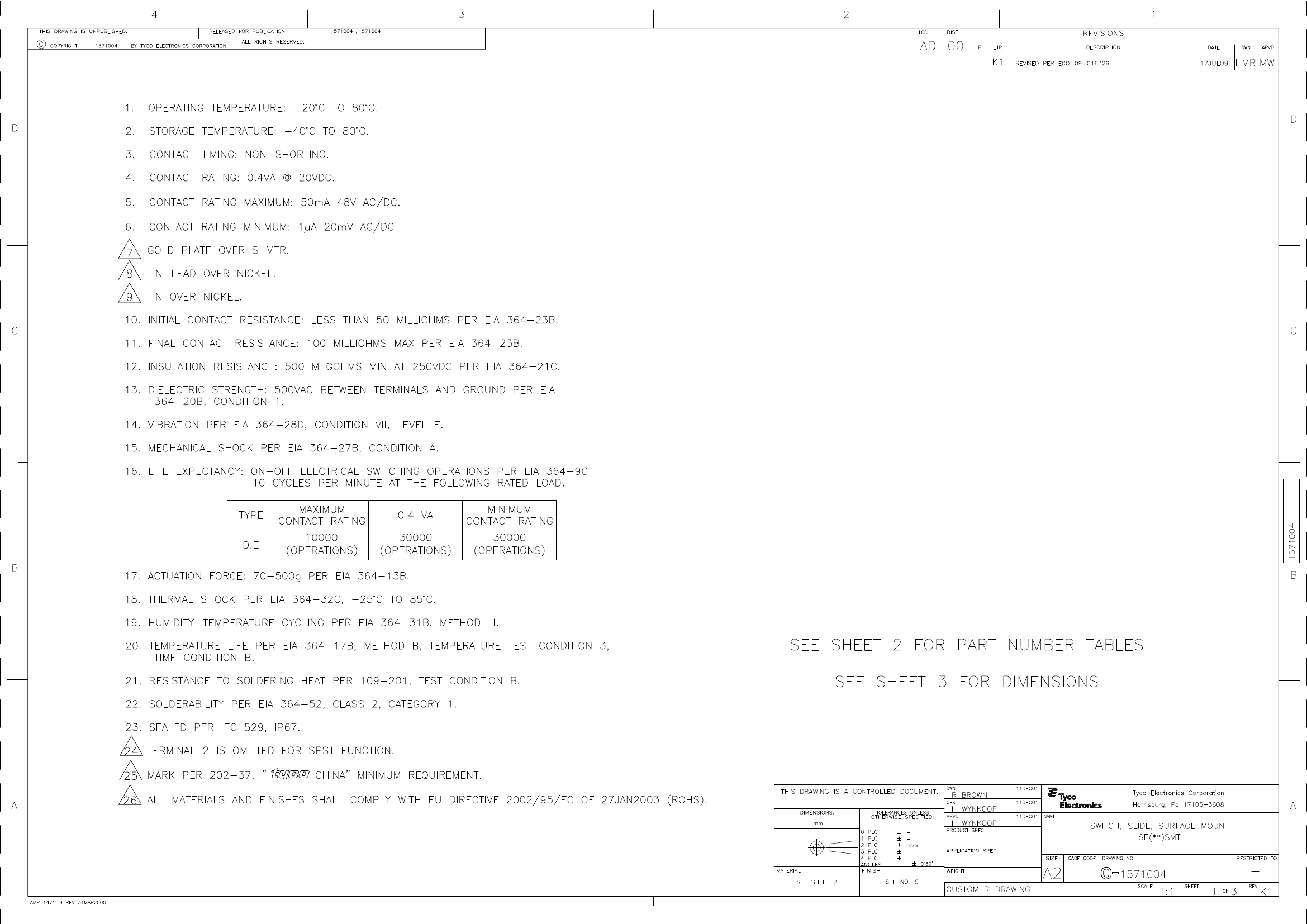

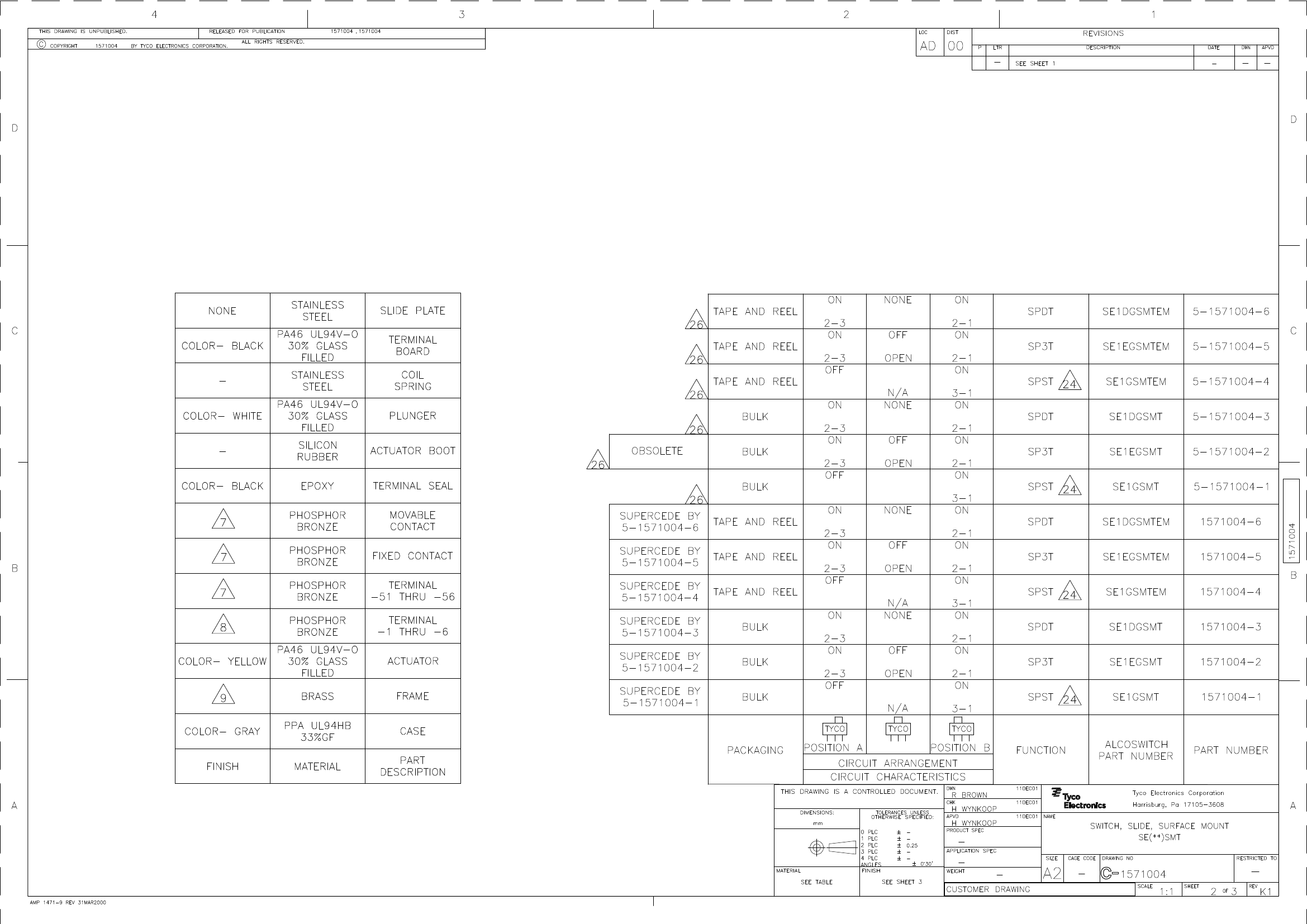

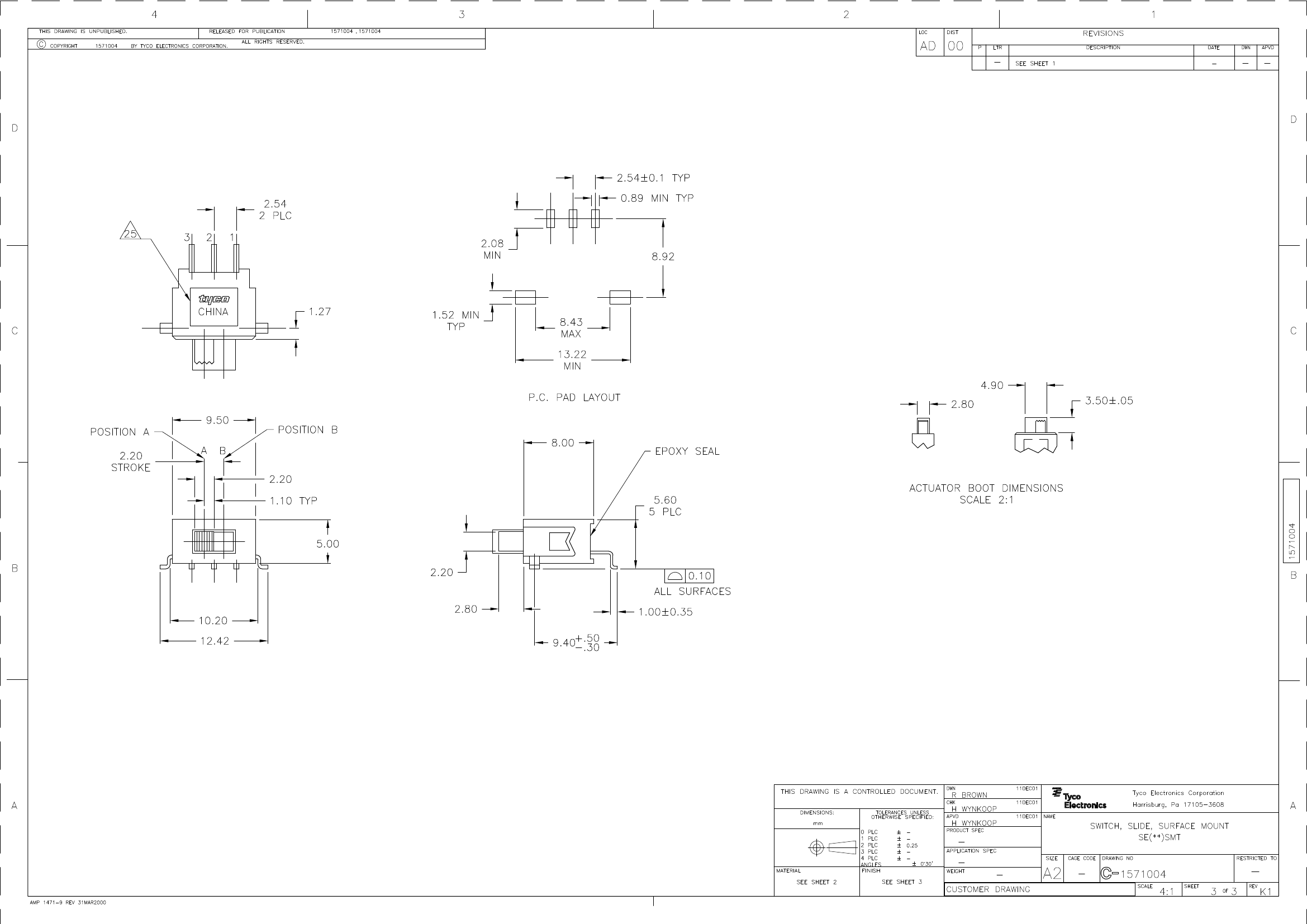

body width	8 mm
body height	5 mm
Body length or diameter	9.5 mm
Contact (AC) maximum rated R load	.05A@48VAC
Maximum contact current (AC)	0.05 A
Maximum contact current (DC)	0.05 A
Contact (DC) maximum rated R load	.05A@48VDC
Maximum contact voltage (AC)	48 V
Maximum contact voltage (DC)	48 V
Electrical life	10000 Cycle(s)
Manufacturer's serial number	1571004
Installation features	SURFACE MOUNT-RIGHT ANGLE
Maximum operating force	4.9 N
Maximum operating temperature	80 °C
Minimum operating temperature	-20 °C
method of packing	TAPE AND REEL
seal	EPOXY TERMINAL SEALED; IP67
surface mount	NO
Switch action	LATCHED
switch function	SPST
Switch type	SLIDE SWITCH
Termination type	SOLDER
Base Number Matches	1

	5-1571004-4	GPHA202-0801A001A1BC	SG131-01	5-1571004-3
Description	SLIDE SWITCH, SPST, LATCHED, 0.05A, 48VDC, SURFACE MOUNT-RIGHT ANGLE, ROHS COMPLIANT	Board Connector, 16 Contact(s), 2 Row(s), Male, Straight, Solder Terminal	NAND Gate, TTL, CDIP14	SLIDE SWITCH, SPDT, LATCHED, 0.02A, SURFACE MOUNT-RIGHT ANGLE, ROHS COMPLIANT
Reach Compliance Code	unknown	unknown	unknown	unknown
Is it Rohs certified?	conform to	-	incompatible	conform to
package instruction	ROHS COMPLIANT	-	DIP, DIP14,.3	ROHS COMPLIANT
ECCN code	EAR99	EAR99	-	EAR99
Manufacturer's serial number	1571004	GPHA202	-	1571004
surface mount	NO	-	NO	NO
Termination type	SOLDER	SOLDER	-	SOLDER
