Edition 10/2016
HMI Components
Series
Characteristics
Functions
31
Market segments

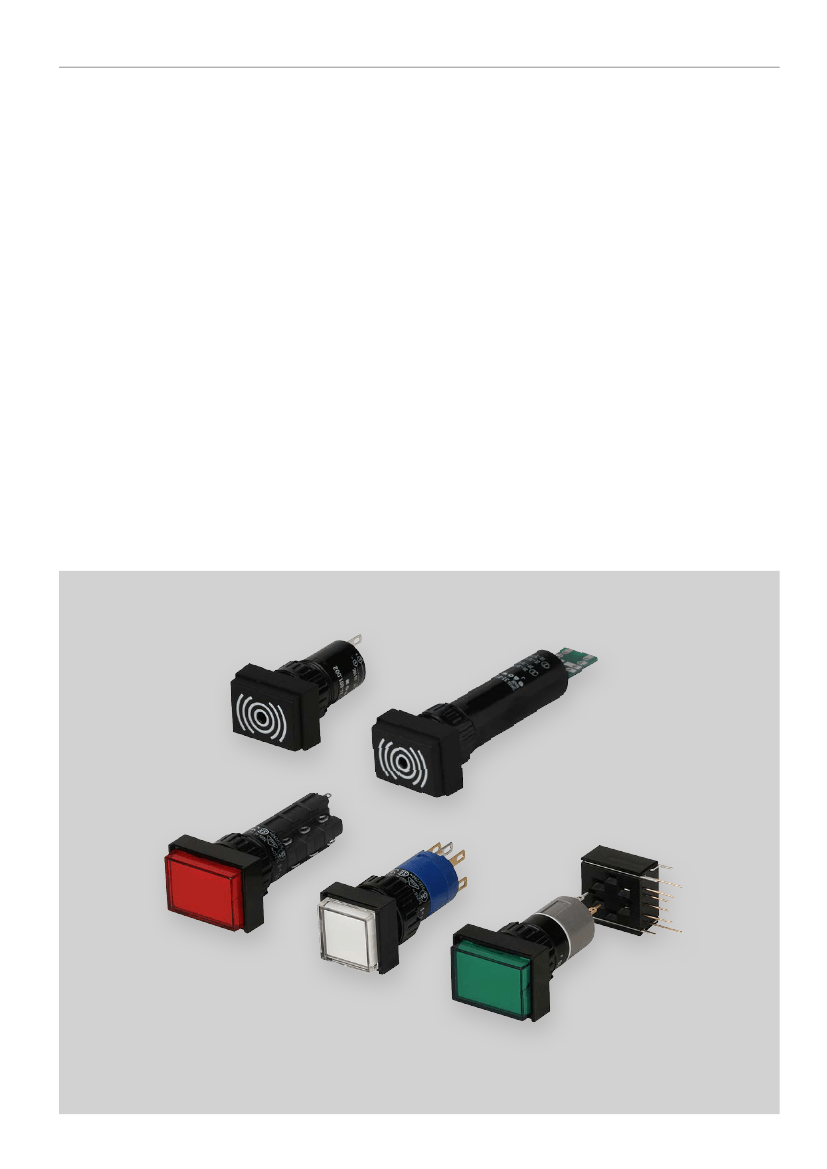

The compact 16 mm Series 31 is
especially suited for:
■■
■■
The Series 31 incorporates the
following functions:
■■
■■
■■
■■
The EAO Series 31 is especially suited
for applications in the segments:
■■
■■
Raised design
PCB (with adaptor)
This series is ideally suited for combined
use with Series 51.
Indicator
Pushbutton
Illuminated pushbutton
Buzzer
Machinery and Automation
Panel building
Please refer to the EAO website to obtain detailed information regarding this series
www.products.eao.com
Configure a product to your exact needs and request a quotation.

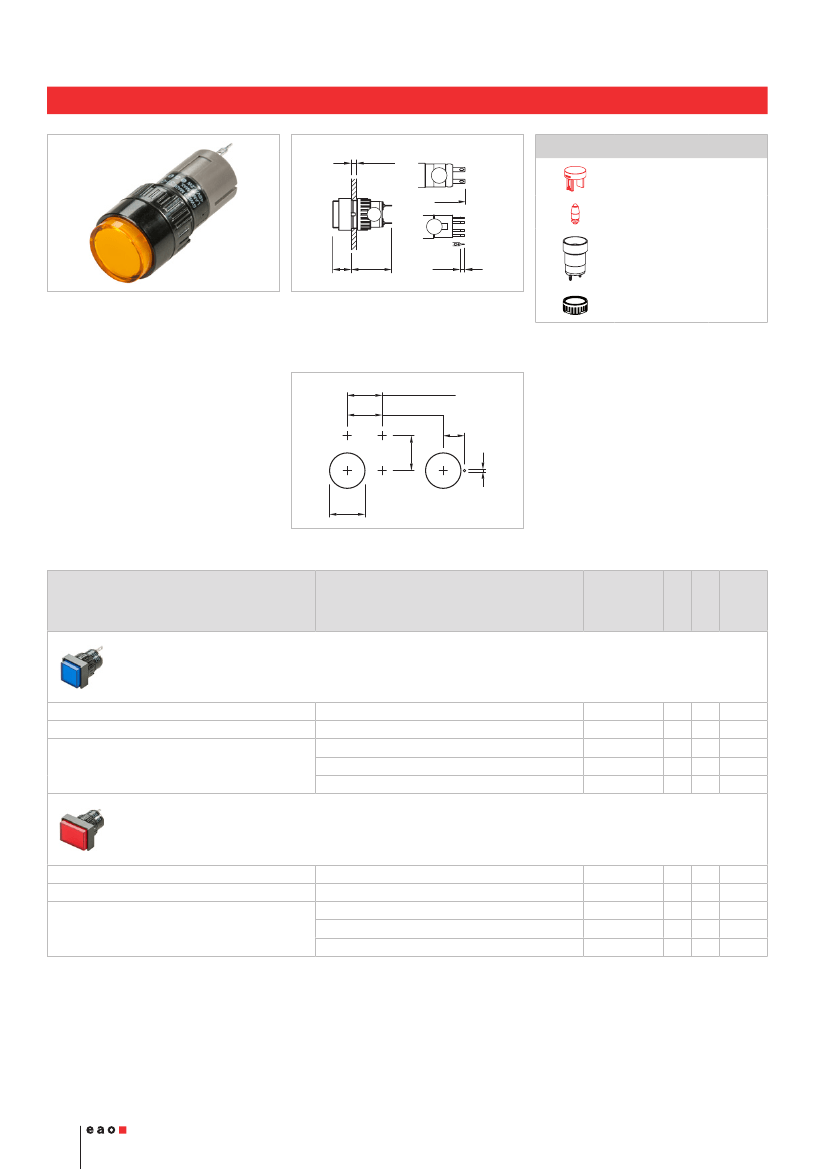

31
Raised design
Indicator, IP 40
1.5 ... 6
L1
26.5
L
H
Equipment consisting of (schematic overview)
Lens
Single-LED
{$l=BR31_
AGAE_Druckhau-
be_Kunststoff}
page
{$l=BR31_
AGAE_Single-LED}
page
10.5
23.5
33
3
Actuator
Product can differ from the current configuration.
Dimensions [mm]
H = Universal terminal 2.0 x 0.5 mm,
L = Solder terminal,
L1 = Solder terminal 2.8 x 0.5 mm
Fixing nut
Each Part Number listed below includes all the black
components shown in the 3D-drawing.
To obtain a complete unit, please select the red com-
ponents from the pages shown.
18 min.
18x18mm / Ø18mm
24 min.
18x24mm
10.4
18 min.
Ø2
Ø16
+ 0.2
0
Mounting cut-outs [mm]
Compo-
nent layout
Diode 1N4007
Terminal
Part No.
Wiring
diagram
1
2
3
3
3
1
2
3
3
3
Weight
Indicator actuator, Front dimension 18 x 18 mm
1
2
Universal 2.0 x 0.5 mm
Universal 2.0 x 0.5 mm
Solder 2.8 x 0.5 mm
Solder
Universal 2.0 x 0.5 mm
31-703.006
31-704.006
31-050.002
31-050.005
31-051.006
4
4
4
0.006 kg
0.006 kg
0.004 kg
0.004 kg
0.005 kg
Indicator actuator, Front dimension 18 x 24 mm
1
2
Universal 2.0 x 0.5 mm
Universal 2.0 x 0.5 mm
Solder 2.8 x 0.5 mm
Solder
Universal 2.0 x 0.5 mm
31-701.006
31-702.006
31-040.002
31-040.005
31-041.006
4
4
4
0.006 kg
0.006 kg
0.004 kg
0.004 kg
0.005 kg
4
Raised design
Compo-
nent layout
Wiring dia-
gram
3
3
4
3
31
Weight
Diode 1N4007
Terminal
Part No.
Indicator actuator, Front dimension Ø 18 mm
Solder 2.8 x 0.5 mm
Solder
Universal 2.0 x 0.5 mm
The component layouts you will find from page {$l=BR31_KAZE_Zeichnung}
31-030.002
31-030.005
31-031.006
0.004 kg
0.004 kg
0.005 kg
a- (x1) 3(+)
a-(x1) 3(+) 1(+)
a-(x1)
b+ (x2) 4(-)
b+ (x2) 4(-) 2(-)
b+ (x2)
Wiring diagram 1
Wiring diagram 2
Wiring diagram 3
5
stm32/stm8
