15-001613 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 15-001613

15-001613: DescriptionD Subminiature Connector; CategoryThe connector The connector; File Size746KB，1 Pages; ManufacturerCONEC; Websitehttp://www.conec.com

Download Datasheet Parametric Compare View All

15-001613 Overview

D Subminiature Connector

15-001613 Parametric

Parameter Name	Attribute value
Reach Compliance Code	compliant
Connector type	D SUBMINIATURE CONNECTOR
Manufacturer's serial number	15-001
Base Number Matches	1

Preview

Download Datasheet

View All

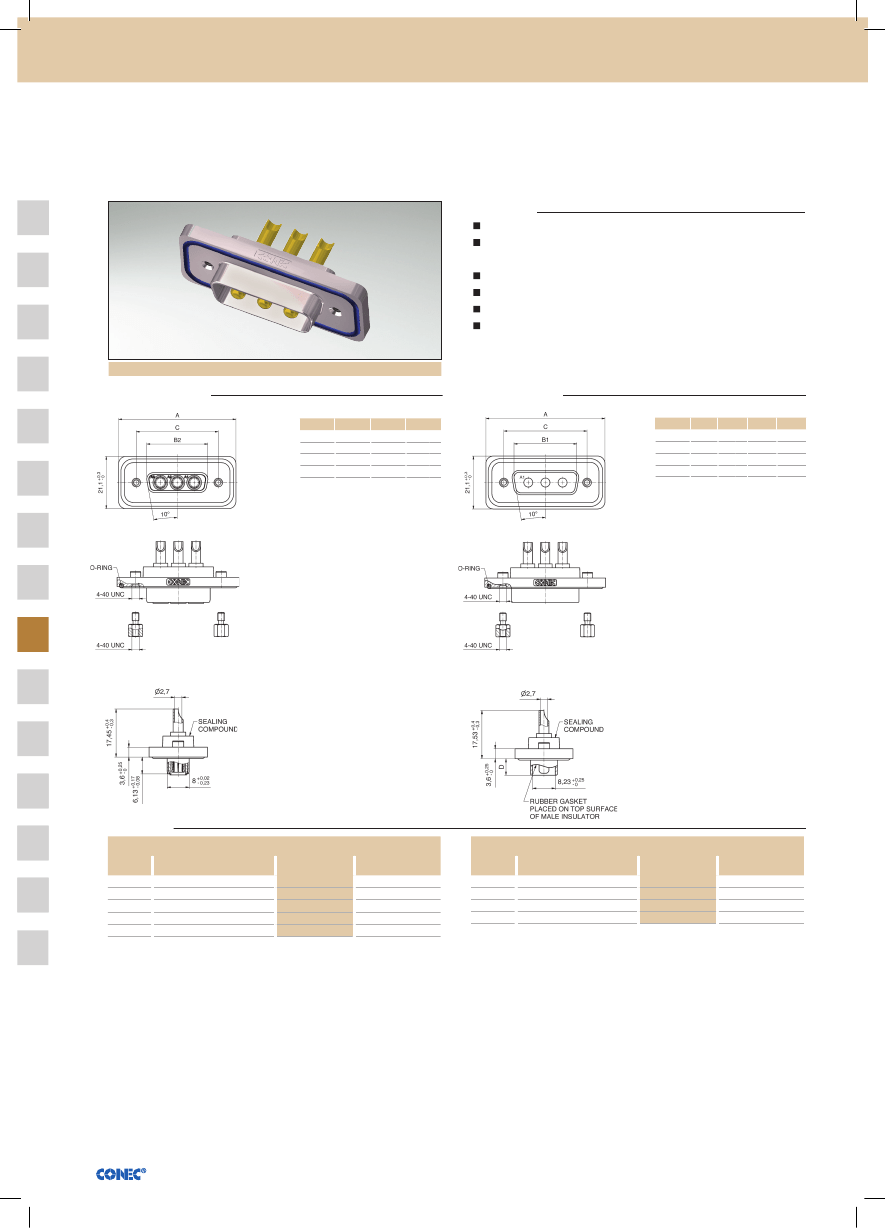

IP 6

C o mb ina tion D- SUB C on nect or s

IP67

Combination D-SUB Solid Body

Solder cup – Precision machined contacts – For wire size AWG 12 - 14

Description

High power contacts 20A for wire size

AWG 12 - 14

Mounting style:

with 4-40 UNC threaded insert

Quality class 3 (Also available in quality class 1)

One-piece zinc die-cast nickel plated shell

IP67 for harsh environments, pressure-proof up to 1.45 PSI

Stainless steel hex bolts are supplied loose

RoHS compliant – UL listed, File No.: E202784

Socket connector

Shellsize

Plug connector

39.40

47.70

61.40

78.00

+ 0.3

- 0

+ 0.3

- 0

+ 0.3

- 0

+ 0.3

- 0

-0.25

16.46

24.79

38.50

54.96

25.00

33.32

47.04

63.50

+ 0.12

- 0.13

+ 0.13

- 0.12

± 0.13

Shellsize

39.40

47.70

61.40

+ 0.3

- 0

+ 0.3

- 0

+ 0.3

16.81

25.14

38.86

+ 0.23

0.02

+ 0.23

- 0.02

+ 0.23

- 0.02

+ 0.23

0.02

25.00

33.32

+ 0.12

0.13

+ 0.13

- 0.12

6.00

+ 0.12

- 0.18

+ 0.12

- 0.18

- 0.3

47.04

± 0.13

5.99

63.50

± 0.13

5.99

78.00

- 0

55.32

Shellsize 1-4

Order data

Socket connector

Design

2W2C

3W3C

3W3

5W5

8W8

Design

Power contact

High power 20A

Mounting style 4-40 UNC

Threaded insert

Part number

15-001063

15-001073

15-001083

15-001093

15-001613

Bauform Mounting style 4-40 UNC

3W3C

3W3

5W5

8W8

Threaded insert

Power contact

High power 20A

Part number

15-001113

15-001123

15-001133

15-001653

Other high power or coaxial contacts on request.
