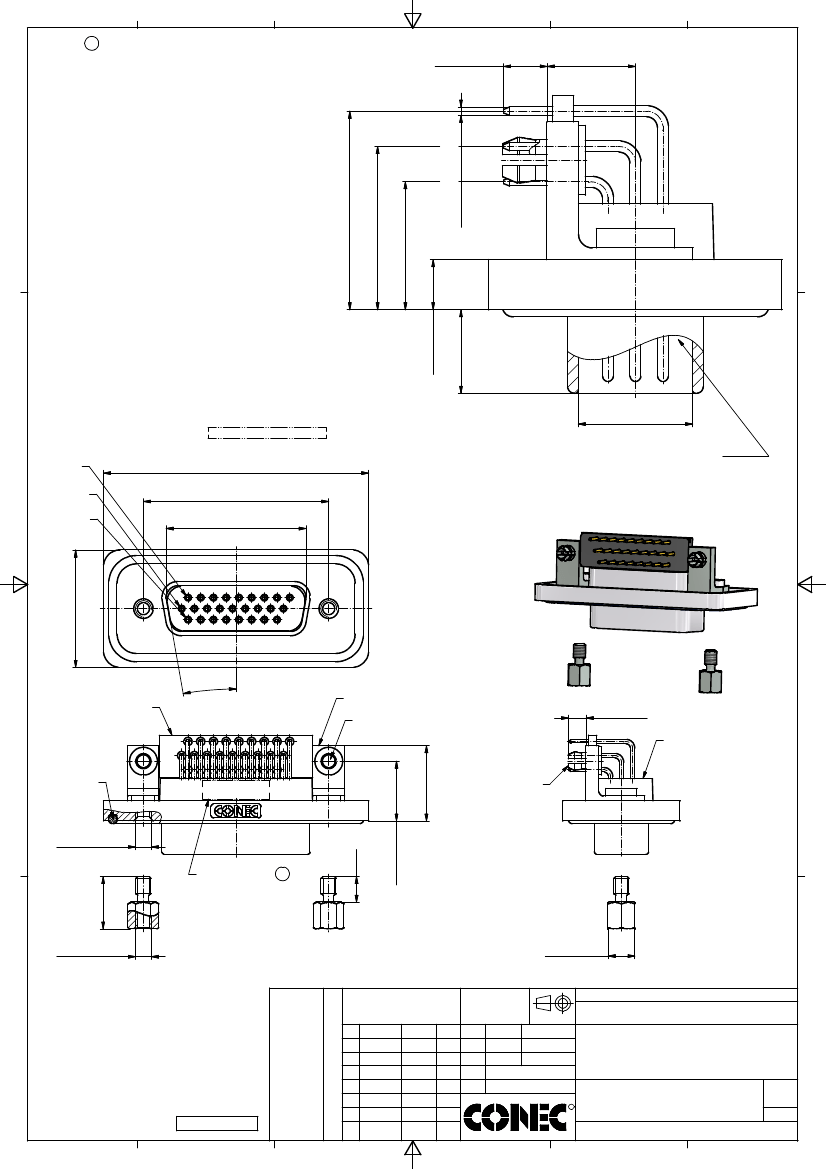

NOTES:
b
1. FOR WAVESOLDERING (SOLDER BATH TEMPERATURE 265°C FOR 8 SEC.
AND SOLDER PREHEAT 150° FOR 180 SEC.)
C
2. IP RATING: IP 67
3. SEALED TO WITHSTAND PRESSURE UP TO 1,45 PSI
FOR 30 MINUTES
AFTER HIGH TEMPERATURE EXPOSURE
4. METALSHELL:
ZINC DIE CAST; min. 50µin NICKEL PLATING over COPPER
5. INSULATORS: PBT GF UL 94 V-0; BLACK
6. O-RING: SILICONE PER ASTM D2000 70 SHORE A
7. RUBBER GASKET: TPE; BLACK
8. SEALING COMPOUND: EPOXY RESIN UL 94 V-0; BLACK
9. CONTACTS: COPPER ALLOY
PLATING (SEE PART NO):
o
PLEASE ADD 1 for 30µin HARD GOLD
over min. 50µin NICKEL
o
PLEASE ADD 3 for 8µin HARD GOLD
over min. 50µin NICKEL
10. METAL BRACKETS: ZINC DIE CAST;
300µin COPPER/40-120µin NICKEL/120-200µin TIN
11. WASHERS: COPPER ALLOY; 80µin NICKEL
12. HEXLOCKING SCREWS: STAINLESS STEEL
13. FIXING-PLATE: PBT GF UL 94 V-0; BLACK
14. PCB-SNAPS: COPPER ALLOY; min. 200µin TIN over 80µin NICKEL
PCB-HOLE:
n
3.1
`
0.1mm; PCB THICKNESS 1.6mm
15. P.C.B. HOLE DRILLINGS and
RECOMMENDED PANEL CUT-OUT ON SHEET 2
16. RECOMMENDED TORQUE FOR MOUNTING SCREW
35Ncm (3.1 in.LB) / max. 67Ncm (6 in.LB)
17. OPERATING TEMPERATURE: -40°C to +105°
C
18. CONNECTOR IS PART MARKED: 15-00220
o
CONEC ABC
3,14
`
0,3
6,35
`
0,3
D
n
0,6
`
0,05
(26x)
D
(5:1)
14,28
+ 0,4
- 0,3
11,74
+ 0,4
- 0,3
9,2
+ 0,4
- 0,3
3,6
+ 0,25
-0
6
+ 0,18
-
0,12
8,23
+0,25
-0
C
C
POS. 1
POS. 10
POS. 19
47,7
+ 0,3
-0
33,32
+ 0,13
- 0,12
25,14
+ 0,23
- 0,02
RUBBER GASKET PLACED
ON TOP SURFACE OF
MALE INSULATOR
21,1
+ 0,3
-0
10°
B
FIXING PLATE
(glued)
METAL BRACKET
PRESS FOR FIXING ON PCB
13,5
+ 0,4
- 0,3
3,2
`
0,2
B
SEALING
COMPOUND
PCB SNAP
O-RING
15-00220
o
CONEC ABC
4-40 UNC
see note 18 b
9,4
4,6
10,75
+ 0,4
- 0,3
4-40 UNC
AT ALL TIMES WATER RESISTANT CONNECTORS NOT
IN USE SHOULD BE COVERED WITH A CONEC WATER
RESISTANT CAP OR WATER TIGHT HOOD.
THIS DRAWING MAY NOT BE COPIED OR
REPRODUCED IN ANY WAY, AND MAY NOT
BE PASSED ON TO A THIRD PARTY WITHOUT
WRITTEN PERMISSION.
OWNERSHIP AND COPYRIGHT OF CONEC GmbH
SW 4,8
DO NOT ALTER CAD DRAWING BY HAND
tolerance
dim. in mm
date
drawn
17.11.09
appd.
27.11.09
norm
d-old
scale:
material:
name
2:1 (5:1)
see notes
A
A
title:
Schmidt
Fischer
D-SUB HD MALE 90°
26pos. SOLDER PIN ANGLED
metal bracket, fixing-plate, hexlocking screw, snap
dwg no:
DIN-
R
2xb
a
Ä 5445
Original
03.12.14
Lehm.
15K1A509
part no:
RoHS compliant
F
E
A3
sh:
1
(see note 9)
A
rev. description
D
date
name
C
15-00220
o
B
F
E
D
C
B
A

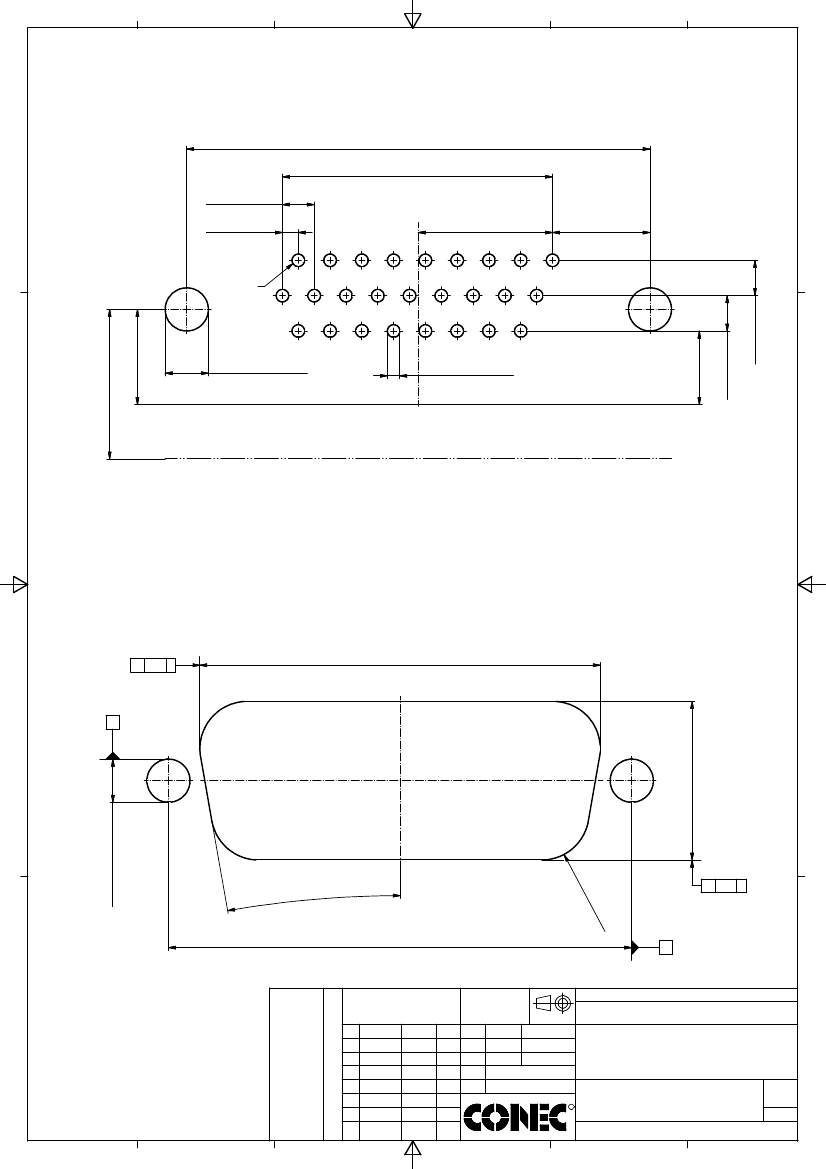

P.C.B. HOLE DRILLINGS
(P.C.B. TOP SIDE)
D
33,32
+ 0,13
- 0,12
19,431
`
0,05
2,286
`
0,1
1,143
`
0,1
9,652
`
0,1
7,008
`
0,03
D
1
2,54
`
0,1
6,85
5,3
`
0,1
10,75
n
3,1
`
0,1
(2x)
n
0,9
+ 0,1
(26x)
-0
P.C.B. EDGE
C
2,54
`
0,1
C
FRONTPANEL
RECOMMENDED PANEL CUT-OUT
i
0,26 A
28,8
`
0,1
B
B
B
n
3,1
`
0,05
(2x)
11,4
`
0,1
R3
10°
`
1°
i
0,26 B
,4
`
0,1
3
33,32
`
0,1
A
THIS DRAWING MAY NOT BE COPIED OR
REPRODUCED IN ANY WAY, AND MAY NOT
BE PASSED ON TO A THIRD PARTY WITHOUT
WRITTEN PERMISSION.
OWNERSHIP AND COPYRIGHT OF CONEC GmbH
DO NOT ALTER CAD DRAWING BY HAND
tolerance
dim. in mm
date
drawn
17.11.09
appd.
27.11.09
norm
d-old
R
scale:
material:
name
5:1
see sheet 1
A
A
title:
Schmidt
Fischer
P.C.B. HOLE DRILLINGS
RECOMMENDED PANEL CUT-OUT
D-SUB HD Male 26pos. Solder pin angled 90°
dwg no:
DIN-
a
Original
15K1A509
part no:
A3
sh:
2
A
rev. description
D
date
name
C
SEE SHEET 1
F
E
B
