Mounting Option

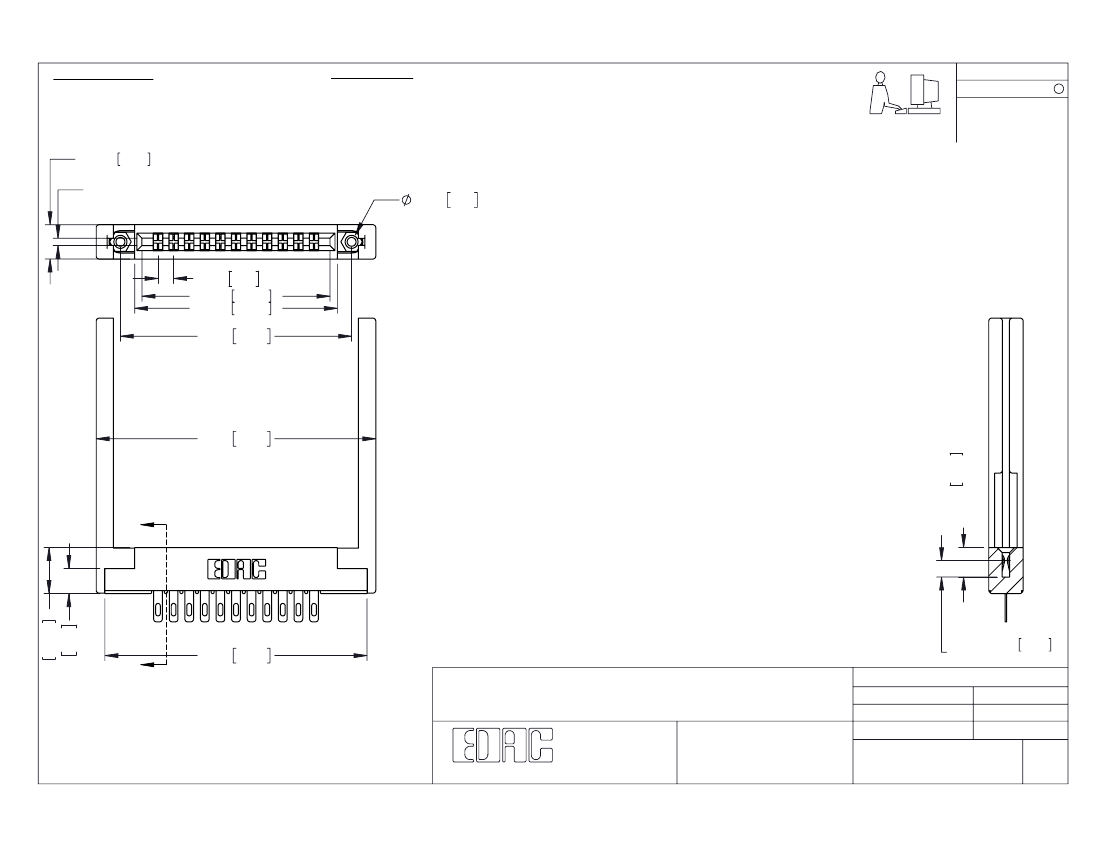

168-.344 (8.74) Offset Card Guides
Contact Detail
500-Wire Hole .087x.015(2.21x0.38) - Tail LG.=.282(7.16)
.156 [3.96] Contact Spacing with Single Centreline Row
THIS IS A C.A.D. GENERATED DRAWING
DO NOT MAKE MANUAL REVISIONS TO MASTER.
ISSUE NUMBER
ORIGINAL
1
0.343 8.71
Card Slot Accepts
.054 (1.37) to .070 (1.78)
Thick P.C. Board
0.156 3.96
0.156 3.96
1.880 47.75
2.026 51.46
2.312 58.72
2.796 71.02
0.295 7.49
Card Slot
A
0.460 11.68
0.250 6.35
A
2.622 66.60
0.165 4.19
Point of Contact
See Accompanying Pages for:
•
Mounting Options
•
Features and Specifications
306 / 316 / 356 Card Edge Connector
Part Number: 306-011-500-168
EDAC INC
TORONTO, ONTARIO
CANADA
YOUR CONNECTION TO QUALITY & SERVICE
THESE DRAWINGS AND SPECIFICATIONS
ARE THE PROPERTY OF EDAC INC.,AND
SHALL NOT BE REPRODUCED,OR COPIED
OR USED AS THE BASIS FOR THE
MANUFACTURE OR SALE OF APPARATUS
WITHOUT WRITTEN PERMISSION.
ACAD REFERENCE NO.
DRAWN:
CHECKED:
SCALE:
NTS
J.LEE
306 ENG MASTER
DATE:
SEPT. 14/09
DATE:
SHEET
1
OF
2
ISSUE
DRAWING NUMBER
306 Assembly
SECTION A-A
1
0.125 3.18
THIS IS A C.A.D. GENERATED DRAWING
DO NOT MAKE MANUAL REVISIONS TO MASTER.
ISSUE NUMBER
ORIGINAL
1
Code x01
Code x12
.128 [3.25] Dia
Through Holes
.128 [3.25] Dia
Through Holes
0.468 11.89
0.125 3.18
0.344 8.74
0.060 1.52
Code x02
0.116 2.95 I.D.
Floating Eyelets
0.250 6.35 Dia.
.010 [0.25]
Radial Float
0.090 2.29
2.750 69.85
Code x03
0.328 8.33
0.005 0.13
2.500 63.50
1.550 39.37
.156 [3.96] Dia
Through Holes
Code x04
M3-0.5 Metric
Threaded Insert
0.250 6.35
0.423 10.74
0.242 6.15
0.250 6.35
0.250 6.35
Code x58
Code x07
#4-40 UNC
Threaded Insert
Code x68
Code x78
ACAD REFERENCE NO.
DRAWN:
CHECKED:
SCALE:
NTS
J.LEE
306 ENG MASTER
306 / 316 / 356 Card Edge Connector
Mounting Options
EDAC INC
TORONTO, ONTARIO
CANADA
YOUR CONNECTION TO QUALITY & SERVICE
THESE DRAWINGS AND SPECIFICATIONS
ARE THE PROPERTY OF EDAC INC.,AND
SHALL NOT BE REPRODUCED,OR COPIED
OR USED AS THE BASIS FOR THE
MANUFACTURE OR SALE OF APPARATUS
WITHOUT WRITTEN PERMISSION.
DATE:
SEPT. 14/09
DATE:
SHEET
2
OF
2
ISSUE
DRAWING NUMBER
Code x08
306 Assembly
1
