ZADC-10-10-N datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Wireless rf/communication> Radio frequency and microwave> ZADC-10-10-N

ZADC-10-10-N: DescriptionDirectional Coupler, 800MHz Min, 1000MHz Max, 1.2dB Insertion Loss-Max, CASE CC51-1; CategoryWireless rf/communication Radio frequency and microwave; File Size95KB，1 Pages; ManufacturerMini-Circuits; Websitehttps://www.minicircuits.com

Download Datasheet Parametric Compare View All

ZADC-10-10-N Overview

Directional Coupler, 800MHz Min, 1000MHz Max, 1.2dB Insertion Loss-Max, CASE CC51-1

ZADC-10-10-N Parametric

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Maker	Mini-Circuits
Reach Compliance Code	not_compliant
ECCN code	EAR99
Other features	N
Characteristic impedance	50 Ω
structure	COAXIAL
Maximum input power (CW)	36.99 dBm
Maximum insertion loss	1.2 dB
JESD-609 code	e0
Maximum operating frequency	1000 MHz
Minimum operating frequency	800 MHz
Maximum operating temperature	100 °C
Minimum operating temperature	-55 °C
RF/Microwave Device Types	DIRECTIONAL COUPLER
Terminal surface	Tin/Lead (Sn/Pb)
Maximum voltage standing wave ratio	1.16

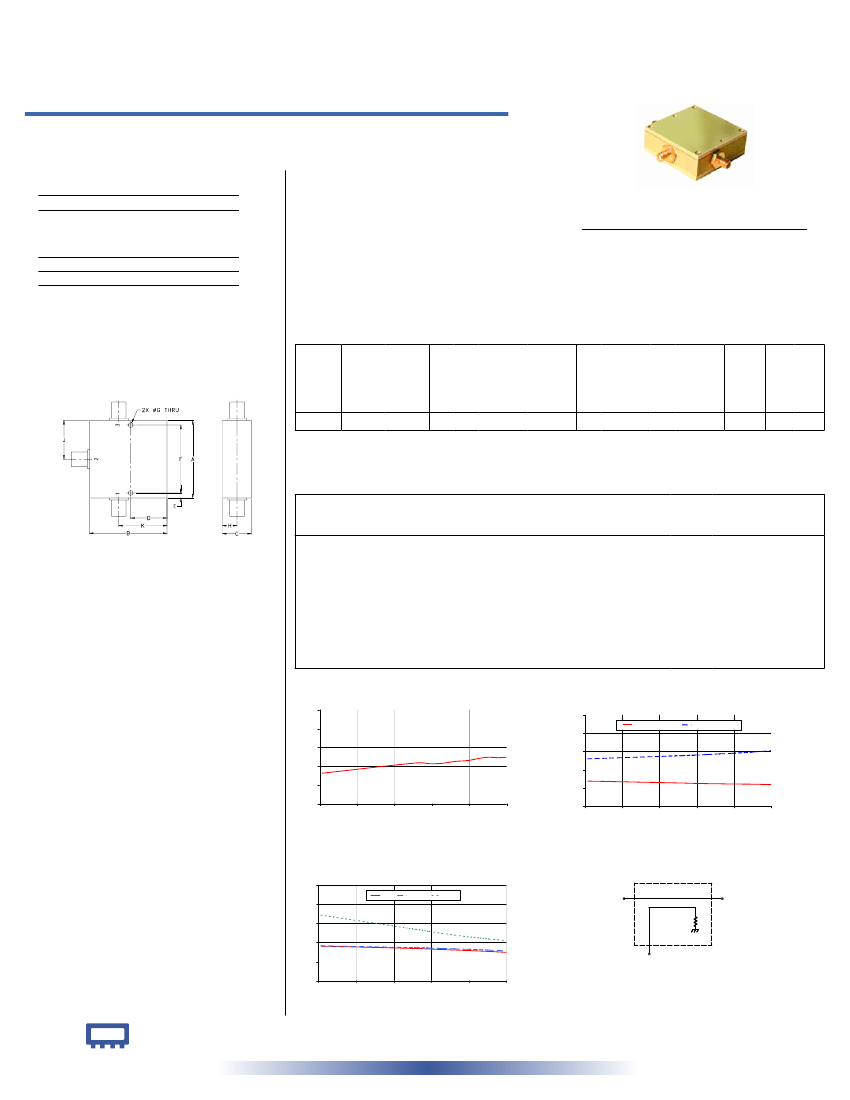

Preview

Download Datasheet

View All

Directional Coupler

50Ω

Maximum Ratings

Operating Temperature

Storage Temperature

Coaxial

ZADC-10-10

800 to 1000 MHz

-55°C to 100°C

Features

• excellent insertion loss, 0.85 dB typ.

• excellent VSWR, 1.16 typ.

• power input up to 5W max.

SMA version shown

CASE STYLE: CC51-1

Connectors Model

SMA

ZADC-10-10-S

N-TYPE

ZADC-10-10-N

Price

Qty.

$49.95 ea. (1-9)

Coaxial Connections

INPUT

OUTPUT

COUPLED

Applications

• GSM

• instrumentation

• cellular

Directional Coupler Electrical Speciﬁcations

Outline Drawing

FREQ.

RANGE

(MHz)

-f

800-1000

COUPLING

(dB)

MAINLINE LOSS

DIRECTIVITY

(dB)

VSWR

(:1)

POWER

INPUT

(W)

Max.

Nom.

10±0.6

Flatness

±1.0

Typ. Max.

0.85

1.2

Typ.

Min.

Typ.

1.16

1. Mainline loss includes theoretical power loss at coupled port.

Typical Performance Data

Frequency

(MHz)

Mainline Loss

(dB)

In-Out

0.65

0.87

0.85

0.86

0.90

0.92

0.97

0.99

0.98

0.99

Coupling

(dB)

In-Cpl

11.00

10.15

10.00

9.87

9.81

9.72

9.67

9.63

9.55

9.44

Directivity

(dB)

24.50

23.48

23.28

23.06

22.85

22.64

22.41

22.25

22.07

21.86

Return Loss

(dB)

Out

24.59

23.83

23.66

23.49

23.33

23.16

22.97

22.84

22.67

22.48

Cpl

37.50

31.50

30.66

29.86

29.13

28.46

27.89

27.53

27.18

26.85

Outline Dimensions (

inch

)

2.00

50.80

2.00

50.80

.75

19.05

.938

23.83

.13

3.30

1.750

44.45

.125

3.18

.38

9.65

1.00

25.40

1.25

31.75

grams

145.0

753.33

880.00

897.00

914.00

931.00

948.00

965.00

976.66

988.33

1000.00

20.74

22.13

22.36

22.63

22.90

23.19

23.49

23.75

23.99

24.34

2.0

MAINLINE LOSS (dB)

1.6

1.2

0.8

0.4

at RF level of -10 dBm

ZADC-10-10

MAINLINE LOSS

COUPLING & DIRECTIVITY

(dB)

750

at RF level of -10 dBm

ZADC-10-10

COUPLING & DIRECTIVITY

COUPLING

DIRECTIVITY

0.0

750

800

850

900

FREQUENCY (MHz)

950

1000

800

850

900

FREQUENCY (MHz)

950

1000

ZADC-10-10

RETURN LOSS

RETURN LOSS (dB)

750

at RF level of -10 dBm

electrical schematic

CPL

INPUT

OUTPUT

OUT

COUPLED

800

850

900

FREQUENCY (MHz)

950

1000

Distribution Centers

NORTH AMERICA 800-654-7949 • 417-335-5935 • Fax 417-335-5945 • EUROPE 44-1252-832600 • Fax 44-1252-837010

Mini-Circuits

INTERNET

http://www.minicircuits.com

P.O. Box 350166, Brooklyn, New York 11235-0003 (718) 934-4500 Fax (718) 332-4661

Mini-Circuits

ISO 9001 & ISO 14001

Certified

REV. B

M93848

ED-6262/2

ZADC-10-10

WZ/TD/CP

060803

ZADC-10-10-N Related Products

	ZADC-10-10-N	ZADC-10-10-S
Description	Directional Coupler, 800MHz Min, 1000MHz Max, 1.2dB Insertion Loss-Max, CASE CC51-1	Directional Coupler, 800MHz Min, 1000MHz Max, 1.2dB Insertion Loss-Max, CASE CC51-1
Is it lead-free?	Contains lead	Contains lead
Is it Rohs certified?	incompatible	incompatible
Maker	Mini-Circuits	Mini-Circuits
Reach Compliance Code	not_compliant	unknown
ECCN code	EAR99	EAR99
Other features	N	SMA
Characteristic impedance	50 Ω	50 Ω
structure	COAXIAL	COAXIAL
Maximum input power (CW)	36.99 dBm	36.99 dBm
Maximum insertion loss	1.2 dB	1.2 dB
JESD-609 code	e0	e0
Maximum operating frequency	1000 MHz	1000 MHz
Minimum operating frequency	800 MHz	800 MHz
Maximum operating temperature	100 °C	100 °C
Minimum operating temperature	-55 °C	-55 °C
RF/Microwave Device Types	DIRECTIONAL COUPLER	DIRECTIONAL COUPLER
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Maximum voltage standing wave ratio	1.16	1.16
