MX29LV400CBTC-70G datasheet, PDF

Datasheet> All Categories > storage> storage> MX29LV400CBTC-70G

MX29LV400CBTC-70G: Description4M X 16 FLASH 3V PROM, 70 ns, PBGA48; Categorystorage storage; File Size903KB，68 Pages; ManufacturerMacronix; Websitehttp://www.macronix.com/en-us/Pages/default.aspx; Environmental Compliance

Download Datasheet Parametric View All

MX29LV400CBTC-70G Overview

4M X 16 FLASH 3V PROM, 70 ns, PBGA48

MX29LV400CBTC-70G Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Macronix
Parts packaging code	TSOP1
package instruction	TSOP1, TSSOP48,.8,20
Contacts	48
Reach Compliance Code	unknow
ECCN code	3A991.B.1.A
Factory Lead Time	16 weeks
Maximum access time	70 ns
Spare memory width	8
startup block	BOTTOM
command user interface	YES
Universal Flash Interface	YES
Data polling	YES
JESD-30 code	R-PDSO-G48
JESD-609 code	e3
length	18.4 mm
memory density	67108864 bi
Memory IC Type	FLASH
memory width	16
Humidity sensitivity level	3
Number of functions	1
Number of departments/size	1,2,1,7
Number of terminals	48
word count	4194304 words
character code	4000000
Operating mode	ASYNCHRONOUS
Maximum operating temperature	70 °C
Minimum operating temperature
organize	4MX16
Package body material	PLASTIC/EPOXY
encapsulated code	TSOP1
Encapsulate equivalent code	TSSOP48,.8,20
Package shape	RECTANGULAR
Package form	SMALL OUTLINE, THIN PROFILE
Parallel/Serial	PARALLEL
Peak Reflow Temperature (Celsius)	260
power supply	3/3.3 V
Programming voltage	3 V
Certification status	Not Qualified
ready/busy	YES
Maximum seat height	1.2 mm
Department size	16K,8K,32K,64K
Maximum standby current	0.000005 A
Maximum slew rate	0.03 mA
Maximum supply voltage (Vsup)	3.6 V
Minimum supply voltage (Vsup)	2.7 V
Nominal supply voltage (Vsup)	3 V
surface mount	YES
technology	CMOS
Temperature level	COMMERCIAL
Terminal surface	Matte Tin (Sn)
Terminal form	GULL WING
Terminal pitch	0.5 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	40
switch bit	YES
type	NOR TYPE
width	12 mm

Preview

Download Datasheet

View All

MX29LV400C T/B

4M-BIT [512K x 8 / 256K x 16] CMOS SINGLE VOLTAGE

3V ONLY FLASH MEMORY

FEATURES

• Extended single - supply voltage range 2.7V to 3.6V

• 524,288 x 8/262,144 x 16 switchable

• Single power supply operation

- 3.0V only operation for read, erase and program

operation

•

Fully compatible with MX29LV400T/B device

• Fast access time: 55R/70/90ns

• Low power consumption

- 30mA maximum active current

- 0.2uA typical standby current

• Command register architecture

- Byte/word Programming (9us/11us typical)

- Sector Erase (Sector structure 16K-Byte x 1,

8K-Byte x 2, 32K-Byte x1, and 64K-Byte x7)

• Auto Erase (chip & sector) and Auto Program

- Automatically erase any combination of sectors with

Erase Suspend capability

- Automatically program and verify data at specified

address

• Erase suspend/Erase Resume

- Suspends sector erase operation to read data from,

or program data to, any sector that is not being erased,

then resumes the erase

• Status Reply

- Data# Polling & Toggle bit for detection of program

and erase operation completion

• Ready/Busy# pin (RY/BY#)

- Provides a hardware method of detecting program or

erase operation completion

• Sector protection

- Hardware method to disable any combination of

sectors from program or erase operations

- Temporary sector unprotect allows code changes in

previously locked sectors

• CFI (Common Flash Interface) compliant

- Flash device parameters stored on the device and

provide the host system to access

• 100,000 minimum erase/program cycles

• Latch-up protected to 100mA from -1V to VCC+1V

• Boot Sector Architecture

- T = Top Boot Sector

- B = Bottom Boot Sector

• Package type:

- 44-pin SOP

- 48-pin TSOP

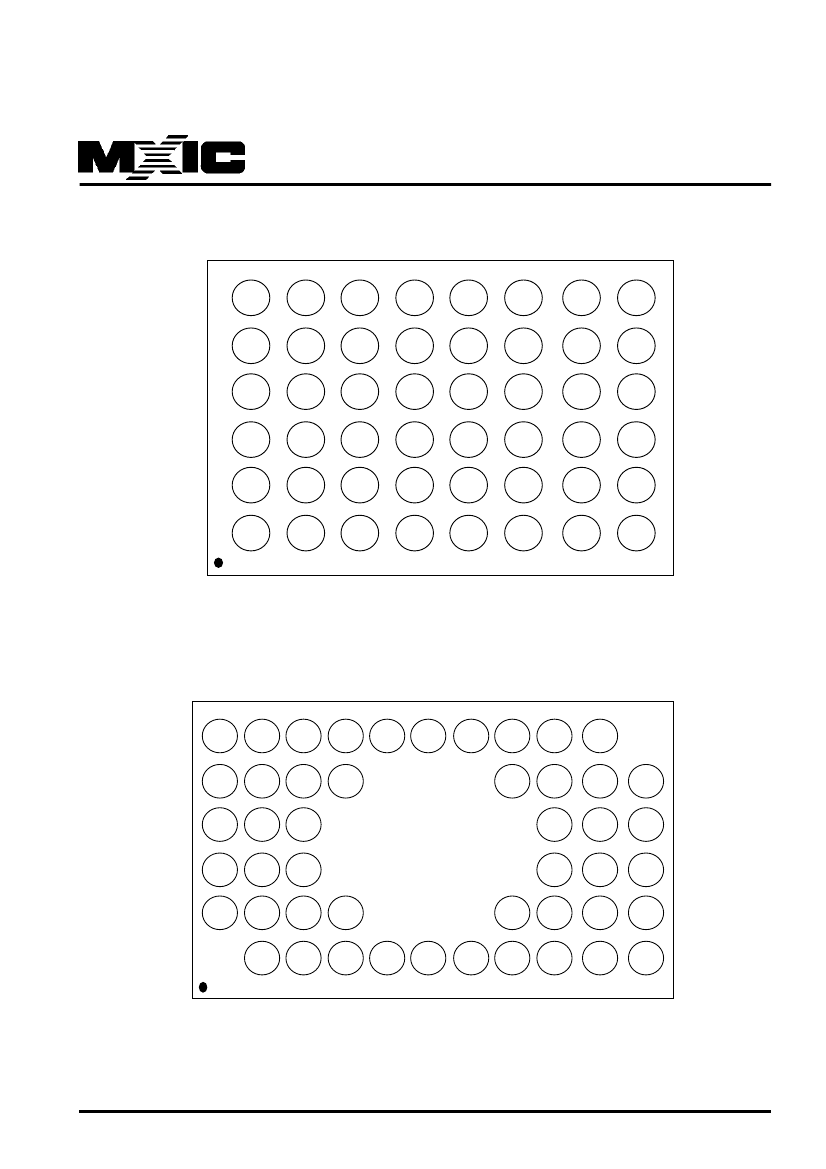

- 48-ball CSP (6 x 8mm)

- 48-ball CSP (4 x 6mm)

All Pb-free devices are RoHS Compliant

• Compatibility with JEDEC standard

- Pinout and software compatible with single-power

supply Flash

• 20 years data retention

GENERAL DESCRIPTION

The MX29LV400C T/B is a 4-mega bit Flash memory

organized as 512K bytes of 8 bits or 256K words of 16

bits. MXIC's Flash memories offer the most cost-effec-

tive and reliable read/write non-volatile random access

memory. The MX29LV400C T/B is packaged in 44-pin

SOP, 48-pin TSOP and 48-ball CSP. It is designed to be

reprogrammed and erased in system or in standard

EPROM programmers.

The standard MX29LV400C T/B offers access time as

fast as 55ns, allowing operation of high-speed micropro-

cessors without wait states. To eliminate bus conten-

tion, the MX29LV400C T/B has separate chip enable

(CE#) and output enable (OE#) controls.

MXIC's Flash memories augment EPROM functionality

with in-circuit electrical erasure and programming. The

MX29LV400C T/B uses a command register to manage

this functionality. The command register allows for 100%

P/N:PM1155

TTL level control inputs and fixed power supply levels

during erase and programming, while maintaining maxi-

mum EPROM compatibility.

MXIC Flash technology reliably stores memory contents

even after 100,000 erase and program cycles. The MXIC

cell is designed to optimize the erase and programming

mechanisms. In addition, the combination of advanced

tunnel oxide processing and low internal electric fields

for erase and program operations produces reliable cy-

cling. The MX29LV400C T/B uses a 2.7V~3.6V VCC

supply to perform the High Reliability Erase and auto

Program/Erase algorithms.

The highest degree of latch-up protection is achieved

with MXIC's proprietary non-epi process. Latch-up pro-

tection is proved for stresses up to 100 milliamps on

address and data pin from -1V to VCC + 1V.

REV. 1.5, APR. 24, 2006
