BF100-60-A-C-0-0625-N-C datasheet, PDF

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > The connector> The connector> BF100-60-A-C-0-0625-N-C

Preview

BF100-60-A-C-0-0625-N-C: DescriptionBoard Connector, 60 Contact(s), 2 Row(s), Female, Straight, 0.079 inch Pitch, Surface Mount Terminal, Locking,; CategoryThe connector The connector; File Size98KB，1 Pages; ManufacturerGlobal Connector Technology; Environmental Compliance

Download Datasheet Parametric Compare View All

BF100-60-A-C-0-0625-N-C Overview

Board Connector, 60 Contact(s), 2 Row(s), Female, Straight, 0.079 inch Pitch, Surface Mount Terminal, Locking,

BF100-60-A-C-0-0625-N-C Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Reach Compliance Code	compliant
body width	0.157 inch
subject depth	0.157 inch
body length	2.386 inch
Connector type	BOARD CONNECTOR
Contact to complete cooperation	AU
Contact completed and terminated	GOLD FLASH
Contact point gender	FEMALE
Contact material	PHOSPHOR BRONZE
contact mode	RECTANGULAR
Contact resistance	20 mΩ
Contact style	SQ PIN-SKT
Dielectric withstand voltage	500VAC V
Insulation resistance	1000000000 Ω
insulator material	NYLON
Manufacturer's serial number	BF100
Plug contact pitch	0.079 inch
Installation option 1	LOCKING
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	105 °C
Minimum operating temperature	-40 °C
PCB contact pattern	RECTANGULAR
PCB contact row spacing	4.1402 mm
Plating thickness	FLASH inch
polarization key	POLARIZED HOUSING
Rated current (signal)	2 A
Guideline	UL
reliability	COMMERCIAL
Terminal pitch	2.0066 mm
Termination type	SURFACE MOUNT
Total number of contacts	60
Base Number Matches	1

Preview

Download Datasheet

View All

3

1

2

4

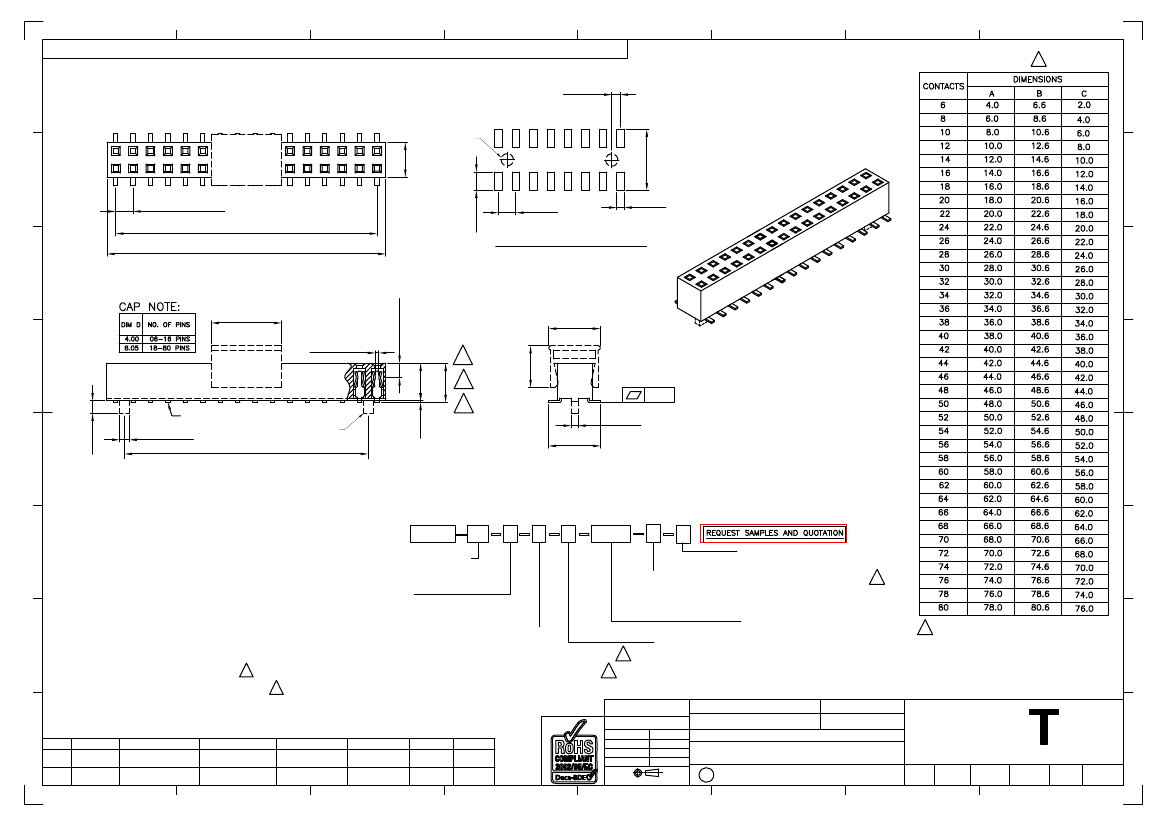

Global Connector Technology Ltd. - BF100: 2.0mm PITCH SOCKET, DUAL ROW, SURFACE MOUNT, 4.3mm or 4.6mm PROFILE

A

5

6

7

8

G

1.00

A

B

W+1.0

4.00

Ø1.50

(Typ.)

B

2.00±0.15 Typ.

2.10

A±0.25

B±0.38

C

2.00

Typ. (Non-Accum)

0.85

RECOMMENDED PCB LAYOUT

C

D

0.40REF.

D

1.67REF.

5.90

4.80

D

H+0.3

H

D

0.15

F

H

0.800

W±0.2

E

1.45

PIN 0.50x0.20 Typ.

PEGS OPTIONAL

1.10 Typ.

E

C±0.20

F

G

SPECIFICATIONS

规格

CURRENT RATING

电流额定值

: 2 AMP

Ordering Grid

INSULATOR RESISTANCE

绝缘电阻值

: 1000 MEGOHMS MIN.

BF100 XX X

CONTACT RESISTANCE

接触电阻值

: 20mOHMS MAX.

DIELECTRIC WITHSTANDING

耐电压

: AC 500 V

OPERATING TEMPERATURE

工½温度

: -40°C TO +105°C

No. of Contacts

CONTACT MATERIAL

端子物料

: PHOSPHOR BRONZE

06 to 80

INSULATOR MATERIAL

绝缘½物料

:

STANDARD

标准物料

: POLYAMIDE

聚醯胺

, NYLON 6T, UL 94-V0

Contact Plating

OPTIONS

可选物料

: POLYESTER

聚酯

, LCP, UL 94-V0

A = Gold Flash All Over (Standard)

SOLDERING PROCESS

可焊性

:

B = Selective Gold Flash Contact Area/

NYLON 6T (STANDARD

标准物料

) -

Tin On Tail

IR REFLOW

回流焊

: 260°C for 10 sec.

C = Tin All Over

WAVE

波峰焊

:230°C for 5-10 sec.

G = 10µ" Gold Contact Area/Tin On Tail

MANUAL SOLDER

人工焊接

: 350°C for 3-5 sec

I = 30µ" Gold Contact Area/Tin On Tail

LCP (OPTION

可选物料

) -

IR REFLOW

回流焊

: 260°C for 10 sec.

C

WAVE

波峰焊

:250°C for 5-10 sec.

MANUAL SOLDER

人工焊接

: 350°C for 3-5 sec C

MATES WITH

配套之母座

(SUBJECT TO PIN LENGTH

在端子长度适合的条件下

):

BF030

BF045

BF050

BF055

BF060

BF135

BF140

BF145

By

DETAIL

REV

DATE

LYH

DRAWING

RELEASE

A

31/10/07

DR

CHANGE TO SOLDER

TEMP. INFORMATION

C

05/08/09

AE

SA

AJO

0.3

X

XXXX

X

Packing Options

C = Tape and Reel with Film (Standard)

B = Tape and Reel with Cap

B

D = Tube

E = Tube with Cap

F = Tube with Film

Dimension W - Footprint Width (1/100mm)

'H' = 4.00mm: Standard - 6.25mm = 0625

Alternative - 5.00mm = 0500

'H' = 4.30mm: Standard - 6.40mm = 0640

Alternative - 5.60mm = 0560

- 6.25mm = 0625

F

Insulator Material

N = Nylon 6T (Standard)

L = LCP

Insulator

Height 'H'

C = 4.00mm (Standard)

F

D = 4.30mm

D

H

Locating Peg

0 = No Peg

1 = With Peg

G

Tolerances

(Except as noted)

Part Number:-

Date:-

Dimensions in mm

X.°± 5.0°

X.X ± 0.25

.X°± 3.0°

X.XX ± 0.15 .XX°± 2.0°

X.XXX ± 0.10 .XXX°± 1.0°

Third Angle Projection

X. ± 0.30

BF100

Description:-

31 OCT 07

H

CHANGE TO STANDARDS

MODIFICATION TO HEIGHT CHANGE TO DIMENSION

CHANGE TO

TIDY UP

EFFECTING ORDER GRID

W STANDARDS

INSULATOR HEIGHTS DIM B VALUES

2.0mm PITCH SOCKET, DUAL ROW,

SURFACE MOUNT, 4.3mm or 4.6mm PROFILE

www.globalconnectortechnology.com

Scale

NTS

GC

Material

See Note

H

D

25/08/09

E

25/11/09

F

28/01/10

G

02/06/10

H

19/11/12

C

THIS DRAWING IS CONFIDENTIAL AND MUST NOT BE

COPIED OR DISCLOSED WITHOUT WRITTEN CONSENT

Revision

H

Drawn by

LYH

E & OE

Sheet No.

1/1

1

2

3

4

5

6

7

8

BF100-60-A-C-0-0625-N-C Related Products

	BF100-60-A-C-0-0625-N-C	BF100-78-A-C-1-0625-N-C	5439-2-64-1	BF100-76-A-C-0-0625-N-C	BF100-80-A-C-1-0625-N-C	BF100-32-A-C-0-0625-N-C
Description	Board Connector, 60 Contact(s), 2 Row(s), Female, Straight, 0.079 inch Pitch, Surface Mount Terminal, Locking,	Board Connector, 78 Contact(s), 2 Row(s), Female, Straight, 0.079 inch Pitch, Surface Mount Terminal, Locking,	Board Connector, 64 Contact(s), 2 Row(s), Male, 0.1 inch Pitch, IDC Terminal, Locking	Board Connector, 76 Contact(s), 2 Row(s), Female, Straight, 0.079 inch Pitch, Surface Mount Terminal, Locking,	Board Connector, 80 Contact(s), 2 Row(s), Female, Straight, 0.079 inch Pitch, Surface Mount Terminal, Locking,	Board Connector, 32 Contact(s), 2 Row(s), Female, Straight, 0.079 inch Pitch, Surface Mount Terminal, Locking,
Is it Rohs certified?	conform to	conform to	conform to	conform to	conform to	conform to
Reach Compliance Code	compliant	compli	unknown	compliant	compliant	compliant
body width	0.157 inch	0.157 inch	0.335 inch	0.157 inch	0.157 inch	0.157 inch
subject depth	0.157 inch	0.157 inch	0.547 inch	0.157 inch	0.157 inch	0.157 inch
body length	2.386 inch	3.094 inch	3.543 inch	3.016 inch	3.173 inch	1.283 inch
Connector type	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR
Contact to complete cooperation	AU	AU	SN	AU	AU	AU
Contact point gender	FEMALE	FEMALE	MALE	FEMALE	FEMALE	FEMALE
contact mode	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Contact resistance	20 mΩ	20 mΩ	30 mΩ	20 mΩ	20 mΩ	20 mΩ
Contact style	SQ PIN-SKT	SQ PIN-SKT	SQ PIN-SKT	SQ PIN-SKT	SQ PIN-SKT	SQ PIN-SKT
Dielectric withstand voltage	500VAC V	500VAC V	500VAC V	500VAC V	500VAC V	500VAC V
Insulation resistance	1000000000 Ω	1000000000 Ω	1000000000 Ω	1000000000 Ω	1000000000 Ω	1000000000 Ω
Manufacturer's serial number	BF100	BF100	5439	BF100	BF100	BF100
Plug contact pitch	0.079 inch	0.079 inch	0.1 inch	0.079 inch	0.079 inch	0.079 inch
Installation option 1	LOCKING	LOCKING	LOCKING	LOCKING	LOCKING	LOCKING
Installation type	BOARD	BOARD	CABLE	BOARD	BOARD	BOARD
Number of rows loaded	2	2	2	2	2	2
Maximum operating temperature	105 °C	105 °C	85 °C	105 °C	105 °C	105 °C
Minimum operating temperature	-40 °C	-40 °C	-25 °C	-40 °C	-40 °C	-40 °C
polarization key	POLARIZED HOUSING	POLARIZED HOUSING	POLARIZED HOUSING	POLARIZED HOUSING	POLARIZED HOUSING	POLARIZED HOUSING
Rated current (signal)	2 A	2 A	1 A	2 A	2 A	2 A
Guideline	UL	UL	UL	UL	UL	UL
reliability	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL
Termination type	SURFACE MOUNT	SURFACE MOUNT	IDC	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT
Total number of contacts	60	78	64	76	80	32
Contact completed and terminated	GOLD FLASH	GOLD FLASH	-	GOLD FLASH	GOLD FLASH	GOLD FLASH
Contact material	PHOSPHOR BRONZE	PHOSPHOR BRONZE	-	PHOSPHOR BRONZE	PHOSPHOR BRONZE	PHOSPHOR BRONZE
insulator material	NYLON	NYLON	-	NYLON	NYLON	NYLON
Installation method	STRAIGHT	STRAIGHT	-	STRAIGHT	STRAIGHT	STRAIGHT
Number of connectors	ONE	ONE	-	ONE	ONE	ONE
PCB row number	2	2	-	2	2	2
PCB contact pattern	RECTANGULAR	RECTANGULAR	-	RECTANGULAR	RECTANGULAR	RECTANGULAR
PCB contact row spacing	4.1402 mm	4.1402 mm	-	4.1402 mm	4.1402 mm	4.1402 mm
Plating thickness	FLASH inch	FLASH inch	-	FLASH inch	FLASH inch	FLASH inch
Terminal pitch	2.0066 mm	2.0066 mm	-	2.0066 mm	2.0066 mm	2.0066 mm
Base Number Matches	1	1	-	1	1	-
