ADVANCED INFORMATION
MX28F640C3T/B
64M-BIT [4M x16] CMOS SINGLE VOLTAGE
3V ONLY FLASH MEMORY
FEATURES
• Bit Organization: 4,194,304 x 16
• Single power supply operation
- 3.0V only operation for read, erase and program
operation
- VCC=VCCQ=2.7~3.6V
- Operating temperature:-40°
C~85°
C
• Fast access time : 90/120ns
• Low power consumption
- 9mA maximum active read current, f=5MHz (CMOS
input)
- 21mA program erase current maximum
(VPP=1.65~3.6V)
- 7uA typical standby current under power saving
mode
• Sector architecture
- Sector Erase (Sector structure : 4Kword x 2 (boot
sectors), 4Kword x 6 (parameter sectors), 32Kword x
127 (parameter sectors)
- Top/Bottom Boot
• Auto Erase (chip & sector) and Auto Program
- Automatically program and verify data at specified
address
• Automatic Suspend Enhance
- Word write suspend to read
- Sector erase suspend to word write
- Sector erase suspend to read register report
• Automatic sector erase, full chip erase, word write and
sector lock/unlock configuration
• Status Reply
- Detection of program and erase operation comple-
tion.
- Command User Interface (CUI)
- Status Register (SR)
Data Protection Performance
- Include boot sectors and parameter and main sectors
to be block/unblock
100,000 minimum erase/program cycles
Common Flash Interface (CFI)
128-bit Protection Register
- 64-bit Unique Device Identifier
- 64-bit User-Programmable
Latch-up protected to 100mA from -1V to VCC+1V
Package type:
- 48-pin TSOP (12mm x 20mm)
- 48-ball CSP (11mm x 12mm)
•
•
•
•
•
•
GENERAL DESCRIPTION
The MX28F640C3T/B is a 64-mega bit Flash memory
organized as 4M words of 16 bits. The 1M word of data
is arranged in eight 4Kword boot and parameter sectors,
and 127 32Kword main sector which are individually
erasable. MXIC's Flash memories offer the most cost-
effective and reliable read/write non-volatile random ac-
cess memory. The MX28F640C3T/B is packaged in 48-
pin TSOP and 48-ball CSP. It is designed to be repro-
grammed and erased in system or in standard EPROM
programmers.
The standard MX28F640C3T/B offers access time as
fast as 90ns, allowing operation of high-speed micropro-
cessors without wait states.
MXIC's Flash memories augment EPROM functionality
with in-circuit electrical erasure and programming. The
MX28F640C3T/B uses a command register to manage
this functionality. The command register allows for 100%
TTL level control inputs and fixed power supply levels
during erase and programming, while maintaining maxi-
mum EPROM compatibility.
MXIC Flash technology reliably stores memory contents
even after 100,000 erase and program cycles. The MXIC
cell is designed to optimize the erase and programming
P/N:PM0900
REV. 0.6, AUG. 20, 2003
1
MX28F640C3T/B
mechanisms. In addition, the combination of advanced
tunnel oxide processing and low internal electric fields
for erase and program operations produces reliable cy-
cling. The MX28F640C3T/B uses a 2.7V~3.6V VCC sup-
ply to perform the High Reliability Erase and auto Pro-
gram/Erase algorithms.
The highest degree of latch-up protection is achieved
with MXIC's proprietary non-epi process. Latch-up pro-
tection is proved for stresses up to 100 milliamps on
address and data pin from -1V to VCC + 1V.
The dedicated VPP pin gives complete data protection
when VPP< VPPLK.
A Command User Interface (CUI) serves as the inter-
face between the system processor and internal opera-
tion of the device. A valid command sequence written to
the CUI initiates device automation. An internal Write
State Machine (WSM) automatically executes the algo-
rithms and timings necessary for erase, full chip erase,
word write and sector lock/unlock configuration opera-
tions.
A sector erase operation erases one of the device's 32K-
word sectors typically within 1.0s, 4K-word sectors typi-
cally within 0.5s independent of other sectors. Each sec-
tor can be independently erased minimum 100,000 times.
Sector erase suspend mode allows system software to
suspend sector erase to read or write data from any other
sector.
Writing memory data is performed in word increments of
the device's 32K-word sectors typically within 0.8s and
4K-word sectors typically within 0.1s. Word program sus-
pend mode enables the system to read data or execute
code from any other memory array location.
MX28F640C3T/B features with individual sectors lock-
ing by using a combination of bits thirty-nine sector lock-
bits and WP, to lock and unlock sectors.
The status register indicates when the WSM's sector
erase, full chip erase, word program or lock configura-
tion operation is done.
The access time is 90/120ns (tELQV) over the operat-
ing temperature range (-40° to +80° and VCC supply
C
C)
voltage range of 2.7V~3.6V.
MX28F640C3T/B's power saving mode feature substan-
tially reduces active current when the device is in static
mode (addresses not switching). In this mode, the typi-
cal ICCS current is 7uA (CMOS) at 3.0V VCC.
As CE and RESET are at VCC, ICC CMOS standby
mode is enabled. When RESET is at GND, the reset
mode is enabled which minimize power consumption and
provide data write protection.
A reset time (tPHQV) is required from RESET switching
high until outputs are valid. Similarly, the device has a
wake time (tPHEL) from RESET-high until writes to the
CUI are recognized. With RESET at GND, the WSM is
reset and the status register is cleared.
P/N:PM0900
REV. 0.6, AUG. 20, 2003
2
MX28F640C3T/B
BLOCK DIAGRAM
Q0~Q7
Output
Buffer
Input
Buffer
I/O
Logic
VCC
Output
Multiplexer
Identifier
Register
Data
Register
CE
Command
User
Interface
WE
OE
RESET
WP
Status
Register
Data
Comparator
Write
State
Machine
A0~A21
Input
Buffer
Y
Decoder
Y-Gating
Program/Erase
Voltage Switch
VPP
VCC
Main Sector 125
Boot Sector 0
Boot Sector 1
Parameter Sector
Parameter Sector
Parameter Sector
Parameter Sector
Parameter Sector
Parameter Sector
Main Sector 126
GND
0
1
2
3
4
5
Main Sector 0
Main Sector 1
Address
Latch
X
Decoder
32K-Word
Main Sector
x127
.......
Address
Counter
.......
P/N:PM0900
REV. 0.6, AUG. 20, 2003
3
MX28F640C3T/B

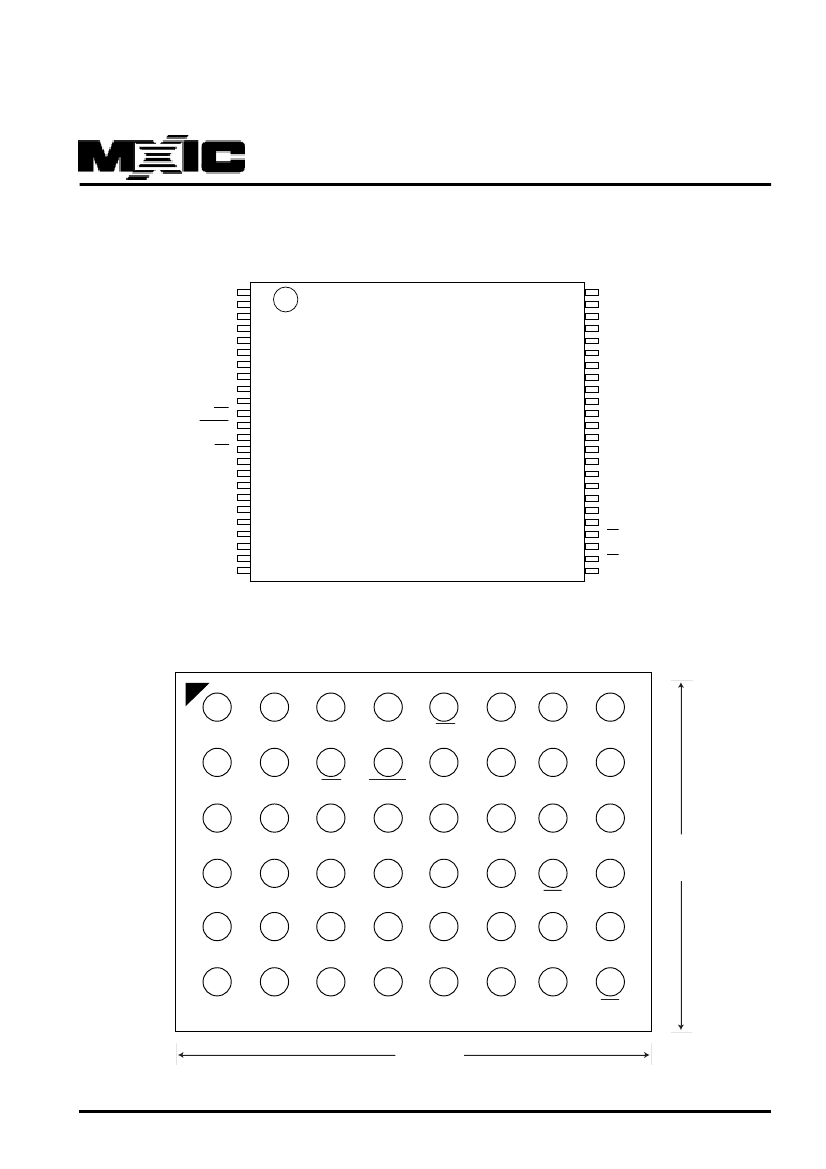

PIN CONFIGURATIONS
48 TSOP (Standard Type) (12mm x 20mm)
A15
A14
A13
A12
A11
A10
A9
A8
A21
A20
WE
RESET
VPP
WP
A19
A18
A17
A7
A6
A5
A4
A3
A2
A1
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
48
47
46
45
44
43
42
41
40
39
38
37
36
35
34
33
32
31
30
29
28
27
26
25
A16
VCCQ
GND
Q15
Q7
Q14
Q6
Q13
Q5
Q12
Q4
VCC
Q11
Q3
Q10
Q2
Q9
Q1
Q8
Q0
OE
GND
CE
A0
MX28F640C3T/B
48 Ball CSP (11 mm x 12 mm) Top View, Ball Down (Ball Pitch=0.75mm, Ball Width=0.35mm)
A1
A13
B1
A14
C1
A15
D1
A16
E1
VCCQ
F1
GND
A2
A11
B2
A10
C2
A12
D2
Q14
E2
Q15
F2
Q7
A3
A8
B3
WE
C3
A9
D3
Q5
E3
Q6
F3
Q13
A4
VPP
B4
RESET
C4
A21
D4
Q11
E4
Q12
F4
Q4
A5
WP
B5
A18
C5
A20
D5
Q2
E5
Q3
F5
VCC
A6
A19
B6
A17
C6
A6
D6
Q8
E6
Q9
F6
Q10
A7
A7
B7
A5
C7
A3
D7
CE
E7
Q0
F7
Q1
A8
A4
B8
A2
C8
A1
12 mm
D8
A0
E8
GND
F8
OE
11 mm
P/N:PM0900
REV. 0.6, AUG. 20, 2003
4
MX28F640C3T/B
Table 1. Pin Description
Symbol
A0-A21
Type
input
Description and Function
Address inputs for memory address. Data pin float to high-impedance when the chip is
deselected or outputs are disable. Addresses are internally latched during a write or
erase cycle.
Data inputs/outputs: Inputs array data on the second CE and WE cycle during a pro-
gram command. Data is internally latched. Outputs array and configuration data. The
data pin float to tri-state when the chip is de-selected.
Activates the device's control logic, input buffers, and sense amplifiers. CE high de-
selects the memory device and reduce power consumption to standby level. CE is
active low.
Reset Deep Power Down: when RESET=VIL, the device is in reset/deep power down
mode, which drives the outputs to High Z, resets the WSM and minimizes current level.
When RESET=VIH, the device is normal operation. When RESET transition the device
defaults to the read array mode.
Write Enable: to control write to CUI and array sector. WR=VIL becomes active. The
data and address is latched WE on the rising edge of the second WE pulse.
Program/Erase Power Supply:(1.65V~3.6V)
Lower VPP<VPPLK, to protect any contents against Program and Erase Command.
Set VPP=VCC for in-system Read, Program and Erase Operation.
Output enable: gates the device's outputs during a real cycle.
Write protect: when WP is VIL, the boot sectors cannot be written or erased. When WP
is VIH, locked boot sectors cannot be written or erase. WP is not affected parameter
and main sectors.
Device power supply: (2.7V~3.6V).
I/O Power Supply: supplies for input/output buffers.
[2.7V~3.6V] This input should be tied directly to VCC.
Ground voltage: all the GND pin shall not be connected.
Q0-Q15
input/output
CE
input
RESET
input
WE
VPP
input
input/supply
OE
WP
input
input
VCC
VCCQ
GND
supply
input
supply
P/N:PM0900
REV. 0.6, AUG. 20, 2003
5
