ZB4PD-6.4A-N+: DescriptionCombiner, 5400MHz Min, 6800MHz Max, 1.2dB Insertion Loss-Max, ROHS COMPLIANT, CASE UU188; CategoryWireless rf/communication Radio frequency and microwave; File Size229KB，1 Pages; ManufacturerMini-Circuits; Websitehttps://www.minicircuits.com; Environmental Compliance

Download Datasheet Parametric Compare View All

ZB4PD-6.4A-N+ Overview

Combiner, 5400MHz Min, 6800MHz Max, 1.2dB Insertion Loss-Max, ROHS COMPLIANT, CASE UU188

ZB4PD-6.4A-N+ Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Mini-Circuits
Reach Compliance Code	unknown
ECCN code	EAR99
Other features	N, ISOLATION-MIN (DB):18
Characteristic impedance	50 Ω
structure	COAXIAL
Maximum input power (CW)	40 dBm
Maximum insertion loss	1.2 dB
Maximum operating frequency	6800 MHz
Minimum operating frequency	5400 MHz
Maximum operating temperature	100 °C
Minimum operating temperature	-55 °C
RF/Microwave Device Types	COMBINER
Maximum voltage standing wave ratio	1.5

Preview

Download Datasheet

View All

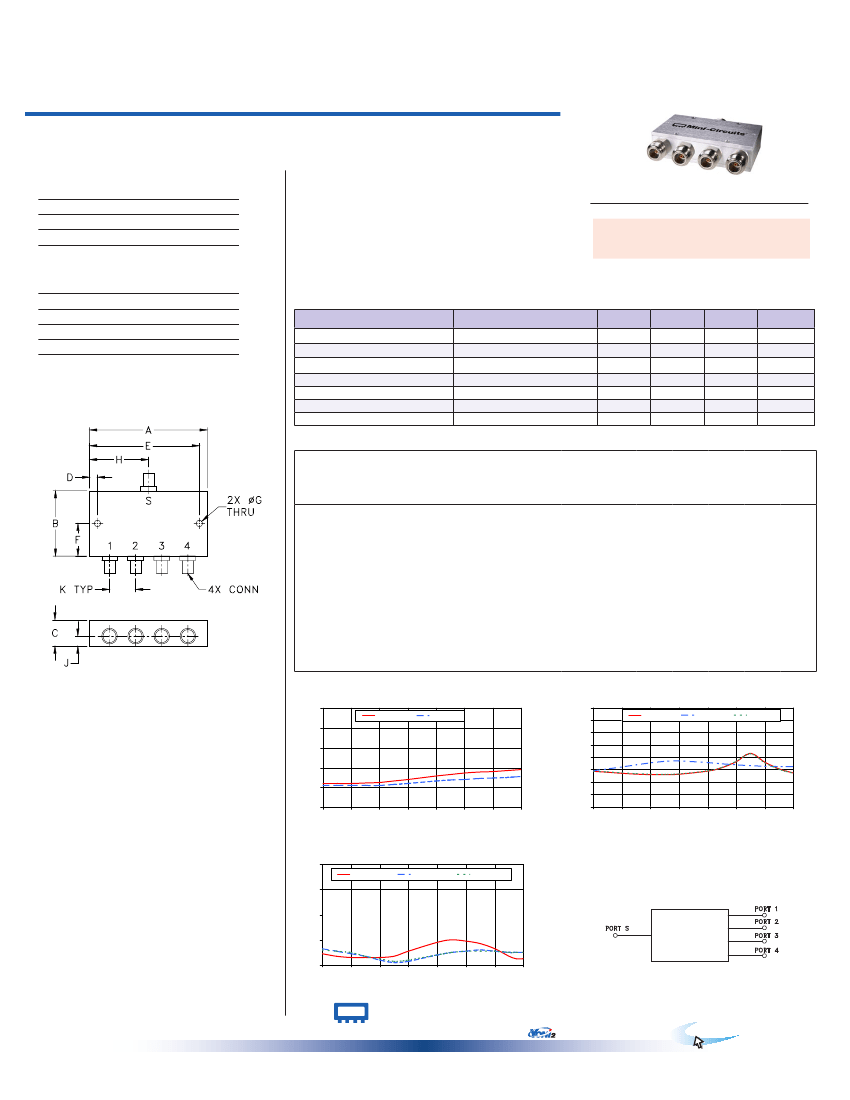

Power Splitter/Combiner

4 Way-0°

Operating Temperature

Storage Temperature

Power Input (as a splitter)

Internal Dissipation

Coaxial

ZB4PD-6.4A+

CASE STYLE: UU188

Connectors Model

N-Type

ZB4PD-6.4A-N+

Price

$99.95

Qty.

(1-9)

50Ω

-55°C to 100°C

5400 to 6800 MHz

Features

• wideband, 5400 to 6800 MHz

• good isolation, 25 dB typ.

• rugged, shielded case

Maximum Ratings

10W max.

0.375W max.

Permanent damage may occur if any of these limits are exceeded.

Applications

Coaxial Connections

SUM PORT

PORT 1

PORT 2

PORT 3

PORT 4

S

1

2

3

4

• satellite communications

• receivers/transmitters

+ RoHS compliant in accordance

with EU Directive (2002/95/EC)

The +Suffix has been added in order to identify RoHS

Compliance. See our web site for RoHS Compliance

methodologies and qualifications.

Electrical Specifications

Parameter

Frequency Range

Insertion Loss Above 6.0 dB

Isolation

Phase Unbalance

Amplitude Unbalance

VSWR Input

VSWR Output

5400-6800

Frequency (MHz)

Min.

5400

—

18

—

Typ.

—

0.6

25

—

1.30

Max.

6800

1.2

—

9.0

0.9

1.50

Unit

MHz

dB

Degree

dB

:1

Outline Drawing

Typical Performance Data

Freq.

(MHz)

S-1

5400.00

5500.00

5600.00

5700.00

5800.00

5900.00

6000.00

6200.00

6300.00

6400.00

6500.00

6600.00

6700.00

6750.00

6800.00

6.48

6.49

6.50

6.53

6.56

6.63

6.66

6.69

6.71

6.72

6.74

6.75

6.76

Total Loss

1

(dB)

S-2

6.46

6.45

6.44

6.45

6.46

6.48

6.53

6.55

6.57

6.58

6.59

6.60

6.62

Amp.

Unbal.

(dB)

S-4

6.42

6.44

6.46

6.49

6.54

6.57

6.60

6.62

6.64

6.66

6.67

6.68

0.07

0.06

0.05

0.06

0.08

0.11

0.12

0.13

0.14

Isolation

(dB)

1-2

28.53

27.79

26.95

26.28

25.87

25.84

26.21

28.71

31.45

36.30

43.03

35.93

30.49

28.71

27.19

VSWR VSWR VSWR VSWR VSWR

S

1

2

3

4

3-4

28.62

28.08

27.32

26.66

26.19

26.13

26.44

28.91

31.66

36.63

42.66

35.45

30.19

28.45

26.97

1.09

1.07

1.06

1.07

1.11

1.18

1.20

1.19

1.17

1.13

1.07

1.05

1.13

1.11

1.09

1.07

1.04

1.02

1.03

1.08

1.10

1.11

1.12

1.11

1.10

1.16

1.14

1.12

1.08

1.05

1.01

1.03

1.10

1.13

1.14

1.15

1.14

1.13

1.12

1.11

1.10

1.07

1.05

1.03

1.04

1.08

1.10

1.11

1.10

1.12

1.10

1.09

1.07

1.05

1.04

1.06

1.08

1.07

1.08

1.09

S-3

6.44

6.46

6.48

6.53

6.55

6.56

6.58

6.59

6.60

6.61

6.62

2-3

29.05

30.48

32.07

33.78

35.42

36.67

37.04

35.60

34.61

33.76

33.09

32.62

32.36

32.31

1. Total Loss = Insertion Loss + 6dB splitter loss.

Outline Dimensions (

inch

)

mm

TOTAL LOSS (dB)

ZB4PD-6.4A+

TOTAL LOSS

8.0

7.6

7.2

6.8

6.4

6.0

5400

S-1(dB)

S-3(dB)

ZB4PD-6.4A+

ISOLATION

80

70

1-2(dB)

2-3(dB)

3-4(dB)

ISOLATION (dB)

A

3.50

88.90

G

.125

3.18

B

2.13

54.10

H

1.75

44.45

C

.88

22.35

J

.44

11.18

D

.150

3.81

K

.89

22.61

E

3.350

85.09

F

1.06

26.92

wt

grams

260

60

50

40

30

20

10

0

5400

5600

5800

6000

6200

6400

6600

6800

5600

5800

6000

6200

6400

6600

6800

FREQUENCY (MHz)

1.80

ZB4PD-6.4A+

VSWR

#S-VSWR

#1-VSWR

#3-VSWR

1.60

VSWR

electrical schematic

1.40

1.20

1.00

5400

5600

5800

6000

6200

6400

6600

6800

FREQUENCY (MHz)

ISO 9001 ISO 14001 AS 9100

CERTIFIED

P.O. Box 350166, Brooklyn, New York 11235-0003 (718) 934-4500 Fax (718) 332-4661

The Design Engineers Search Engine

IF/RF MICROWAVE COMPONENTS

Mini-Circuits

®

For detailed performance specs

& shopping online see web site

®

Provides ACTUAL Data Instantly at

minicircuits.com

Notes: 1.

Performance and quality attributes and conditions not expressly stated in this specification sheet are intended to be excluded and do not form a part of this specification sheet.

2.

Electrical specifications

and performance data contained herein are based on Mini-Circuit’s applicable established test performance criteria and measurement instructions.

3.

The parts covered by this specification sheet are subject to

Mini-Circuits standard limited warranty and terms and conditions (collectively, “Standard Terms”); Purchasers of this part are entitled to the rights and benefits contained therein. For a full statement of the Standard

Terms and the exclusive rights and remedies thereunder, please visit Mini-Circuits’ website at www.minicircuits.com/MCLStore/terms.jsp.

REV. OR

M126153

ZB4PD-6.4A+

ED-5336A/1

HY/CP/AM

110912
