ZFSC-3-13+ datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Wireless rf/communication> Radio frequency and microwave> ZFSC-3-13+

ZFSC-3-13+: DescriptionCombiner, 1MHz Min, 200MHz Max, 0.6dB Insertion Loss-Max, CASE J17; CategoryWireless rf/communication Radio frequency and microwave; File Size236KB，1 Pages; ManufacturerMini-Circuits; Websitehttps://www.minicircuits.com; Environmental Compliance

Download Datasheet Parametric View All

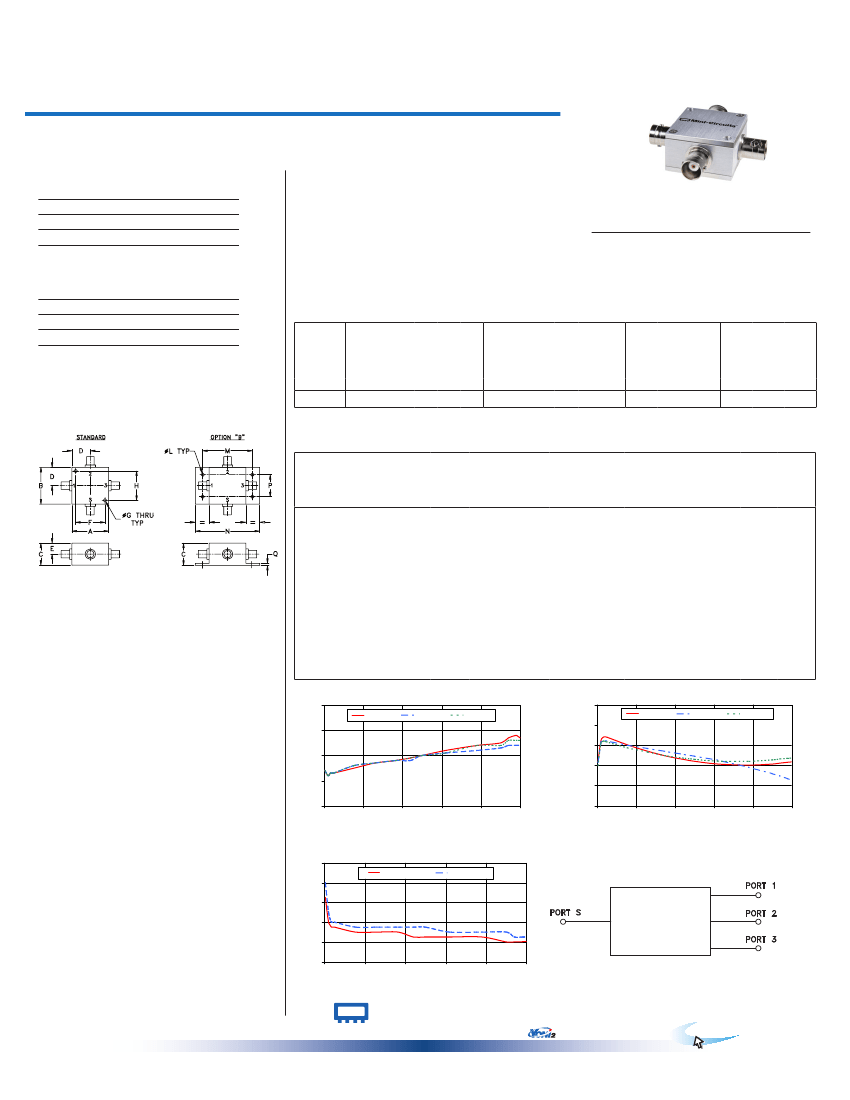

ZFSC-3-13+ Overview

Combiner, 1MHz Min, 200MHz Max, 0.6dB Insertion Loss-Max, CASE J17

ZFSC-3-13+ Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Mini-Circuits
Reach Compliance Code	unknown
ECCN code	EAR99
Other features	BNC, ISOLATION-MIN (DB):30
Characteristic impedance	50 Ω
structure	COAXIAL
Maximum input power (CW)	30 dBm
Maximum insertion loss	0.6 dB
Maximum operating frequency	200 MHz
Minimum operating frequency	1 MHz
Maximum operating temperature	100 °C
Minimum operating temperature	-55 °C
RF/Microwave Device Types	SPLITTER AND COMBINER
Maximum voltage standing wave ratio	1.1

Preview

Download Datasheet

View All

Coaxial

Power Splitter/Combiner

3 Way-0°

Operating Temperature

Storage Temperature

Power Input (as a splitter)

Internal Dissipation

ZFSC-3-13

50Ω

-55°C to 100°C

1W max.

0.375W max.

1 to 200 MHz

Features

• low insertion, 0.35 dB typ.

• very high isolation, 48 dB typ.

• excellent amplitude unbalance, 0.1 dB typ.

• excellent phase unbalance, 1 deg. typ.

• excellent VSWR, 1.1:1 typ.

• rugged shielded case

BNC version shown

Maximum Ratings

Permanent damage may occur if any of these limits are exceeded.

Applications

• VHF

• instrumentation

• radio communication system

FREQ.

RANGE

(MHz)

-f

1-200

Coaxial Connections

SUM PORT

PORT 1

PORT 2

PORT 3

CASE STYLE: J17

Connectors Model

Price

BNC

ZFSC-3-13

$51.95

SMA

ZFSC-3-13-S

$56.95

N-TYPE

ZFSC-3-13-N

$56.95

BRACKET (OPTION "B")

$5.00

Qty.

(1-9)

(1+)

Electrical Specifications

ISOLATION

(dB)

INSERTION LOSS (dB)

ABOVE 4.8 dB

PHASE

UNBALANCE

(Degrees)

Max.

1.0

Max.

3.0

Max.

5.0

AMPLITUDE

UNBALANCE

(dB)

Max.

0.1

Max.

0.2

Max.

0.2

Typ. Min. Typ. Min. Typ. Min. Typ. Max. Typ. Max. Typ. Max.

0.25

0.5

0.35

0.6

0.35

0.6

Outline Drawing

L = low range [f

to 10 f

]

M = mid range [10 f

to f

/2]

U= upper range [f

/2 to f

]

Typical Performance Data

Freq.

(MHz)

S-1

1.00

4.20

7.00

10.00

31.00

52.00

73.00

88.00

100.00

124.00

5.04

5.02

5.03

5.05

5.07

5.08

5.09

5.10

5.12

5.14

5.15

5.17

5.18

5.17

Total Loss

(dB)

S-2

5.04

5.02

5.03

5.06

5.07

5.08

5.10

5.11

5.12

5.13

5.14

ZFSC-3-13

TOTAL LOSS

S-1(dB)

S-2(dB)

Amp.

Unbal.

(dB)

S-3

5.04

5.02

5.03

5.06

5.07

5.08

5.09

5.10

5.11

5.14

5.16

0.01

0.00

0.01

0.00

0.01

0.00

0.01

0.02

0.03

Isolation

(dB)

1-2

38.69

42.98

43.60

43.56

42.06

40.78

39.74

39.19

38.80

38.25

38.04

38.24

38.42

38.59

38.67

Phase VSWR VSWR VSWR VSWR

Unbal.

(deg.)

2-3

37.91

42.44

42.77

42.63

41.46

40.62

39.81

39.45

39.18

38.81

38.79

39.05

39.25

39.38

39.44

0.02

0.03

0.01

0.05

0.07

0.17

0.21

0.25

0.30

0.36

0.42

0.44

0.48

0.51

1.13

1.08

1.07

1.06

1.05

1.04

ZFSC-3-13

ISOLATION

1-2 (dB)

1-3 (dB)

2-3 (dB)

1-3

38.54

42.61

42.94

42.80

41.96

41.32

40.65

40.18

39.80

39.02

37.59

36.35

35.88

35.35

35.10

1.16

1.10

1.08

1.07

1.06

1.05

1.17

1.10

1.08

1.07

1.06

1.05

1.04

1.17

1.10

1.08

1.07

1.06

Outline Dimensions (

inch

)

1.25

.75

.63

31.75 31.75 19.05 16.00

.38 1.000

9.65 25.40

.125 1.000

3.18 25.40

.07 grams

1.78

75.0

TOTAL LOSS (dB)

156.00

180.00

188.00

196.00

200.00

1. Total Loss = Insertion Loss + 4.8dB splitter loss.

.125 1.688

2.18

.75

3.18 42.88 55.37 19.05

5.3

5.2

5.1

5.0

4.9

S-3(dB)

ISOLATION (dB)

For option B with N-Type connectors, dimension "C" increases

to 0.94 inches.

120

160

200

120

160

200

FREQUENCY (MHz)

1.20

1.16

VSWR

1.12

1.08

1.04

1.00

ZFSC-3-13

VSWR

#S-VSWR

#1-VSWR

electrical schematic

120

160

200

FREQUENCY (MHz)

ISO 9001 ISO 14001 AS 9100

CERTIFIED

P.O. Box 350166, Brooklyn, New York 11235-0003 (718) 934-4500 Fax (718) 332-4661

The Design Engineers Search Engine

IF/RF MICROWAVE COMPONENTS

Mini-Circuits

For detailed performance specs

& shopping online see web site

Provides ACTUAL Data Instantly at

minicircuits.com

Notes: 1.

Performance and quality attributes and conditions not expressly stated in this specification sheet are intended to be excluded and do not form a part of this specification sheet.

Electrical specifications

and performance data contained herein are based on Mini-Circuit’s applicable established test performance criteria and measurement instructions.

The parts covered by this specification sheet are subject to

Mini-Circuits standard limited warranty and terms and conditions (collectively, “Standard Terms”); Purchasers of this part are entitled to the rights and benefits contained therein. For a full statement of the Standard

Terms and the exclusive rights and remedies thereunder, please visit Mini-Circuits’ website at www.minicircuits.com/MCLStore/terms.jsp.

REV. A

M127604

ZFSC-3-13

HY/TD/CP/AM

120306
