ZFSC-3-1W-S+ datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Wireless rf/communication> Radio frequency and microwave> ZFSC-3-1W-S+

ZFSC-3-1W-S+: DescriptionCombiner, 2MHz Min, 750MHz Max, 1.6dB Insertion Loss-Max, ROHS COMPLIANT, CASE J17; CategoryWireless rf/communication Radio frequency and microwave; File Size139KB，1 Pages; ManufacturerMini-Circuits; Websitehttps://www.minicircuits.com; Environmental Compliance

Download Datasheet Parametric Compare View All

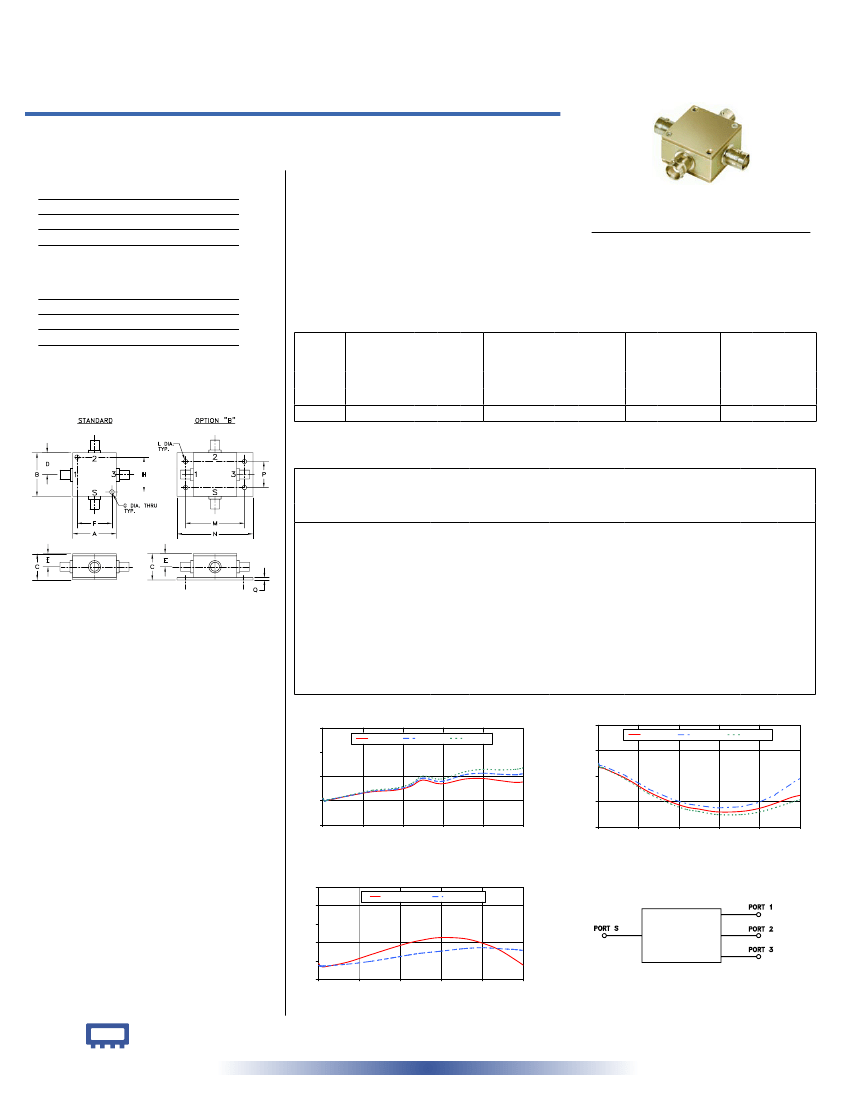

ZFSC-3-1W-S+ Overview

Combiner, 2MHz Min, 750MHz Max, 1.6dB Insertion Loss-Max, ROHS COMPLIANT, CASE J17

ZFSC-3-1W-S+ Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Mini-Circuits
package instruction	ROHS COMPLIANT, CASE J17
Reach Compliance Code	not_compliant
ECCN code	EAR99
Other features	SMA, ISOLATION-MIN (DB):18
Characteristic impedance	50 Ω
structure	COAXIAL
Maximum input power (CW)	30 dBm
Maximum insertion loss	1.6 dB
Maximum operating frequency	750 MHz
Minimum operating frequency	2 MHz
Maximum operating temperature	100 °C
Minimum operating temperature	-55 °C
RF/Microwave Device Types	COMBINER
Maximum voltage standing wave ratio	1.45

Preview

Download Datasheet

View All

Coaxial

Power Splitter/Combiner

3 Way-0°

Operating Temperature

Storage Temperature

Power Input (as a splitter)

Internal Dissipation

ZFSC-3-1W

50Ω

-55°C to 100°C

1W max.

0.5W max.

2 to 750 MHz

Features

• wideband, 2 to 750 MHz

• low insertion loss, 0.5 dB typ.

• high isolation, 30 dB typ.

• rugged shielded case

BNC version shown

Maximum Ratings

CASE STYLE: J17

Connectors Model

BNC

ZFSC-3-1W

SMA

ZFSC-3-1W-S

N-TYPE

ZFSC-3-1W-N

BRACKET (OPTION "B")

Price

$53.95

$58.95

$2.50

Qty.

(1-9)

(1+)

Coaxial Connections

SUMPORT

PORT 1

PORT 2

PORT 3

Applications

• VHF/UHF

• instrumentation

• communication style

Splitter Electrical Speciﬁcations

FREQ.

RANGE

(MHz)

-f

2-750

ISOLATION

(dB)

INSERTION LOSS (dB)

ABOVE 4.8 dB

PHASE

UNBALANCE

(Degrees)

Max.

AMPLITUDE

UNBALANCE

(dB)

Max.

0.2

Max.

0.3

Max.

0.5

Outline Drawing

Typ. Min Typ. Min Typ. Min

Typ. Max. Typ. Max. Typ. Max.

0.4

0.75

0.5

1.0

1.6

L = low range [f

to 10 f

]

M = mid range [10 f

to f

/2]

U= upper range [f

/2 to f

]

Typical Performance Data

Freq.

(MHz)

Insertion Loss

(dB)

S-1

2.00

6.80

16.40

20.00

104.00

188.00

272.00

330.00

375.00

442.50

532.50

600.00

660.00

720.00

750.00

5.05

4.99

5.00

5.10

5.18

5.21

5.29

5.42

5.34

5.44

5.45

5.41

5.37

5.38

Amp.

Unbal.

(dB)

1-2

0.00

0.01

0.02

0.04

0.05

0.08

0.10

0.15

0.19

0.22

0.27

0.29

31.97

31.59

31.51

31.49

29.46

26.83

24.83

23.82

23.45

22.89

22.98

23.59

24.60

25.76

26.13

Isolation

(dB)

1-3

32.43

32.02

31.92

31.94

29.98

27.40

25.45

24.48

24.14

23.66

23.90

24.79

26.31

28.49

29.46

Phase VSWR VSWR VSWR VSWR

Unbal.

(deg.)

2-3

32.13

31.67

31.59

31.56

29.29

26.51

24.42

23.36

22.97

22.37

22.36

22.87

23.75

24.81

25.26

0.05

0.02

0.03

0.06

0.11

0.10

0.09

0.15

0.13

0.11

0.16

0.20

0.37

0.46

1.17

1.14

1.13

1.18

1.26

1.34

1.39

1.42

1.45

1.44

1.39

1.32

1.21

1.15

ZFSC-3-1W

ISOLATION

S-2

5.04

4.99

5.00

5.01

5.10

5.19

5.23

5.31

5.46

5.39

5.53

5.56

5.54

5.53

5.55

S-3

5.04

4.99

5.00

5.01

5.11

5.21

5.25

5.34

5.50

5.44

5.59

5.64

5.63

5.64

5.67

1.15

1.14

1.16

1.19

1.23

1.26

1.28

1.30

1.33

1.34

1.33

1.32

1.31

1.15

1.16

1.20

1.24

1.27

1.29

1.32

1.35

1.37

1.38

1.37

1.15

1.14

1.16

1.19

1.23

1.26

1.28

1.31

1.33

1.35

1.36

1.35

1.34

Outline Dimensions (

inch

)

1.25

.75

.63

31.75 31.75 19.05 16.00

.38 1.000

9.65 25.40

.125 1.000

3.18 25.40

.07 grams

1.78

75.0

.125 1.688

2.18

.75

3.18 42.88 55.37 19.05

ZFSC-3-1W

INSERTION LOSS

6.5

INSERTION LOSS (dB)

S-1(dB)

S-2(dB)

S-3(dB)

1-2 (dB)

1-3 (dB)

2-3 (dB)

ISOLATION (dB)

150

300

450

600

750

For option B with N-Type connectors, dimension "C" increases

to 0.94 inches.

6.0

5.5

5.0

4.5

FREQUENCY (MHz)

150

300

450

600

750

FREQUENCY (MHz)

ZFSC-3-1W

VSWR

2.0

#S-VSWR

#1-VSWR

electrical schematic

1.8

VSWR

1.6

1.4

1.2

1.0

150

300

450

600

750

FREQUENCY (MHz)

Distribution Centers

NORTH AMERICA 800-654-7949 • 417-335-5935 • Fax 417-335-5945 • EUROPE 44-1252-832600 • Fax 44-1252-837010

Mini-Circuits

INTERNET

http://www.minicircuits.com

P.O. Box 350166, Brooklyn, New York 11235-0003 (718) 934-4500 Fax (718) 332-4661

REV. OR

M94793

ZFSC-3-1W

HY/TD/CP

060905

Mini-Circuits

ISO 9001 & ISO 14001

Certified

ZFSC-3-1W-S+ Related Products

	ZFSC-3-1W-S+	ZFSC-3-1B+	ZFSC-3-1W-N+	ZFSC-3-1W	ZFSC-3-1WB	ZFSC-3-1WB-N	ZFSC-3-1WB-S
Description	Combiner, 2MHz Min, 750MHz Max, 1.6dB Insertion Loss-Max, ROHS COMPLIANT, CASE J17	Combiner, 1MHz Min, 500MHz Max, 1.2dB Insertion Loss-Max, ROHS COMPLIANT, CASE J17	Combiner, 2MHz Min, 750MHz Max, 1.6dB Insertion Loss-Max, ROHS COMPLIANT, CASE J17	Combiner, 2MHz Min, 750MHz Max, 1.6dB Insertion Loss-Max, CASE J17	Combiner, 2MHz Min, 750MHz Max, 1.6dB Insertion Loss-Max, CASE J17	Combiner, 2MHz Min, 750MHz Max, 1.6dB Insertion Loss-Max, CASE J17	Combiner, 2MHz Min, 750MHz Max, 1.6dB Insertion Loss-Max, CASE J17
Is it Rohs certified?	conform to	conform to	conform to	incompatible	incompatible	incompatible	incompatible
Maker	Mini-Circuits	Mini-Circuits	Mini-Circuits	Mini-Circuits	Mini-Circuits	Mini-Circuits	Mini-Circuits
Reach Compliance Code	not_compliant	not_compliant	unknown	unknow	unknow	unknow	unknow
Other features	SMA, ISOLATION-MIN (DB):18	BNC, ISOLATION-MIN (DB):18	N, ISOLATION-MIN (DB):18	BNC, ISOLATION-MIN (DB):18	BNC, ISOLATION-MIN (DB):18	N, ISOLATION-MIN (DB):18	SMA, ISOLATION-MIN (DB):18
Characteristic impedance	50 Ω	50 Ω	50 Ω	50 Ω	50 Ω	50 Ω	50 Ω
structure	COAXIAL	COAXIAL	COAXIAL	COAXIAL	COAXIAL	COAXIAL	COAXIAL
Maximum input power (CW)	30 dBm	30 dBm	30 dBm	30 dBm	30 dBm	30 dBm	30 dBm
Maximum insertion loss	1.6 dB	1.2 dB	1.6 dB	1.6 dB	1.6 dB	1.6 dB	1.6 dB
Maximum operating frequency	750 MHz	500 MHz	750 MHz	750 MHz	750 MHz	750 MHz	750 MHz
Minimum operating frequency	2 MHz	1 MHz	2 MHz	2 MHz	2 MHz	2 MHz	2 MHz
Maximum operating temperature	100 °C	100 °C	100 °C	100 °C	100 °C	100 °C	100 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C
RF/Microwave Device Types	COMBINER	COMBINER	COMBINER	COMBINER	COMBINER	COMBINER	COMBINER
Maximum voltage standing wave ratio	1.45	1.26	1.45	1.45	1.45	1.45	1.45
Is it lead-free?	-	Lead free	-	Contains lead	Contains lead	Contains lead	Contains lead
JESD-609 code	-	-	-	e0	e0	e0	e0
Terminal surface	-	-	-	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
