is a free graphical interface (GUI) aimed at customizing
seamlessly the STUSB devices through direct access to non-volatile-memory (NVM).
The tool allows NVM area to be read, configured and written without dedicated
software skills, thanks to a graphical interface.
The utility also provides a basic panel to read and write I²C registers at any device
address and any register address, as well as a device dashboard.
The software can be used with the evaluation boards from the STUSB devices
stacked on a
NUCLEO-F072RB
controller board. The device selection is done
automatically at power-up, as far as the Nucleo is flashed and configured in order to
act as a USB to I²C bridge (.bin included).
Product status link
STSW-STUSB002
Associated products
STUSB4500
STEVAL-ISC005V1
Standalone USB
PD controller
STUSB4500
evaluation board
DB3647
-
Rev 1
-
June 2018
For further information contact your local STMicroelectronics sales office.
www.st.com
STSW-STUSB002
STUSB4500 GUI overview
1

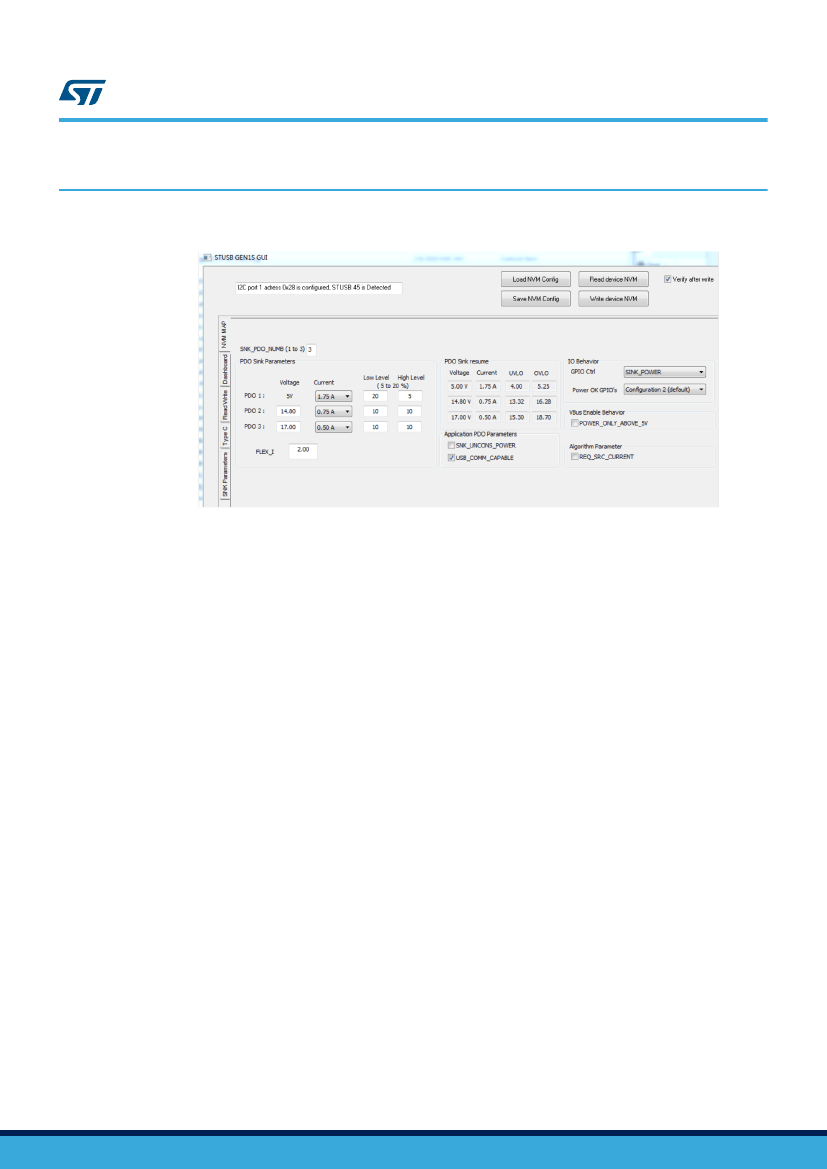

STUSB4500 GUI overview
Figure 1.
STUSB4500 GUI overview
DB3647
-
Rev 1
page 2/4
STSW-STUSB002
Revision history
Table 1.
Document revision history
Date
12-Jun-2018
Version
1
Changes
Initial release.
DB3647
-
Rev 1
page 3/4
