1511175560 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 1511175560

1511175560: DescriptionBoard Connector,; CategoryThe connector The connector; File Size49KB，2 Pages; ManufacturerMolex; Websitehttps://www.molex.com/molex/home; Environmental Compliance

Download Datasheet Parametric View All

1511175560 Overview

Board Connector,

1511175560 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Molex
Reach Compliance Code	compliant
Connector type	BOARD CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact material	NOT SPECIFIED

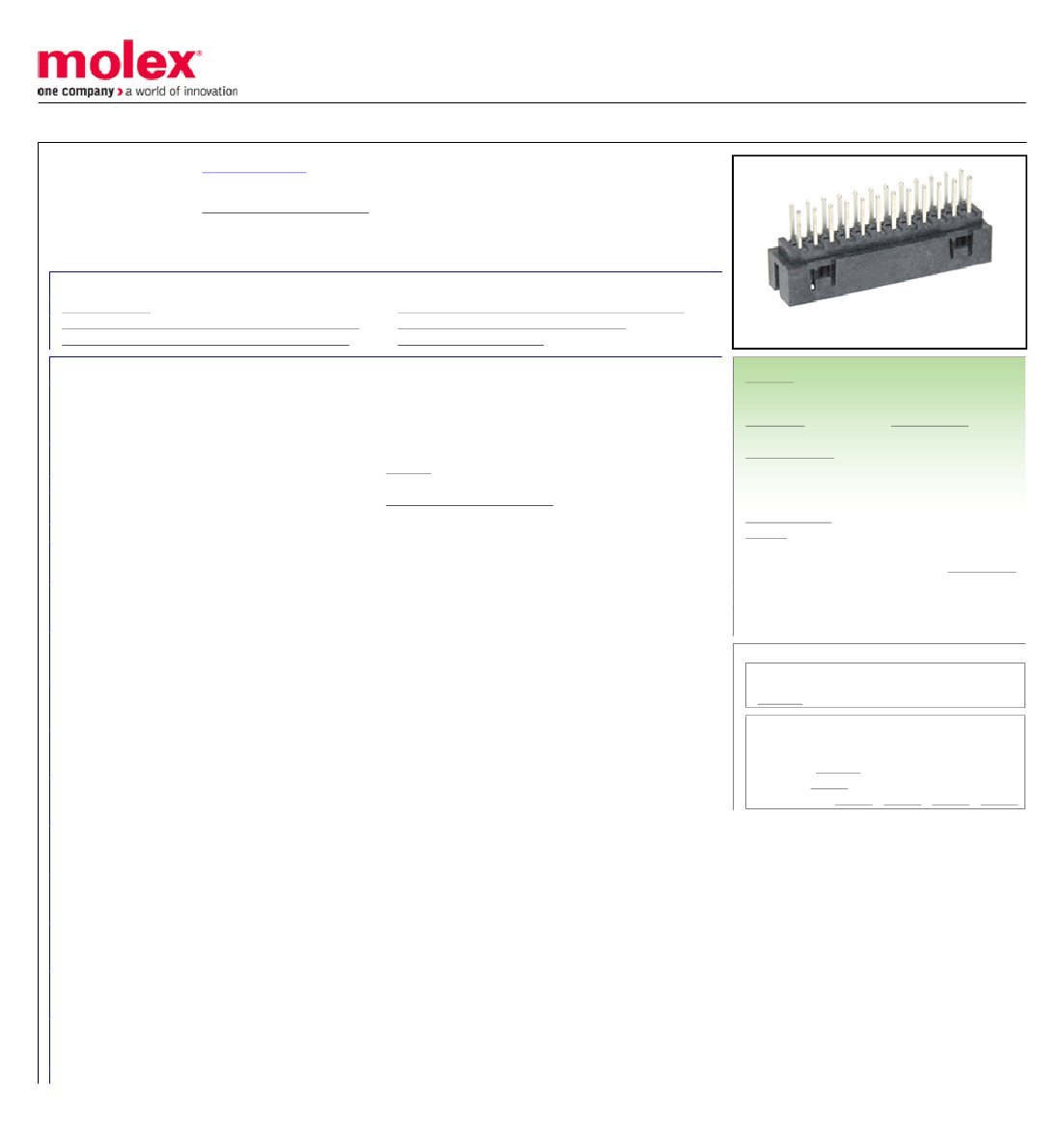

Preview

Download Datasheet

View All

This document was generated on 10/01/2018

PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION

Part Number:

Status:

Overview:

Description:

1511175560

Active

Milli-Grid Connector System

2.00mm Pitch Milli-Grid Header, Through Hole, Dual Row, Vertical, 0.05µm Gold (Au)

Plating, with Peg, 4.60mm PC Tail Length, with Pick and Place Cap, 10 Circuits, Low-

Halogen, Tube

Documents:

Drawing (PDF)

Product Specification PS-151117-0001-001 (PDF)

Packaging Specification PK-151117-0001 (PDF)

Agency Certification

CSA

General

Product Family

Series

Application

Overview

Product Literature Order No

Product Name

UPC

Physical

Breakaway

Circuits (Loaded)

Circuits (maximum)

Color - Resin

First Mate / Last Break

Flammability

Glow-Wire Capable

Guide to Mating Part

Keying to Mating Part

Lock to Mating Part

Material - Metal

Material - Plating Mating

Material - Plating Termination

Material - Resin

Net Weight

Number of Rows

Orientation

PC Tail Length

PCB Locator

PCB Retention

PCB Thickness - Recommended

Packaging Type

Pitch - Mating Interface

Pitch - Termination Interface

Plating min - Mating

Plating min - Termination

Polarized to Mating Part

Polarized to PCB

Shrouded

Stackable

Surface Mount Compatible (SMC)

Packaging Specification PK-151117-3000 (PDF)

RoHS Certificate of Compliance (PDF)

Product Literature (PDF)

Series image - Reference only

EU ELV

Compliant

EU RoHS

China RoHS

Compliant

REACH SVHC

Not Contained Per

-ED/01/2018 (15

January 2018)

Halogen-Free

Status

Low-Halogen

For more information, please visit Contact US

China ROHS

ELV

RoHS Phthalates

Green Image

Compliant

Not Contained

LR19980

E29179

PCB Headers

151117

Board-to-Board, Signal, Wire-to-Board

Milli-Grid Connector System

987651-5501

Milli-Grid

889056836630

Black

94V-0

Yes

None

Yes

Copper Alloy

Gold over Nickel

Tin over Nickel

Liquid Crystal Polymer

0.546/g

Vertical

4.60mm

Yes

3.60mm

Tube

2.00mm

0.050µm

2.000µm

Yes

Search Parts in this Series

151117 Series

Mates With

Milli-Grid Receptacle Housing (Low-

Halogen) 151192 <br>Milli-Grid Receptacle

Housing 51110 <br>Milli-Grid PCB

Receptacles 78787 , 78788 , 79107 , 79109
