501616-1940 datasheet, PDF - EEWORLD Datasheet

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > The connector> The connector> 501616-1940

Preview

501616-1940: DescriptionCard Edge Connector, 19 Contact(s), 1 Row(s), Female, Right Angle, 0.012 inch Pitch, Surface Mount Terminal, Black Insulator, ROHS COMPLIANT; CategoryThe connector The connector; File Size290KB，4 Pages; ManufacturerMolex; Websitehttps://www.molex.com/molex/home; Environmental Compliance

Download Datasheet Parametric Compare View All

501616-1940 Overview

Card Edge Connector, 19 Contact(s), 1 Row(s), Female, Right Angle, 0.012 inch Pitch, Surface Mount Terminal, Black Insulator, ROHS COMPLIANT

501616-1940 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Molex
package instruction	ROHS COMPLIANT
Reach Compliance Code	unknown
ECCN code	EAR99
Other features	ZIF
Board mount options	FITTING NAIL
body width	0.043 inch
subject depth	0.136 inch
body length	0.299 inch
Connector type	FFC/FPC CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact point gender	FEMALE
Contact material	NOT SPECIFIED
contact mode	RECTANGULAR
Contact resistance	80 mΩ
DIN compliance	NO
Dielectric withstand voltage	125VAC V
Durability	10 Cycles
Filter function	NO
IEC compliance	NO
maximum insertion force	ZIF N
Insulation resistance	50000000 Ω
Insulator color	BLACK
insulator material	POLYMER
MIL compliance	NO
Plug contact pitch	0.012 inch
Mixed contacts	NO
Installation method	RIGHT ANGLE
Installation type	BOARD
PCB row number	2
Number of rows loaded	1
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Options	GENERAL PURPOSE
PCB contact pattern	STAGGERED
PCB contact row spacing	2.921 mm
Plating thickness	4u inch
Rated current (signal)	0.2 A
Guideline	UL
reliability	COMMERCIAL
Terminal pitch	0.3 mm
Termination type	SURFACE MOUNT
Total number of contacts	19
UL Flammability Code	94V-0
Evacuation force-minimum value	ZIF N

Preview

Download Datasheet

View All

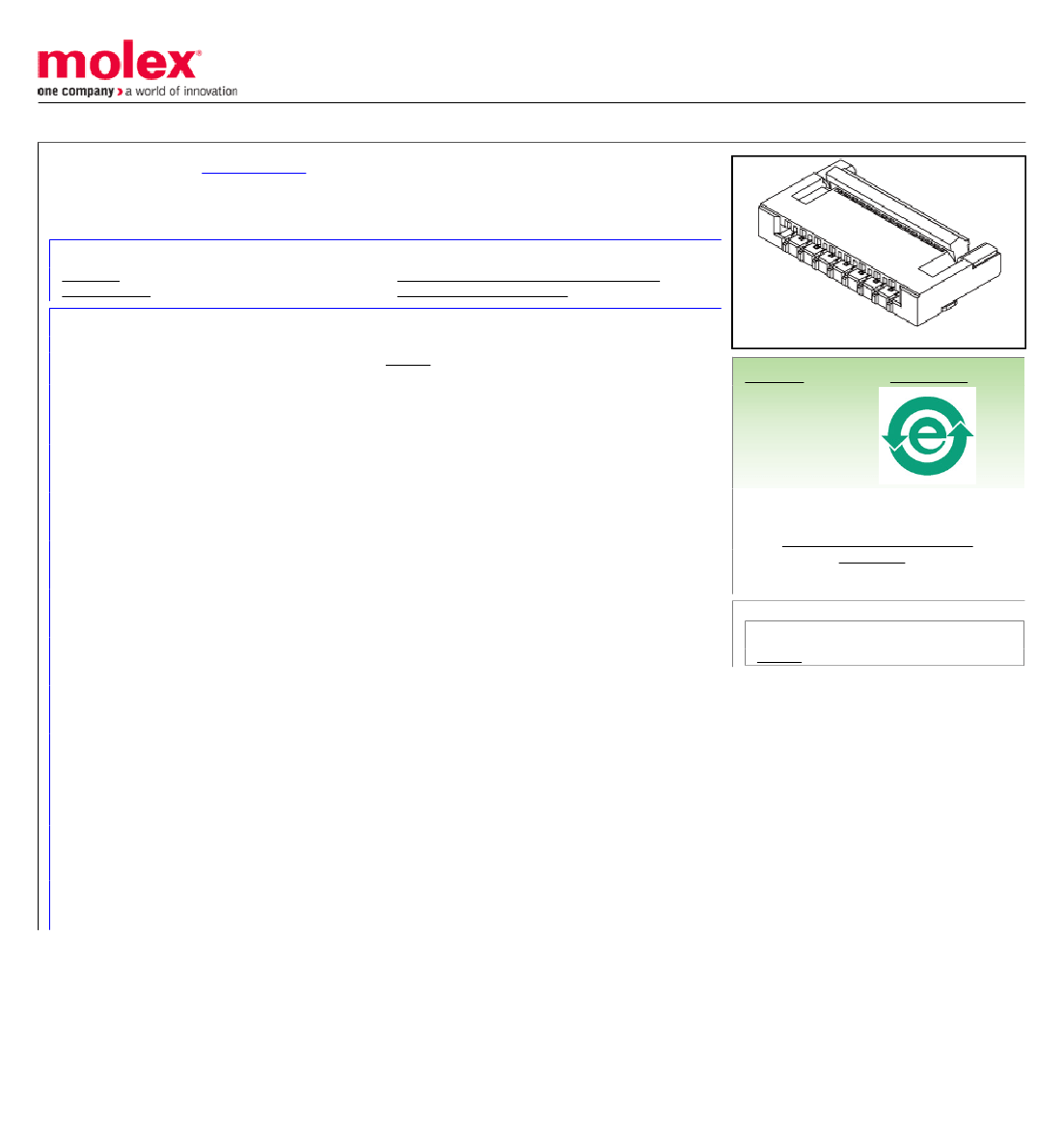

This document was generated on 01/07/2009

PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION

Part Number:

Status:

Description:

5016162975

Active

0.30mm (.012") Pitch Easy-On™ Type FPC Connector, 1.10mm (.043") Mated Height,

Right Angle, SMT, ZIF, Top Contact Style, 29 Circuits, Lead-free

Documents:

3D Model

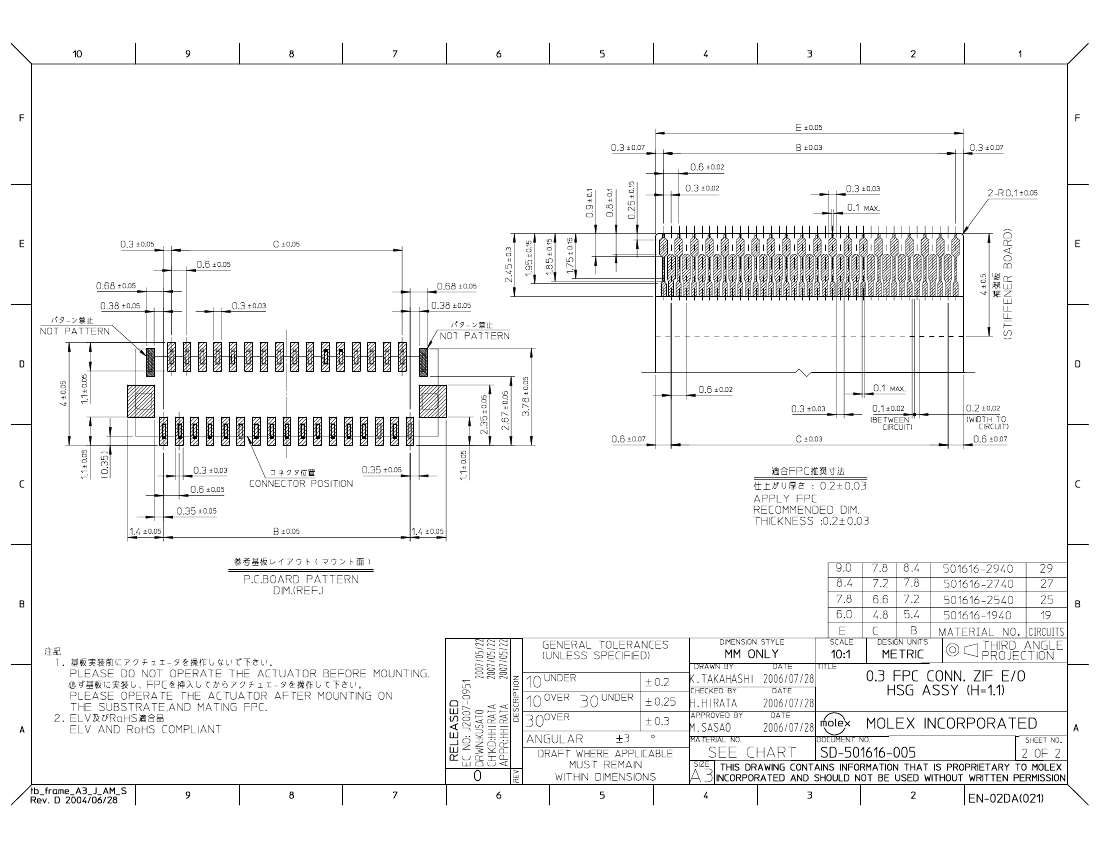

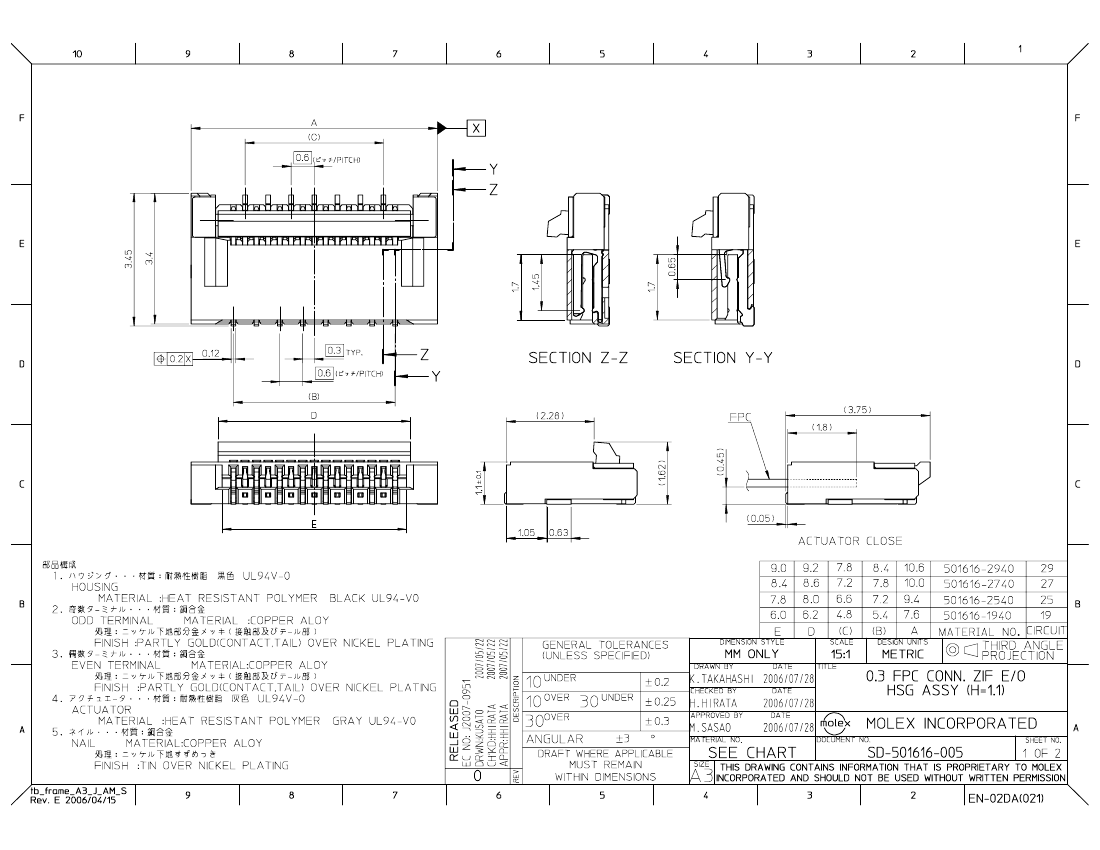

Drawing (PDF)

General

Product Family

Series

Product Name

Physical

Circuits (Loaded)

Color - Resin

Contact Position

Durability (mating cycles) min

Entry Angle

Mated Height (in)

Mated Height (mm)

Material - Metal

Material - Plating Mating

Number of Rows

Orientation

PCB Locator

PCB Retention

Packaging Type

Pitch - Mating Interface (in)

Pitch - Mating Interface (mm)

Polarized to PCB

Stackable

Temperature Range - Operating

Termination Interface: Style

Wire/Cable Type

Electrical

Current - Maximum

Voltage - Maximum

Material Info

Reference - Drawing Numbers

Product Specification

Sales Drawing

Product Specification PS-501616-002 (PDF)

Related Catalog Page (PDF)

FFC/FPC Connectors

501616

Easy-On™

29

Black

Gray

Top

10 cycles

90° Angle

0.043 In

1.10 mm

Copper Alloy

Gold

1

Right Angle

No

Yes

Embossed Tape on Reel

0.012 In

0.30 mm

Yes

No

-40°C to +85°C

Surface Mount

FPC only

0.200 Amp

50V AC(RMS)/DC

Series image - Reference only

EU RoHS

ELV and RoHS

Compliant

China RoHS

Need more information on product

environmental compliance?

Email productcompliance@molex.com

Please visit the Contact Us section for any

non-product compliance questions.

Search Parts in this Series

501616 Series

PS-501616-002

SD-501616-005

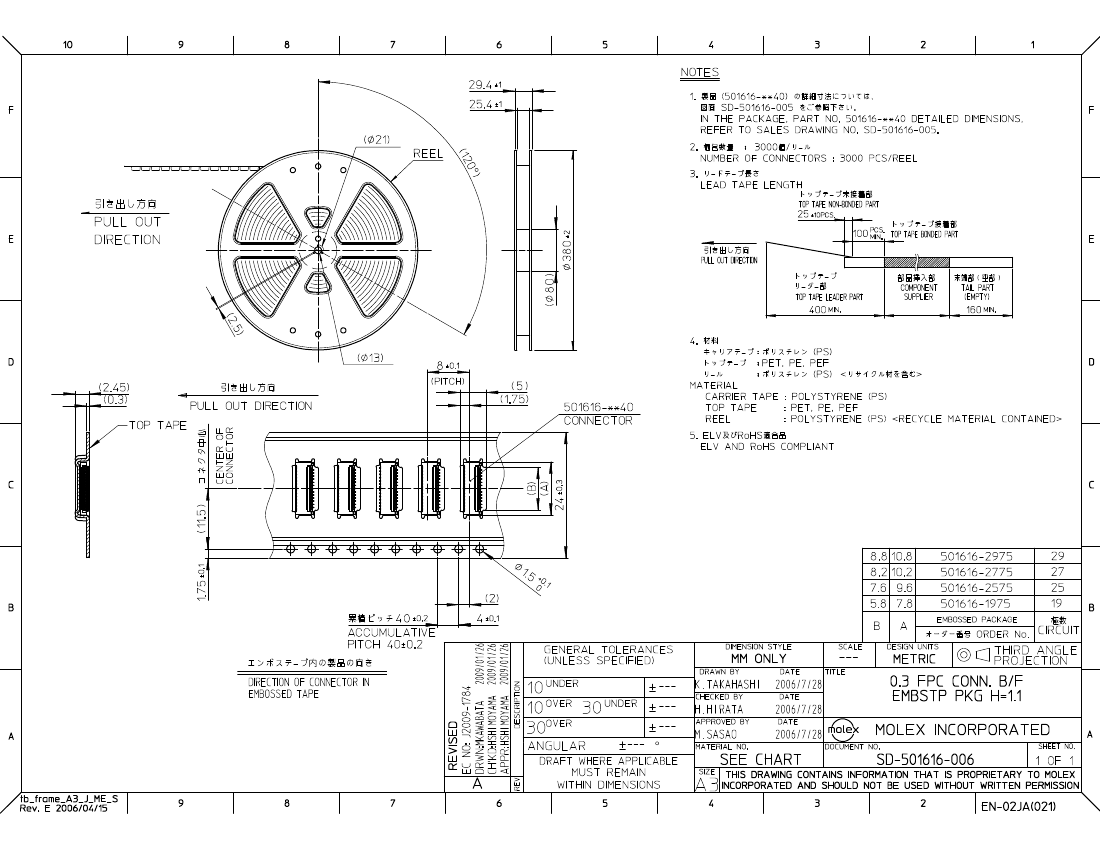

SD-501616-006

This document was generated on 01/07/2009

PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION

501616-1940 Related Products

	501616-1940	501616-2740	501616-2940	501616-2540
Description	Card Edge Connector, 19 Contact(s), 1 Row(s), Female, Right Angle, 0.012 inch Pitch, Surface Mount Terminal, Black Insulator, ROHS COMPLIANT	Card Edge Connector, 27 Contact(s), 1 Row(s), Female, Right Angle, 0.012 inch Pitch, Surface Mount Terminal, Black Insulator, ROHS COMPLIANT	Card Edge Connector, 29 Contact(s), 1 Row(s), Female, Right Angle, 0.012 inch Pitch, Surface Mount Terminal, Black Insulator, ROHS COMPLIANT	Card Edge Connector, 25 Contact(s), 1 Row(s), Female, Right Angle, 0.012 inch Pitch, Surface Mount Terminal, Black Insulator, ROHS COMPLIANT
Is it lead-free?	Lead free	Lead free	Lead free	Lead free
Is it Rohs certified?	conform to	conform to	conform to	conform to
package instruction	ROHS COMPLIANT	ROHS COMPLIANT	ROHS COMPLIANT	ROHS COMPLIANT
Reach Compliance Code	unknown	unknown	unknown	unknown
ECCN code	EAR99	EAR99	EAR99	EAR99
Other features	ZIF	ZIF	ZIF	ZIF
Board mount options	FITTING NAIL	FITTING NAIL	FITTING NAIL	FITTING NAIL
body width	0.043 inch	0.043 inch	0.043 inch	0.043 inch
subject depth	0.136 inch	0.136 inch	0.136 inch	0.136 inch
body length	0.299 inch	0.394 inch	0.417 inch	0.37 inch
Connector type	FFC/FPC CONNECTOR	FFC/FPC CONNECTOR	FFC/FPC CONNECTOR	FFC/FPC CONNECTOR
Contact to complete cooperation	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
Contact point gender	FEMALE	FEMALE	FEMALE	FEMALE
Contact material	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
contact mode	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Contact resistance	80 mΩ	80 mΩ	80 mΩ	80 mΩ
DIN compliance	NO	NO	NO	NO
Dielectric withstand voltage	125VAC V	125VAC V	125VAC V	125VAC V
Durability	10 Cycles	10 Cycles	10 Cycles	10 Cycles
Filter function	NO	NO	NO	NO
IEC compliance	NO	NO	NO	NO
maximum insertion force	ZIF N	ZIF N	ZIF N	ZIF N
Insulation resistance	50000000 Ω	50000000 Ω	50000000 Ω	50000000 Ω
Insulator color	BLACK	BLACK	BLACK	BLACK
insulator material	POLYMER	POLYMER	POLYMER	POLYMER
MIL compliance	NO	NO	NO	NO
Plug contact pitch	0.012 inch	0.012 inch	0.012 inch	0.012 inch
Mixed contacts	NO	NO	NO	NO
Installation method	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE
Installation type	BOARD	BOARD	BOARD	BOARD
PCB row number	2	2	2	2
Number of rows loaded	1	1	1	1
Maximum operating temperature	85 °C	85 °C	85 °C	85 °C
Minimum operating temperature	-40 °C	-40 °C	-40 °C	-40 °C
Options	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE
PCB contact pattern	STAGGERED	STAGGERED	STAGGERED	STAGGERED
PCB contact row spacing	2.921 mm	2.921 mm	2.921 mm	2.921 mm
Plating thickness	4u inch	4u inch	4u inch	4u inch
Rated current (signal)	0.2 A	0.2 A	0.2 A	0.2 A
Guideline	UL	UL	UL	UL
reliability	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL
Terminal pitch	0.3 mm	0.3 mm	0.3 mm	0.3 mm
Termination type	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT
Total number of contacts	19	27	29	25
UL Flammability Code	94V-0	94V-0	94V-0	94V-0
Evacuation force-minimum value	ZIF N	ZIF N	ZIF N	ZIF N
