SPC58xN
32-bit Power Architecture
®
microcontroller for automotive ASIL-D
and security applications
Data brief
LFBGA292 (17 x 17 x 1.7 mm)
eLQFP176 (24 x 24 x 1.4 mm)
Features
AEC-Q100 qualified
32-bit Power Architecture VLE compliant CPU
cores:
– Five enhanced main e200z4256n3 cores,
dual issue, two paired in lockstep
– Floating Point, End-to-End Error Correction
6576 KB (6288 KB code flash + 288 KB data
flash) on-chip flash memory:
– supports read during program and erase
operations, and multiple blocks allowing
EEPROM emulation
– Supports read while read between the two
code Flash partitions.
128 KB on-chip general-purpose SRAM (in
addition to 384 KB included in the CPUs)
96-channel direct memory access controller
(eDMA)
Comprehensive new generation ASIL-D safety
concept
– ASIL-D of ISO 26262
– FCCU for collection and reaction to failure
notifications
– Memory Error Management Unit (MEMU)
for collection and reporting of error events
in memories
– Cyclic redundancy check (CRC) unit
Junction temperature range -40 °C to 165 °C
Dual-channel FlexRay controller
Hardware Security Module (HSM)
GTM344 - generic timer module
– Intelligent complex timer module
– 144 channels (48 input and 96 output)
– 5 programmable fine grain multi-threaded
cores
– 61 KB of dedicated RAM
– 24-bit wide channels
Enhanced analog-to-digital converter system
with:
– 1 supervisor 12-bit SAR analog converter
– 2 separate 10-bit SAR analog converter
– 4 separate fast 12-bit SAR analog
converters
– 6 separate 16-bit Sigma-Delta analog
converter with programmable decimation
filters
SAR ADC Queued digital interfaces for
individual channel ordering and command
sequencing
Communication interfaces
– 7 LINFlexD modules
– 8 deserial serial peripheral interface (DSPI)
modules
– 7 modular controller area network (MCAN)
modules, and one time-triggered controller
area network (M-TTCAN), all supporting
flexible data rate (ISO CAN-FD)
One Ethernet controller 10/100 Mbps,
compliant IEEE 802.3-2008
Flexible Power Supply options:
– External Regulators (1.2 V core, 3.3 V -
5 V IO)
– Single internal SMPS regulator
Nexus development interface (NDI) per
IEEEISTO 5001-2003 standard, with some
support for 2010 standard
Boot assist Flash (BAF) supports factory
programming using a serial bootload through
the asynchronous CAN or LIN/UART
January 2020
DB2680 Rev 2
1/9
www.st.com
For further information contact your local STMicroelectronics sales office.
SPC58 N line main benefits
SPC58xN
2

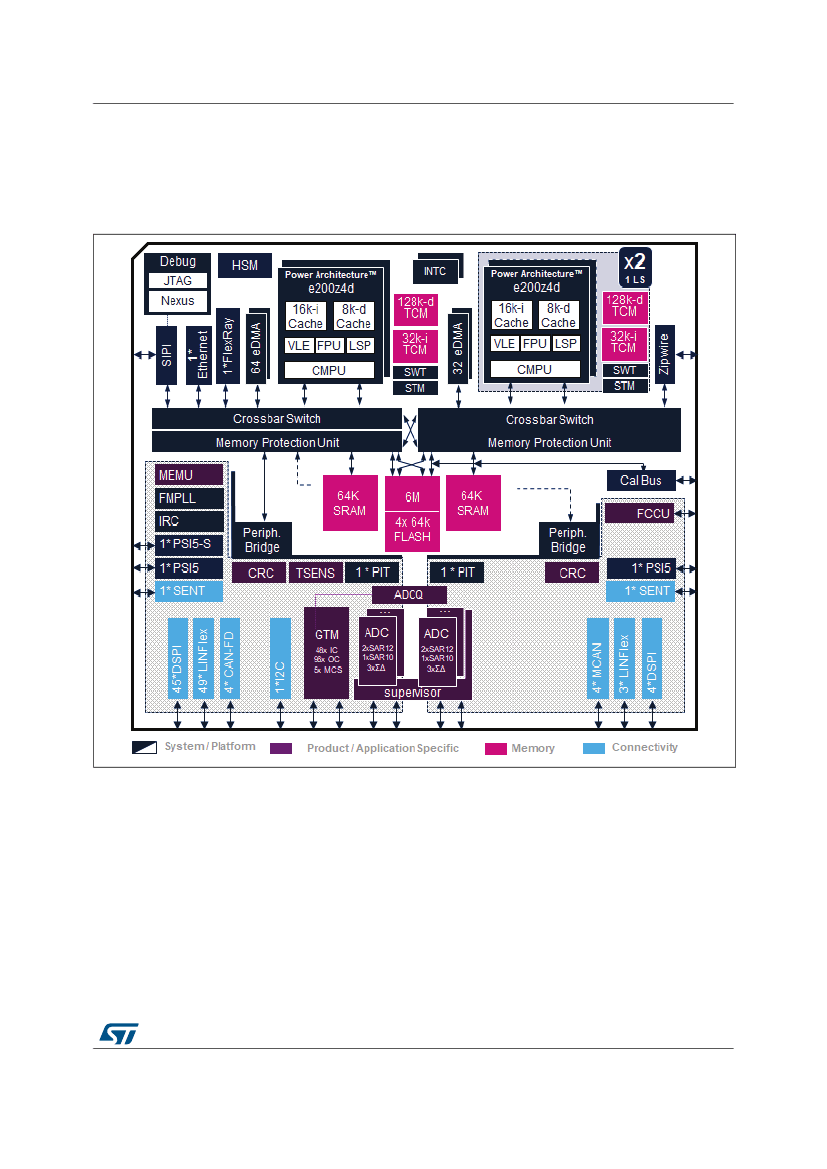

SPC58 N line main benefits
The SPC58 N line family system benefits are the followings:
Optimized platform architecture (dedicated Multi-cores, Local memories, etc...) for
best-in-class system performance MCU
True ASIL-D Safety Element out of Context (SEooC) concept relying on HW measures
for reduced SW overhead
Generic Timer Module (GTM) optimized for Powertrain use while minimizing CPU load
Hardware Security Module (HSM)
Hardware Sensor Interface (SENT, PSI5)
Enhanced Communication (LFAST, Ethernet, Micro Second Bus (MSB), etc...)
Increased high dynamic signals acquisition through SD-ADC
Innovative built-in concept allowing on-chip emulation with production-compatible
package (176-pin eLQFP and 292-pin LFBGA)
